Box Gutter

dynaclad-logosmall

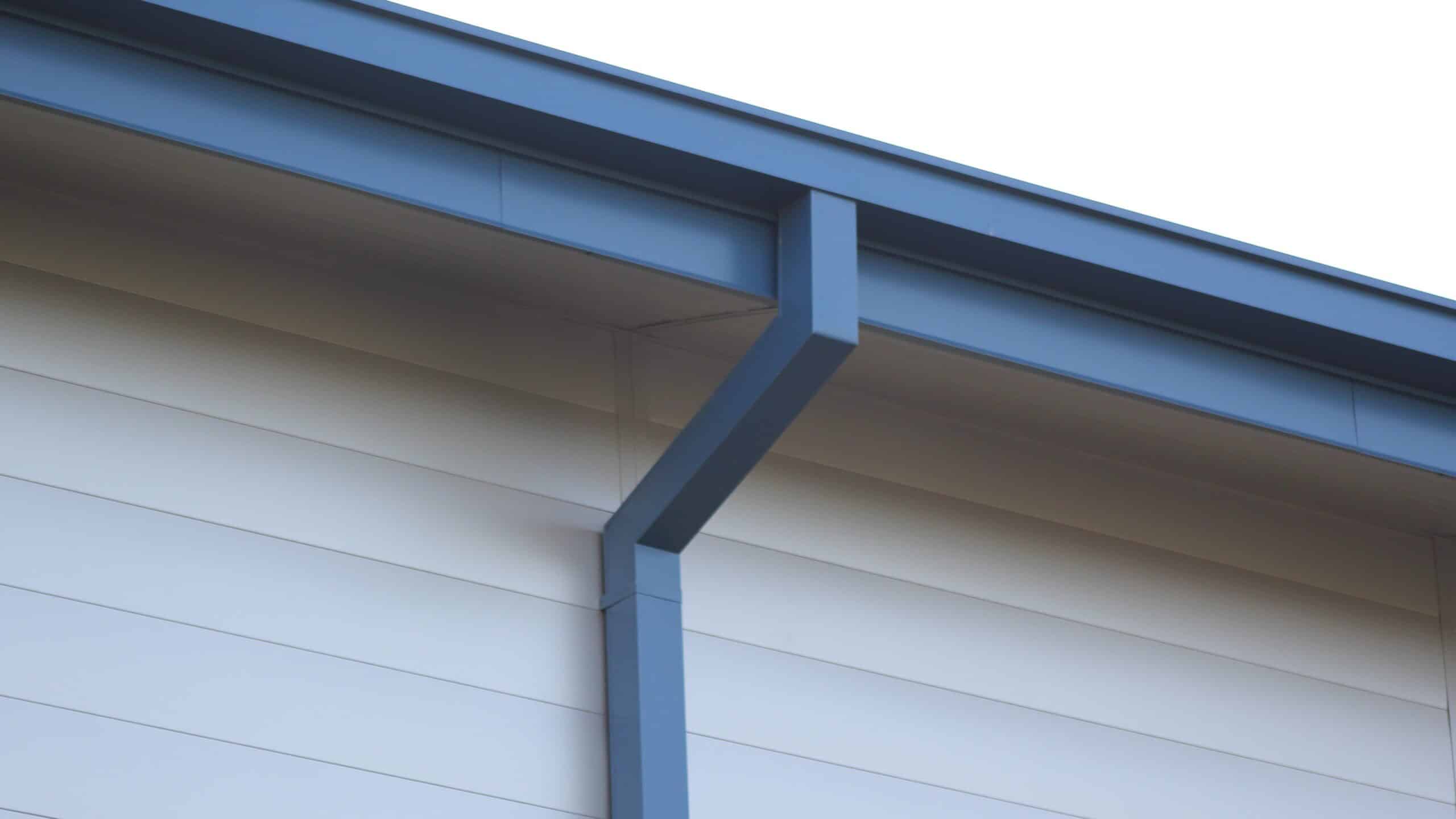

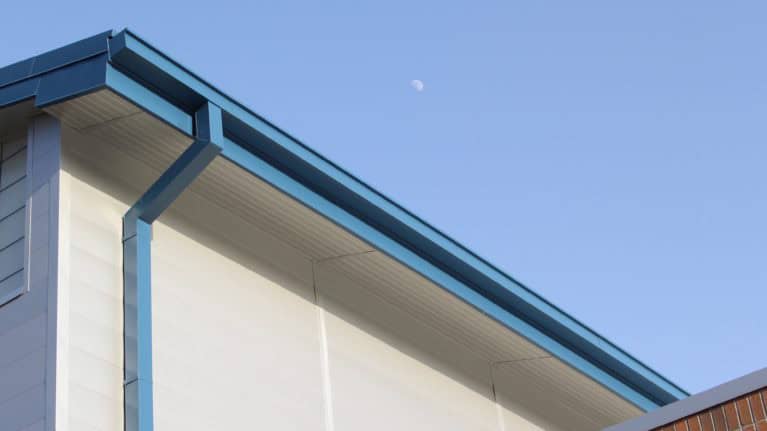

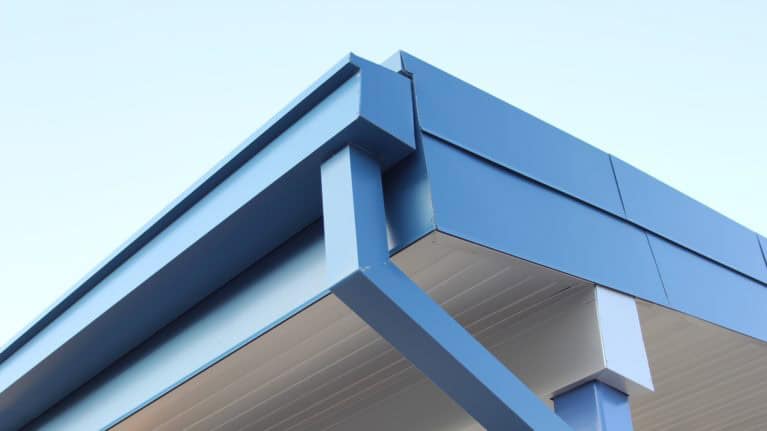

DMI’s Box Gutter is available in Galvalume®, aluminum, stainless steel, and copper. DMI offers a full line of accessories including internal gutter support brackets, custom under brackets, mitered corners, end caps, splice plates, expansion joints, outlets, downspouts, elbows, and downspout straps. DMI offers our box gutter in six standard SMACNA profiles (see profiles tab below). Custom profiles are also available. Available in up to 32′-0″ lengths.


Finish
DynaClad® 70% Full Strength PVDF Paint Finish, Natural Copper or Stainless Steel

Colors
Choice of over 32 Colors for Galvalume® and Aluminum


DOWNLOAD BOX GUTTER CUT SHEET


Order forms can be found in tabs below

Manage and download this product's documents with Submittal Builder
Free to registered users.

Login/Register

Product Offerings

Offered in a large variety of materials and colors.

  • Galvalume® (22 ga. & 24 ga.) – See our color chart for standard color offering
  • HDG-90 (20 ga.)
  • Stainless Steel (22 ga. & 24 ga.)
  • Aluminum (.050, .040, & .032) – See our color chart for standard color offering
  • Copper (20 oz. & 16 oz.)

Profiles

Find the right profile for your project.

Order Forms

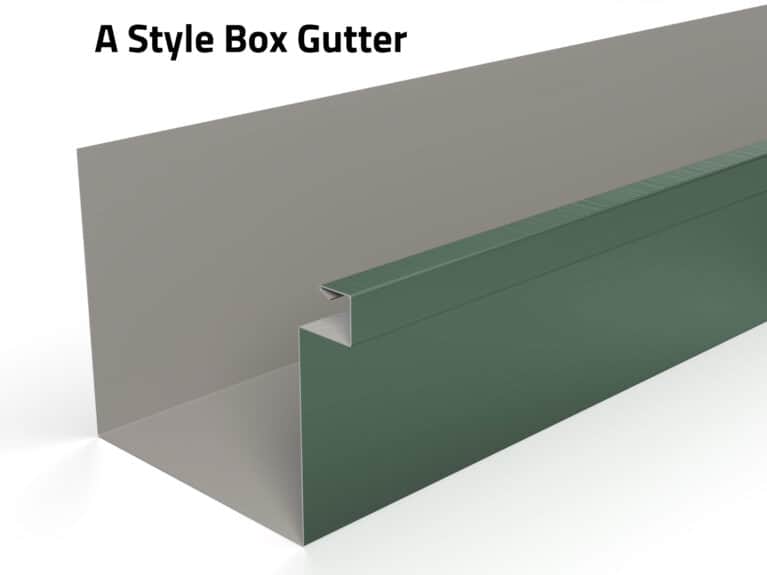

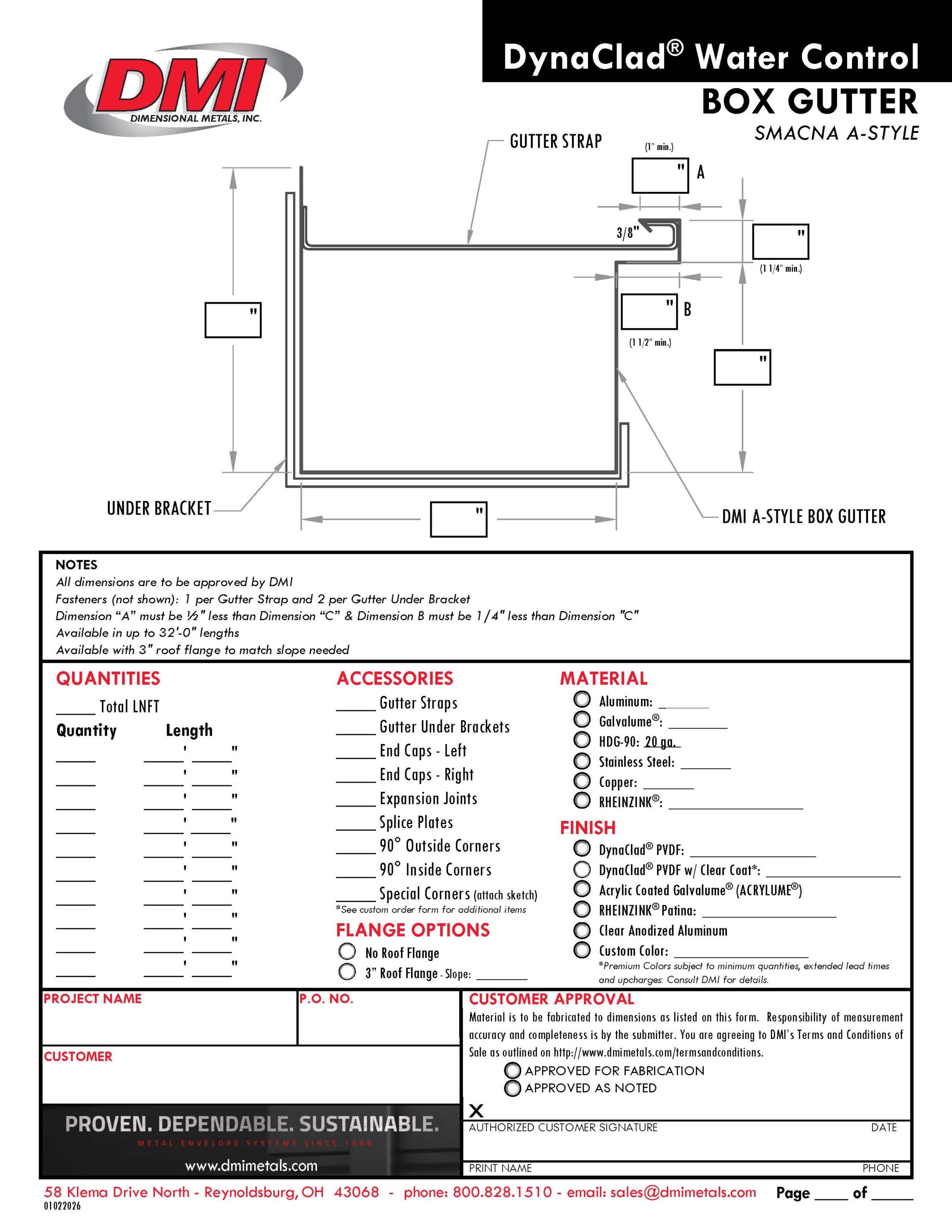

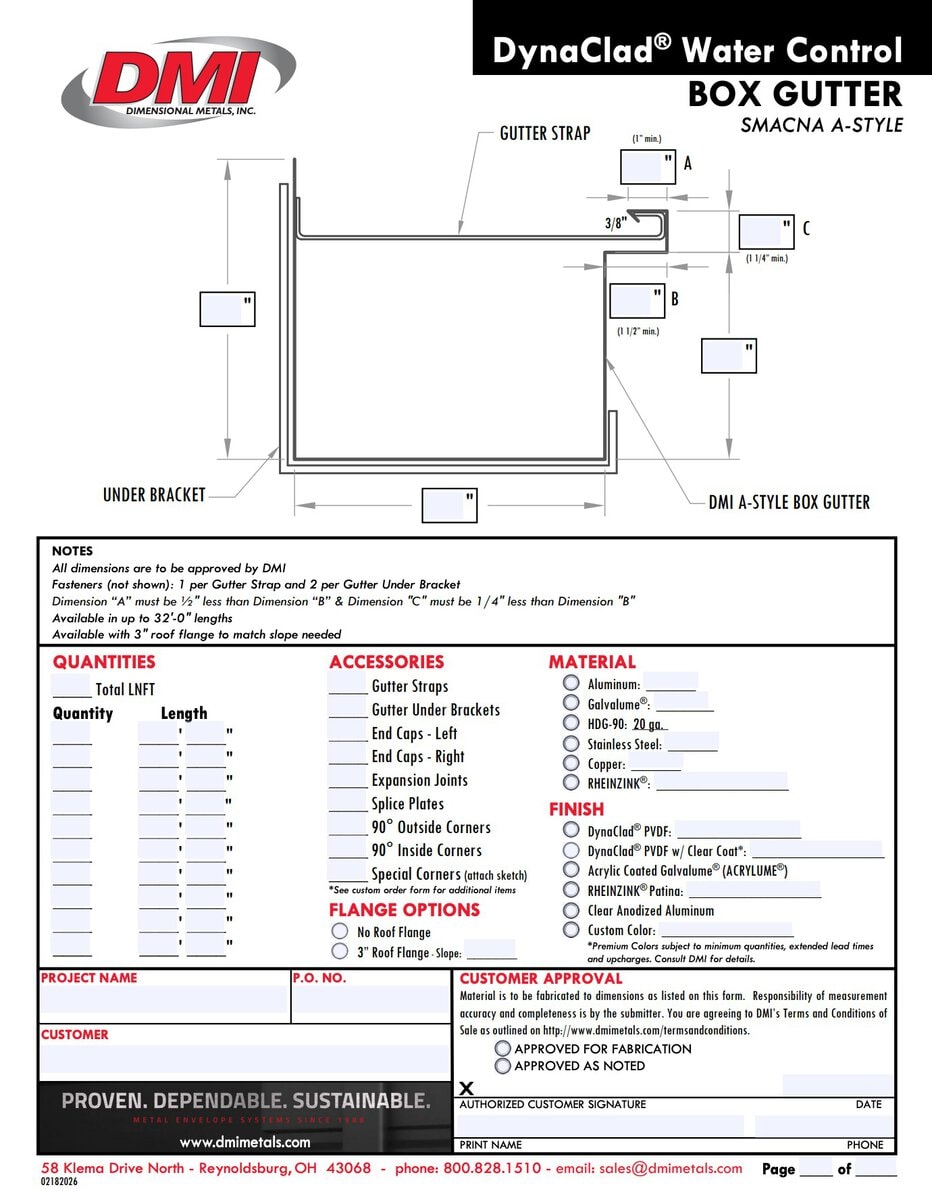

A Style Box Gutter – Order Form

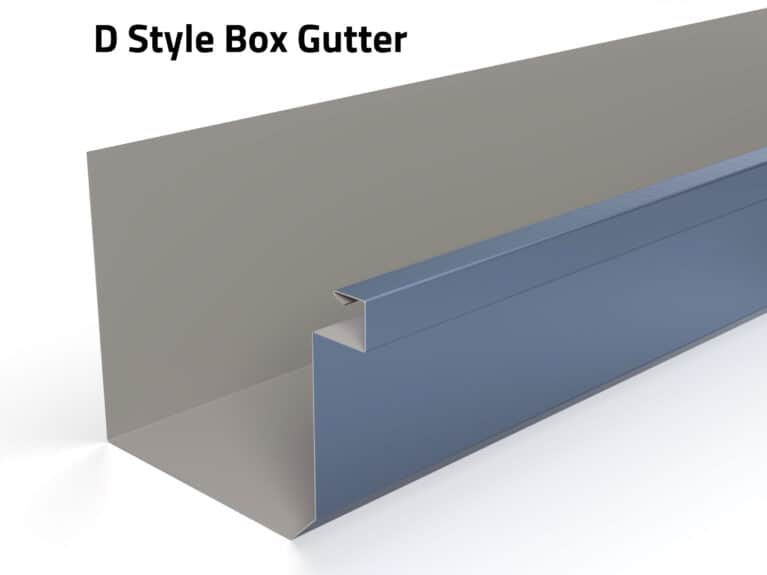

D Style Box Gutter – Order Form

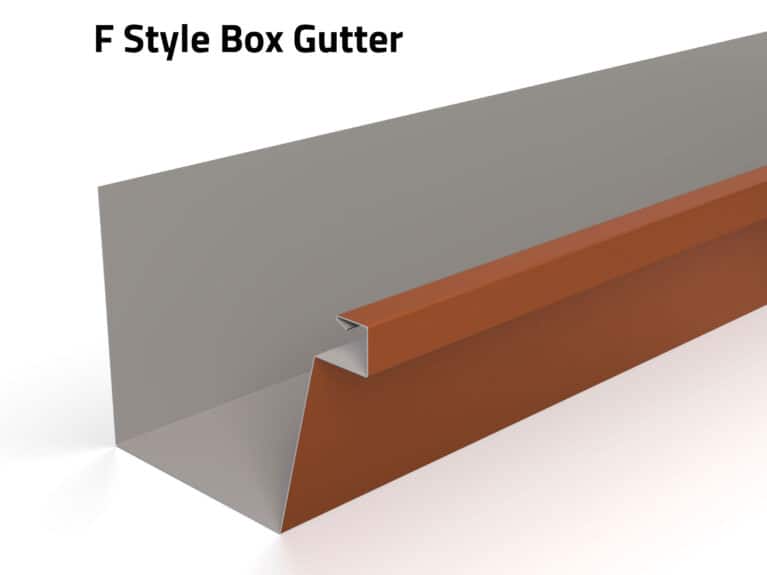

F Style Box Gutter – Order Form

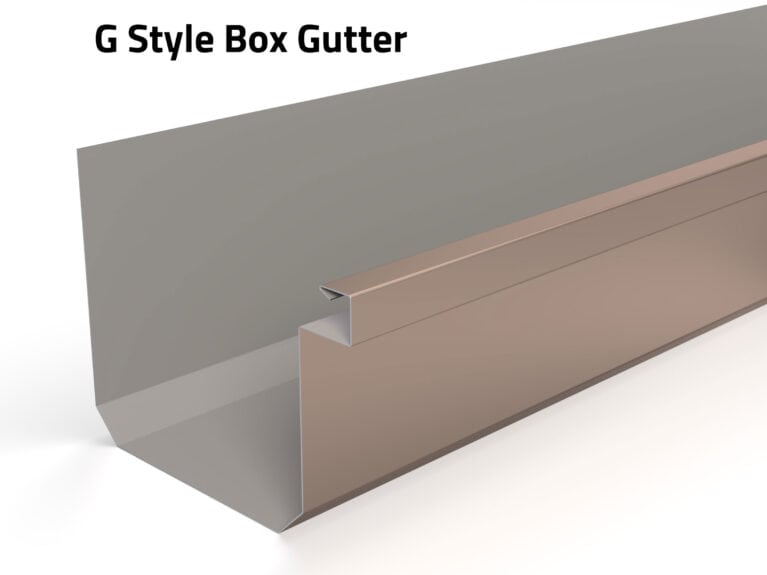

G Style Box Gutter – Order Form



H Style Box Gutter – Order Form

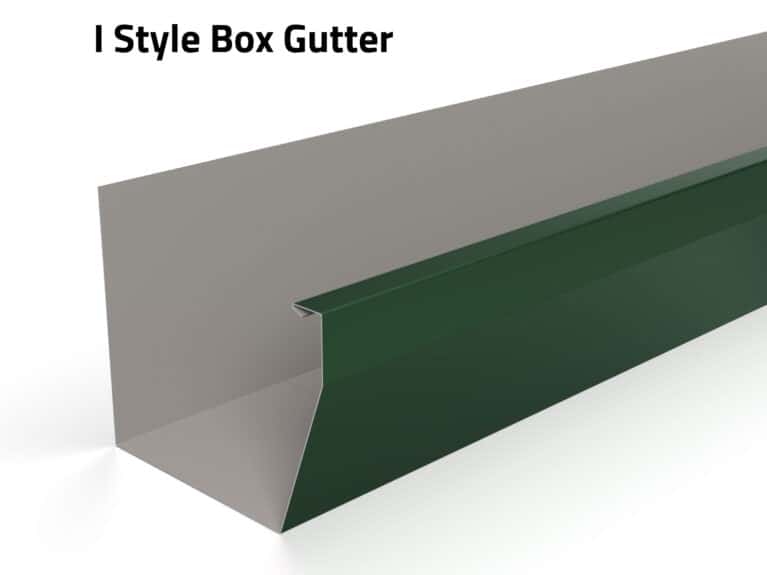

I Style Box Gutter – Order Form



Custom Box Gutter Order Form

Description

All You Need To Know About Commercial Box Gutter Systems

Installing and maintaining the right rain gutter is important to any commercial business, and different types of gutter work better for different types of properties. One of the most popular choices over the years has been the traditional commercial box gutter.

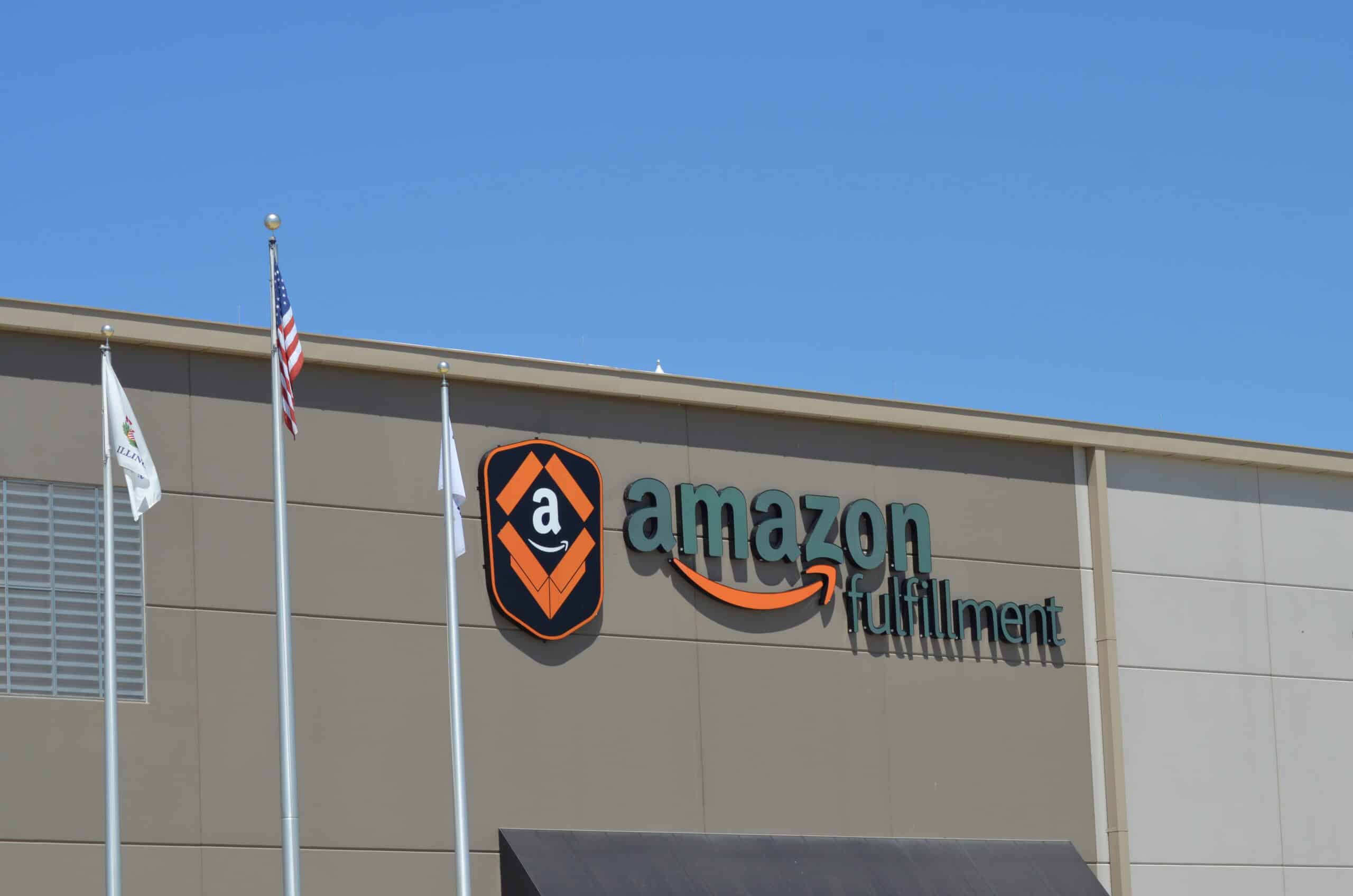

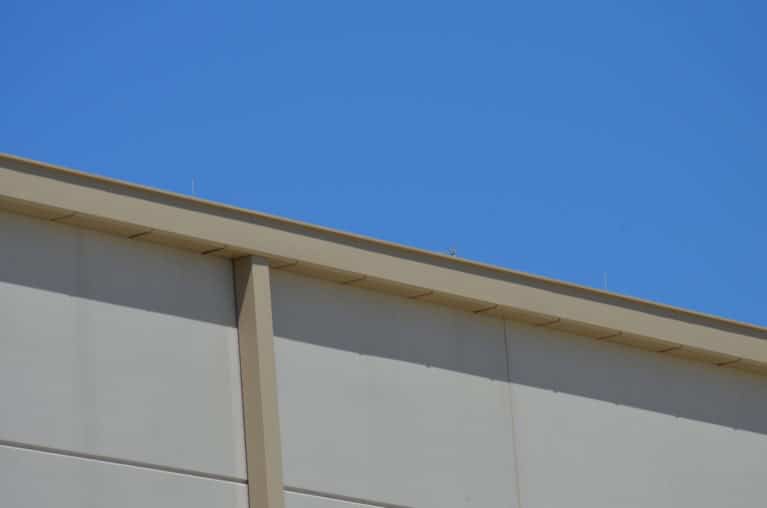

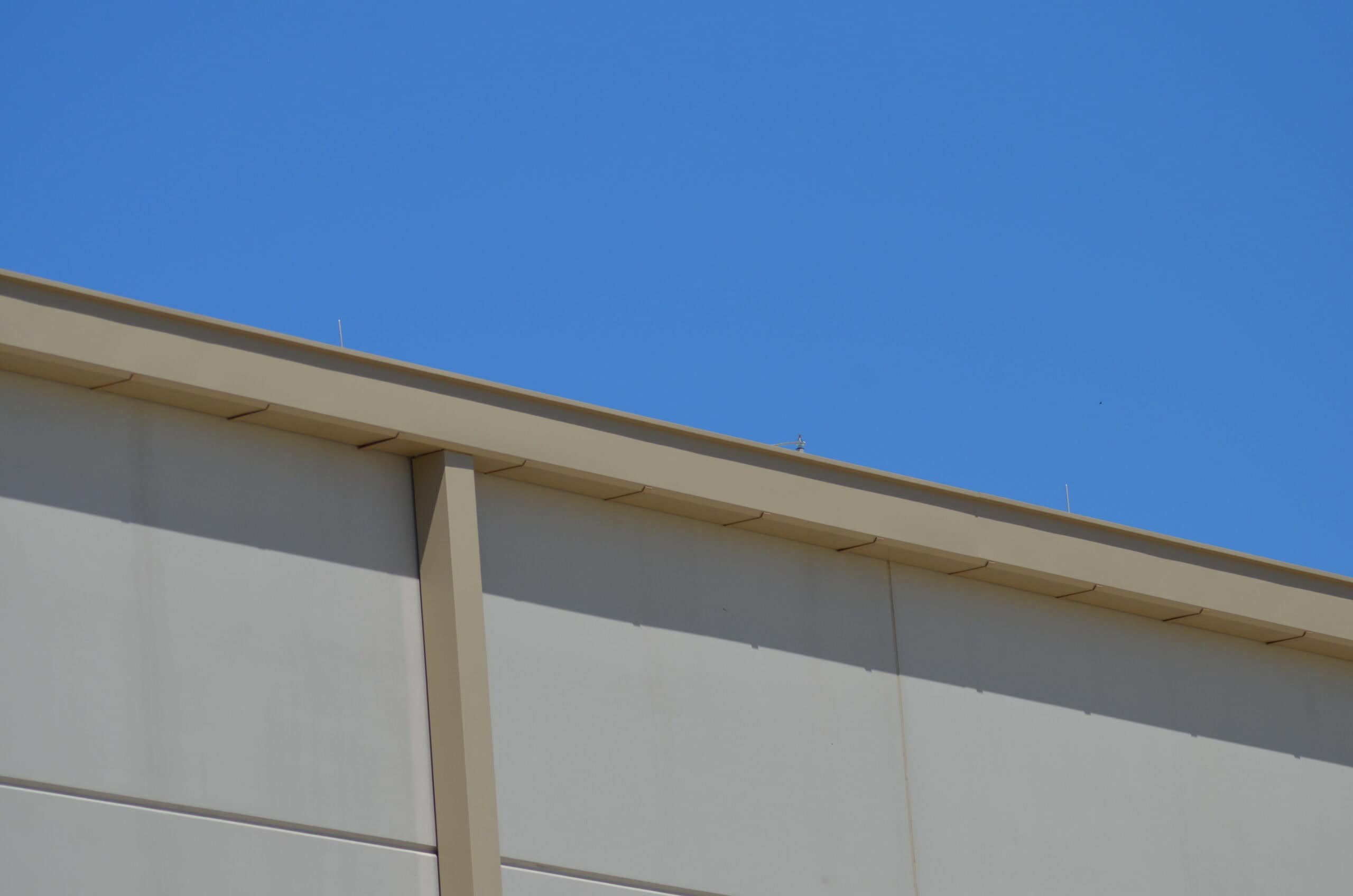

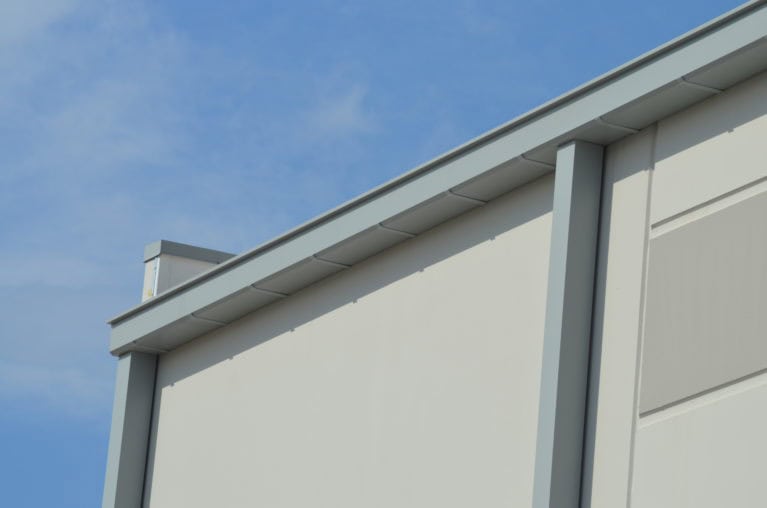

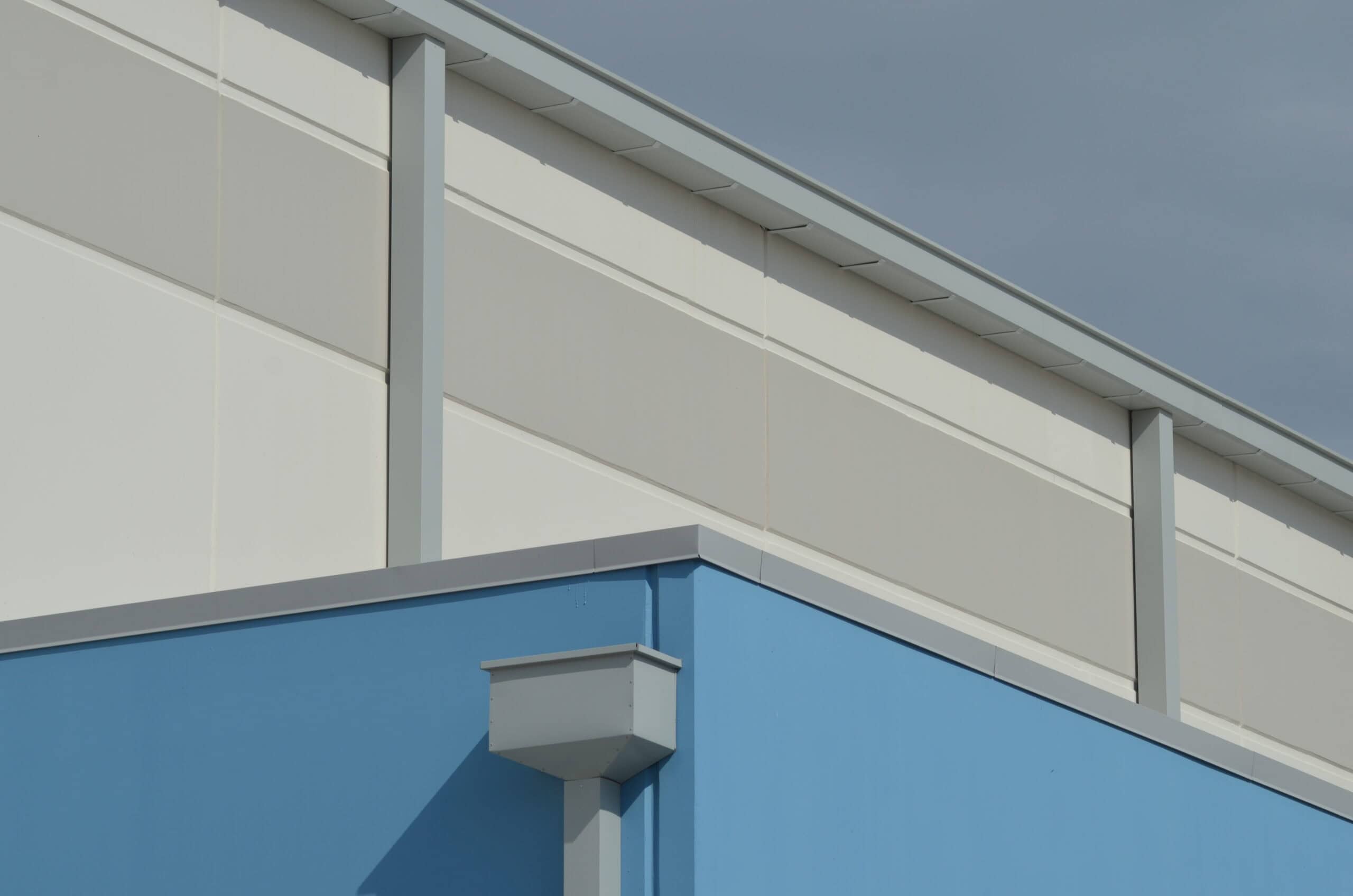

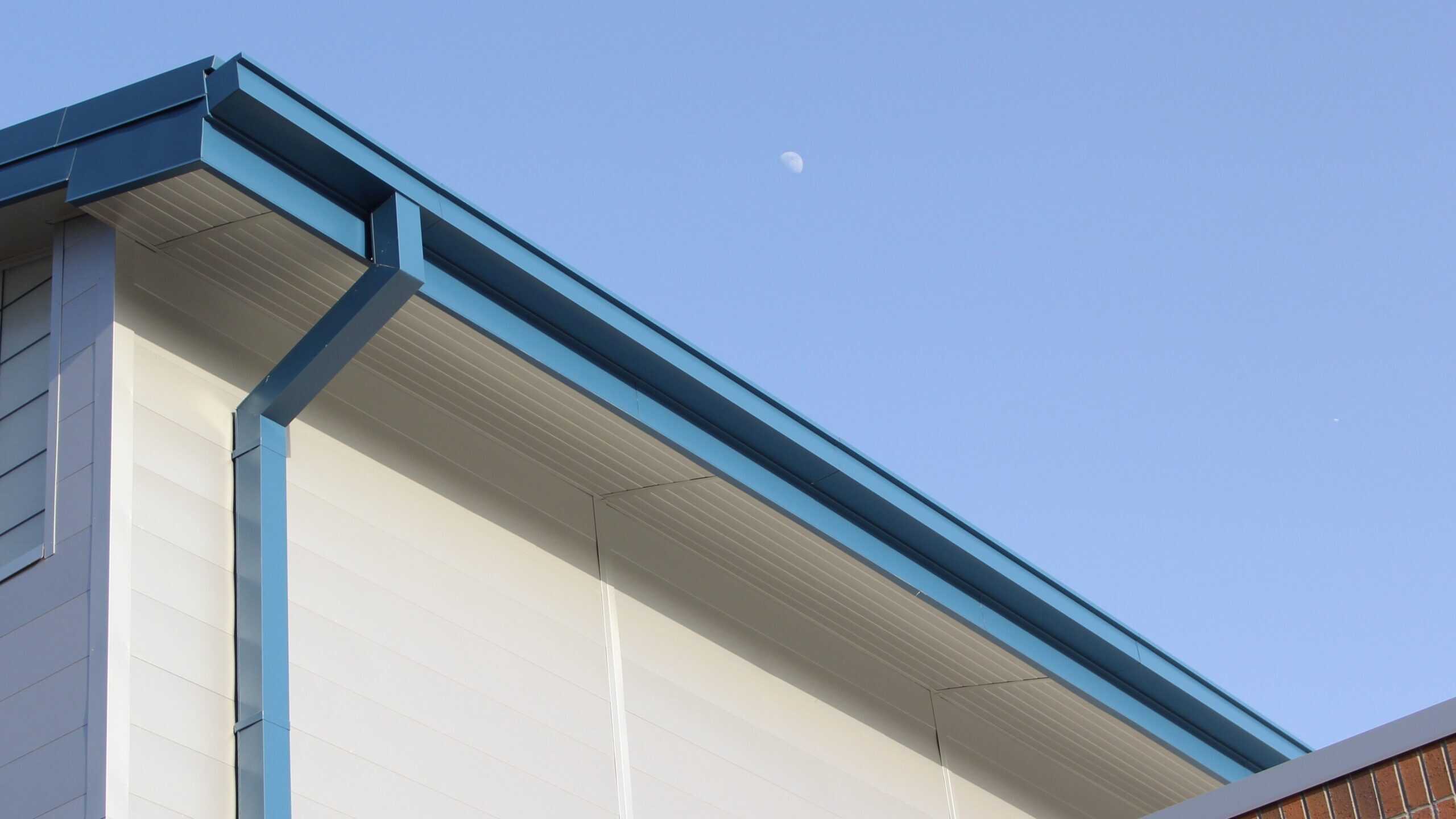

Commercial box gutter can be used on many types of buildings. Large box gutter systems are often seen on buildings that have flat roofs and parapet walls.

This system gets its name from its shape and placement on the edge of the roof which runs around the perimeter. Because of their esthetic value, box gutter systems are the go-to solution when renovating historic establishments or constructing large buildings for big businesses. Their shape and size allow them to effectively transport large amounts of water.

Specifics of Box Gutter Systems

Materials

Galvalume® and aluminum are the most common materials used to manufacture box gutter systems. Other available materials are copper, stainless steel, Acrylume®, and HDG-90.

Size

Box Gutter Systems vary in size depending on the building’s needs. The ability of box gutters to carry large amounts of water is one of the primary reasons you see them on the outside of big company buildings. Requirements for gutter size are based on the total area of the roof, and rainfall averages in the location of the building.

Profile

Box Gutter Systems can be quite versatile with its profile. DMI offers six standard SMACNA profiles as well as the option for a custom profile in lengths up to 32’. We also offer our Continuous Gutter in lengths up to 52’. These long runs of gutter can help reduce installation costs by reducing the number of seams needed with longer runs.

SMACNA Box Gutters

Available in over 32 colors for Galvalume® and Aluminum, our box gutters are made from:

  • Galvalume® (22 ga. and 24 ga.)
  • HDG-90 (20 ga.)
  • Aluminum (.50, .040, and .032)
  • Stainless Steel (22 ga. and 24 ga.)
  • Copper (20 oz. and 16 oz.)

(Size and profile can affect material availability)

In addition, DMI offers a full line of accessories for any gutter system including custom under brackets, gutter support brackets, mitered corners, splice plates, end caps, outlets, expansion joints, elbows, and downspouts.

If you want to more about our gutter systems or more about how our architectural sheet metal can enhance your building construction, contact us today.
