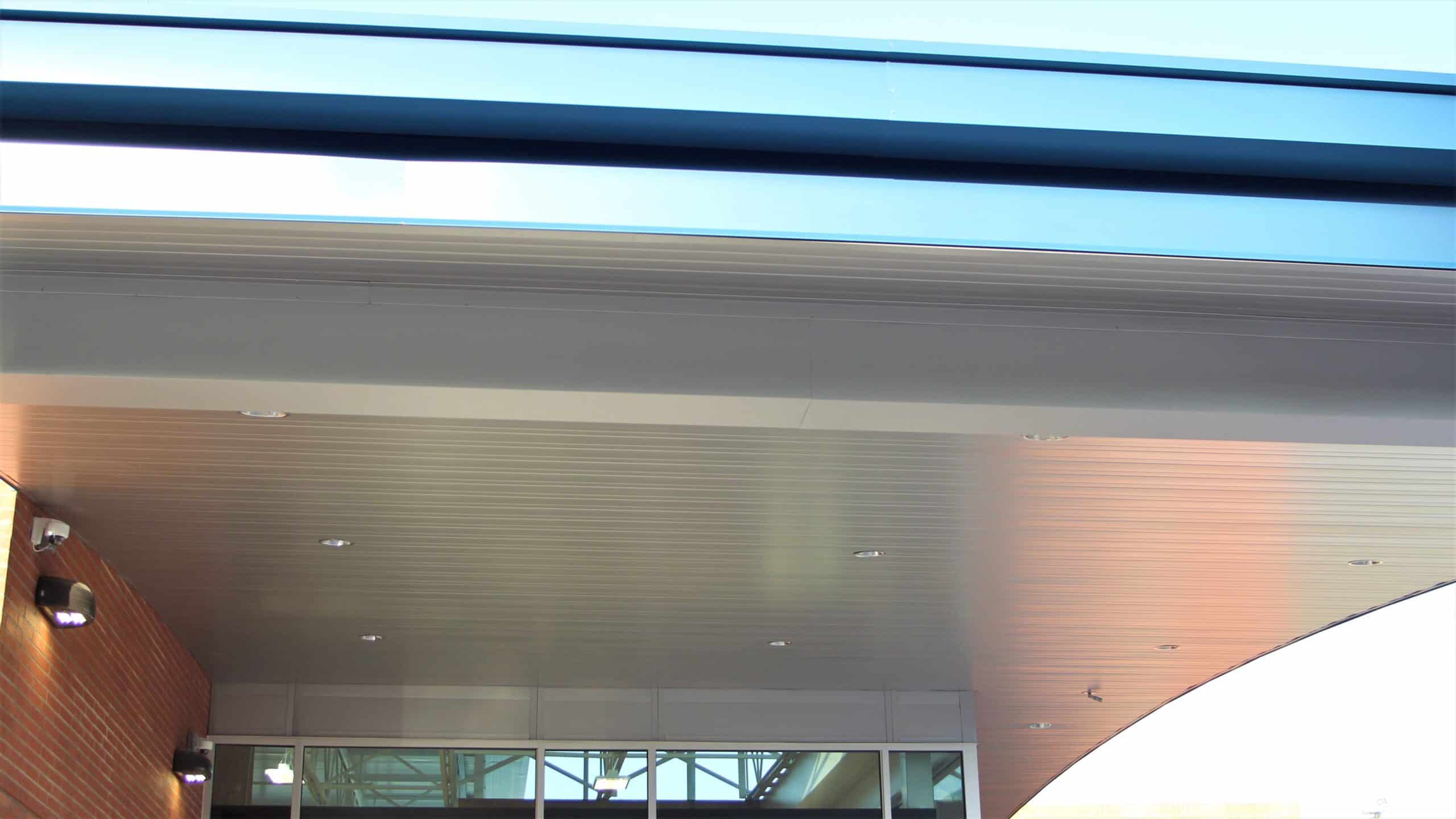

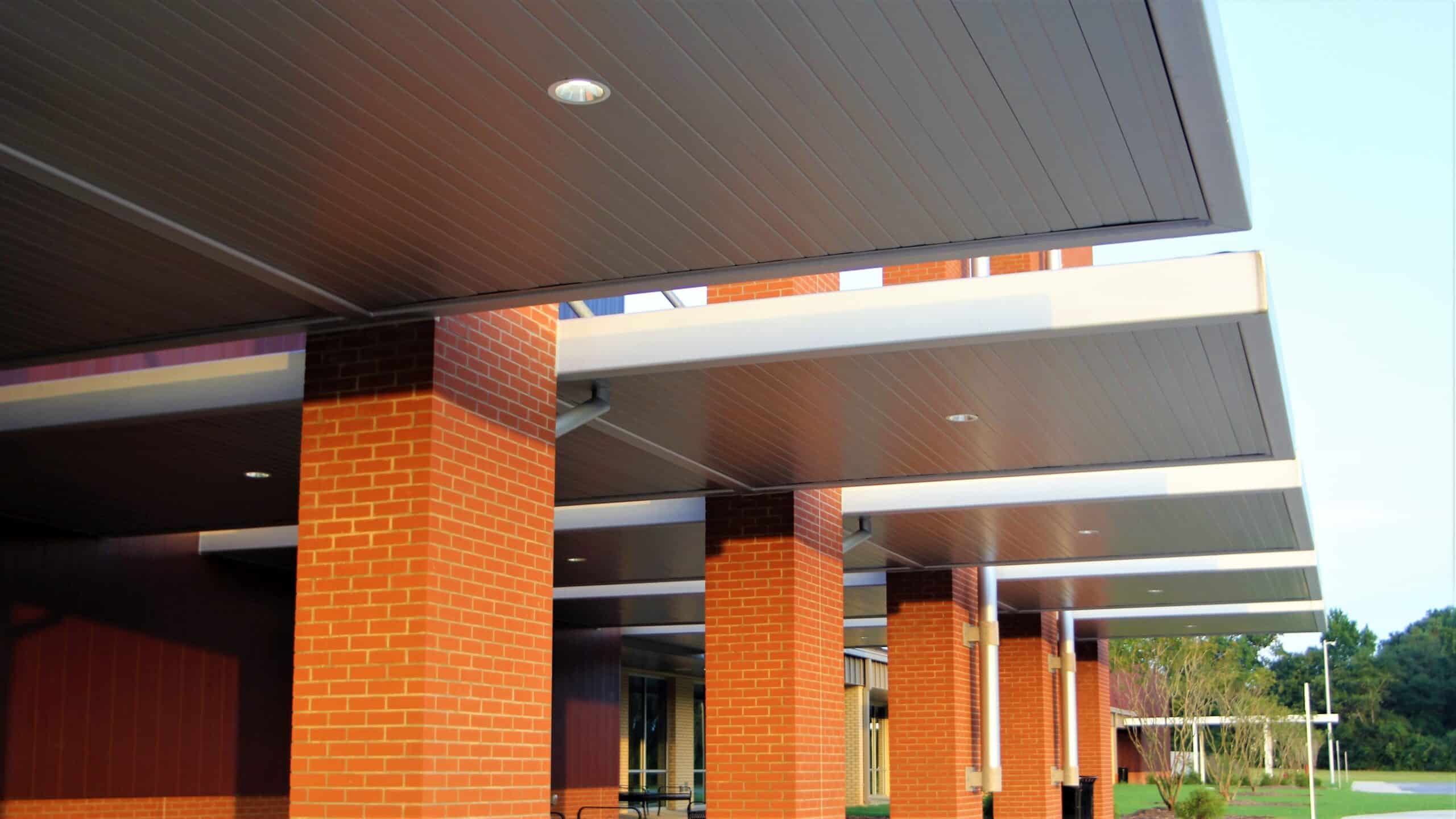

Carey PK-8 School | Carey, OH  |  Fanning & Howey Architects, Inc.  |  C.R.M., Inc.

Flush Soffit Panel FP10

dynaclad-logosmall

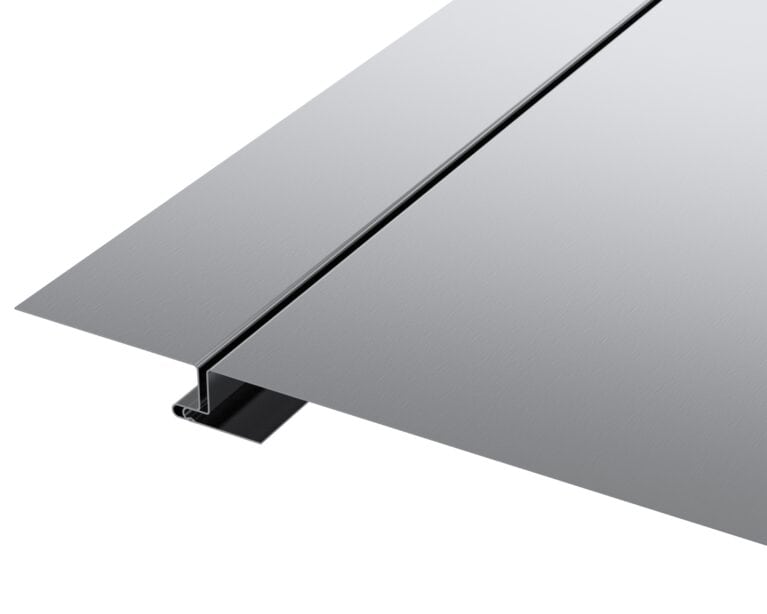

Flush-Panel Soffit – FP10 is a commercial grade soffit panel system that provides a flush, aesthetic appearance upon installation. The product is an integral interlocking system by design which installs in one direction from a given starting point.



Finish
DynaClad® 70% Full Strength PVDF Paint Finish

Colors
Choice of over 32 Colors


DOWNLOAD FP10 SOFFIT CUT SHEET

FP10 FLUSH-PANEL SOFFIT Cut Sheet

Manage and download this product's documents with Submittal Builder
Free to registered users.

Login/Register

Assemblies

FLUSH-PANEL FP10 may be applied over various supports including: light gauge framing, hat channels, wood stringers (each of which are to be spaced no more than 24″ o.c.), or over a solid substrate.

Uses & Applications

Product uses include soffit and fascia.

Product Offerings

24 ga., 22 ga.,20ga. Steel, and .032, .040 Aluminum, and 16 oz., 20 oz. Copper
Embossing and various stiffener configurations available

  • FP1008 with 8″ o.c. seams
  • FP1012 with 12″ o.c. seams

Lengths available from 4’ up to 20’

Performance Tested

  • ASTM E1646 Water Penetration
  • ASTM E1680 Air Leakage
  • ASTM E1592 Static Air Pressure

Advantages

  • No Panel Clips: Fast and easy installation

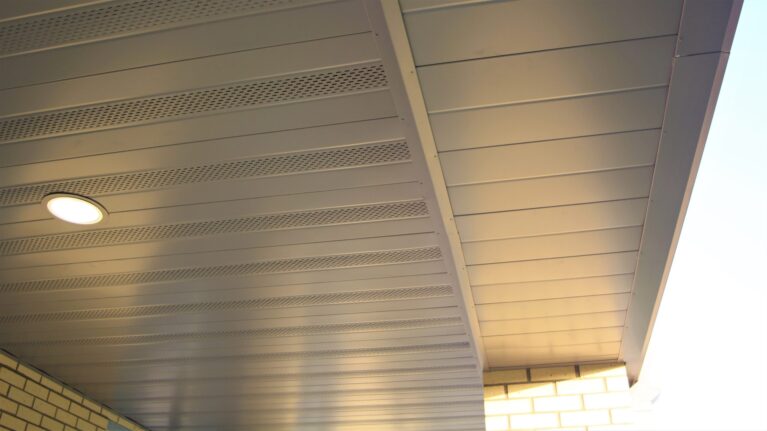

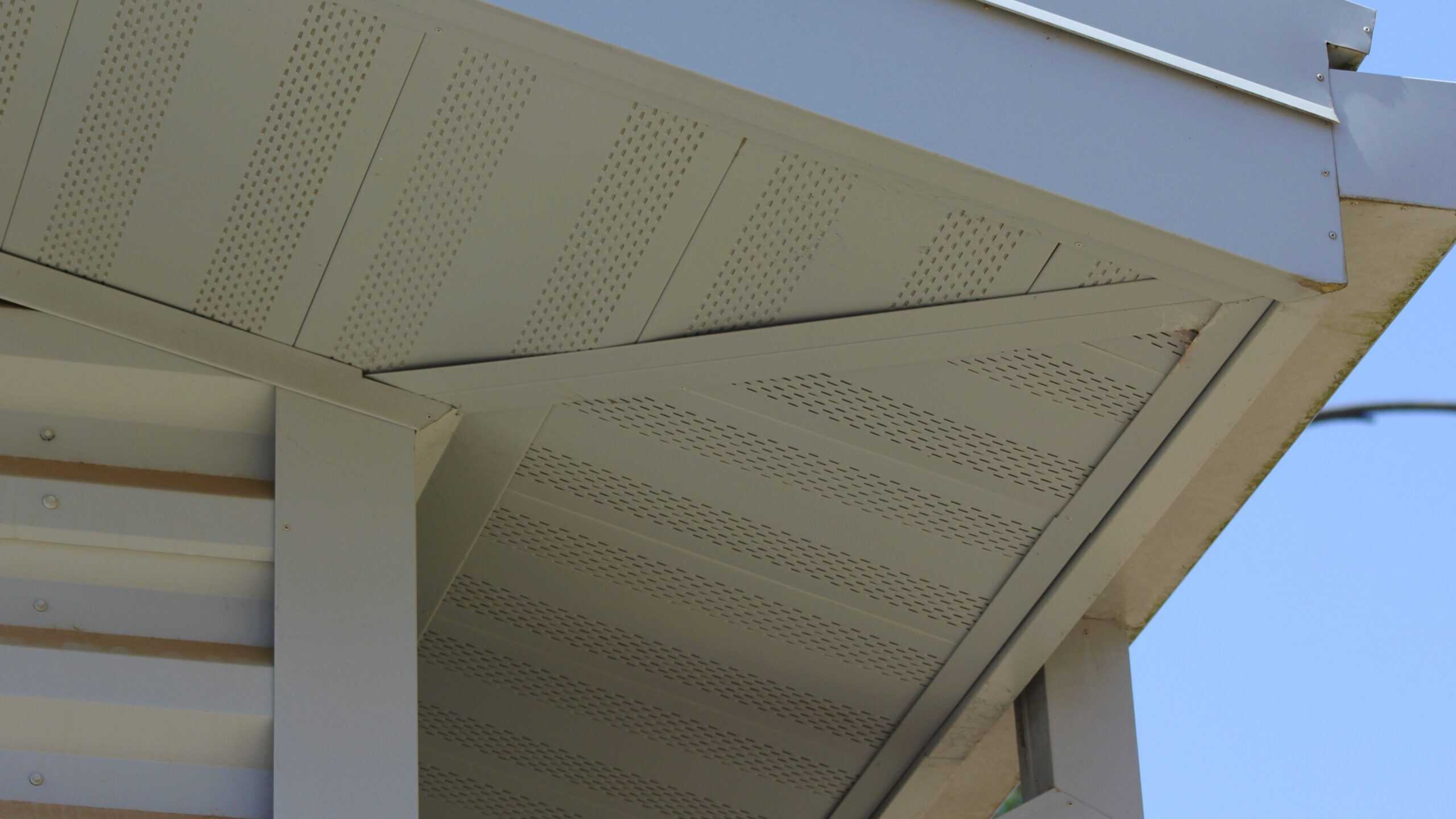

  • 7.5% free air permeation with perforations (available in .032 aluminum only)
