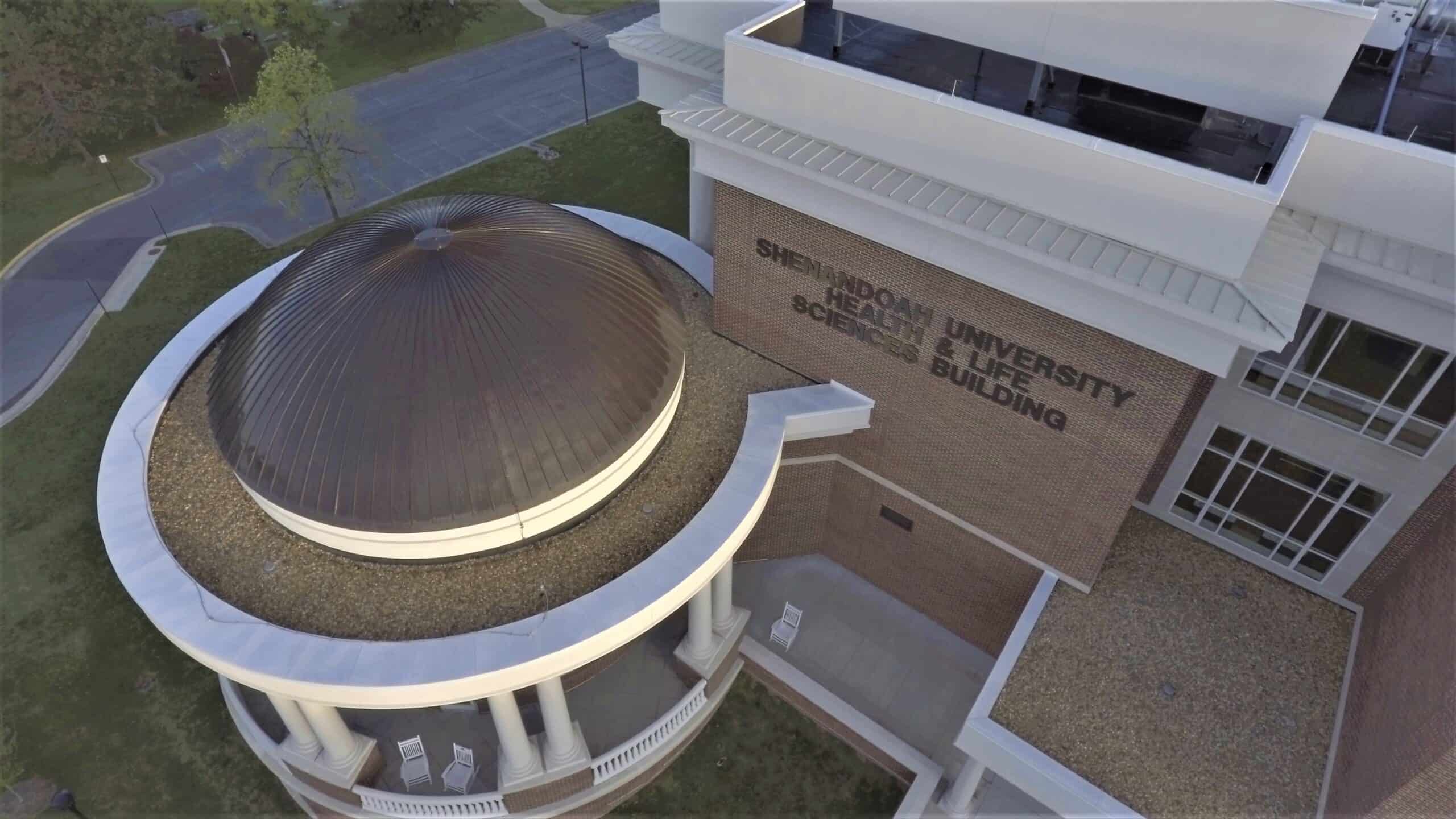

Shenandoah University | Winchester, VA

Dome & Compound Curve CC10


COMPOUND CURVE CC10 is a non-structural curved snap-on-seam system. The system is designed with two components: the panel and the seam cover. COMPOUND CURVE is a non-directional panel system allowing installers more control during installation over seam layout and symmetry of the panel area. COMPOUND CURVE panels utilize a 5/8” high panel leg with a button punched to achieve the desired taper and radius.


ss10profile


CC10 RADIUS GUIDELINES
Material Minimum
Convex Radius
Minimum
Layover Radius
24 Ga. Steel 3′ 25′
22 Ga. Steel 8′ 35′
.032 Aluminum 2′-6″ 20′
Copper 2′ 20′

Seam caps for layover radius panels need to be curved.


Finish
DynaClad® 70% Full Strength PVDF Paint Finish

Colors
Choice of over 32 Colors


DOWNLOAD CC10 CUT SHEET

CC10 cutsheet



Manage and download this product's documents with Submittal Builder
Free to registered users.

Login/Register

Roof Assemblies

SNAP-ON-SEAM requires a solid substrate since it is a non-structural panel system. This system may be installed over plywood sheathing, nail base insulation, or corrugated metal deck.

Uses & Applications

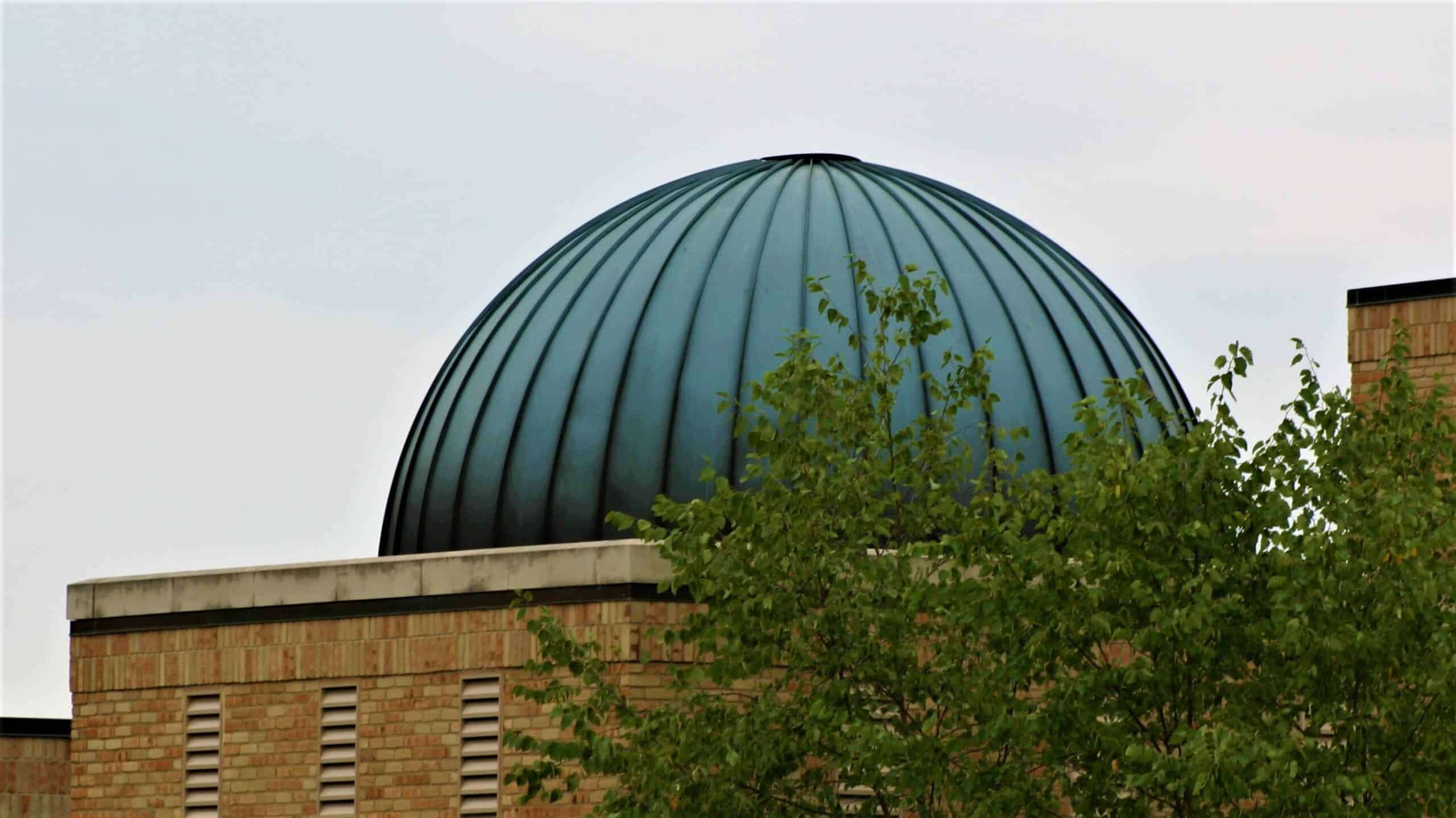

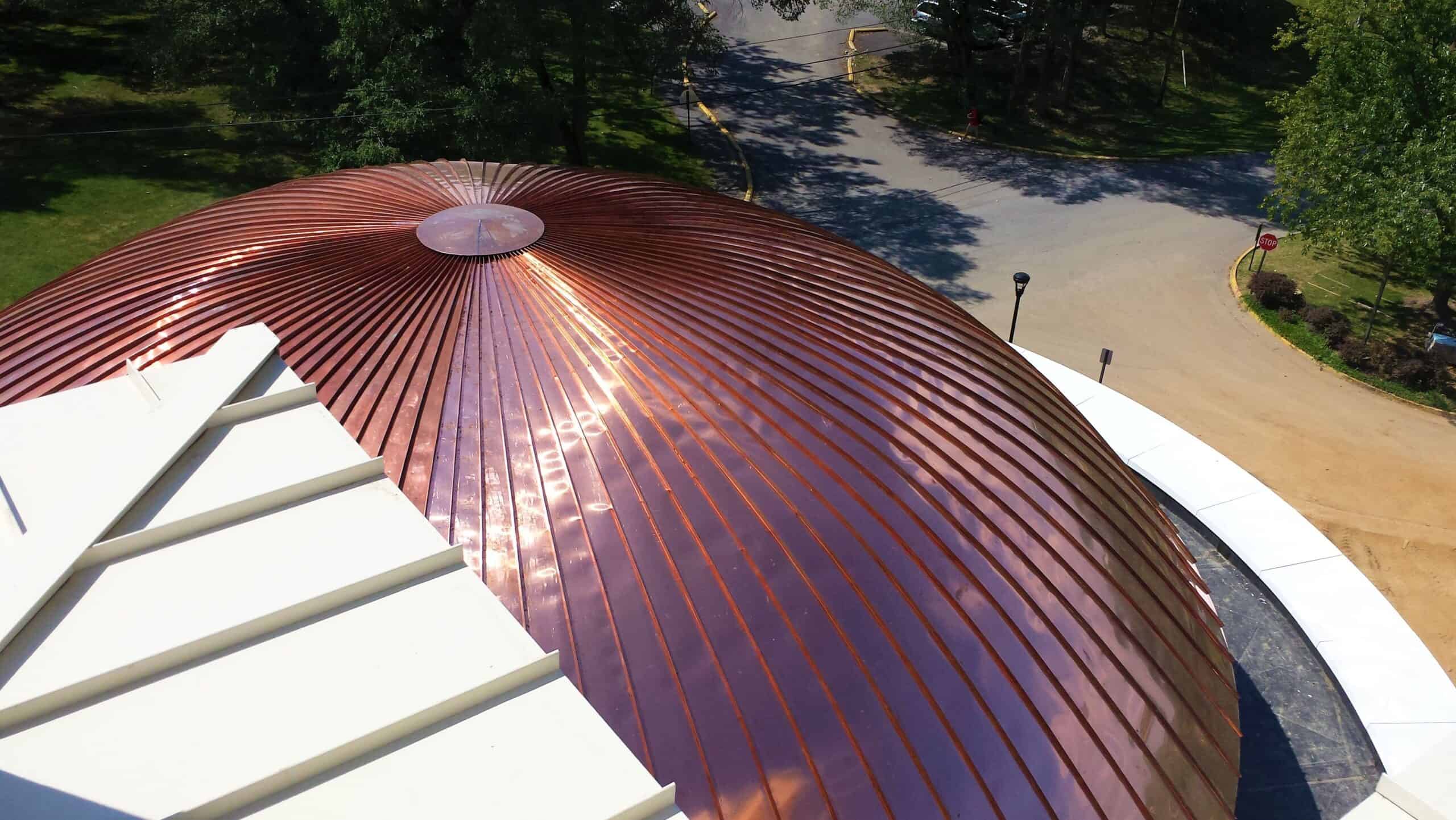

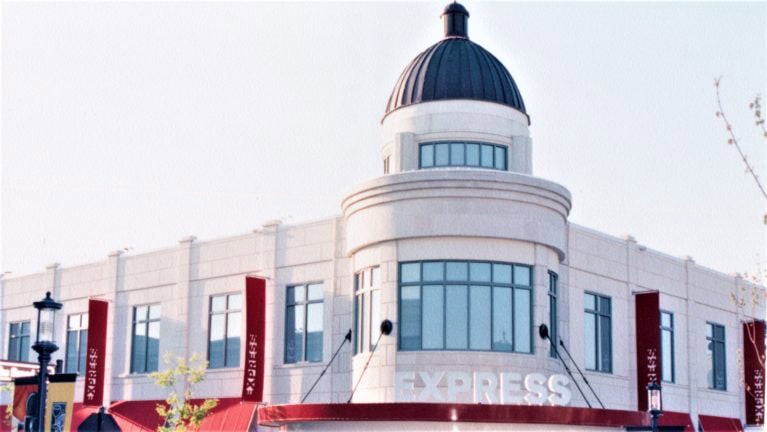

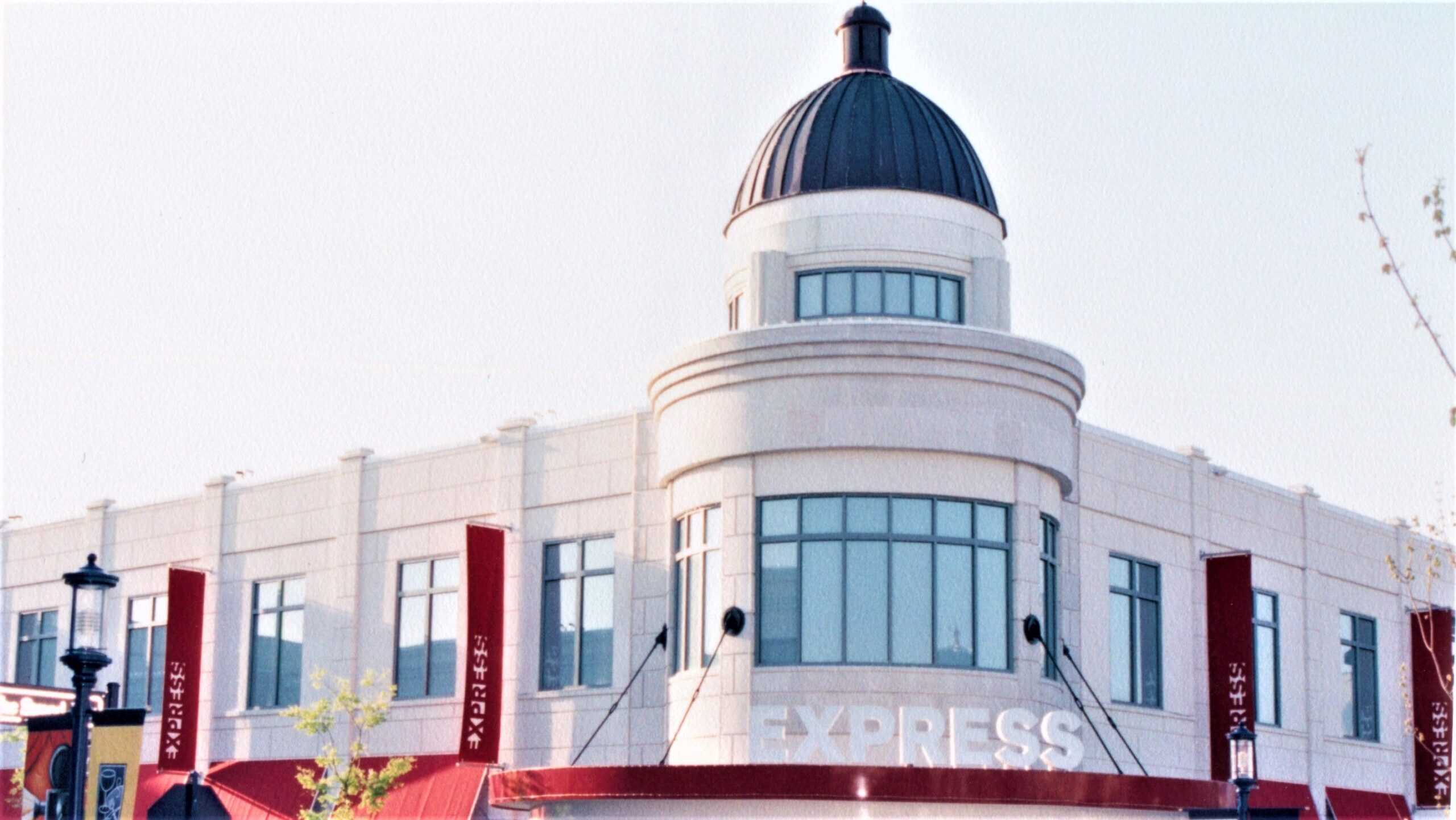

COMPOUND CURVE installs on spherical domes or outside corners of curved canopies.

Product Offerings

24 ga., 22 ga. Steel, .032, .040 Aluminum, and 16 oz., 20 oz. Copper
Embossing available.  Seam caps available in 24 Ga. Steel, .032 Aluminum and Copper only

Advantages

  • Custom fabricated for your specific project
  • Curves may be concave or convex
  • Optional Factory Applied Non-Curing Sealant for superior watertightness
  • Engineered Snap-Together Design for easy installation
  • Expansion Clips allows for unlimited thermal expansion and contraction
  • Continuous Interlocking Seam Cap: No seam disengagement
  • Anti-Siphoning Seam Design: Prevents water infiltration
  • Continuous Rollformed Lengths: Eliminates the need for panel lap joints
  • Total System Warranties Available: For total Confidence
