FR10121″ Flush Reveal – 12″ wide – FR1012 is a single skin panel which can be used in a wide range of applications. The product is a directional system by design. The Flush-Panel series is a very flexible panel design and works well for both new construction and retro-fit applications. The wide range of profiles can be mixed and matched giving your building a distinct custom look. The continuous fastening strip does not require a clip providing economical ease of installation as well as no exposed fasteners. Panels are available in 2 configurations: Flush (FP) and up to a 5.5” Flush Reveal (FR). Optional stiffening beads and/or stucco embossing is available.


Notes

• Minimum panel length is 4′-0″ and Maximum panel length is 20′-0″
• 22 ga., 20 ga. Steel and .040 Aluminum not stocked in all colors
– Minimum order quantities and extended lead times may accompany panel orders using these substrates
• Perforations are available utilizing Aluminum only


Finish
DynaClad® 70% Full Strength PVDF Paint Finish

Colors
Choice of over 32 Colors

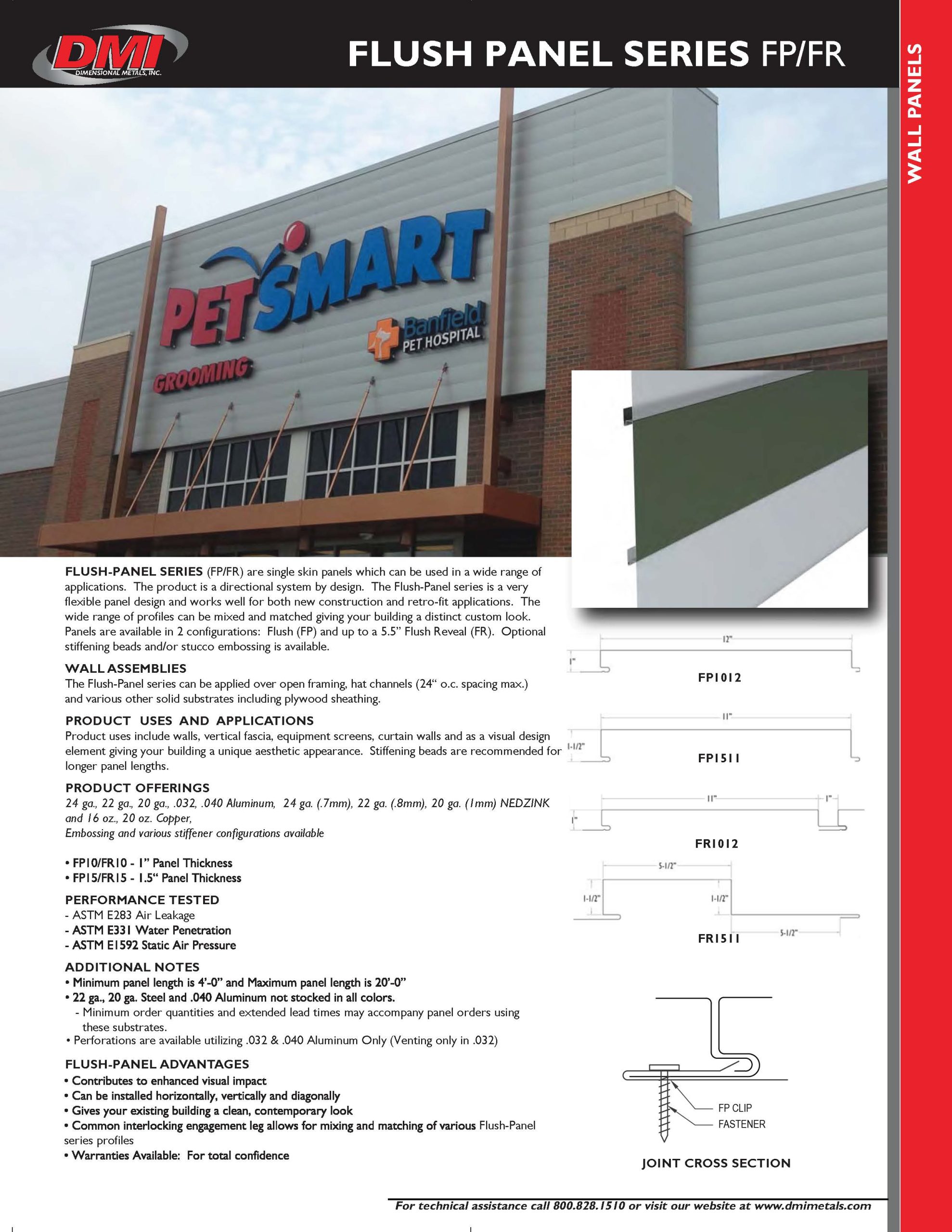

DOWNLOAD FLUSH SERIES CUT SHEET

FLUSH SERIES Cut Sheet


DOWNLOAD PDF DETAILS


Manage and download this product's documents with Submittal Builder
Free to registered users.

Login/Register

Assemblies

The Flush-Panel series can be applied over open framing, hat channels (24“ o.c. spacing max.) and various other solid substrates including plywood sheathing.

Uses & Applications

Product uses include walls, vertical fascia, equipment screens, curtain walls and as a visual design element giving your building a unique aesthetic appearance. Stiffening beads are recommended for longer panel lengths.

Product Offerings

24 ga., 22 ga., 20 ga. Steel, .032, .040 Aluminum, 16 oz., 20 oz. Copper,
Embossing and various stiffener configurations availableable

  • FP10/FR10 – 1″ Panel Thickness
  • FP15/FR15 – 1.5″ Panel Thickness

Performance Tested

  • ASTM E331 Water Penetration
  • ASTM E283 Air Leakage
  • ASTM E1592 Uniform Static Air Pressure

Advantages

  • Continuous fastening strip requires no clips providing for quick and economical installation
  • Contributes to enhanced visual impact
  • Can be installed horizontally, vertically and diagonally
  • Gives your existing building a clean, contemporary look
  • Common interlocking engagement leg allows for mixing and matching of various Flush-Panel series profiles
  • Warranties Available:  For total confidence
