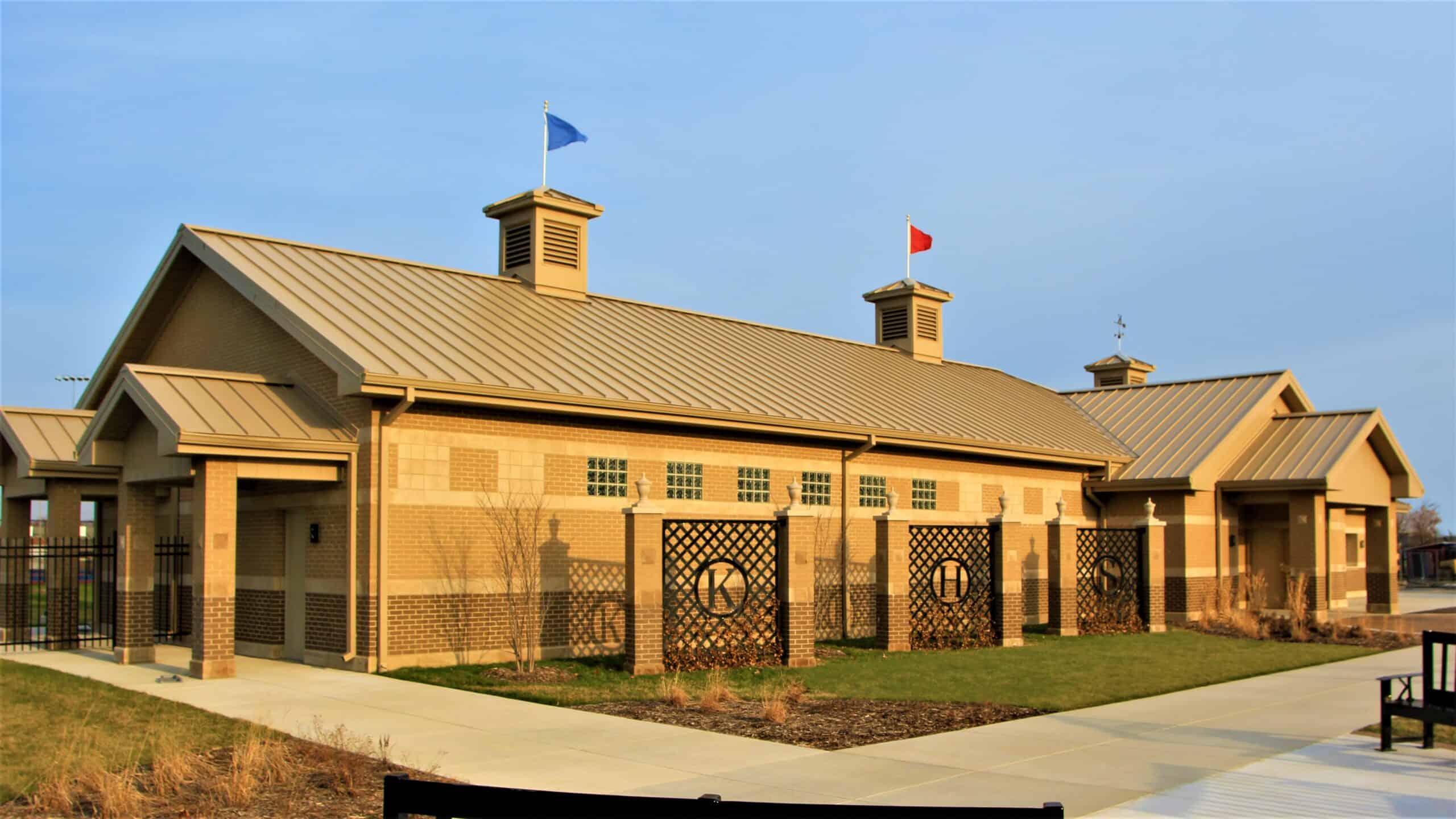

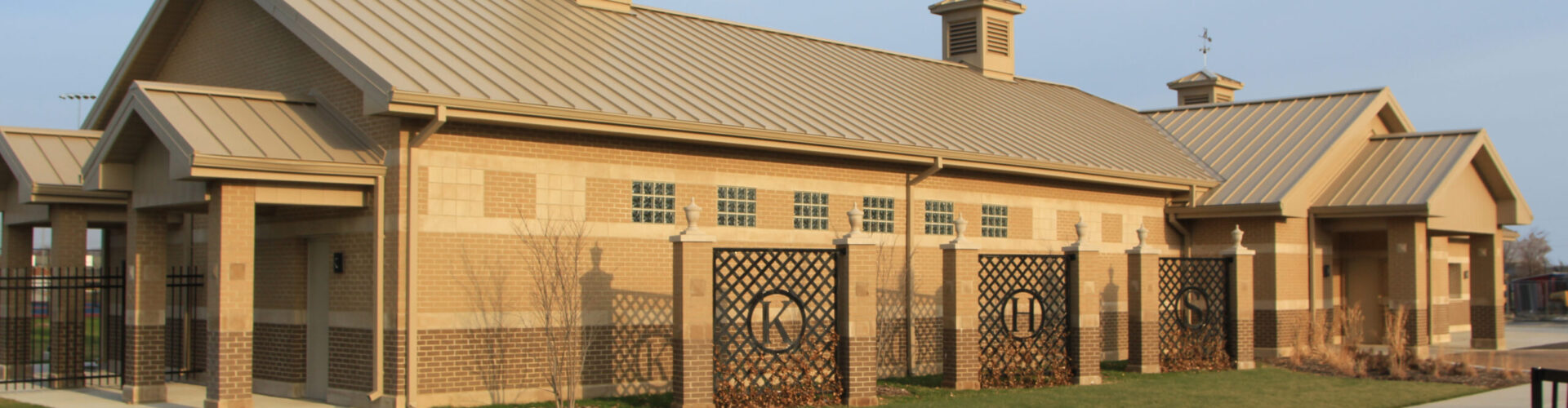

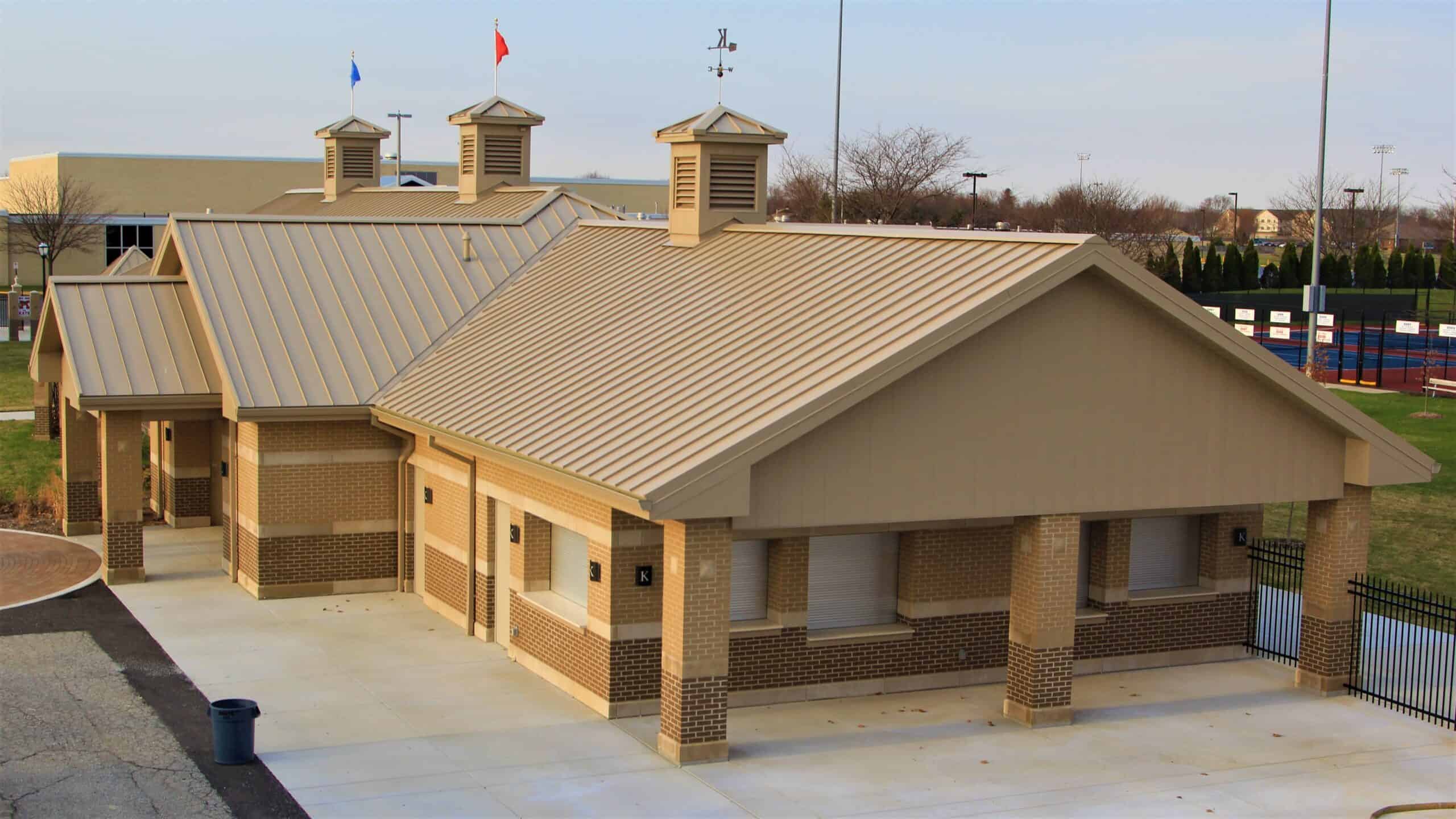

Kokomo High School  |  Kokomo, IN  |  MSKTD & Associates, Inc. Architects  |  Horning Roofing & Sheet Metal

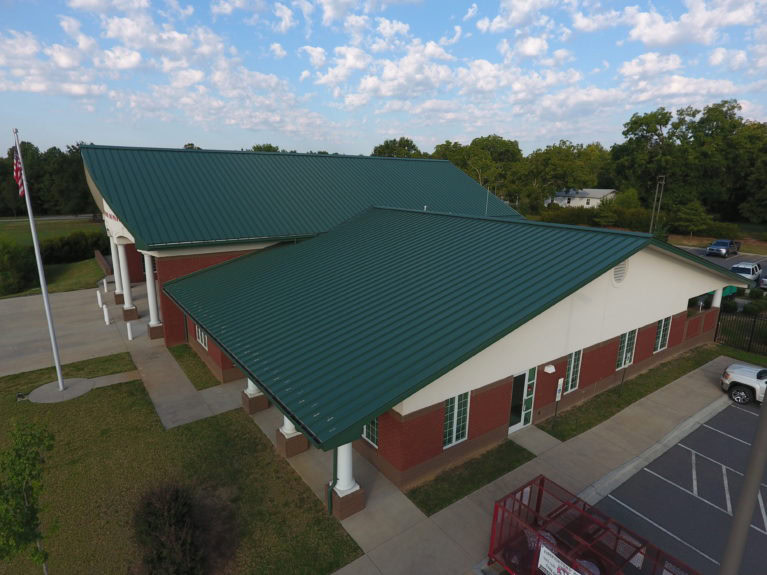

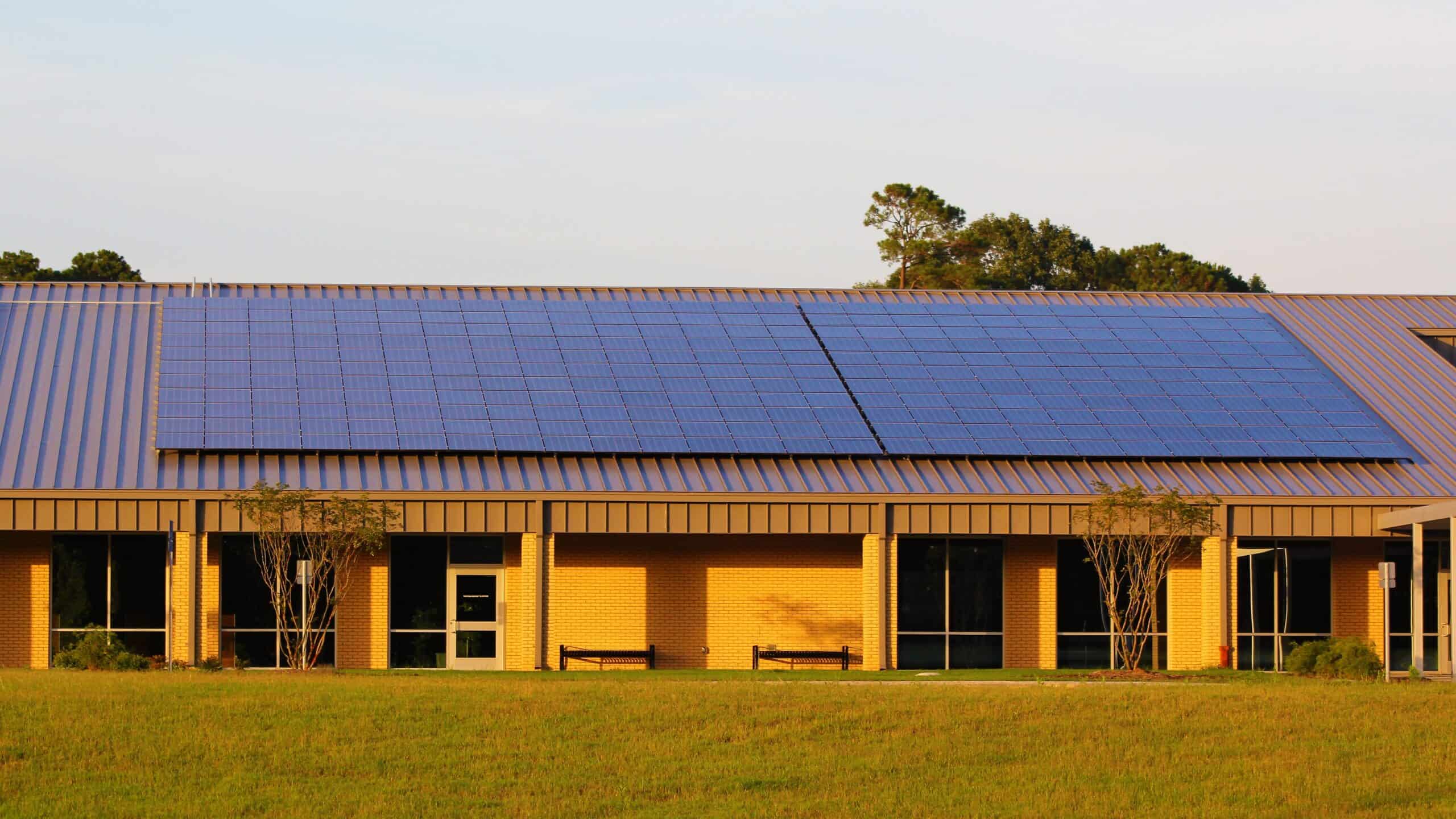

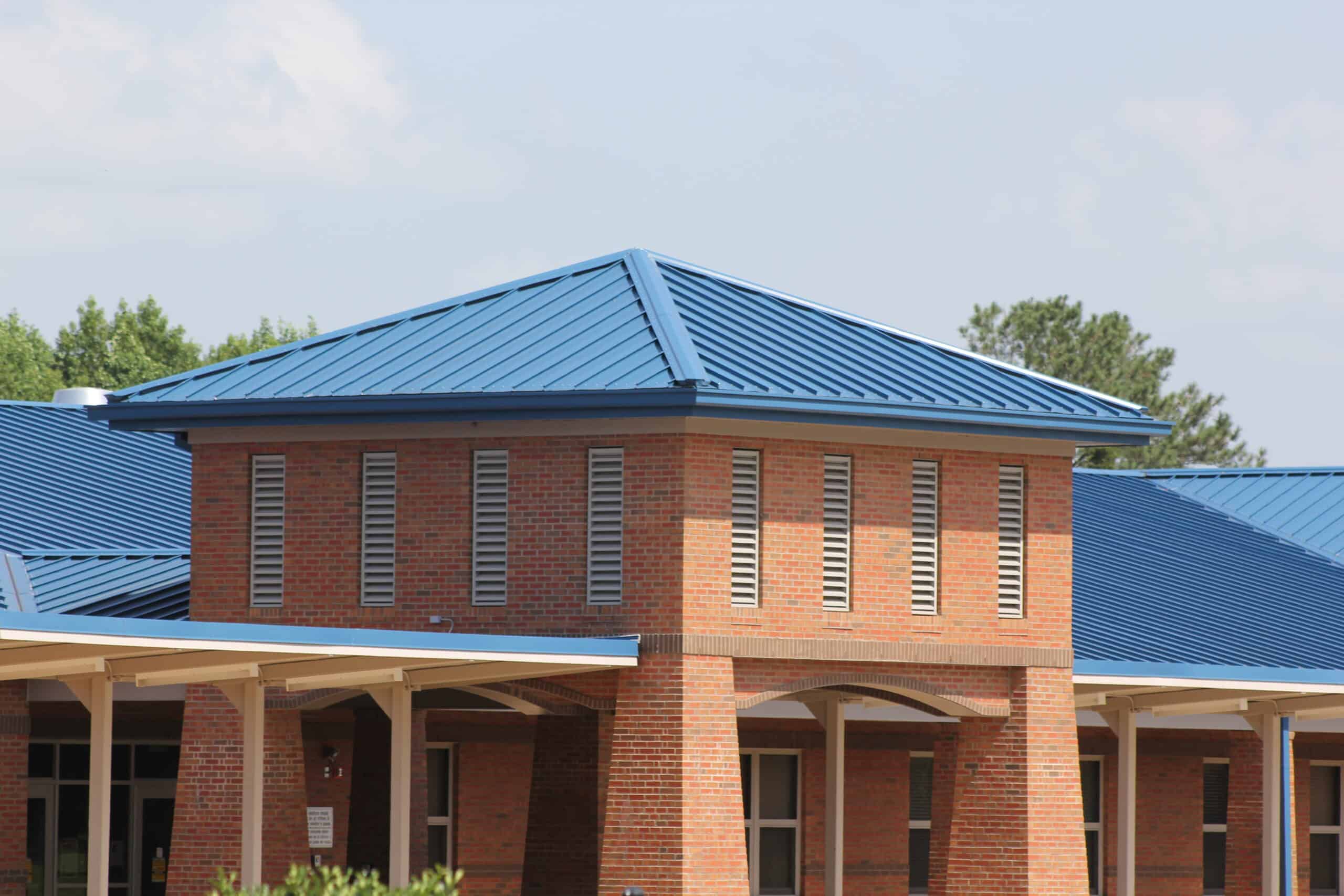

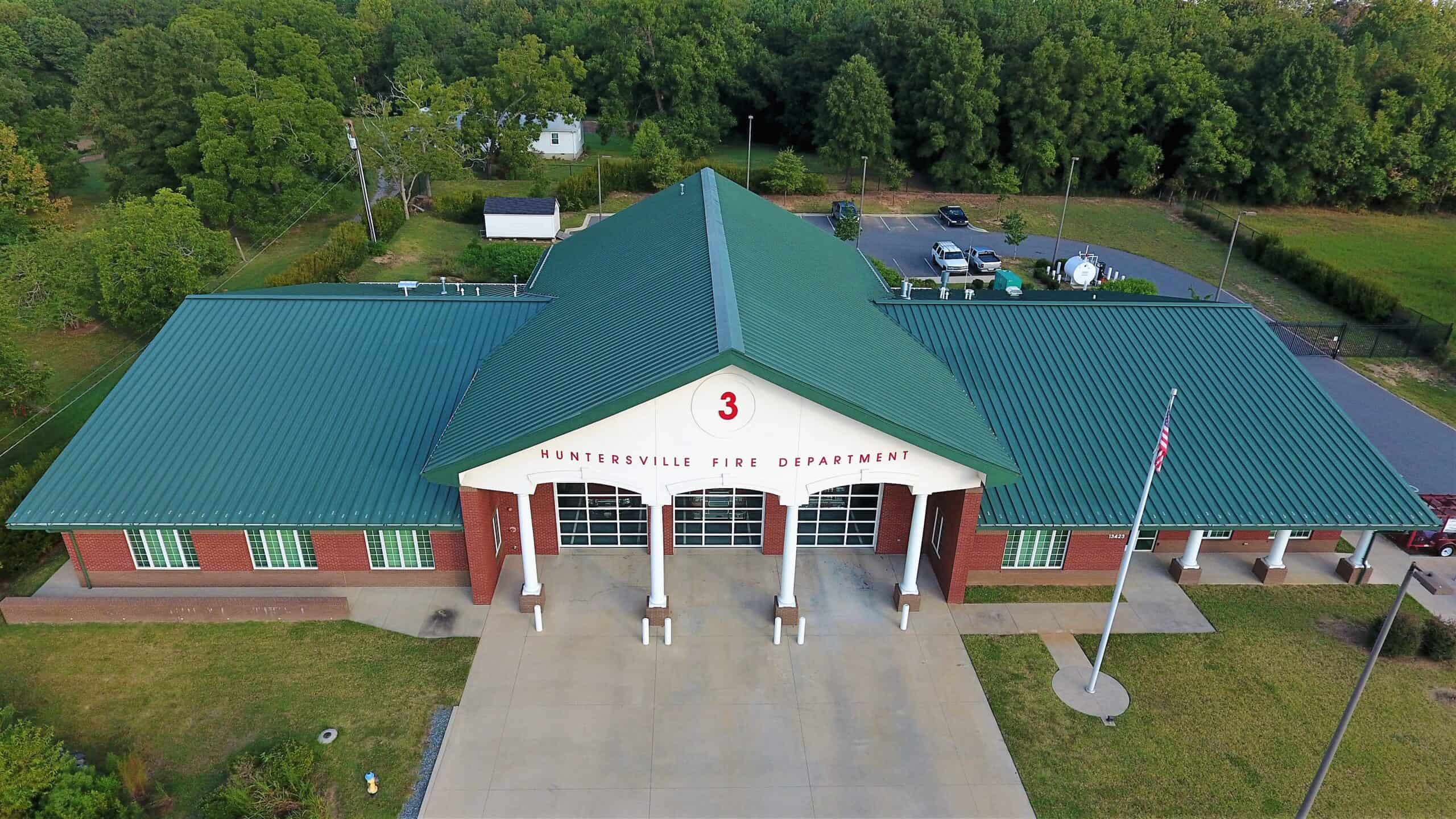

Double-Lock DL25


Double-Lock DL25 is a structural panel that is mechanically seamed during installation. The panel is an integral interlocking system by design that installs in one direction from a given starting point. A double male starter panel is available (for a minimal set-up fee) and may be installed in the middle of a roof area to achieve a symmetrical layout. DOUBLE-LOCK utilizes the traditional SMACNA standing seam “double-lock” plate.




Three different clips are available
Low Floating, High Floating, and Fixed

Finish
DynaClad® 70% Full Strength PVDF Paint Finish

Colors
Choice of over 32 Colors


DOWNLOAD DL25 CUT SHEET

DL25 Cut Sheet



















DOWNLOAD PDF DETAILS


Manage and download this product's documents with Submittal Builder
Free to registered users.

Login/Register

Roof Assemblies

DOUBLE-LOCK DL25 can be applied over various roof substrates including: open framing, rigid
insulation (utilizing a bearing plate under each panel clip) over 22 ga. corrugated steel deck, and various solid substrates including plywood sheathing or nail base insulation.

Uses & Applications

Product uses include low to high slope roofing, vertical fascia, equipment screens, mansards, and wall panels. This system may also be installed on tapered roof areas.


*Note: Metallic paint finishes are “directional” and are not recommended for “double male” panels.

If a Watertight Warranty is required panel must be double-locked.

Product Offerings

24 ga., 22 ga. Steel , .032, and .040 Aluminum
Embossing and various stiffener configurations available

  • DL25I2 with I2″ o.c. seams
  • DL25I6 with I6″ o.c. seams

Performance Tests

  • UL-580 Wind Uplift
  • ASTM E1592 Uniform Static Air Pressure
  • ASTM E1646 Water Penetration
  • ASTM E1680 Air Leakage

Load Tables:

Advantages

  • Factory Applied Non-Curing Sealant: superior watertightness
  • SMACNA Seam Design: A traditional and historical aesthetic appearance
  • Mechanically Seamed: May be installed on low slope applications down to 1/2:12 slope
  • Expansion Clips: Allows for thermal expansion and contraction
  • Lengths up to 92’-0”
  • Total System Warranties Available: For total confidence

*Note: Metallic paint finishes are “directional” and are not recommended for “double male” panels.
