HWPC12

dynaclad-logosmall

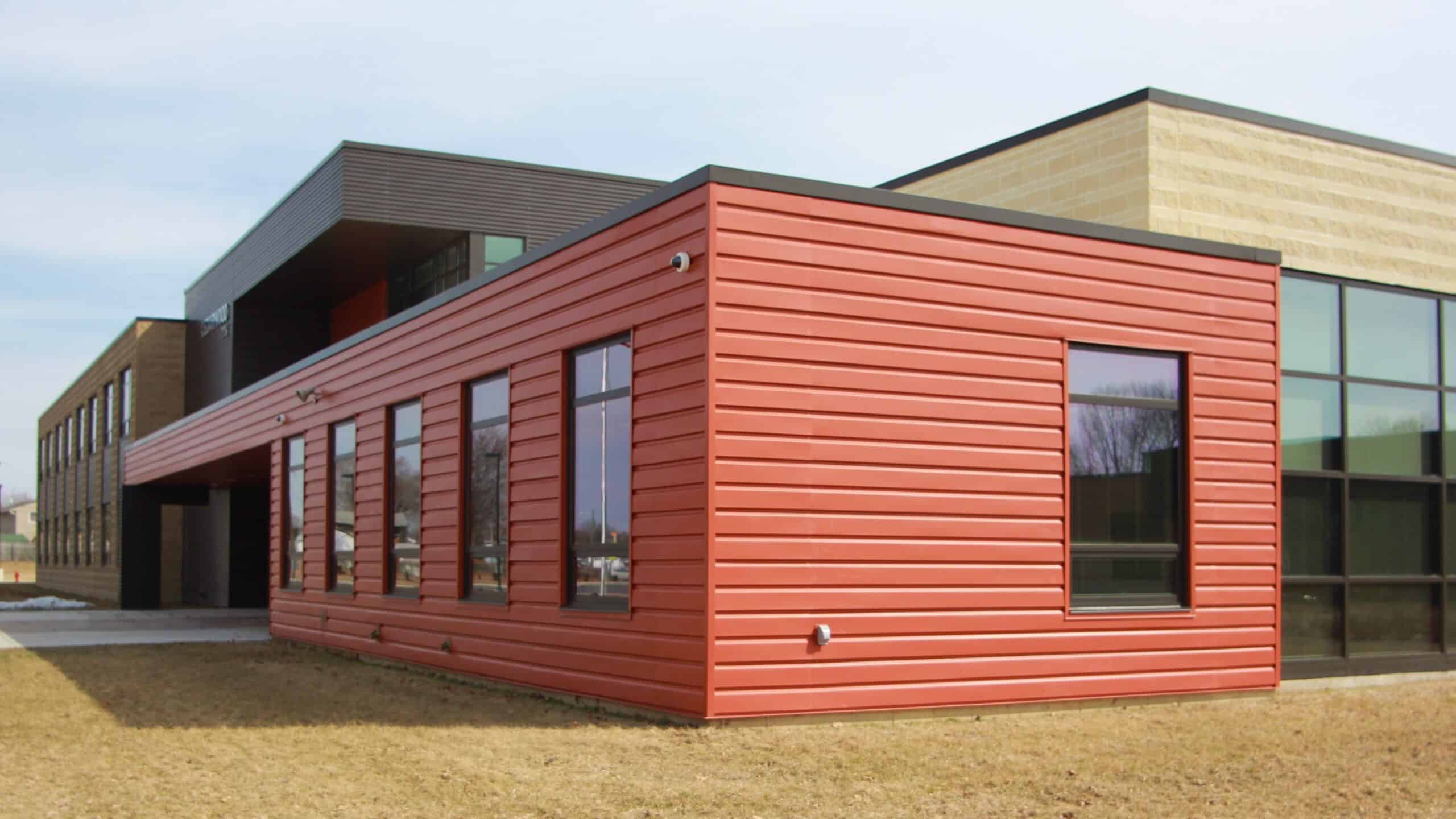

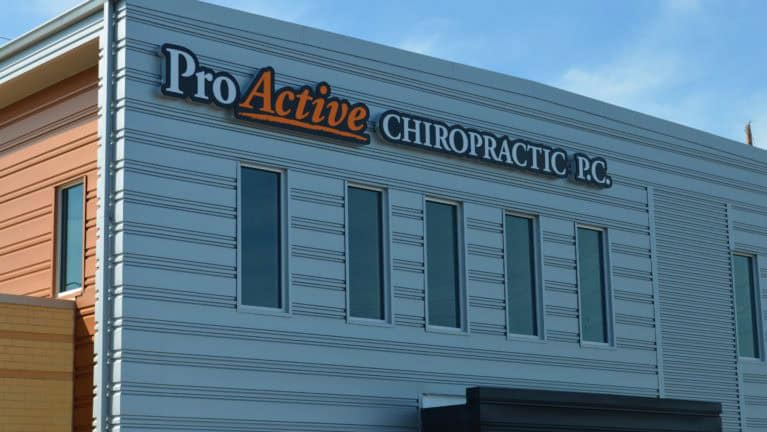

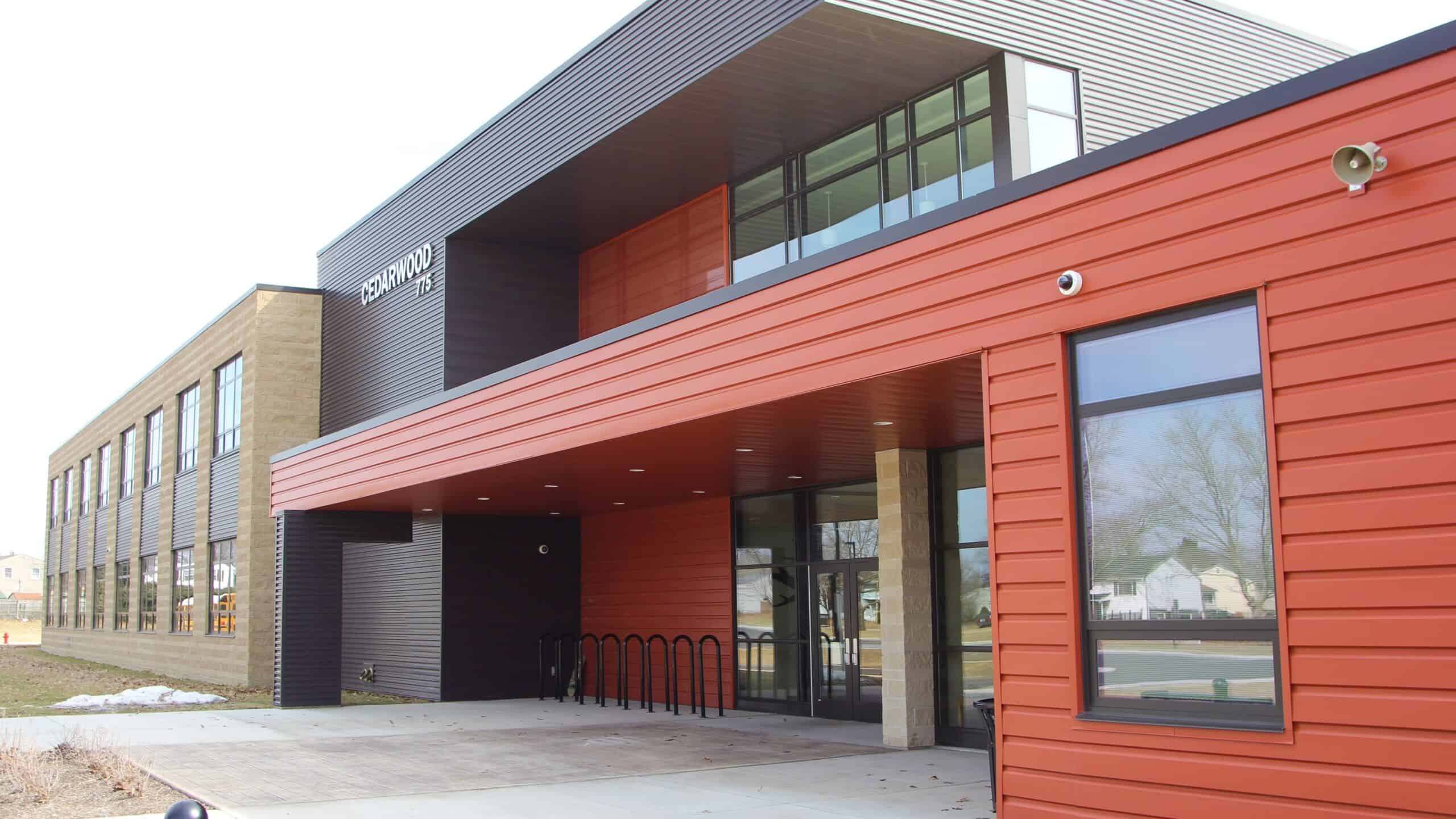

Horizontal Wall Panels HWPC12 are single skin panels which can be used in a wide range of applications. The product is a directional system by design. The HWP series offers a very flexible panel design and works well for both new construction and retrofit applications. The wide range of profiles can be mixed and matched giving your building a distinct custom look.


Closures
Both metal and foam closures available

Finish
DynaClad® 70% Full Strength PVDF Paint Finish

Colors
Choice of over 32 Colors


DOWNLOAD HWP CUT SHEET

HWP Cut Sheet

















DOWNLOAD PDF DETAILS


Manage and download this product's documents with Submittal Builder
Free to registered users.

Login/Register

Assemblies

The HWP series can be applied over substrates including: open framing, rigid insulation, hat channels and various solid substrates including plywood sheathing.

Uses & Applications

Product uses include walls, soffits, vertical fascia, equipment screens, curtain walls and as a visual design element giving your building a unique aesthetic appearance.

Product Offerings

Offered in a large variety of materials and colors.

  • Galvalume® (22 ga. & 24 ga.) – See our color chart for standard color offering
  • HDG-90 (20 ga.)
  • Aluminum (.050, .040, & .032) – See our color chart for standard color offering
  • Copper (20 oz. & 16 oz.)

Notes:

  • 7/8“ Panel Depth
  • Minimum panel length is 4’0”
  • 22 ga. & 20 ga and  .040 & .050 aluminum are not stocked in all colors.
    • Minimum order quantities and extended lead times may accompany panel orders when utilizing these substrates.

Performance Tested

  • ASTM E331 Water Penetration
  • ASTM E283 Air Leakage
  • ASTM E1592 Uniform Static Air Pressure

Advantages

  • Contributes to enhanced visual impact
  • Can be installed horizontally, vertically or diagonally
  • Gives your existing building a clean, contemporary look
  • Common interlocking engagement hem allows for mixing and matching of various HWP series profiles
  • Inside and outside mitered corners available
  • Warranties Available: For total confidence
