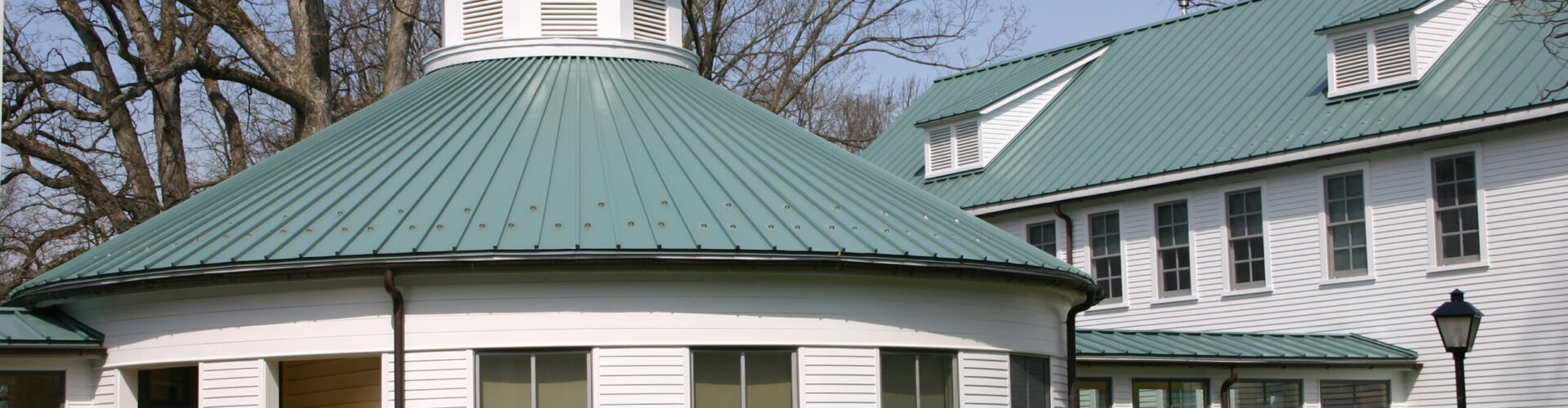

Eaton Center | Kenyon, OH

Tapered Seam TS

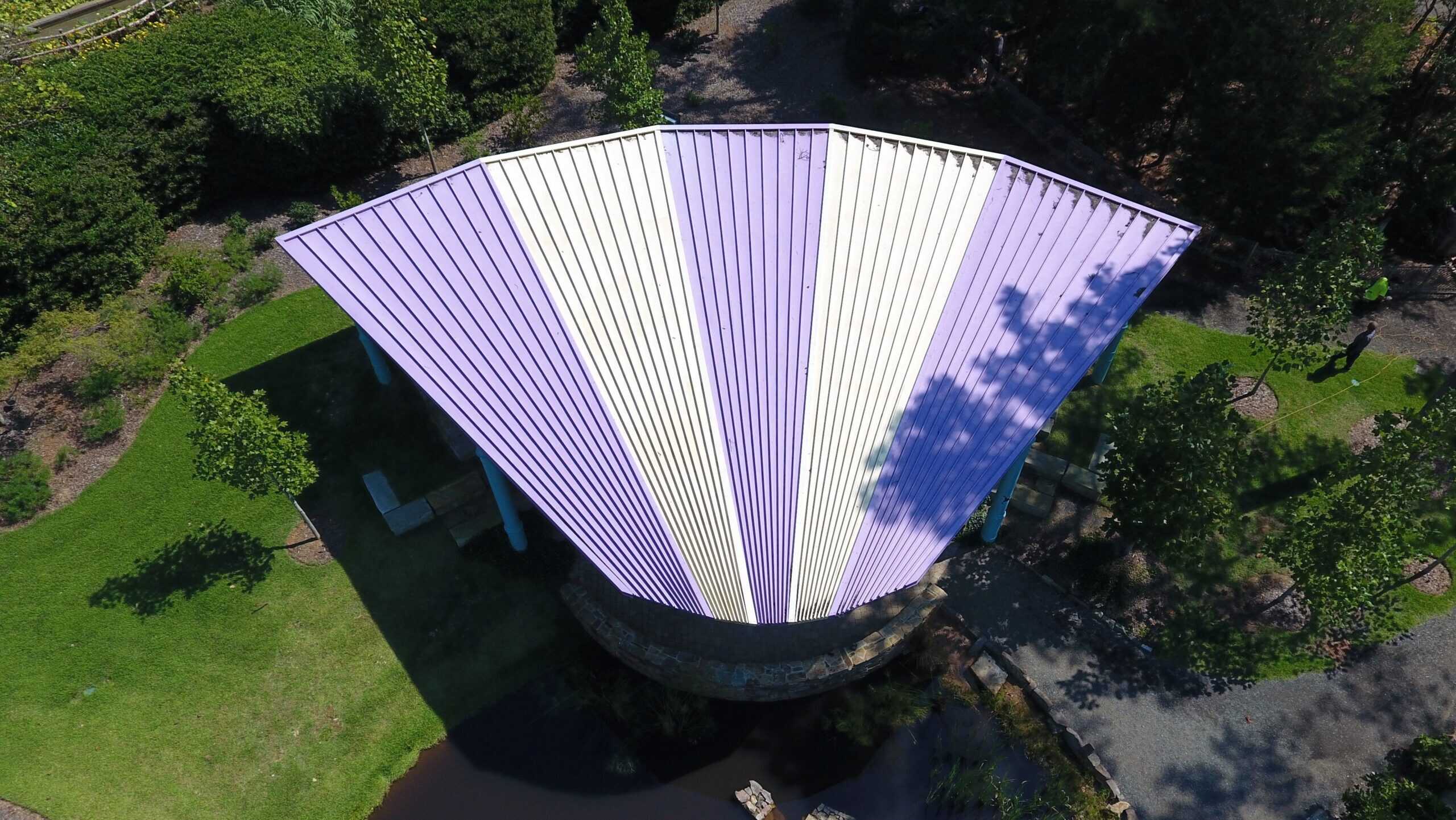

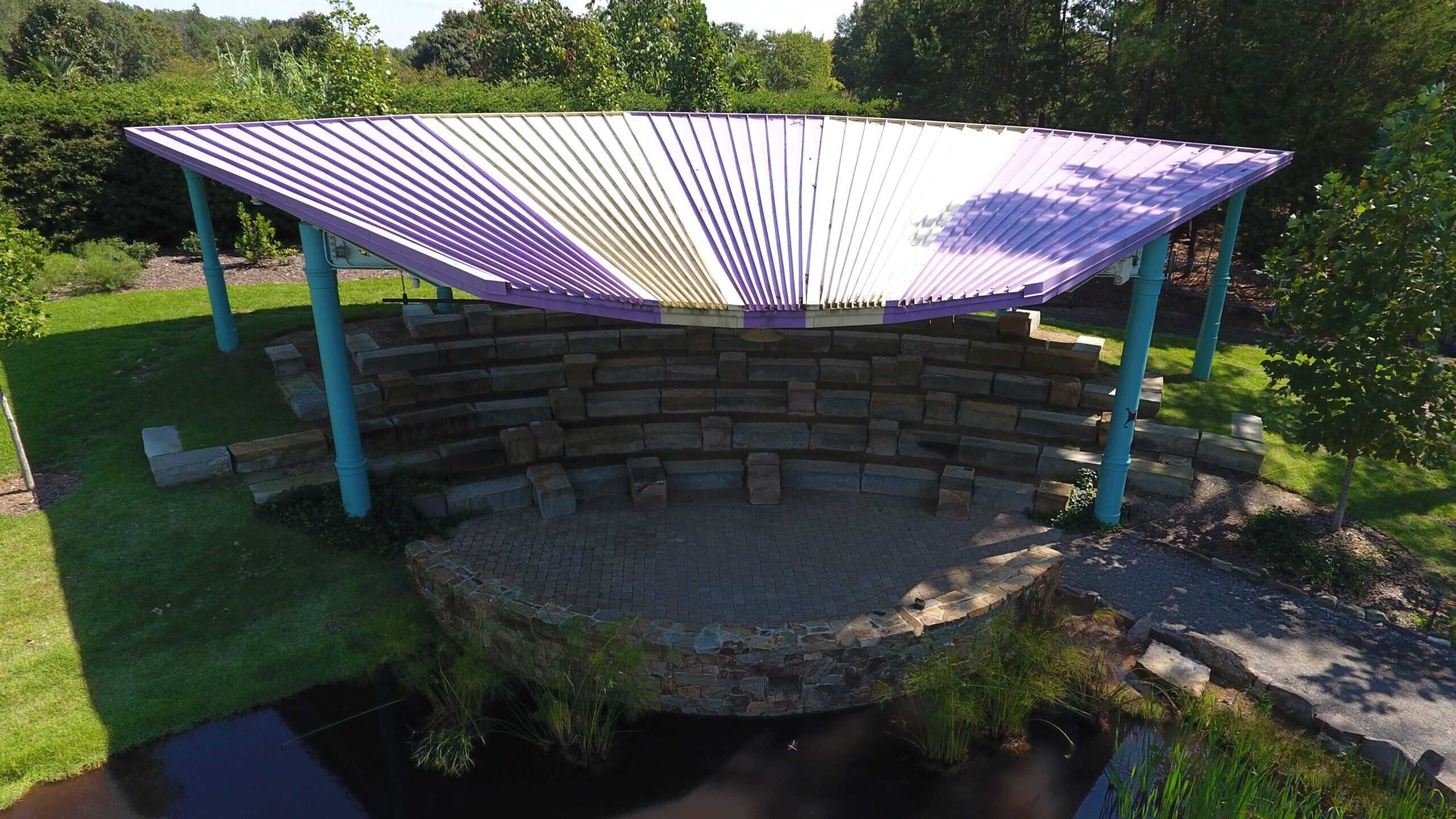

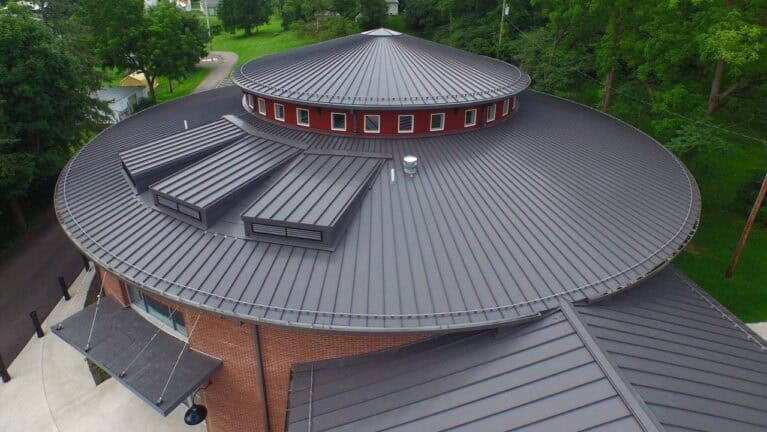

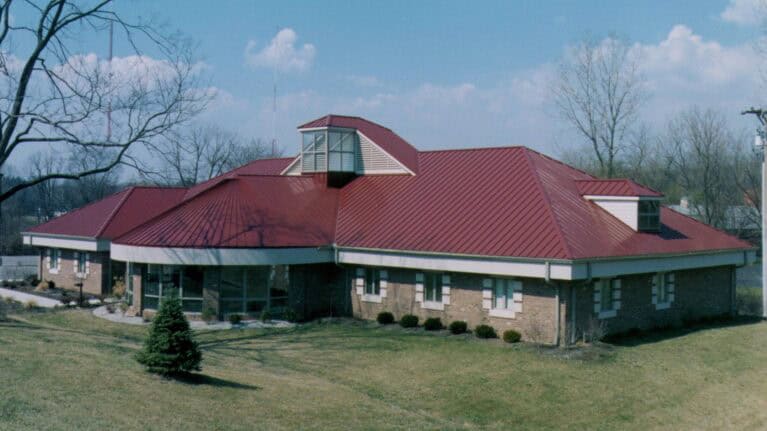

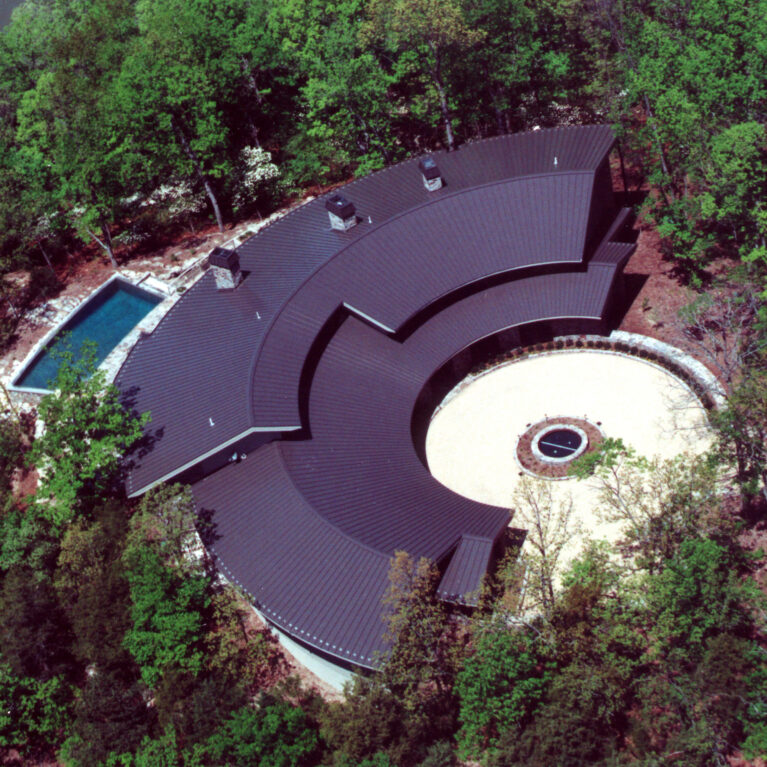

TAPERED SEAM TS Panels are custom fabricated to accommodate actual field conditions.


Finish
DynaClad® 70% Full Strength PVDF Paint Finish

Colors
Choice of over 32 Colors

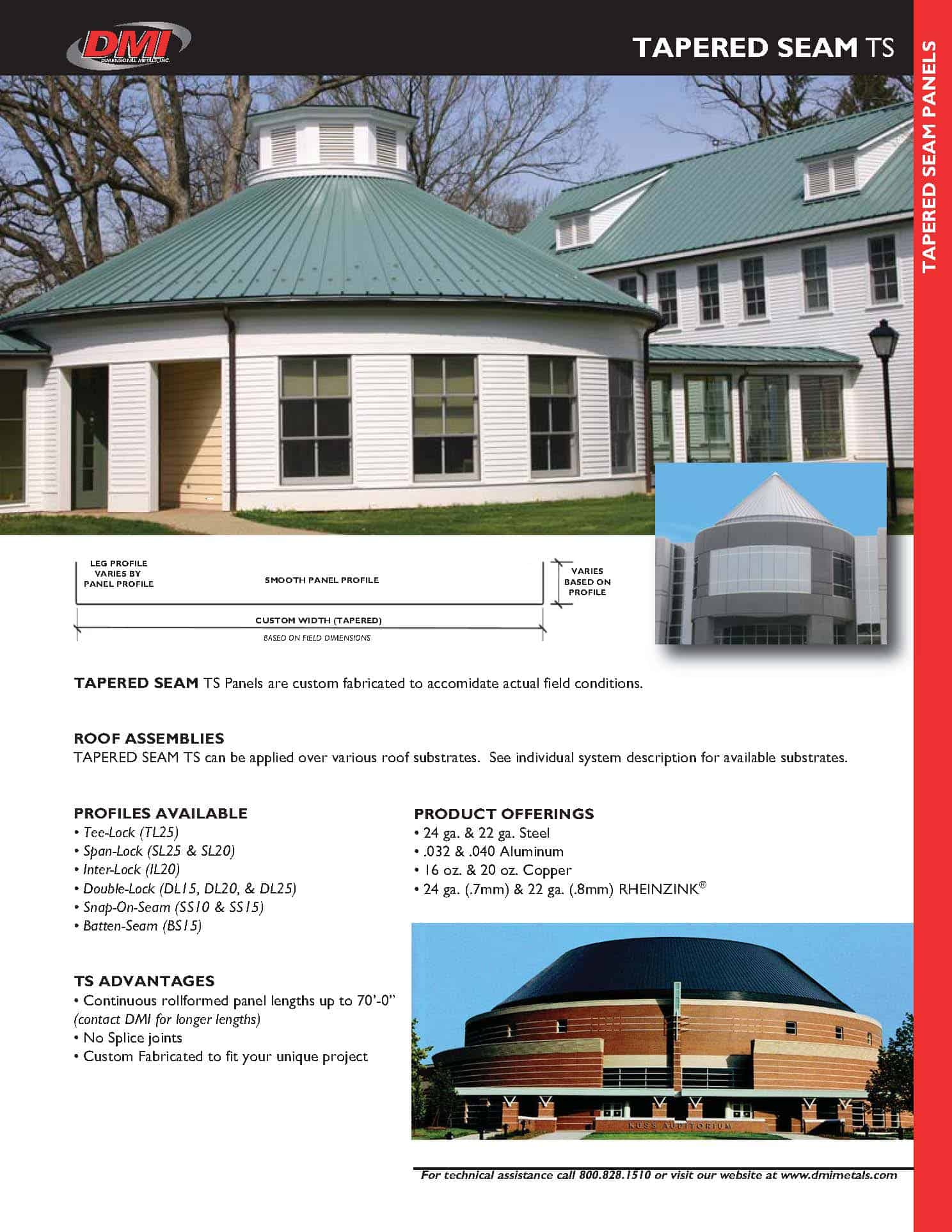

DOWNLOAD TS CUT SHEET

il20-cutsheet


Manage and download this product's documents with Submittal Builder
Free to registered users.

Login/Register

Roof Assemblies

TAPERED SEAM TS can be applied over various roof substrates. See individual system description for available substrates.

Profiles Available

  • Tee-Lock (TL25)
  • Span-Lock (SL20 & SL25)
  • Inter-Lock (IL20)
  • Double-Lock (DLI5, DL20, & DL25)
  • Snap-On-Seam (SSI0 & SSI5)
  • Batten-Seam (BSI5)

Product Offerings

  • 24 ga. & 22 ga. Steel
  • .032 & .040 Aluminum
  • I6 oz. & 20 oz. Copper

Advantages

  • Continuous rollformed panel lengths up to 70′-0″ (contact DMI for longer lengths)
  • No Splice joints
  • Custom Fabricated to fit your unique project
