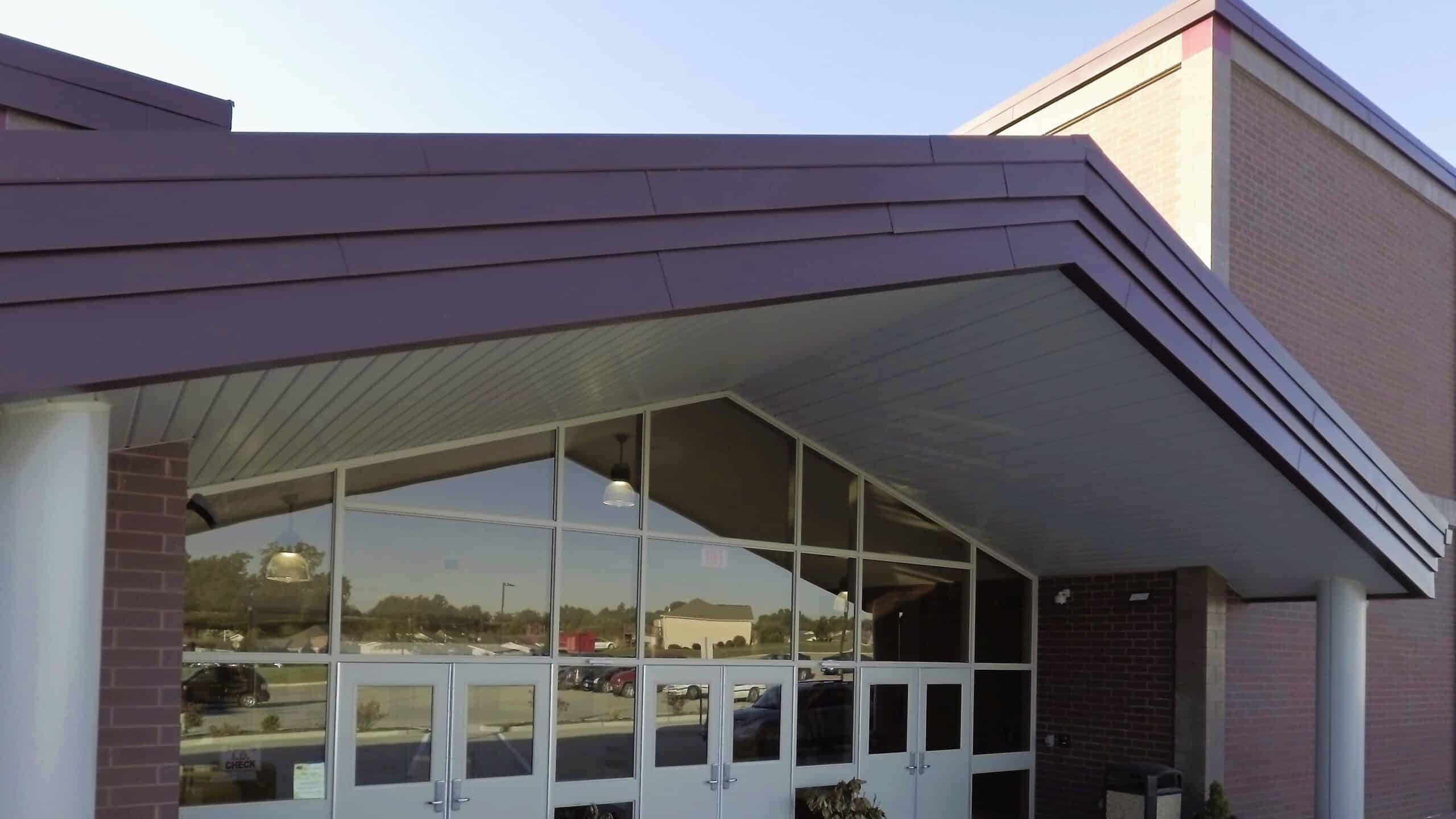

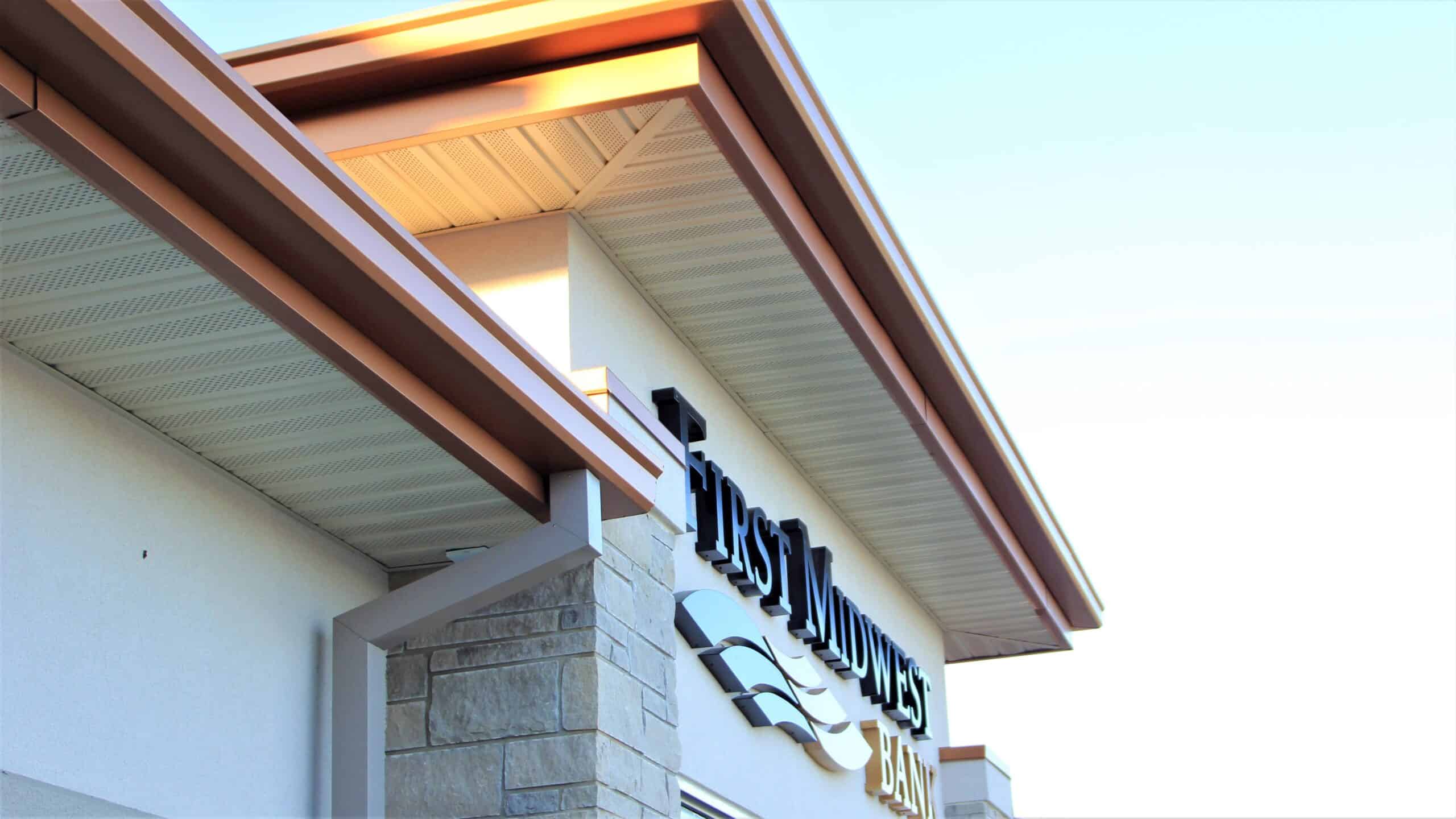

First Midwest Bank  |  Girardeau, MO  |  DEI, Inc. Architecture |  Sheet Metal Systems, LLC

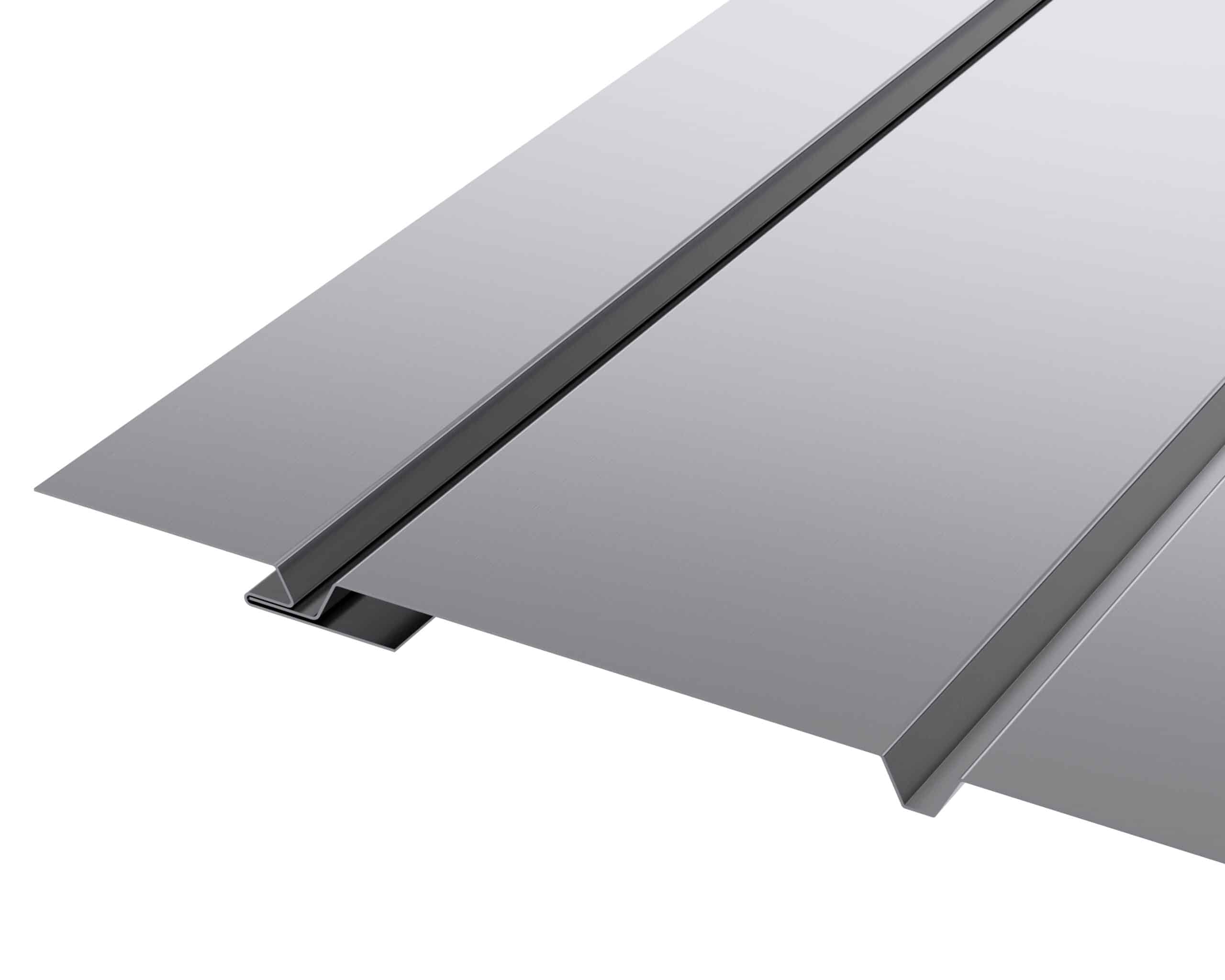

V-Groove Soffit Panel VS05

dynaclad-logosmall

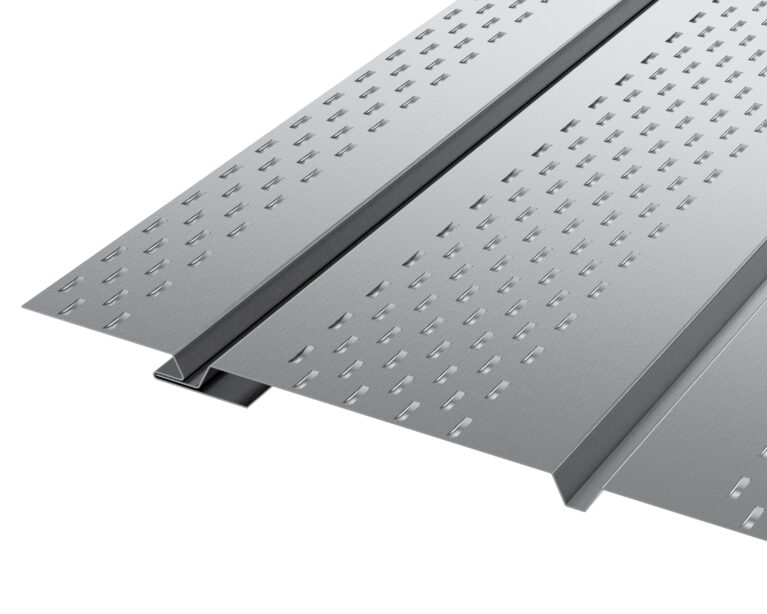

V-Groove Soffit VS05 is a commercial grade soffit panel system that provides a sturdy complement to any roof system. The product is an integral interlocking system by design which installs in one direction from a given starting point.



Finish
DynaClad® 70% Full Strength PVDF Paint Finish

Colors
Choice of over 32 Colors


DOWNLOAD VS05 CUT SHEET

Manage and download this product's documents with Submittal Builder
Free to registered users.

Login/Register

Assemblies

V-GROOVE SOFFIT VS05 may be applied over various supports including light gauge framing, hat channels, wood stringers (each of which is to be spaced no more than 24″ o.c.), or over a solid substrate.

Uses & Applications

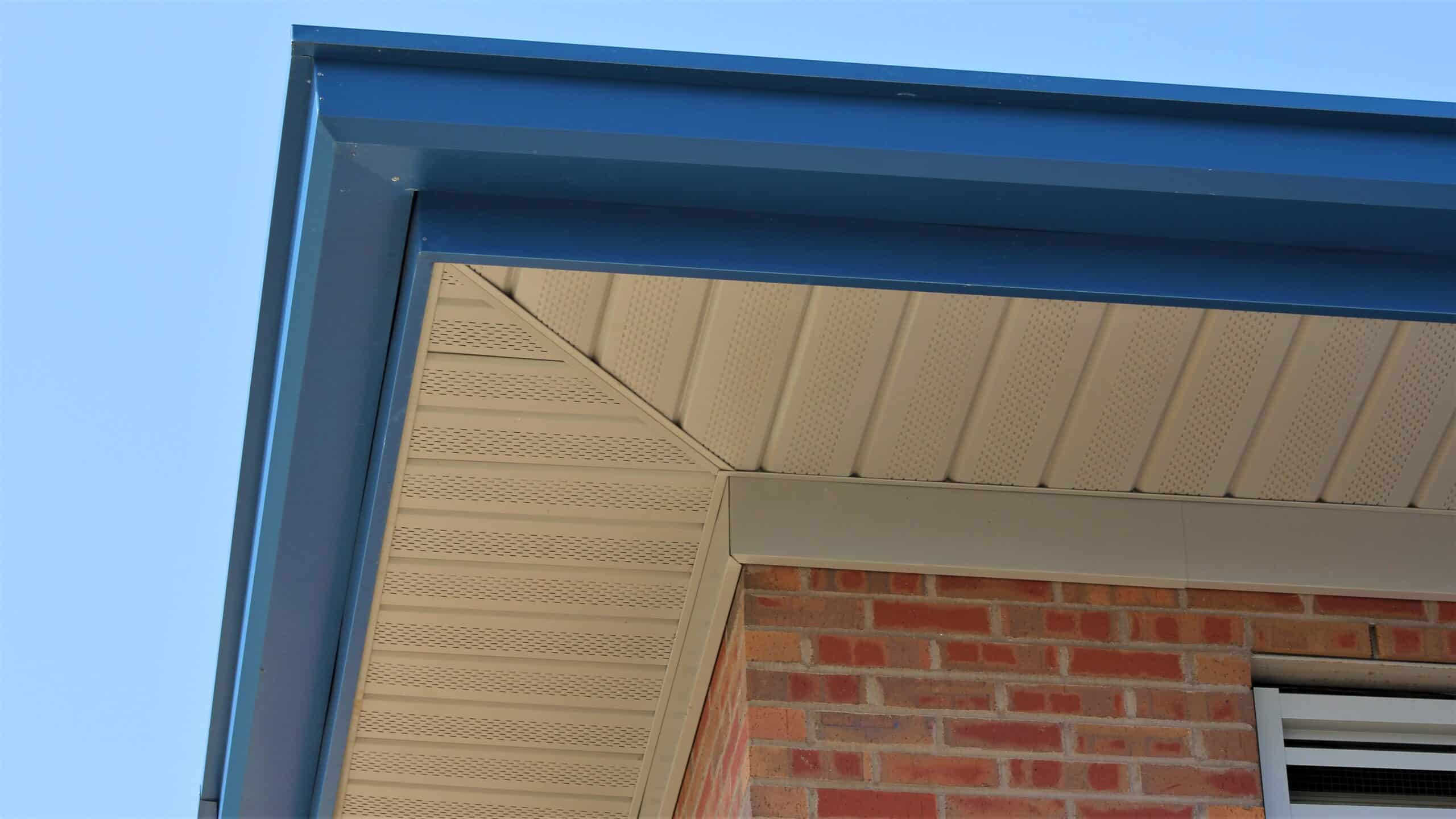

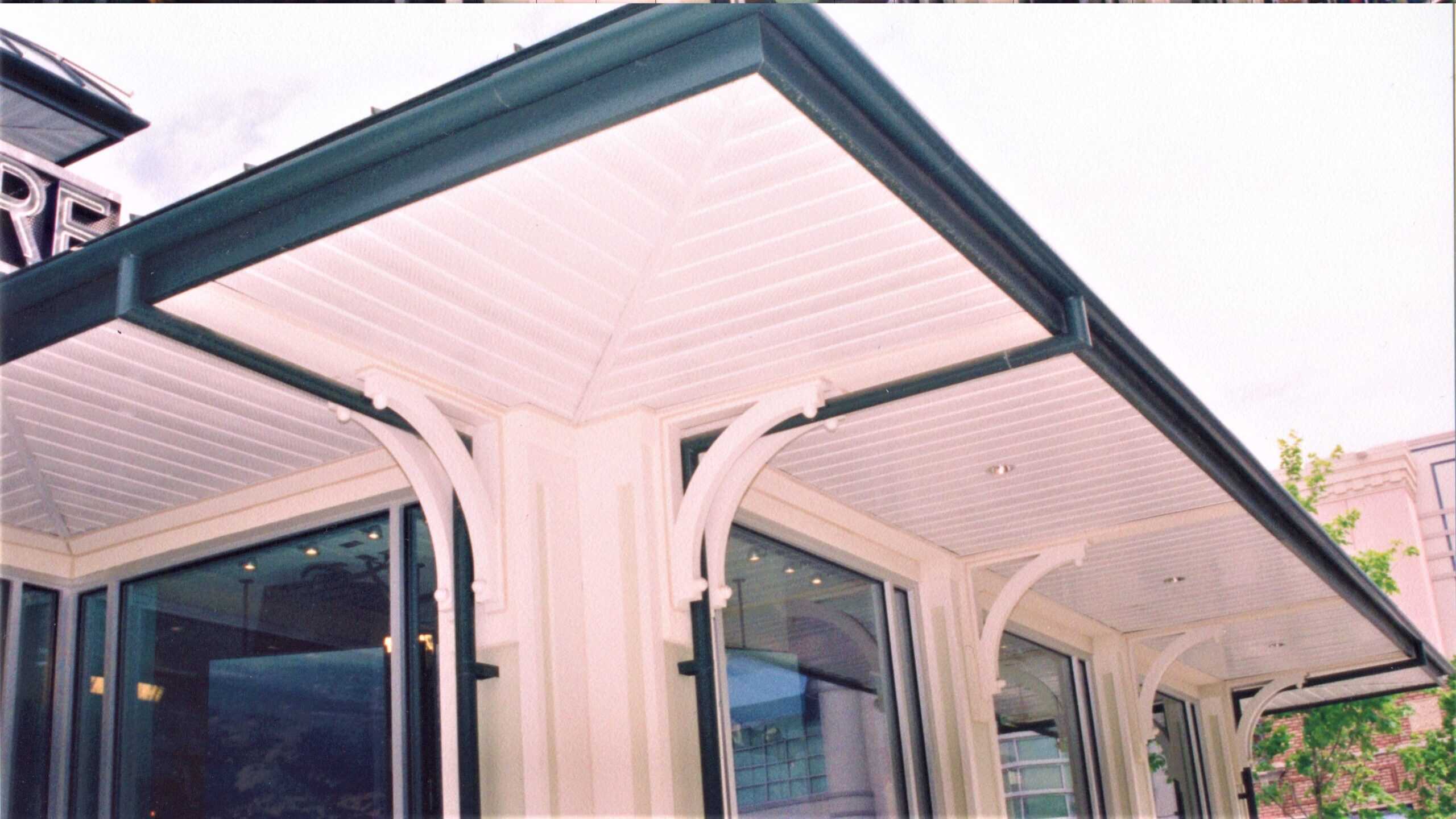

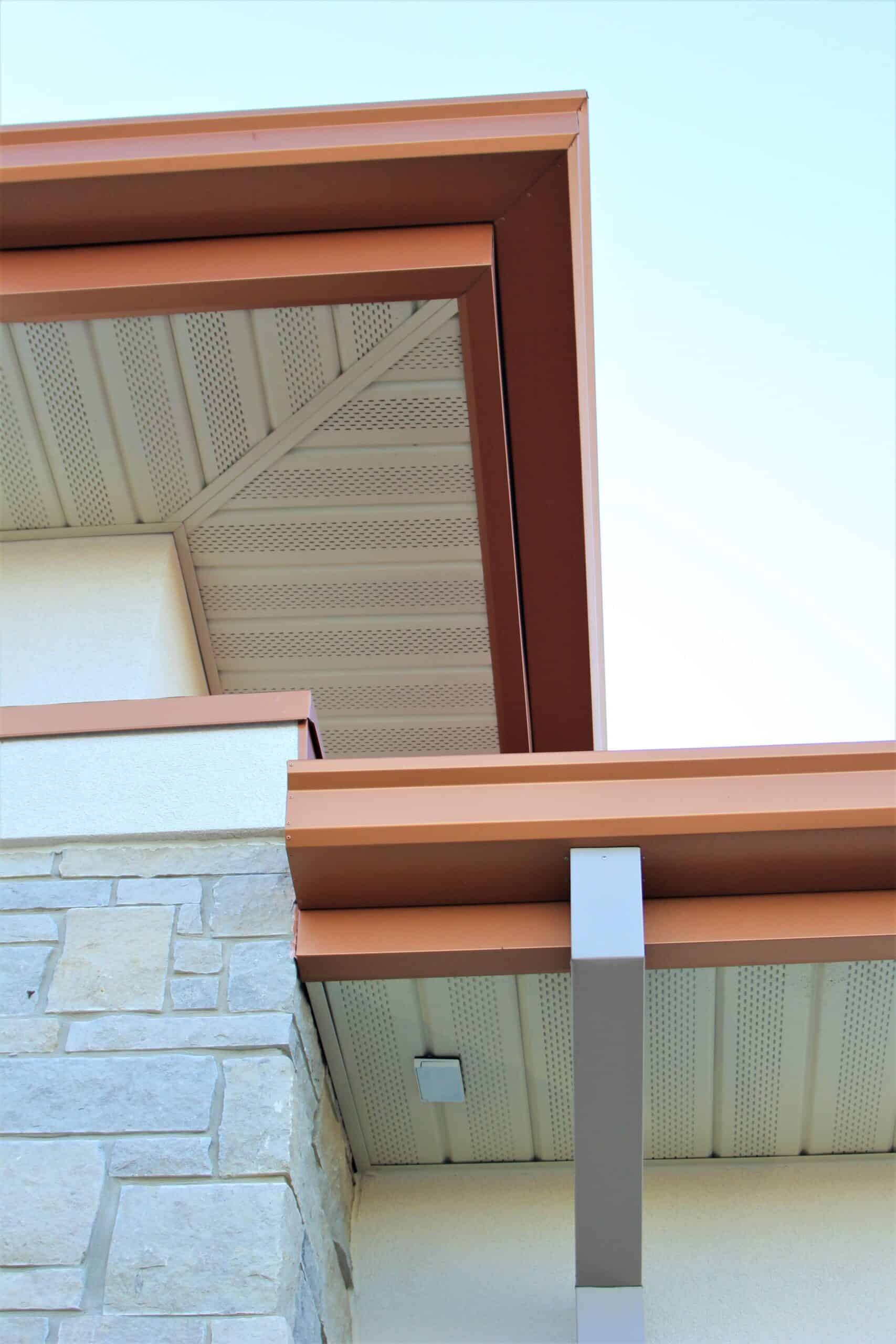

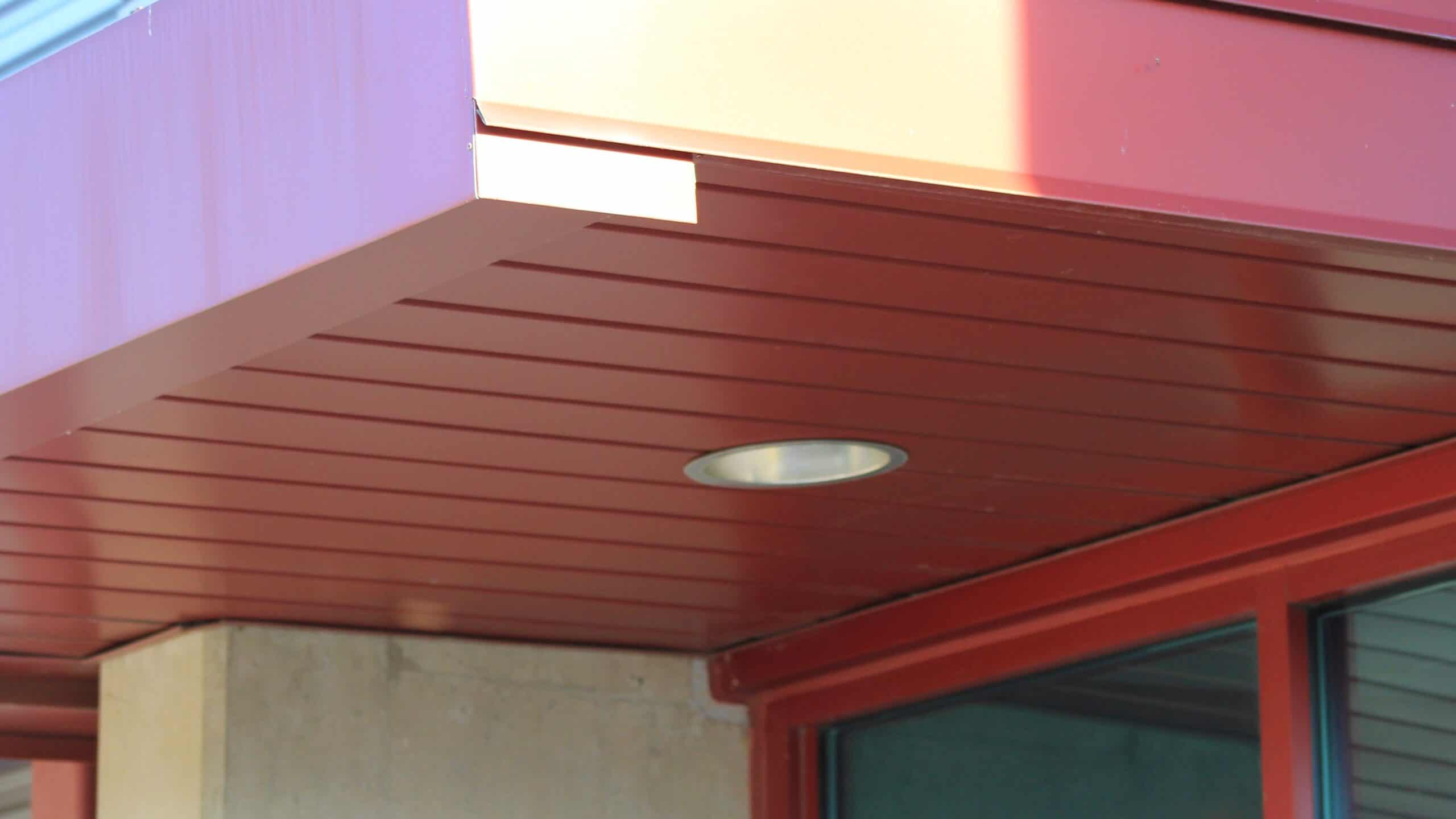

Product uses include soffit and fascia.

Product Offerings

24 ga. Steel and .032 Aluminum

  • VS0512 with 12″ o.c. seams

Lengths available from 6” up to 20’

Advantages

  • No Panel Clips: fast and easy installation
  • V-Grooves adds depth to panel appearance

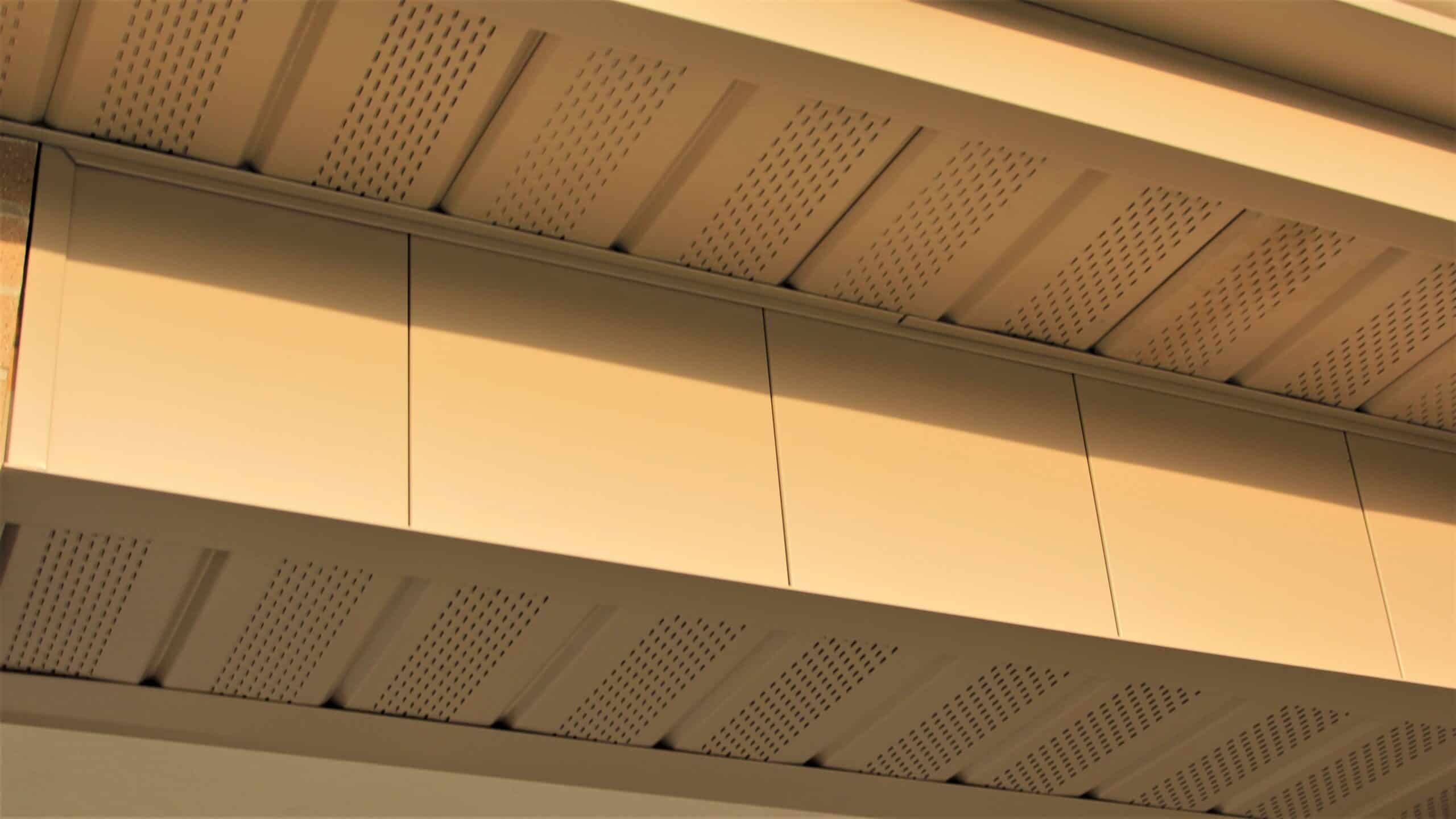

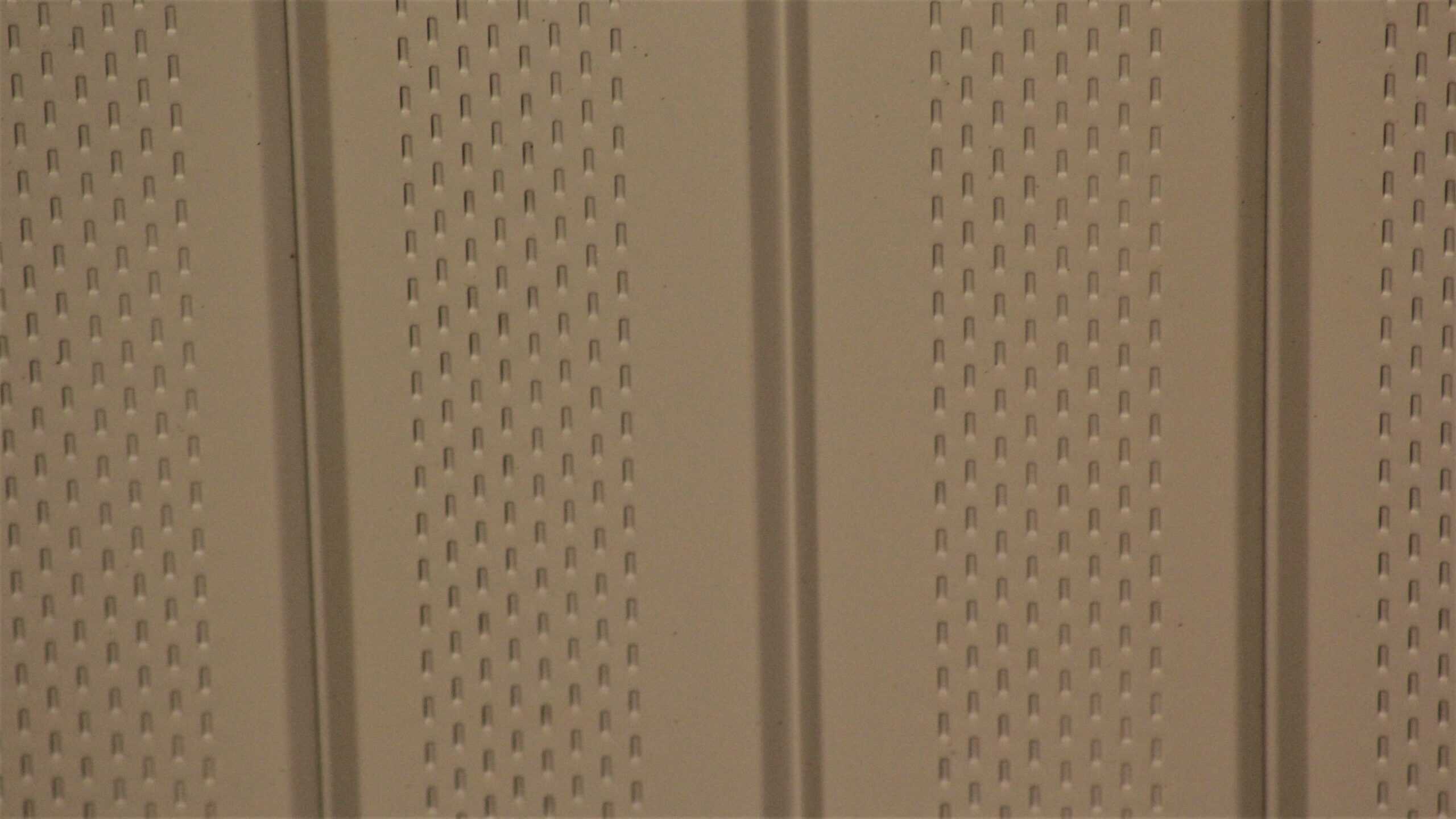

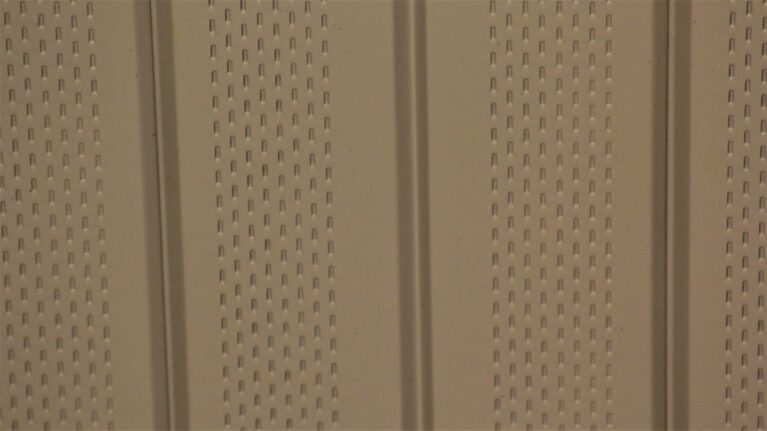

  • 7.5% free air permeation with perforations  (available in .032 aluminum only)
  • 6″ Minimum panel length reduces installation cost
