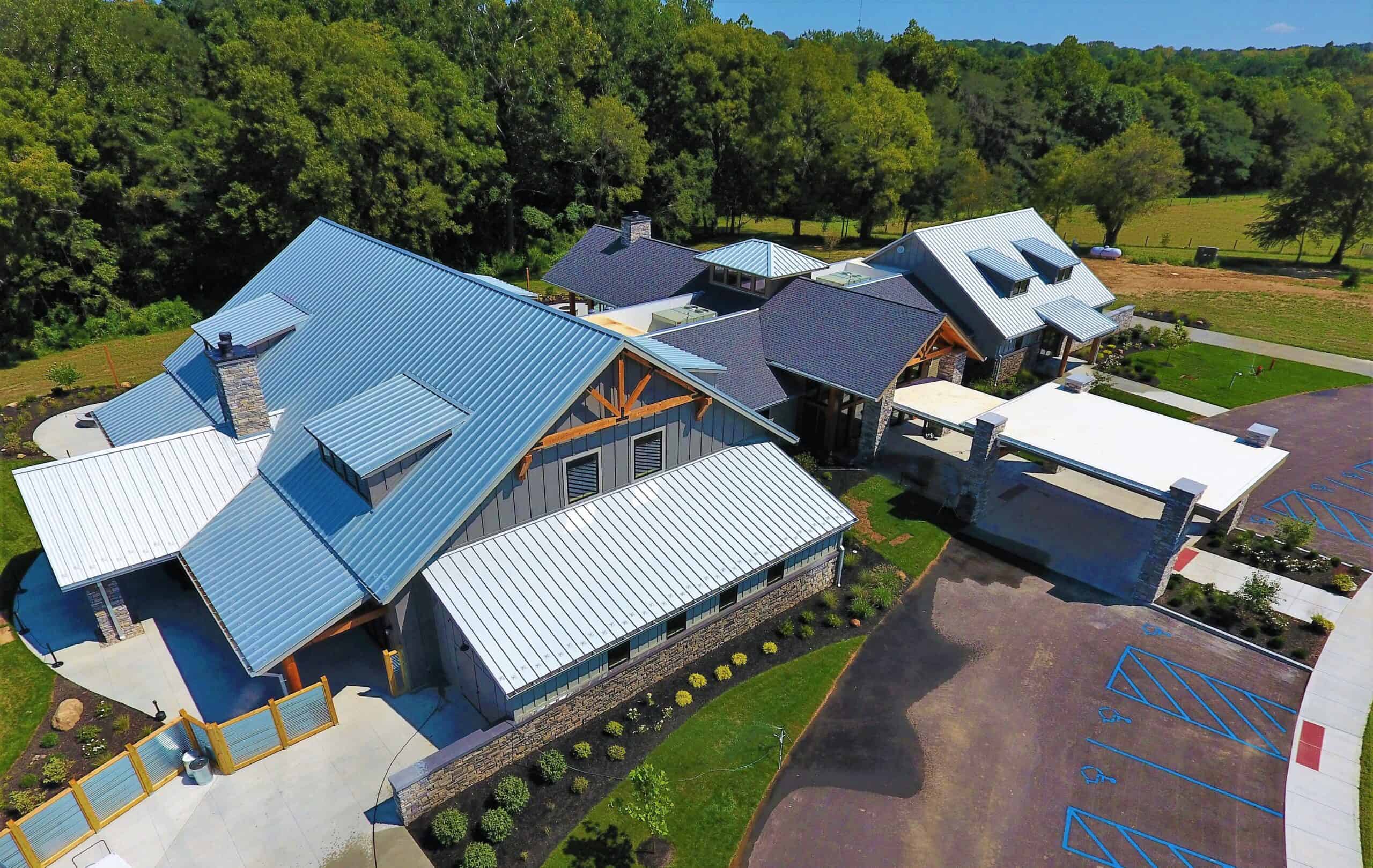

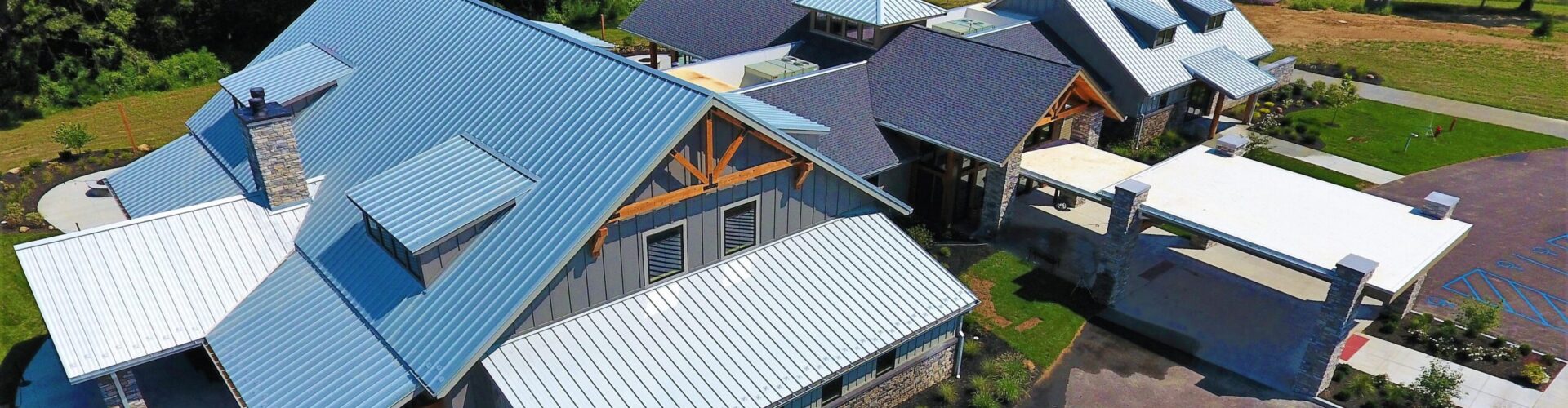

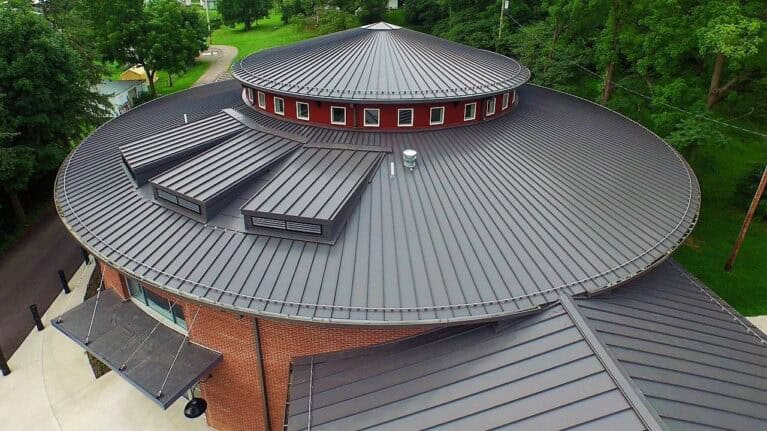

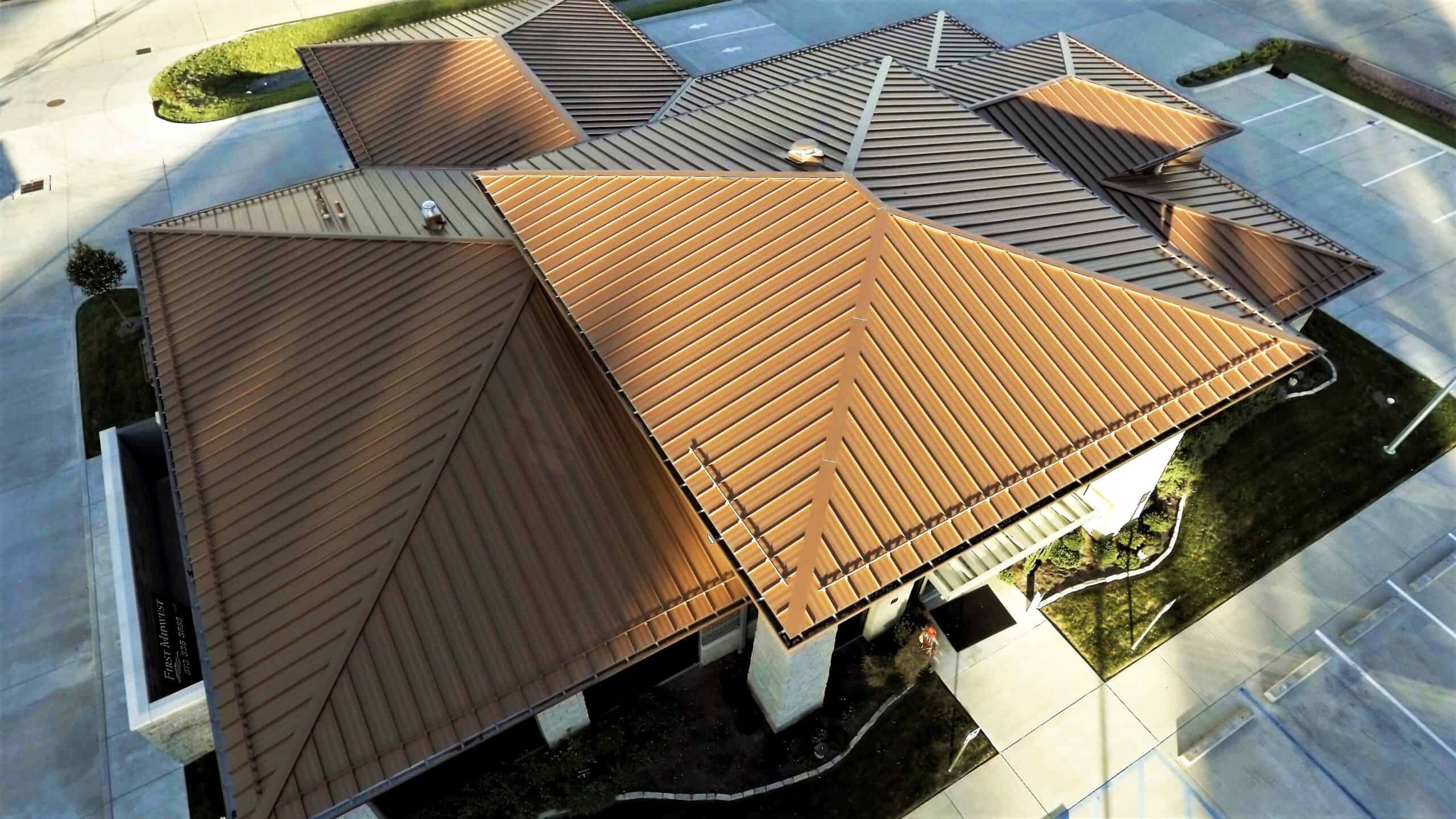

The Sycamore at Mallow Run | Bargersville, Indiana  |  Demerly Architects  |  Horning Roofing & Sheet Metal

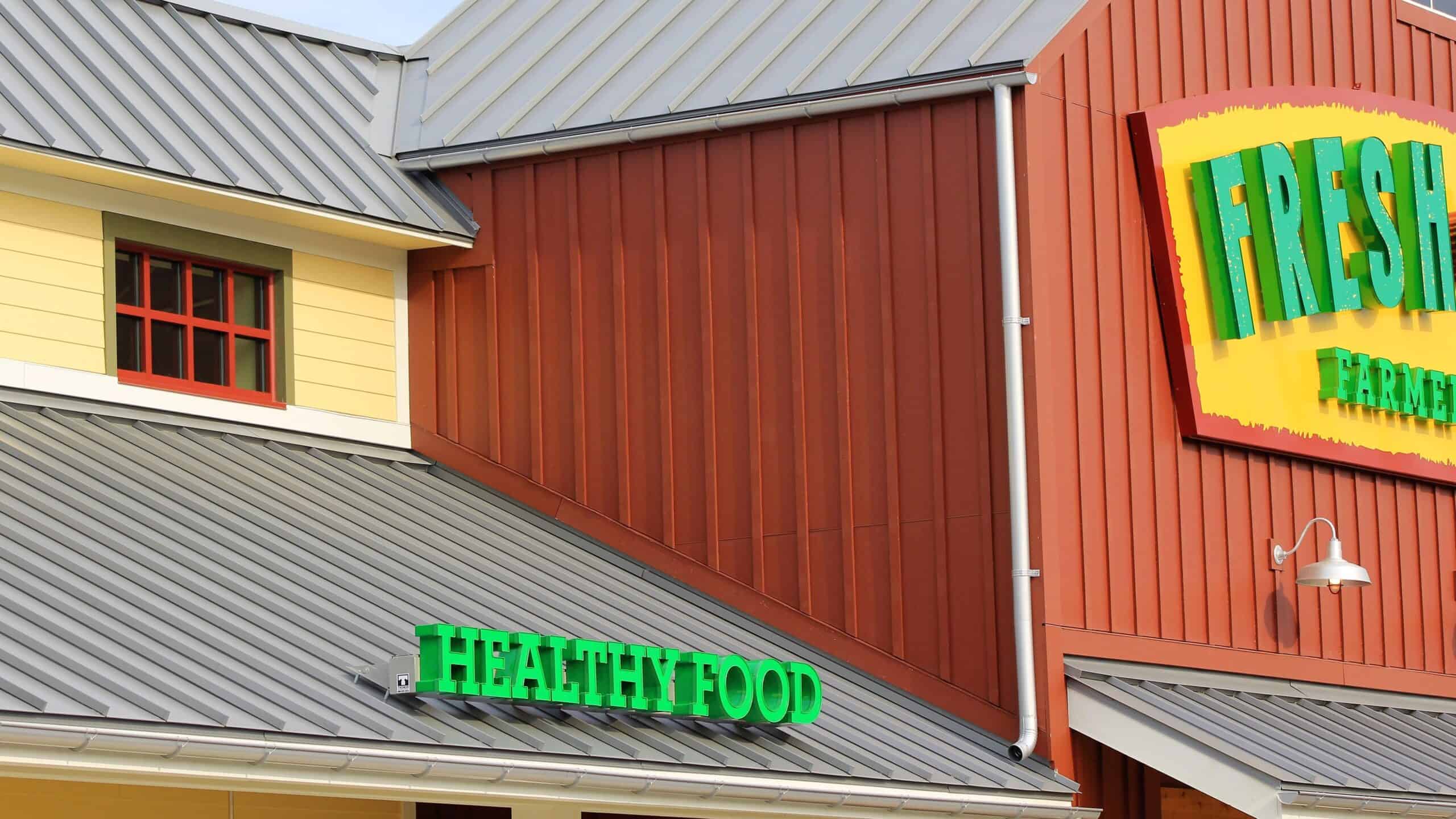

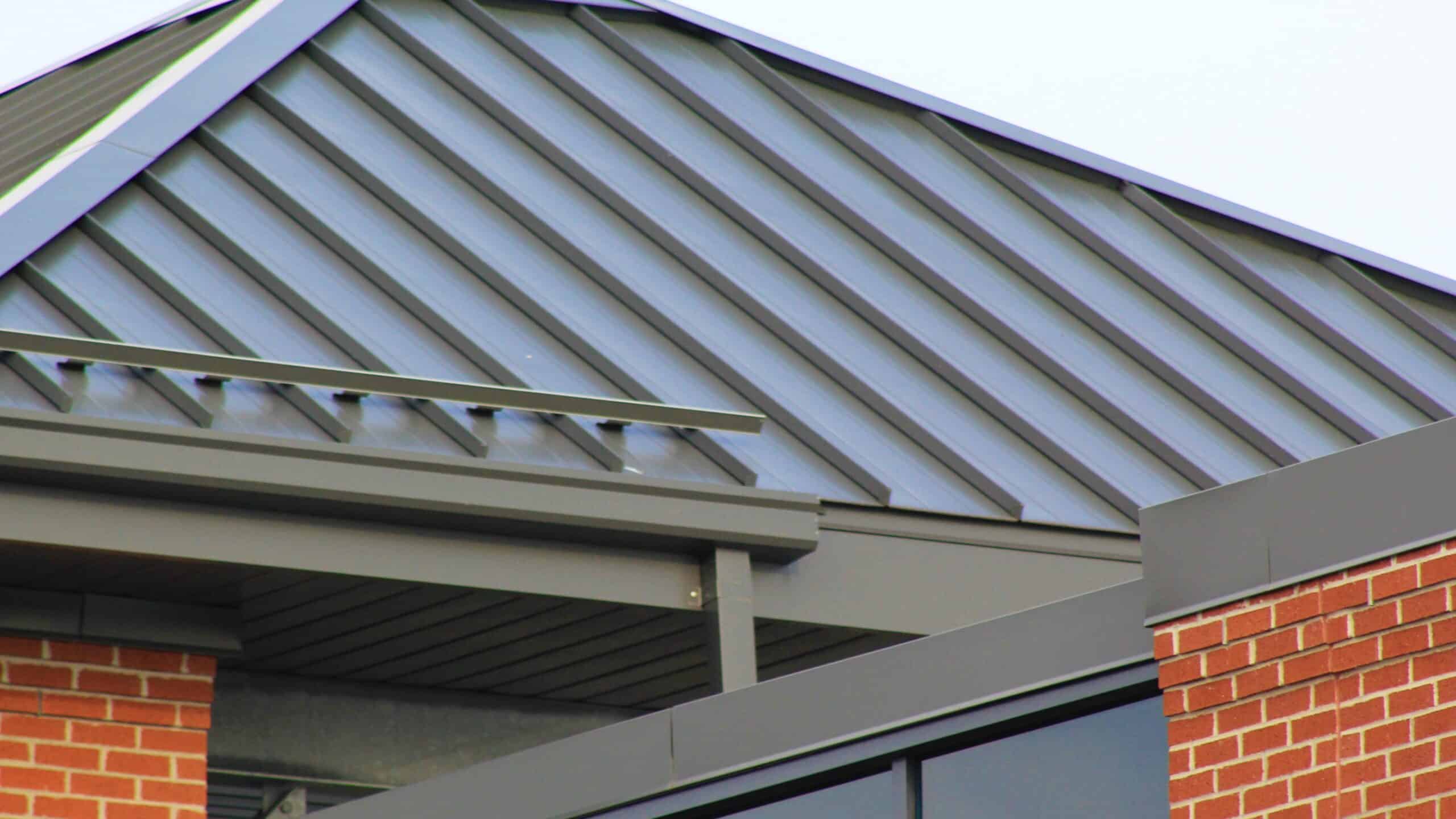

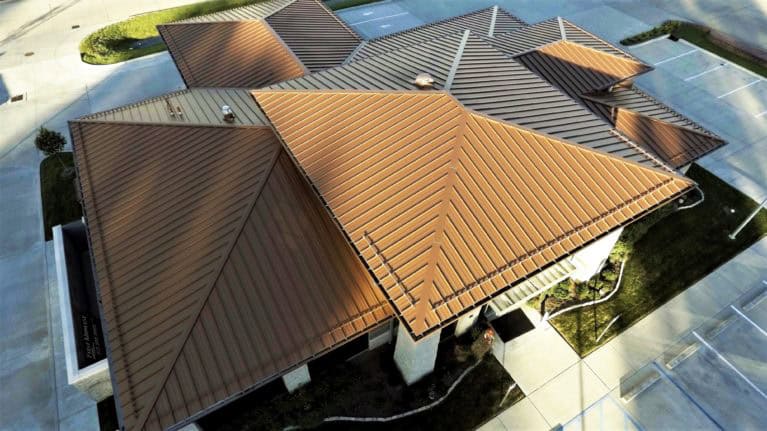

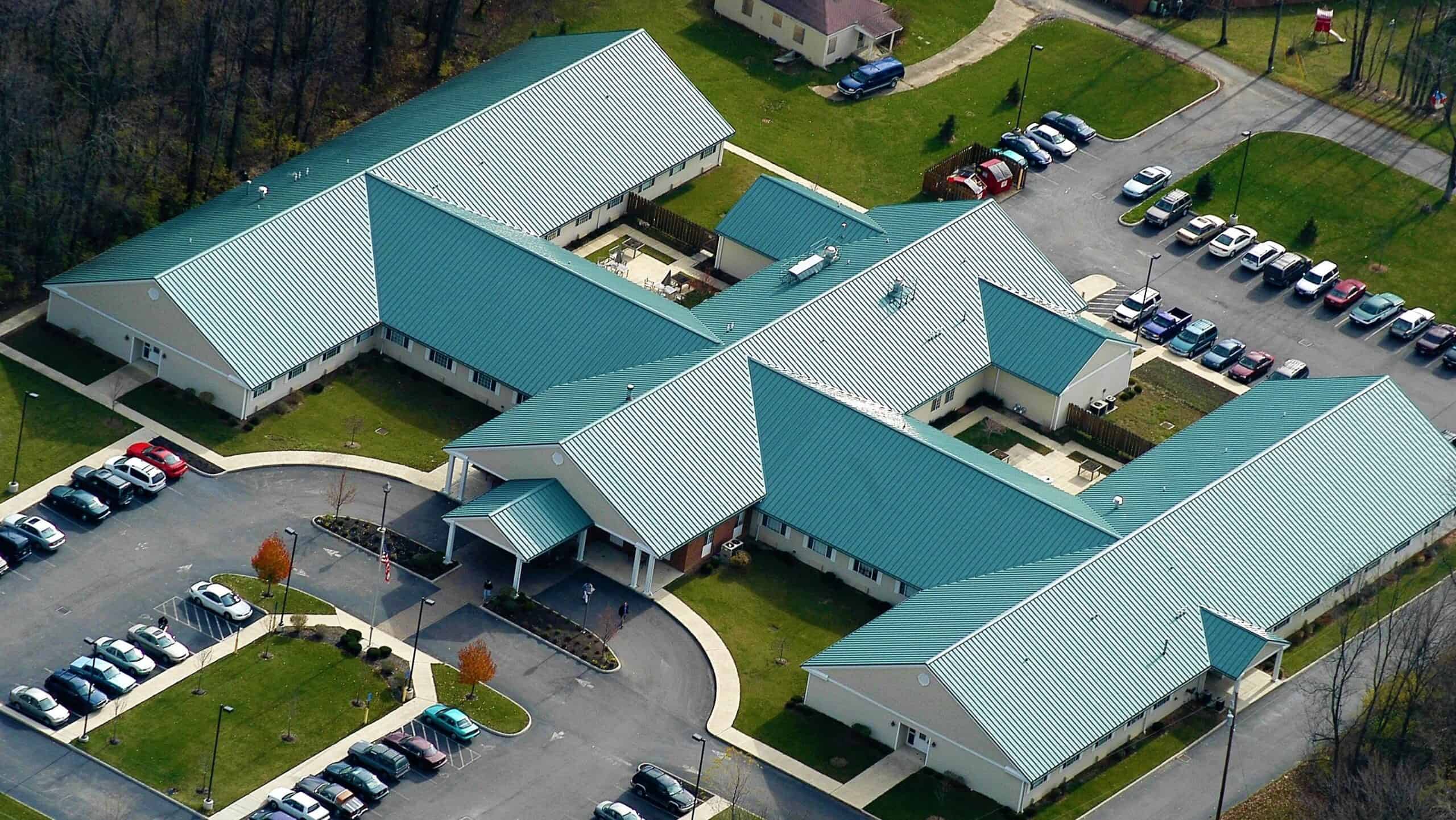

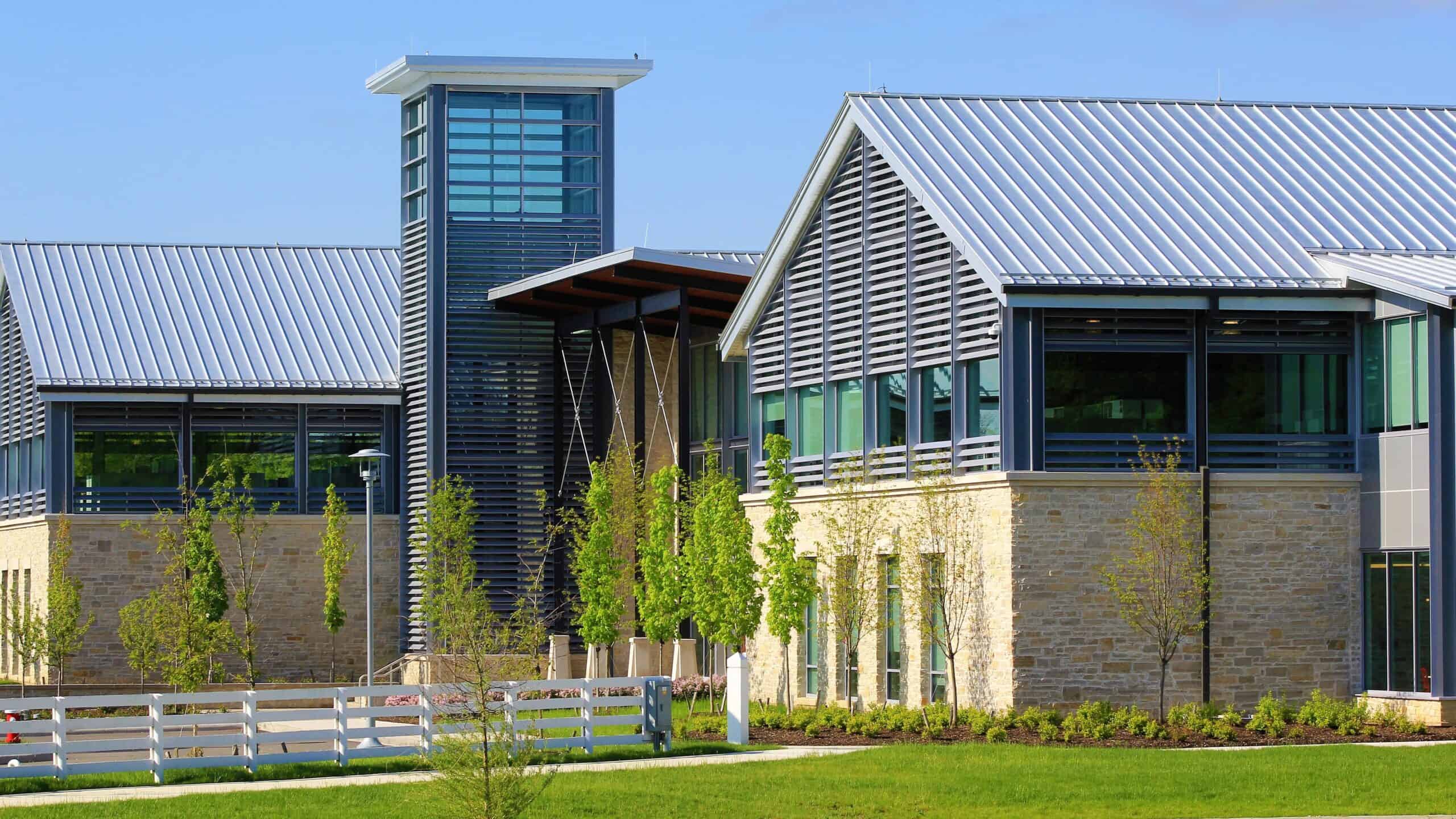

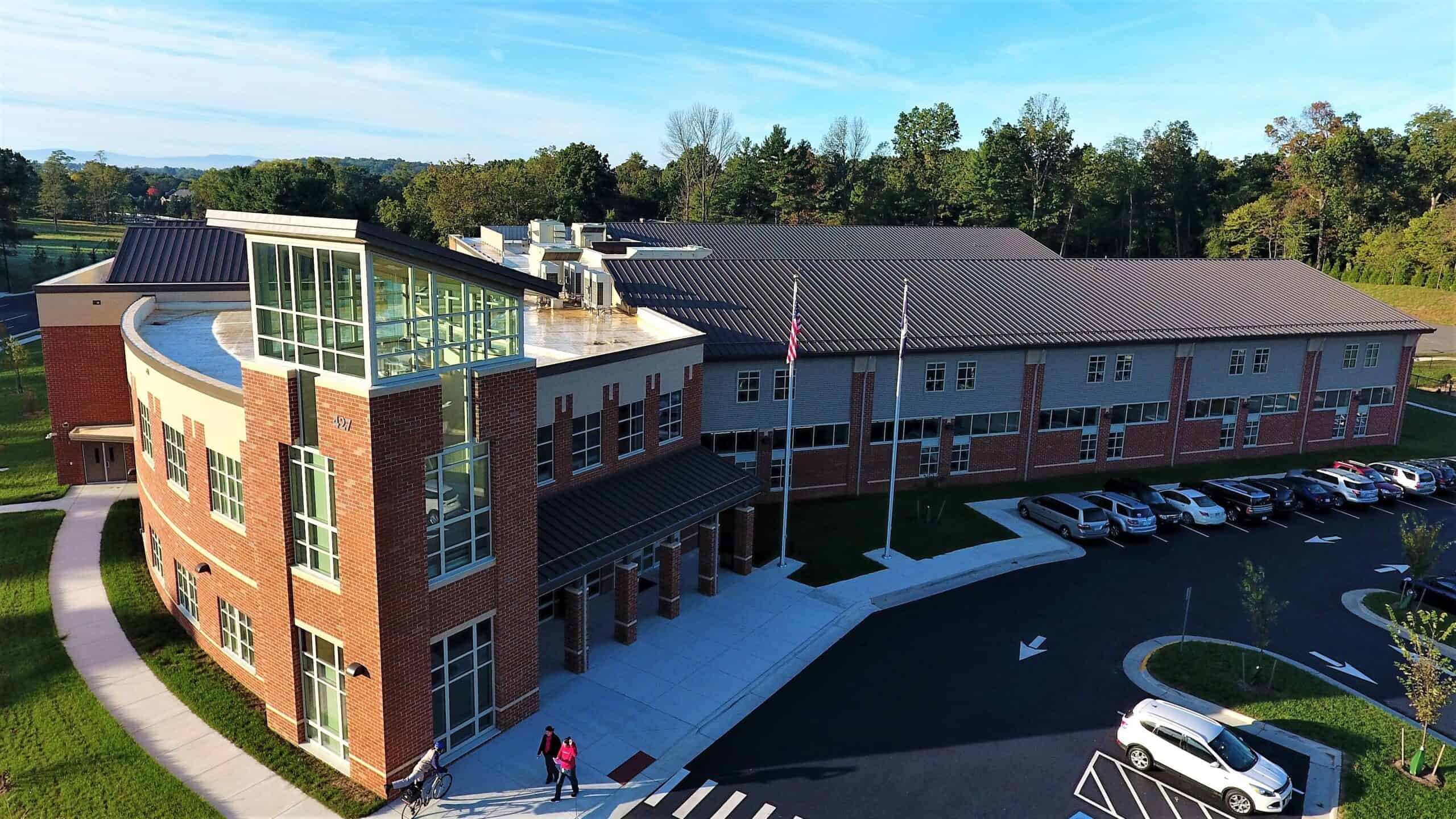

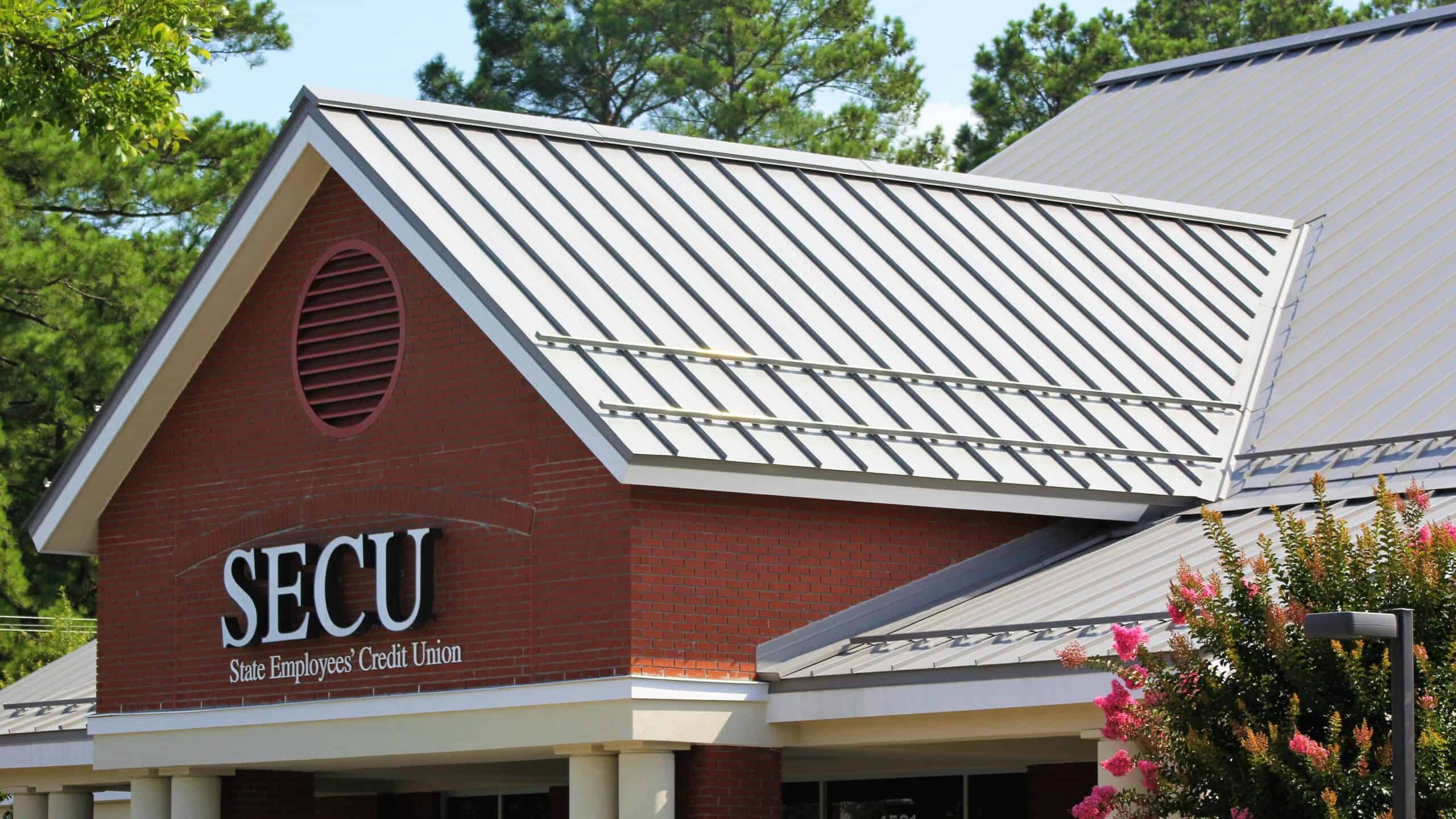

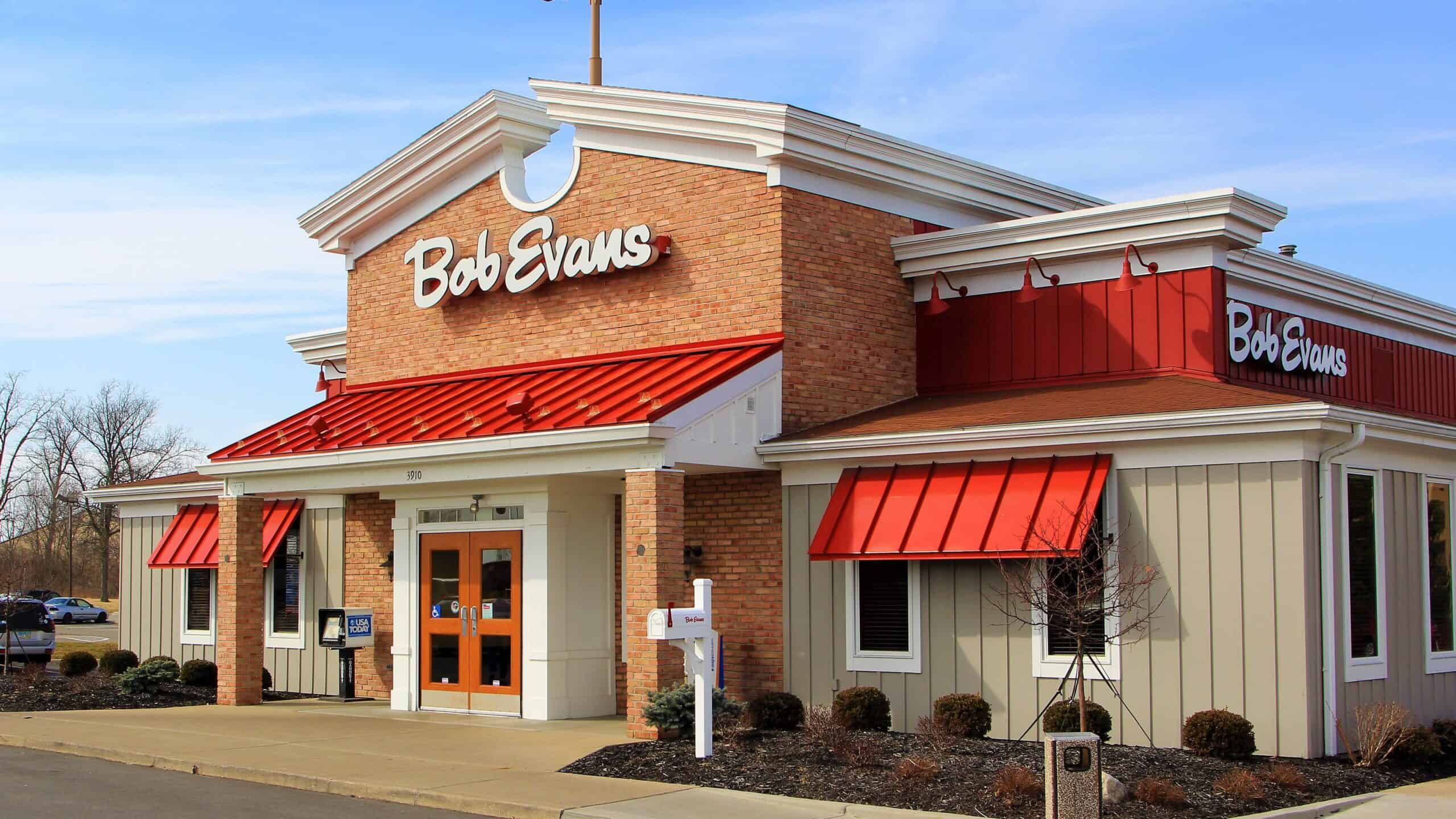

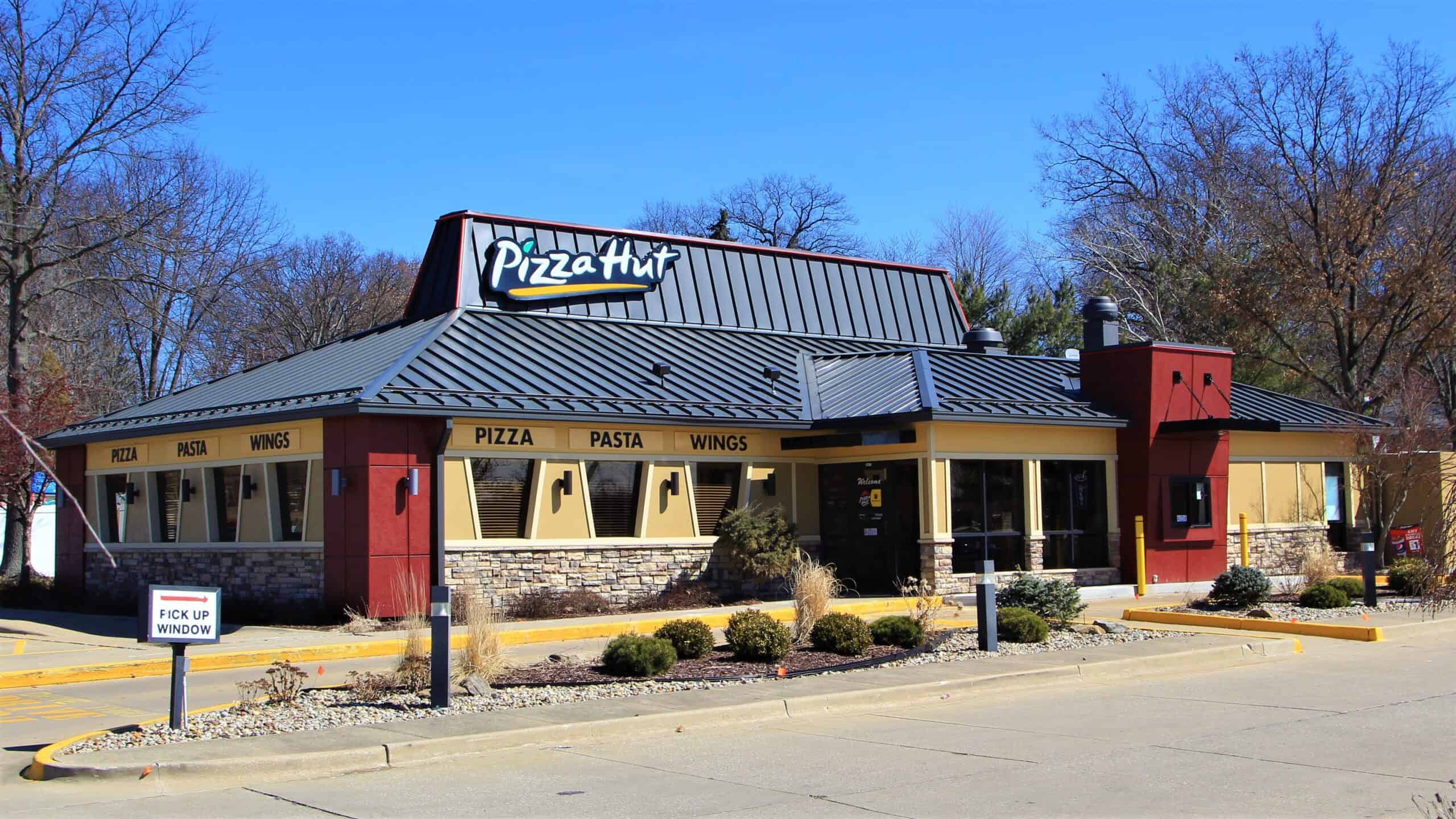

Inter-Lock IL20


Inter-Lock IL20 is a structural panel that is snapped together during installation. The panel is an integral interlocking system by design that installs in one direction from a given starting point. A double male starter panel is available (for a minimal setup fee) and may be installed in the middle of a roof area to achieve a symmetrical layout. Inter-Lock is a very flexible panel that works well with a wide range of building designs.




Finish
DynaClad® 70% Full Strength PVDF Paint Finish

Colors
Choice of over 32 Colors


DOWNLOAD IL20 CUT SHEET

il20-cutsheet





DOWNLOAD PDF DETAILS


Manage and download this product's documents with Submittal Builder
Free to registered users.

Login/Register

Roof Assemblies

Inter-Lock IL20 can be applied over various roof assemblies including:

  • rigid insulation (utilizing a bearing plate under each panel clip spaced 48″ o.c., max.) over 22 ga. corrugated metal deck
  • plywood sheathing
  • nail base insulation
  • steel deck
  • various other solid substrates

Uses & Applications

Product uses include roofs with slopes as low as 3:12, vertical fascia, equipment screens, mansards, and wall panels. This system may also be
installed on tapered roof areas.


*Note: Metallic paint finishes are “directional” and are not recommended for “double male” panels.

Product Offerings

24 ga., 22 ga. Steel, and .032, .040 Aluminum
Embossing and various stiffener configurations available

  • IL2012 with 12” o.c. seams
  • IL2016 with 16” o.c. seams
  • IL2018 with 18″ o.c. seams

16, 20 oz. Copper
Various stiffener configurations available

  • IL2012 with 12″ o.c. seams
  • IL2018 with 18” o.c. seams

Performance Tested

  • UL-580 Wind Uplift
  • ASTM E1592 Uniform Static Air Pressure
  • ASTM E331 Water Penetration
  • ASTM E283 Air Leakage

Advantages

  • Optional Factory Applied Non-Curing Sealant: For superior watertightness
  • Engineered Snap-Together Design for easy installation
  • Symmetrical Visual Aesthetics: Providing a non-directional appearance
  • Clip allows for unlimited thermal expansion and contraction
  • Continuous Interlocking Seam: No seam disengagement
  • Anti-Siphoning Seam Design: Prevents water infiltration
  • Continuous Rollformed Lengths: Eliminates need for panel lap joints.
  • Total System Warranties Available: For total confidence
