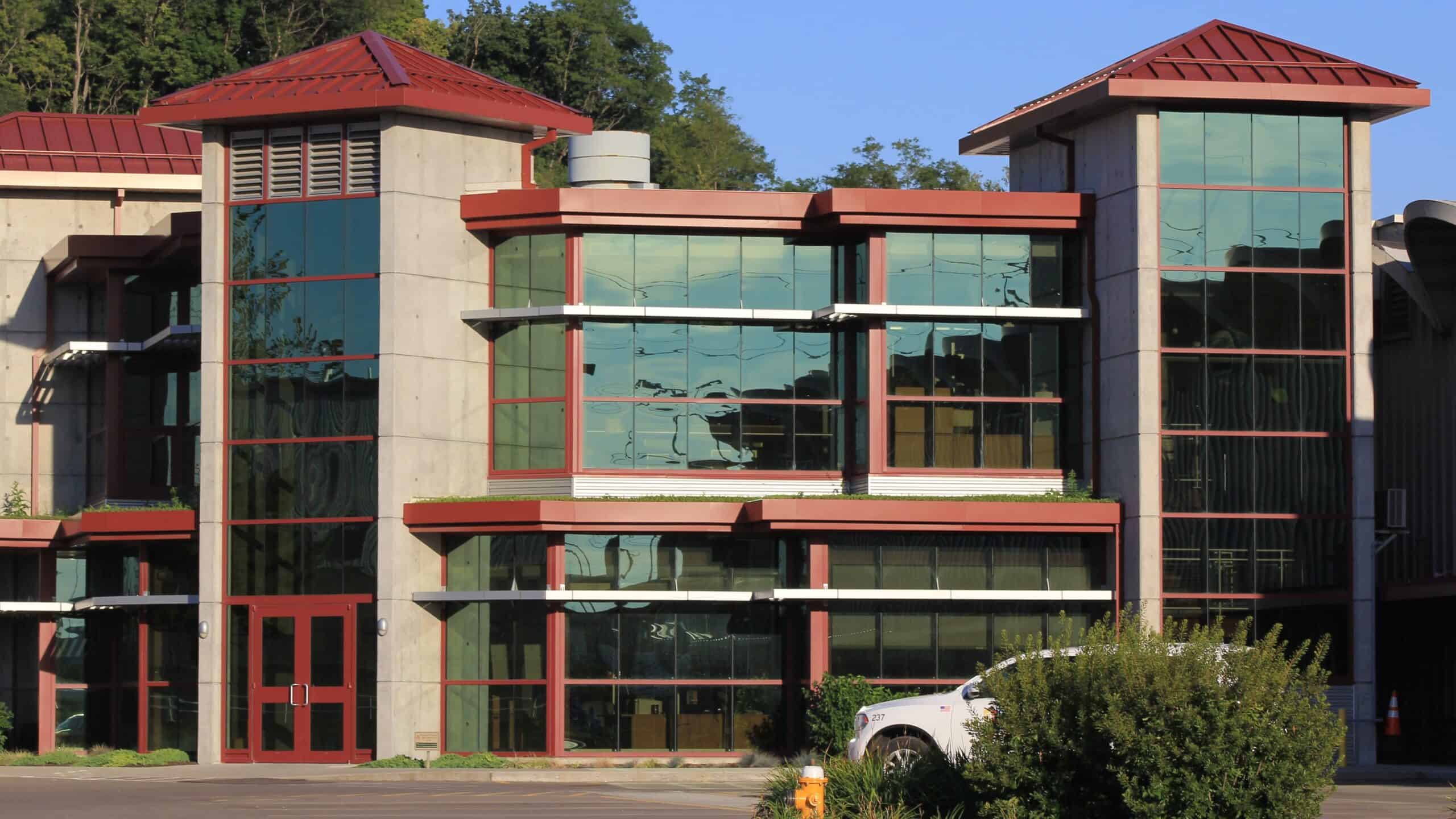

Montgomery County Recycle  |  Dayton, OH  |  John Poe Architects  |  Zero Breese

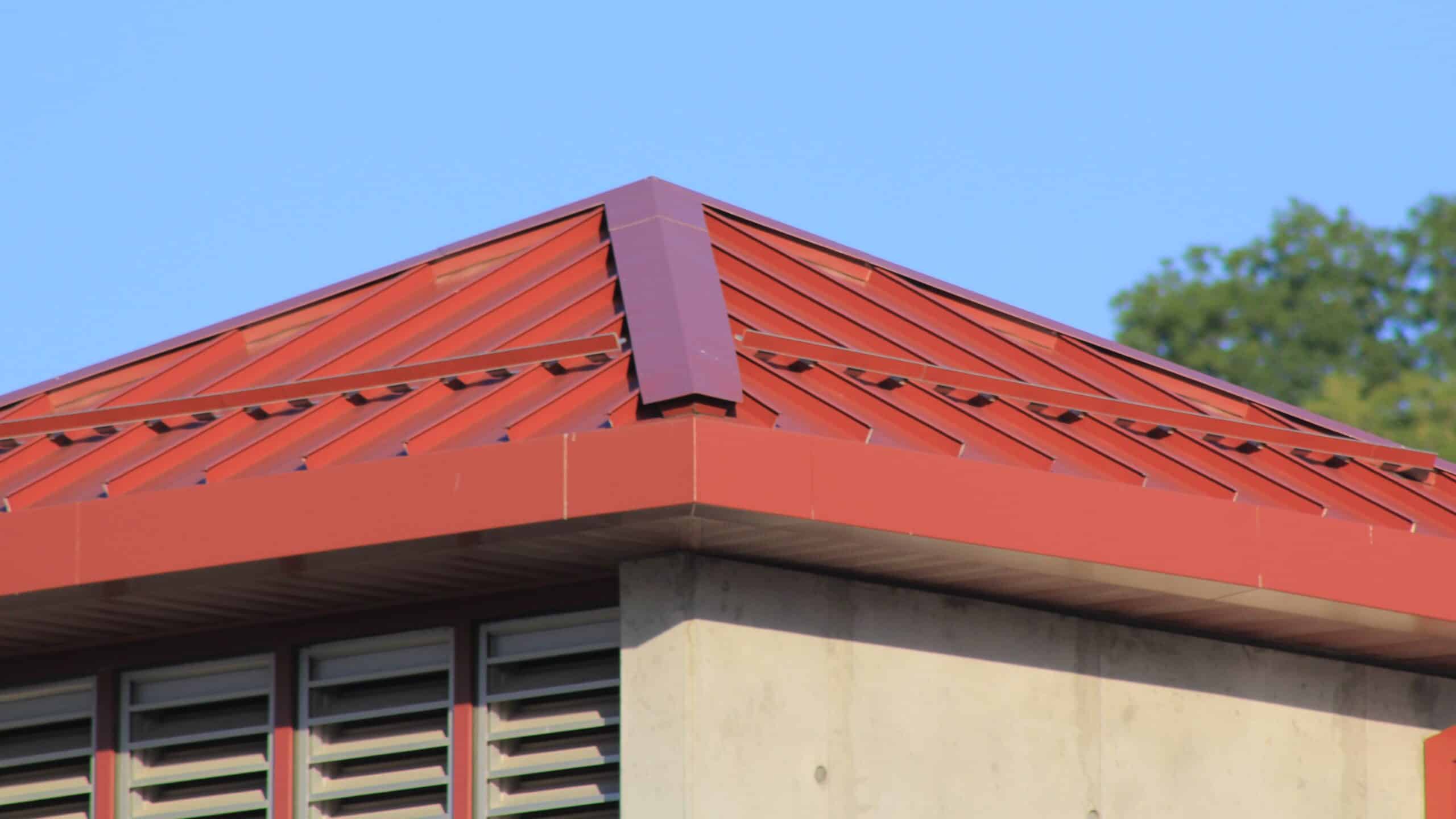

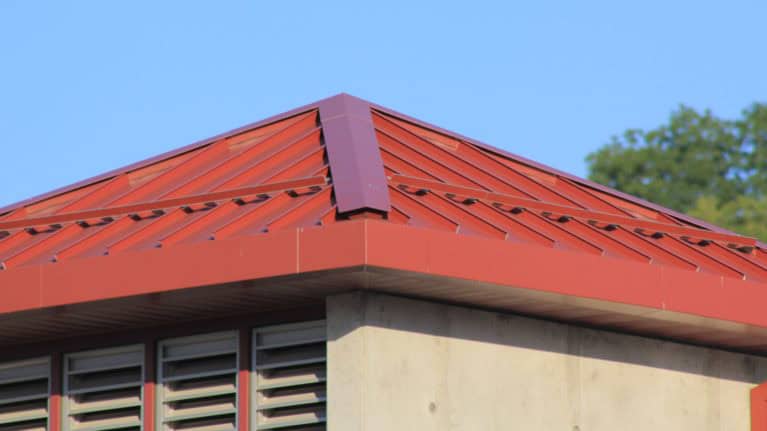

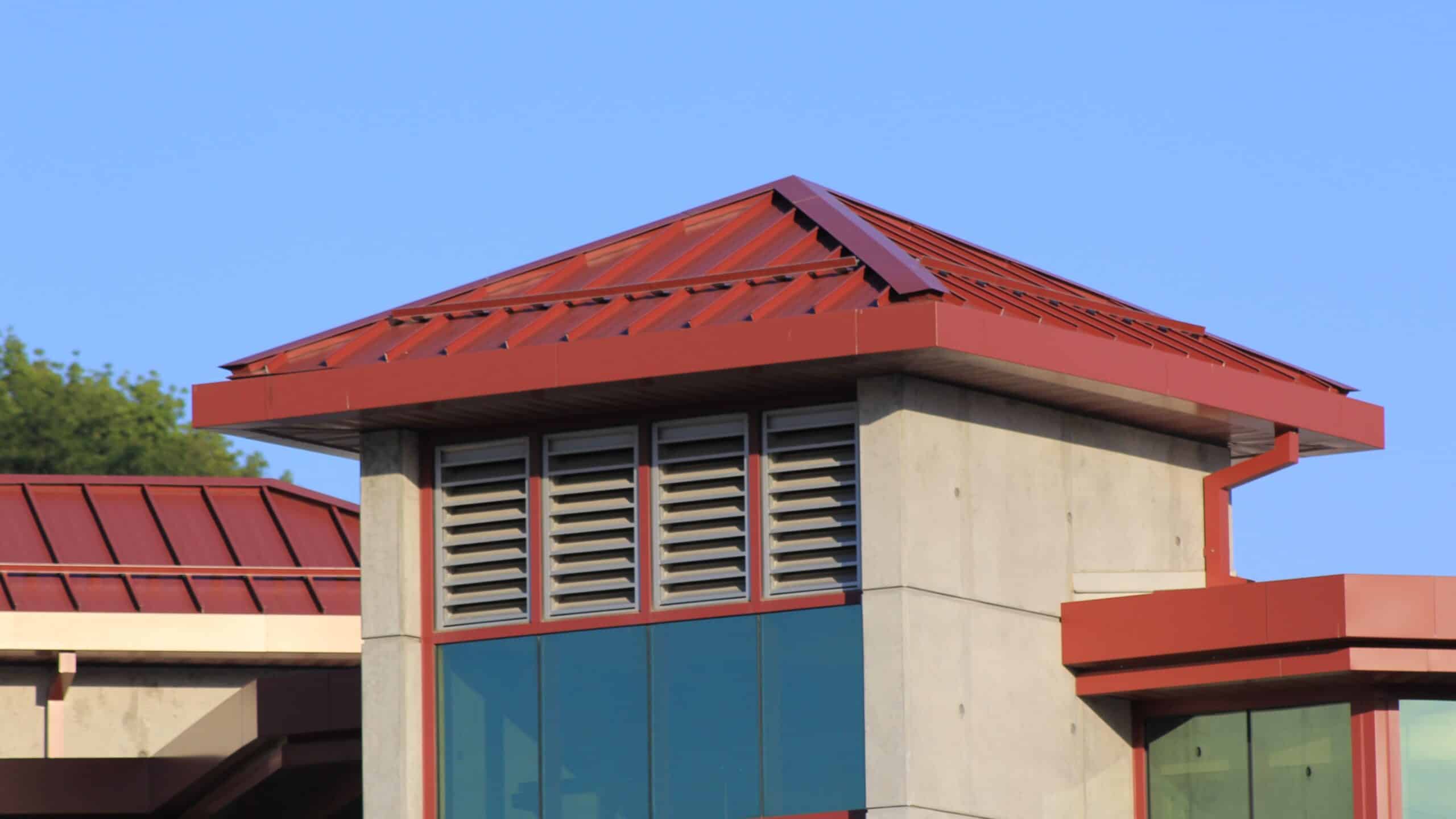

Tee-Lock TL25


Tee-Lock TL25 is a structural panel which is mechanically seamed during installation. The panel is a bi-directional system by design which installs in two directions from a given starting point. TEE-LOCK provides installers more control during installation over seam layout and allows symmetry of the panel area. The one piece clip allows for unlimited expansion and contraction.




Finish
DynaClad® 70% Full Strength PVDF Paint Finish

Colors
Choice of over 32 Colors


DOWNLOAD TL25 CUT SHEET


DOWNLOAD PDF DETAILS


Manage and download this product's documents with Submittal Builder
Free to registered users.

Login/Register

Roof Assemblies

TEE-LOCK (TL25) can be applied over various roof substrates including: open framing, rigid insulation (utilizing a bearing plate under each panel clip spaced 48″ o.c., max.), steel deck and various solid substrates including plywood sheathing & nail base insulation.

Uses & Applications

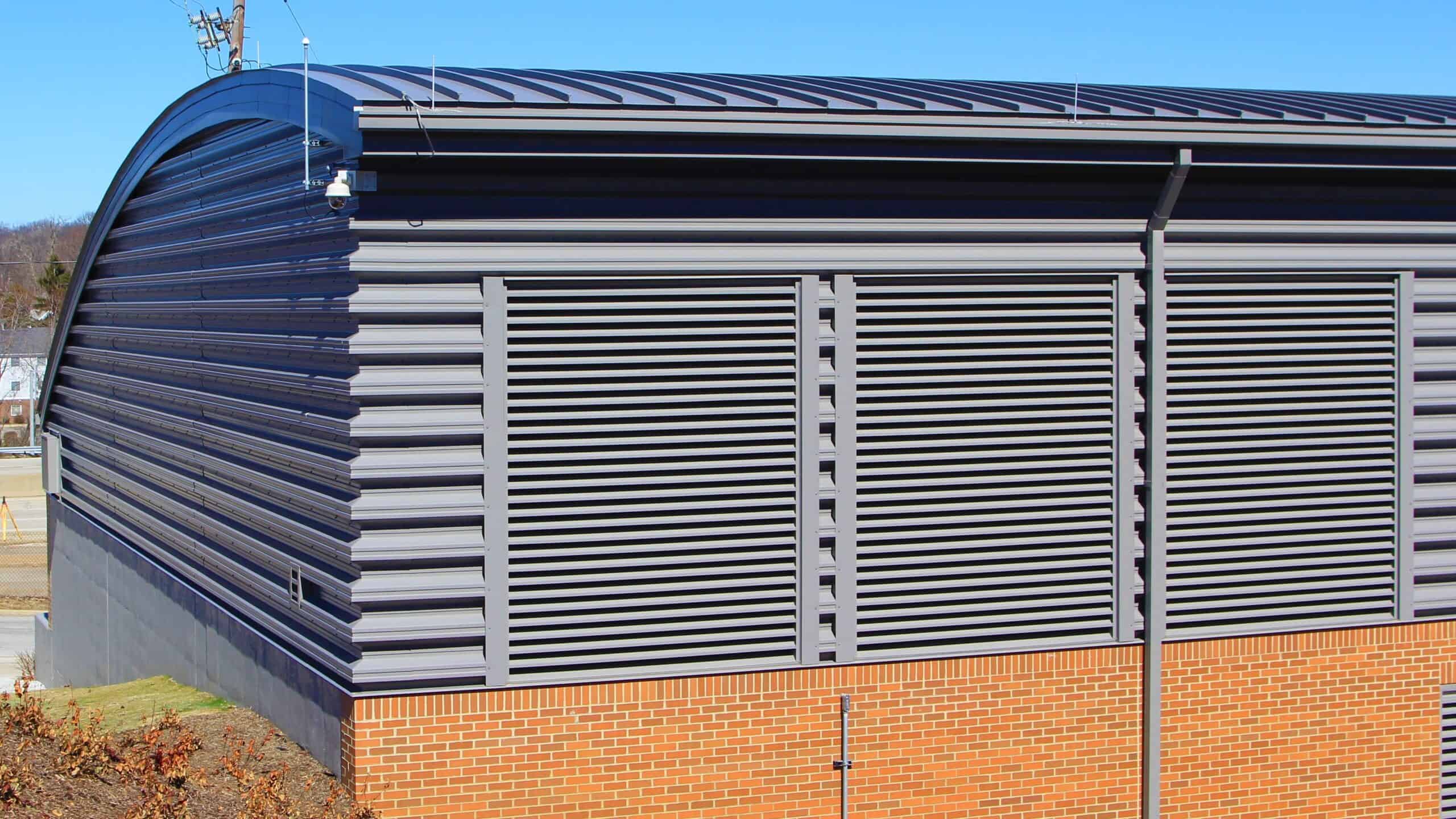

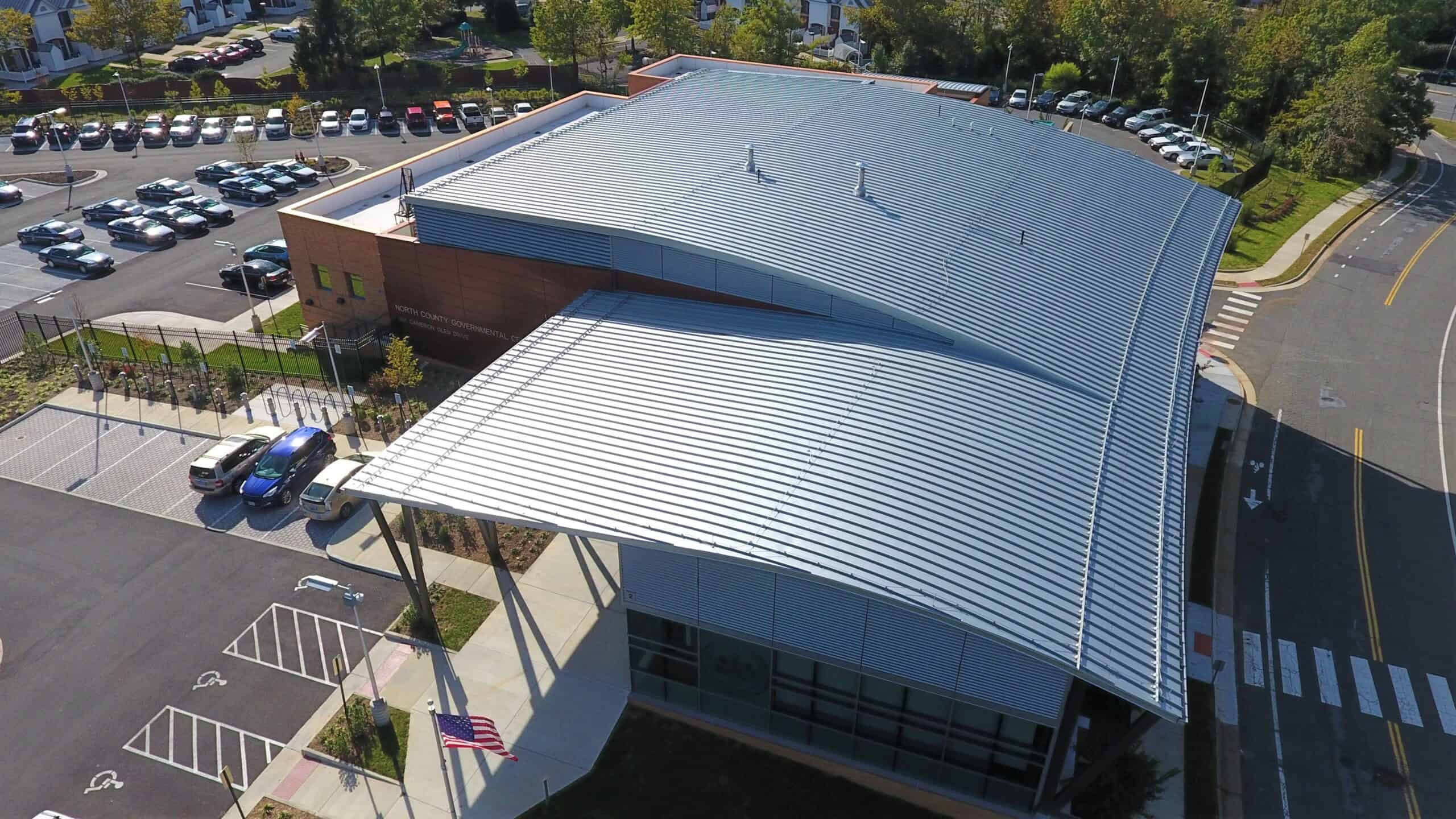

Product uses include low to high slope roofing, vertical fascia, equipment screens, mansards and wall panels.  This system may also be installed on tapered and curved roof areas (radii greater than 90’).

Product Offerings

24 ga., 22 ga. Steel and .032, .040 Aluminum
Embossing and various stiffener configurations available

  • TL2512 with 12” o.c. seams
  • TL2516 with 16″ o.c. seams
  • TL2518 with 17.625″ o.c. seams

Performance Tests

  • UL-580 Wind Uplift
  • ASTM E1592 Uniform Static AirPressure
  • ASTM E1646 Water Penetration
  • ASTM E1680 Air Leakage
  • ASTM E2140 Static Water Penetration
  • ASTM E1996 Impact Resistance & Cyclic Pressure

Load Tables:

Advantages

  • Factory Applied Hot Melt Sealant: For superior watertightness
  • Mechanically Seamed: May be installed on low slope applications
  • Bi-Directional Mechanical Seaming: Panel seaming is simplified
  • One Piece Clip: Allows for unlimited thermal expansion and contraction
  • Continuous Roll formed Lengths: Eliminates need for panel lap joints
  • Hydrostatic Seam Design: Allows for installations to 1/2:12 slopes
  • Panel design allows for individual panels to be removed and/or replaced if necessary
  • Total System Watertight Warranties Available: For total confidence
