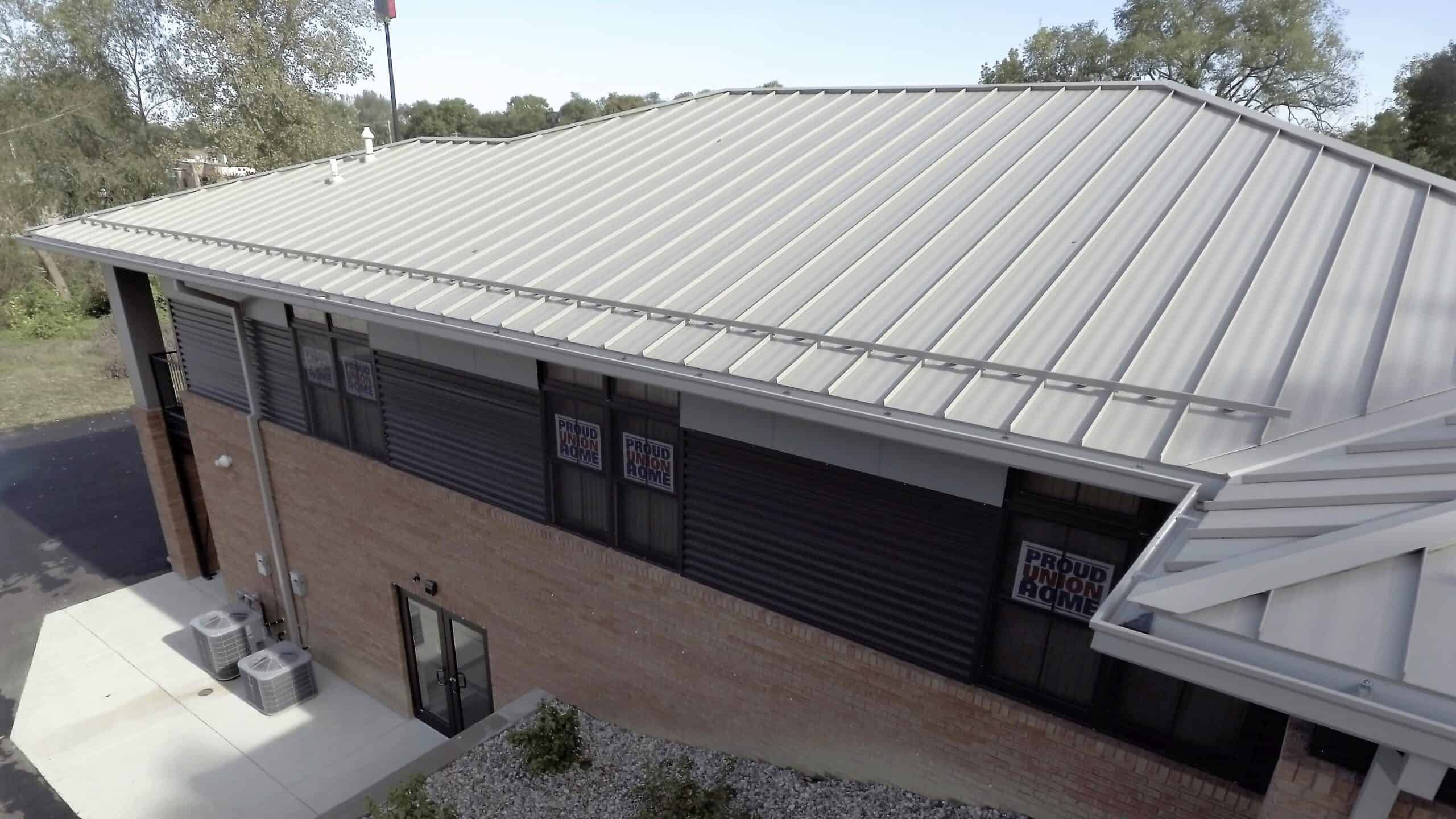

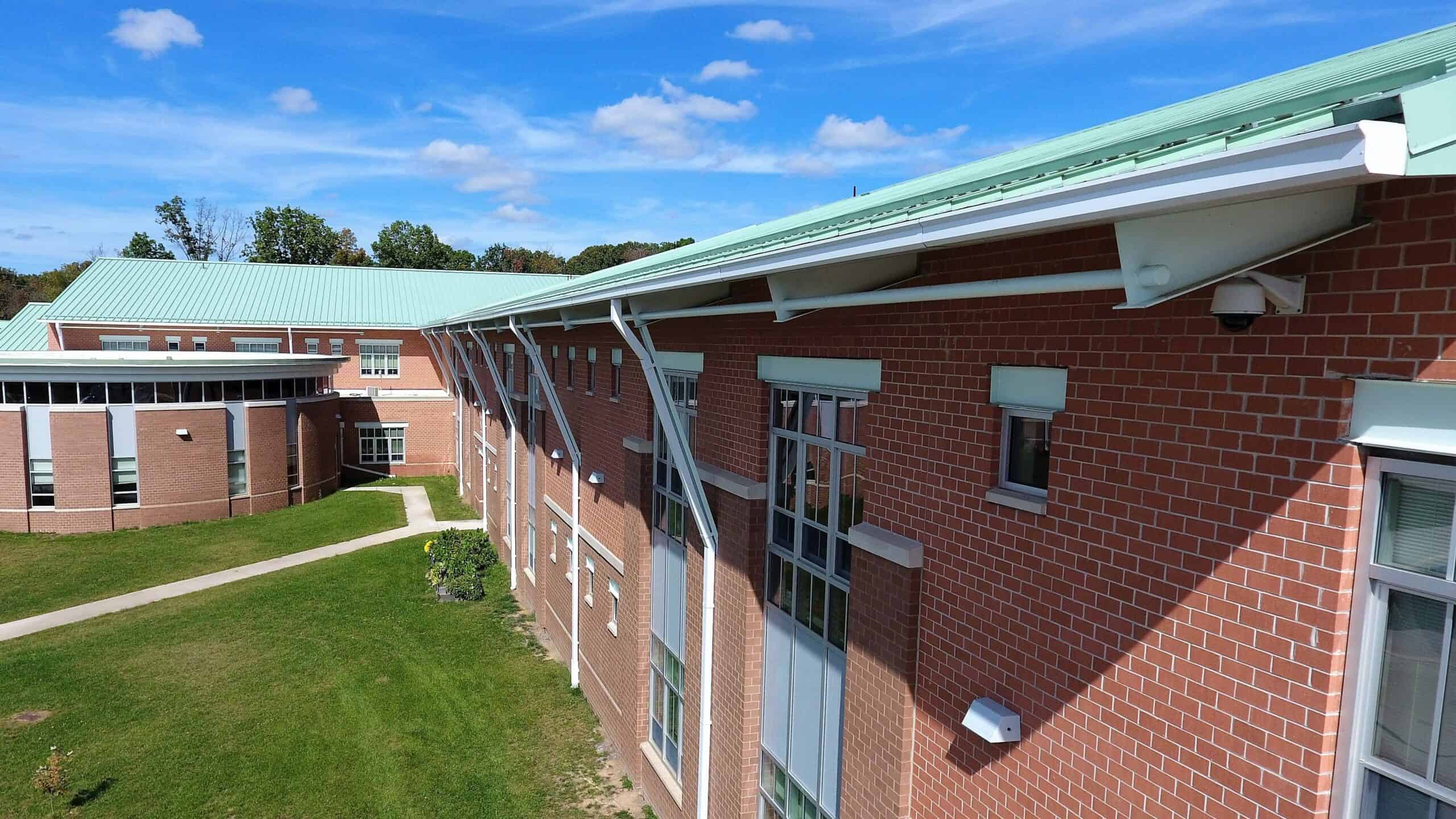

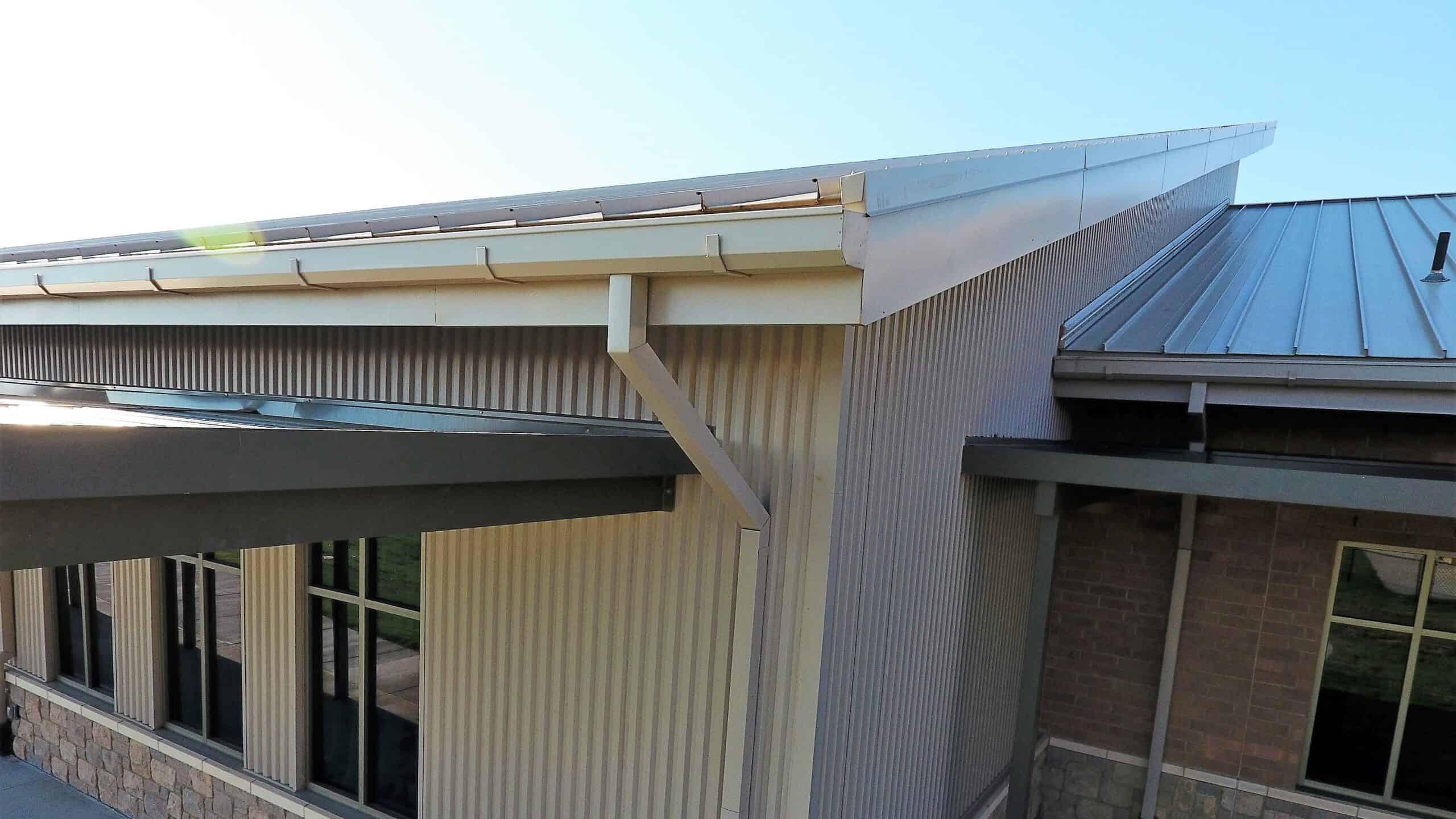

Patriot High School – Nokesville, VA  |  Moseley Architects  |  Interstate Corporation

Continuous Gutter

dynaclad-logosmall

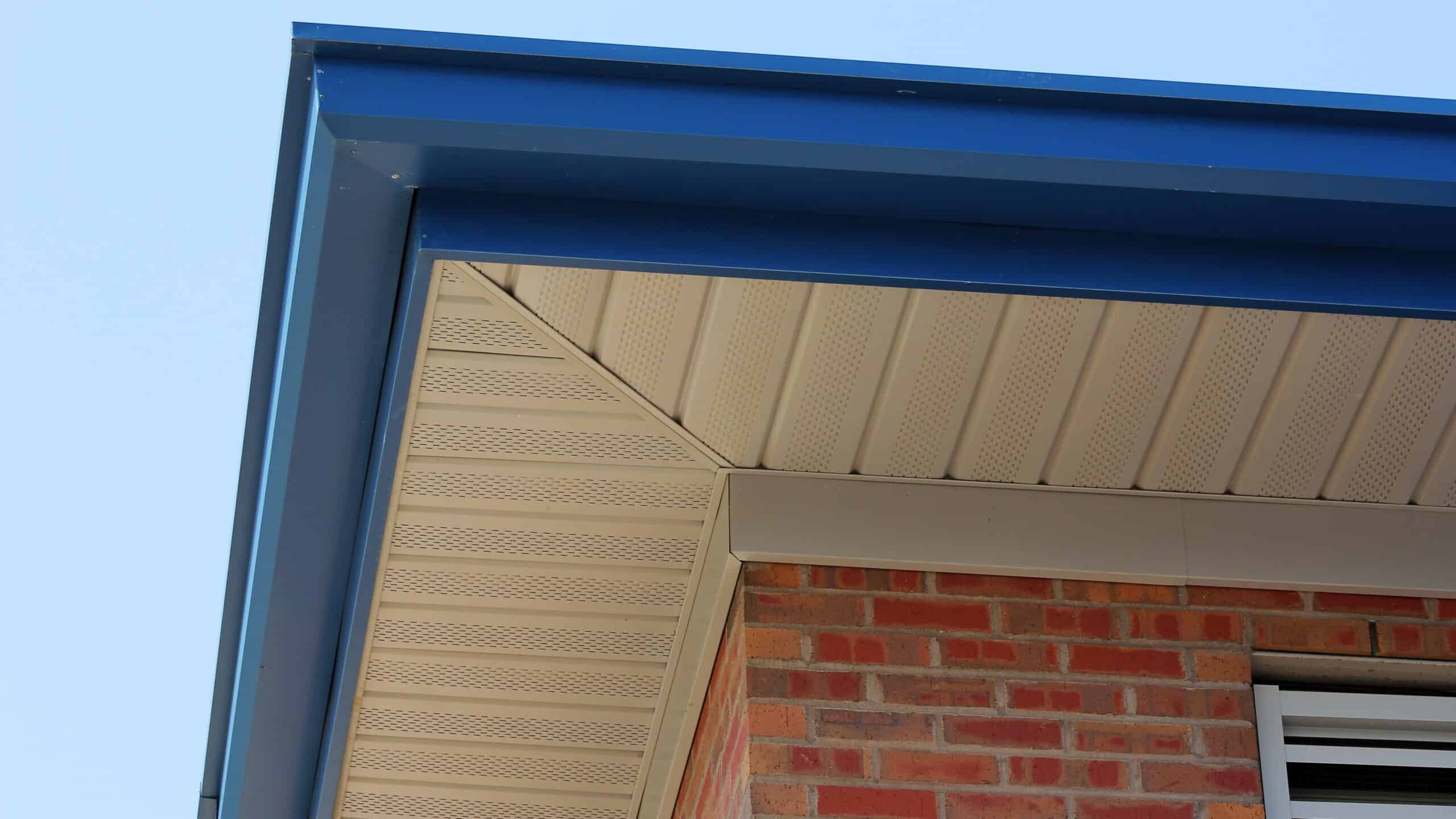

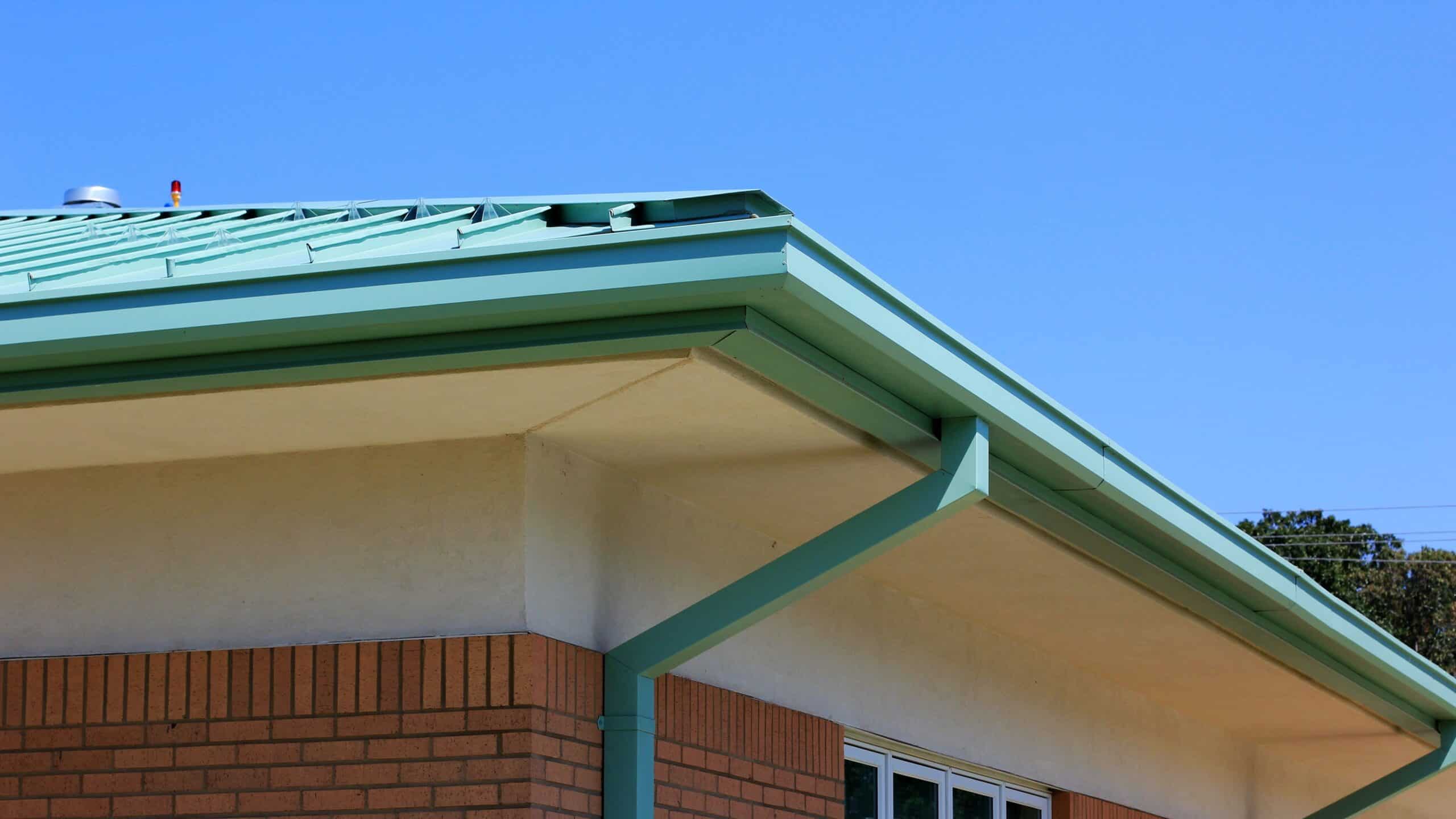

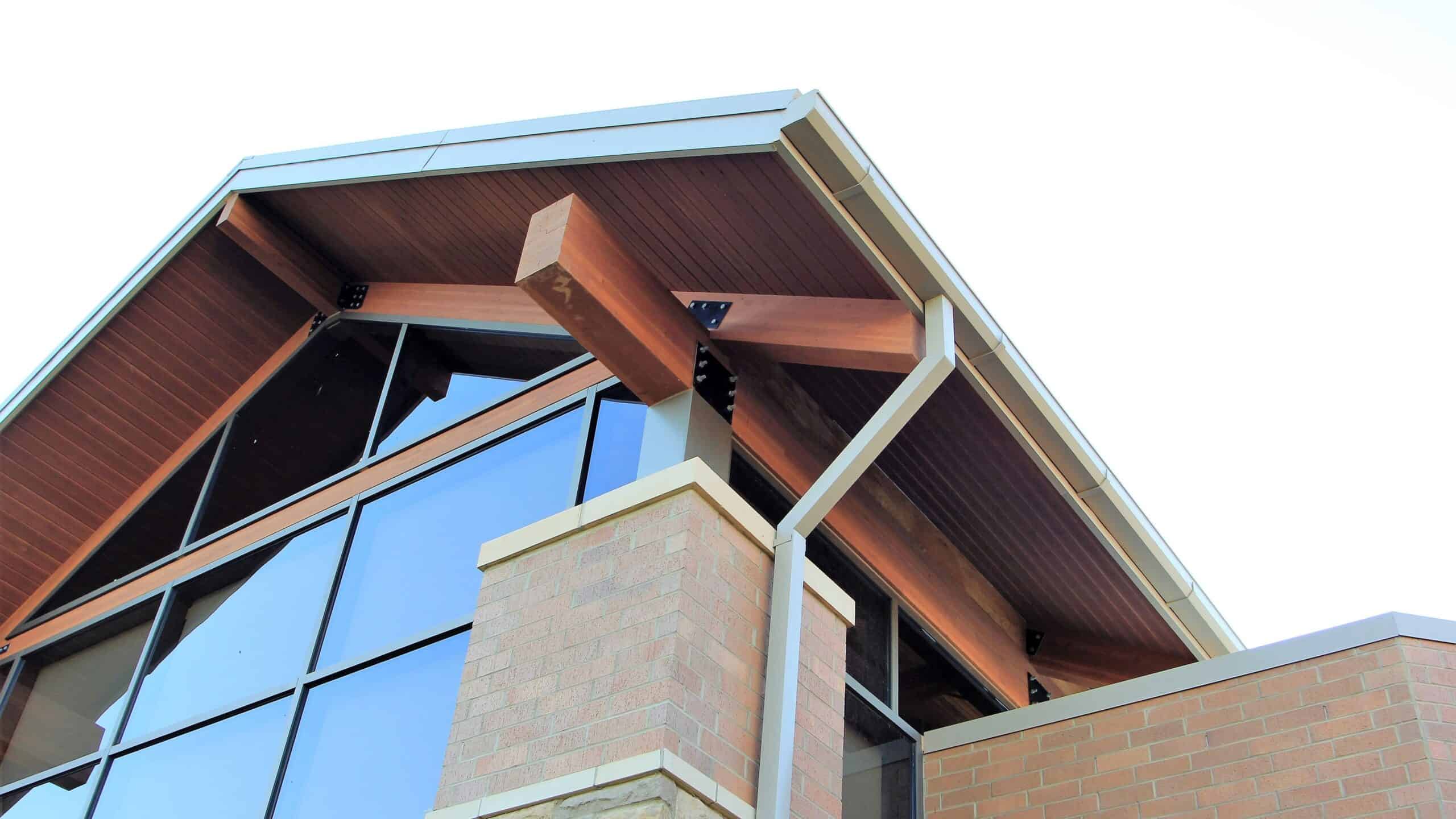

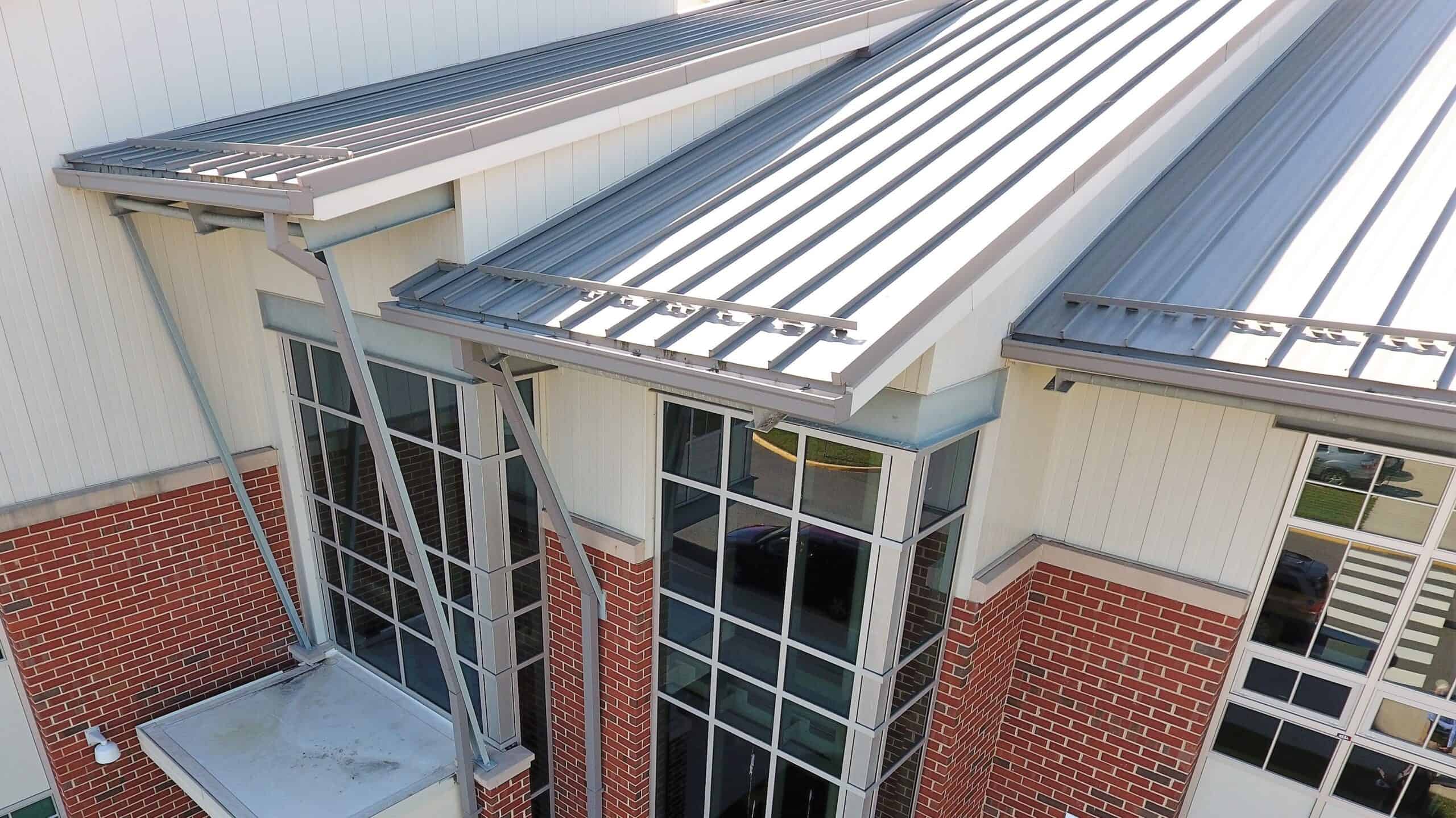

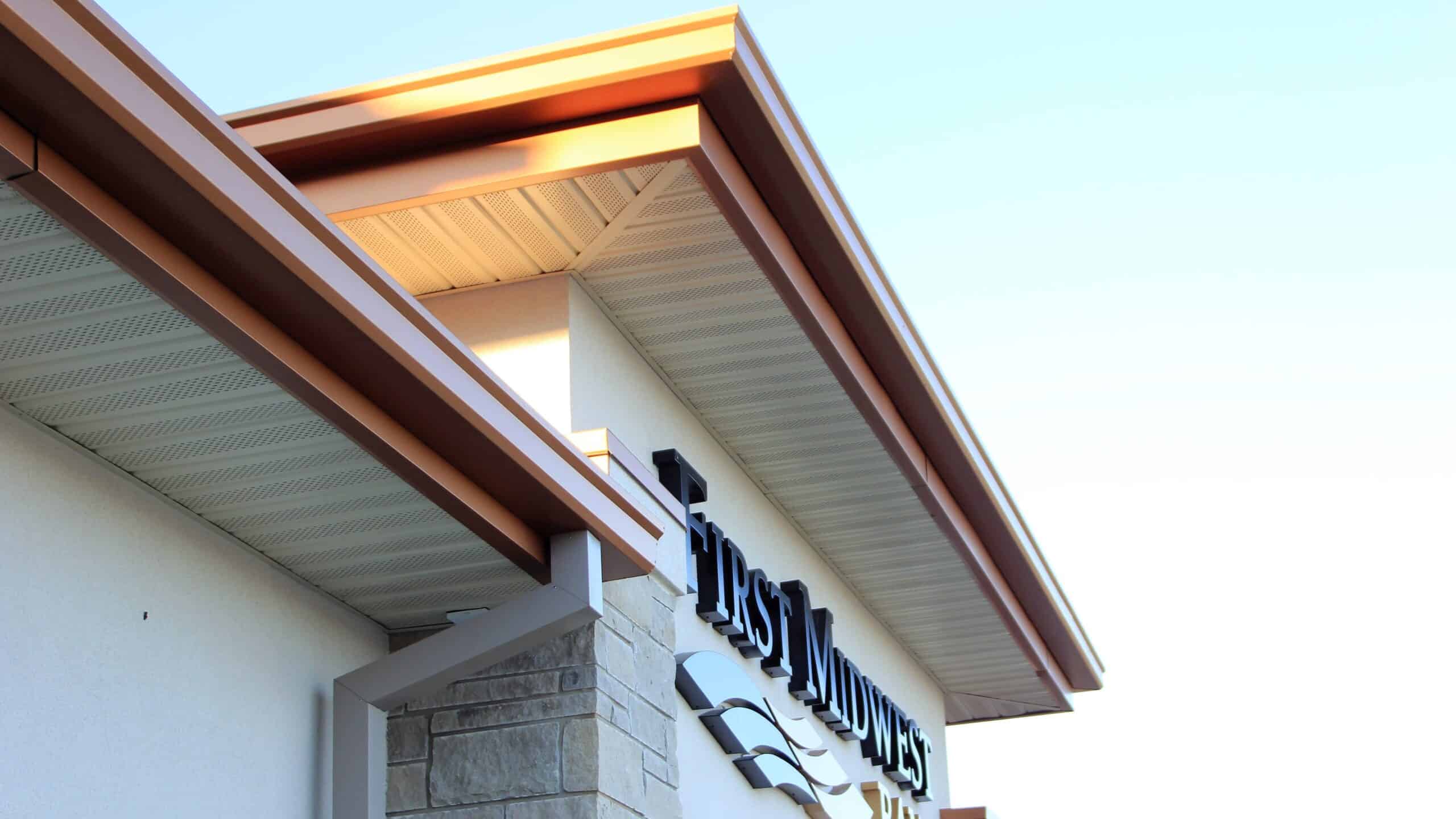

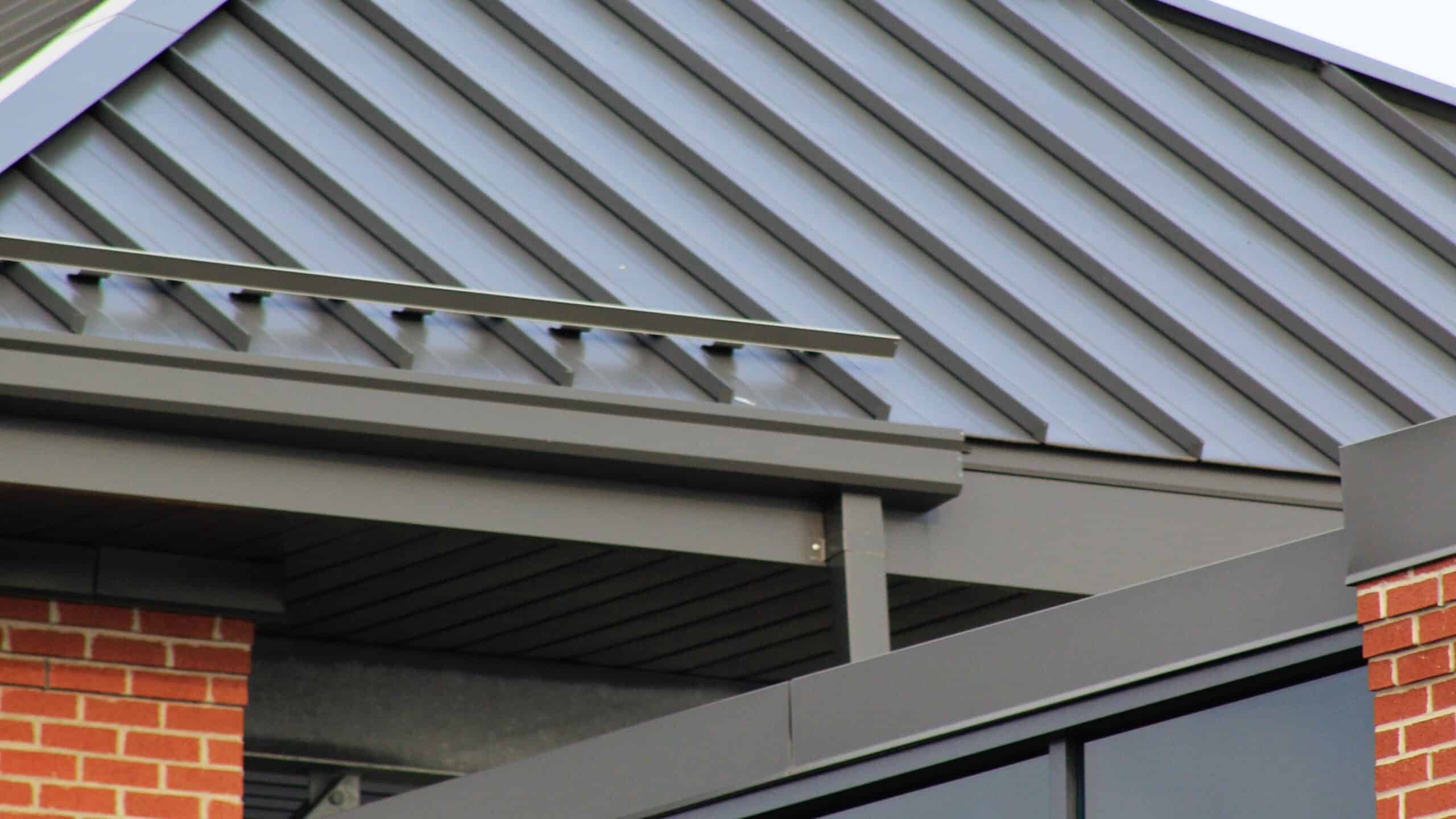

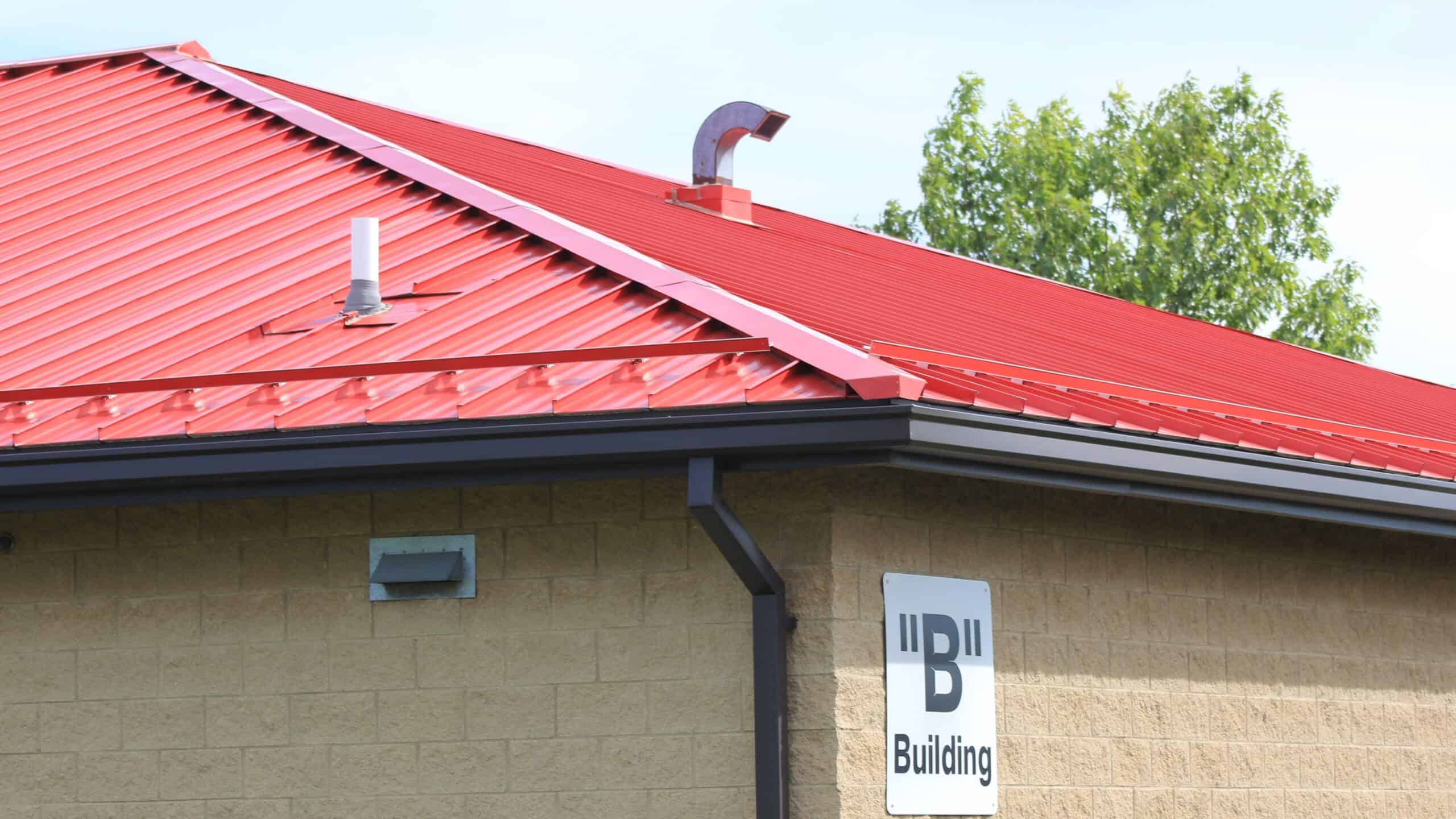

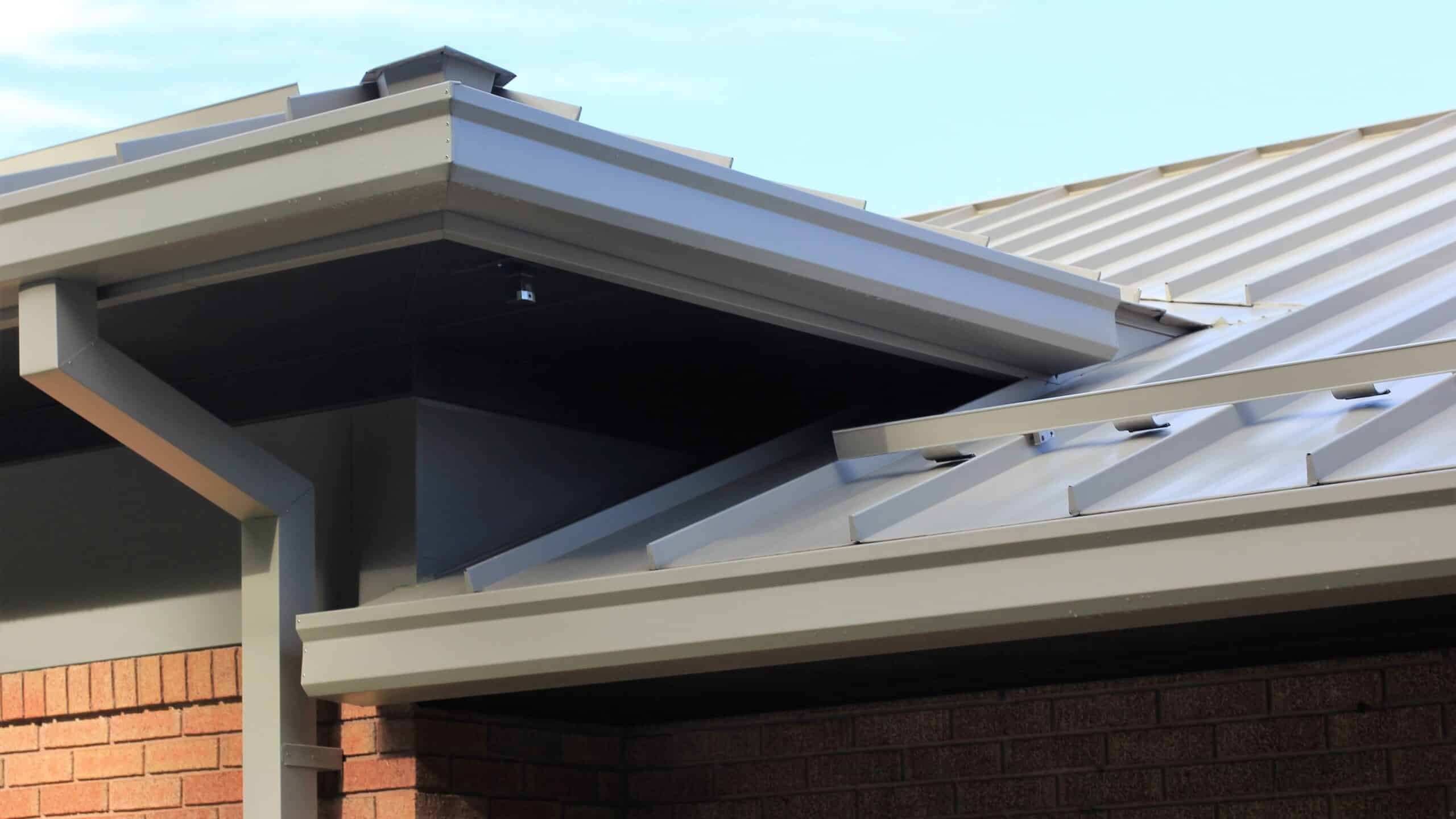

Continuous Gutter (CG) is a factory rollformed gutter that can be produced in lengths up to 53’ (minimum length 2’). DMI offers a full line of accessories including gutter straps, mitered corners, end caps, expansion joints, painted under gutter brackets, outlets, downspouts, downspout elbows, and downspout straps.


CG Profile


Finish
DynaClad® 70% Full Strength PVDF Paint Finish

Colors
Choice of over 32 Colors for Galvalume® and Aluminum


DOWNLOAD CONTINUOUS GUTTER CUT SHEET, ORDER FORM OR ASSEMBLY

Continuous Gutter Cut Sheet


Manage and download this product's documents with Submittal Builder
Free to registered users.

Login/Register

Uses and Applications

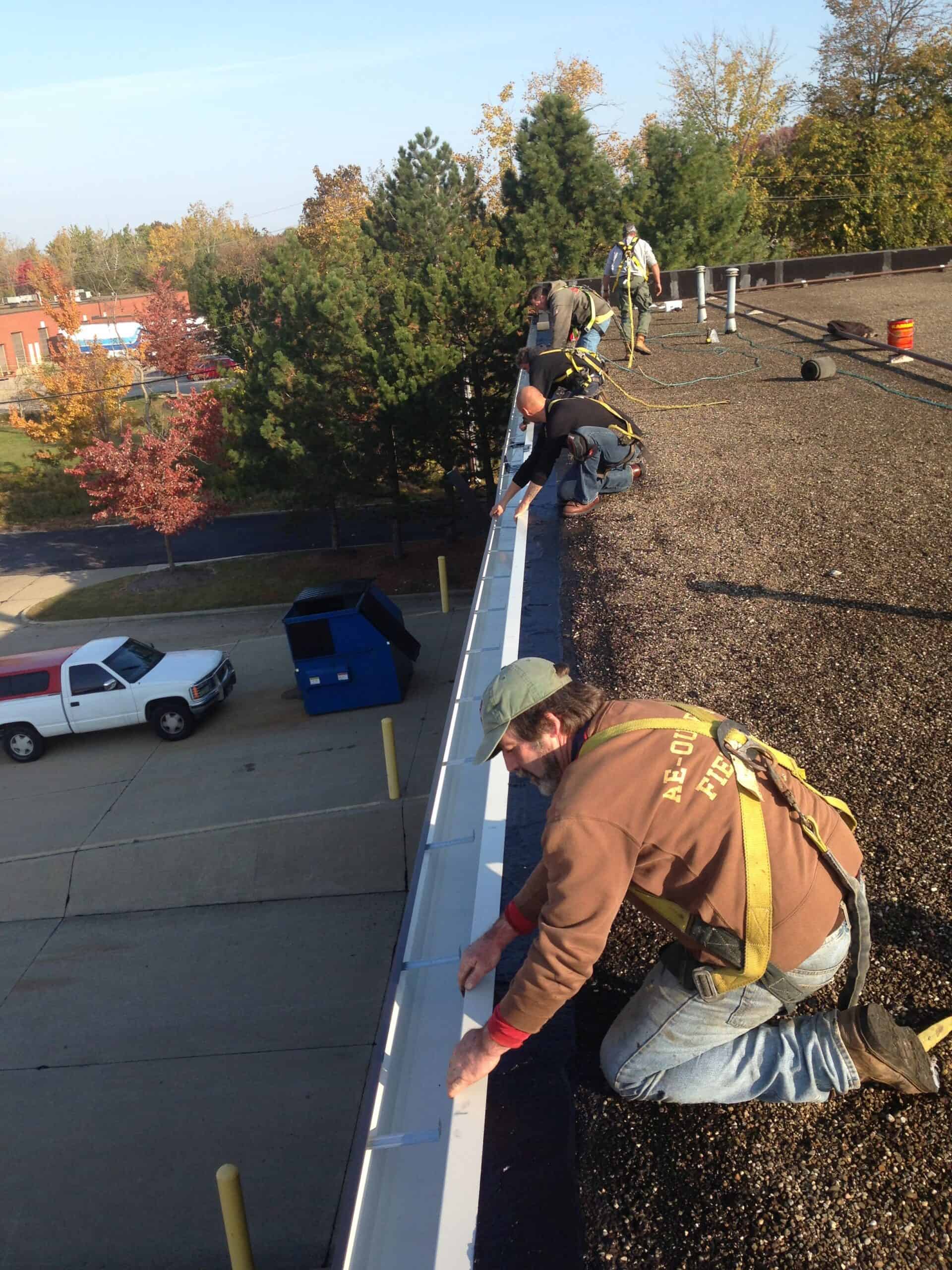

Product uses include steep slope, low slope and flat roofs.

Product Offerings

CG70 (7″), CG75 (7.5″), & CG80 (8″) are offered in a large variety of materials and colors.

  • Galvalume® (22 ga. & 24 ga.) – See our color chart for standard color offering
  • HDG-90 (20 ga.)
  • Aluminum (.040 & .032) – See our color chart for standard color offering
  • Copper (20 oz. & 16 oz.)

Advantages

  • Continuous lengths
    • Eliminates the need for splice joints
    • Reduces Installation cost
    • Eliminates potential gutter leaks
  • 18 Station fixed base roll-former ensures the highest quality gutter
  • Optional 90 Degree Roof Flange
    • Accommodates your flat roof needs
    • Reduces Installation Cost
  • Complete line of matching accessories simplifies ordering process
  • Wide variety of colors for your design needs
