Spring-Lok Coping
DynaClad® Edge Spring-Lok Coping’s clean, simple installation is designed to reduce labor time and costs. The complete system combines the value, engineering, and enhanced aesthetics that meet today’s demanding building owner’s expectations. Furnished with heavy 20 ga. 12” wide Anchor Cleats & Spring Clips guaranteeing a quality, secure and lasting assembly. The non-penetrating design, without any required exposed fasteners, eliminates any need for heat welding and stripping in of membranes.
Finish
DynaClad® 70% Full Strength PVDF Paint Finish
Colors
Choice of over 32 Colors

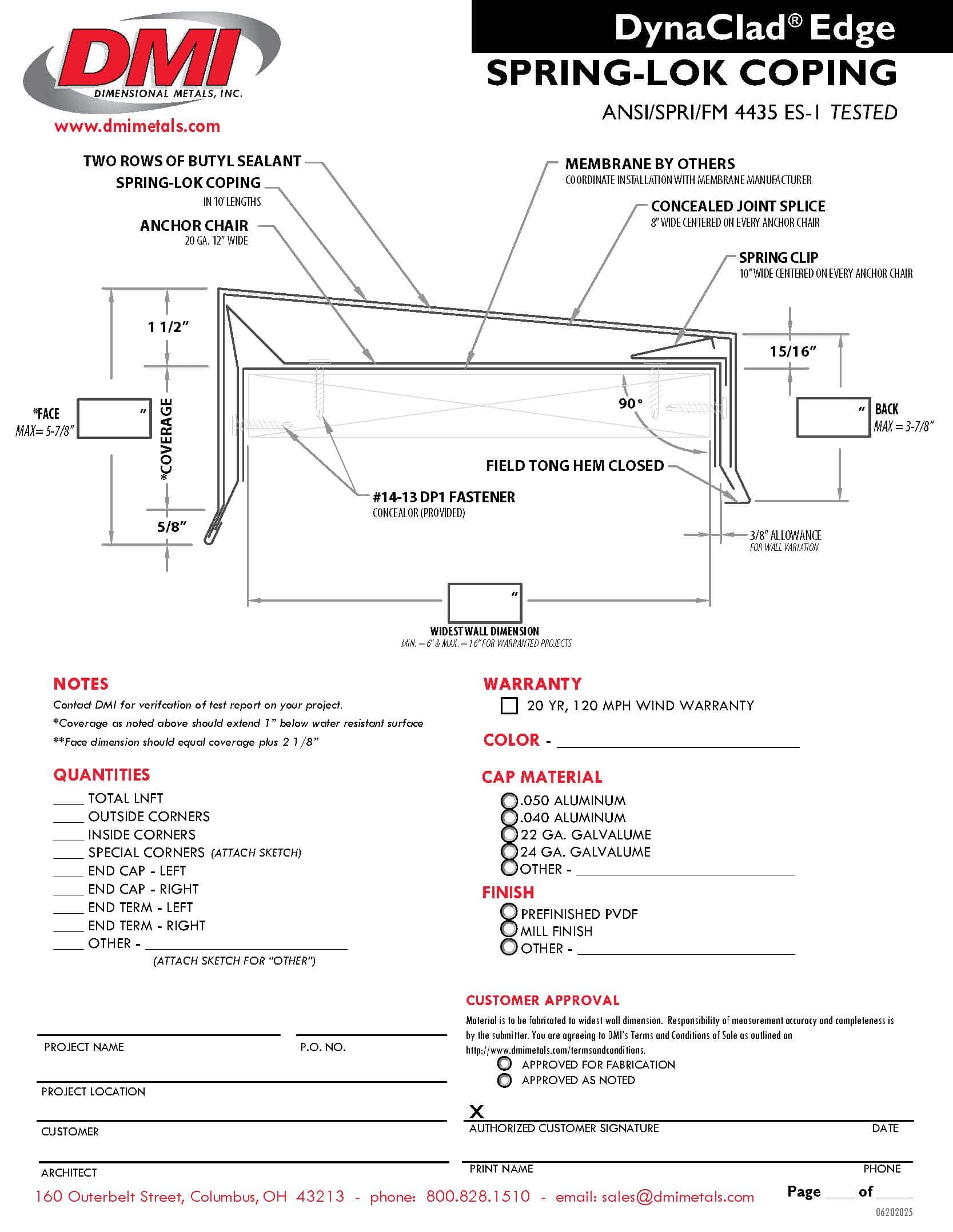

DOWNLOAD SPRING-LOK COPING ORDER FORM OR CUT SHEET
Product Offerings
Offered in a large variety of materials and colors.
- Galvalume® (22 ga. & 24 ga.) – See our color chart for standard color offering
- Aluminum (.050 & .040) – See our color chart for standard color offering
- Copper (20 oz. & 16 oz.)*
Contact DMI for verification of test report on your project.
*Warranty unavailable for these materials
Advantages
- 20 year, 120 mph Wind Warranty – Contact DMI for warranty availability for your project
- Improve productivity with fast delivery times and lower labor costs with ease of installation
- Correct positioning and fit are ensured through the use of pre-punched fastener holes
- Fully engineered systems with shop-fabricated Corners, End Caps, End Terms, and Fascia Extenders
- Complete systems include Anchor Cleat with Spring Clip, Internal Splice Plates, and all needed screws
- Available in PVDF coated Galvalume® & Aluminum, Copper*, Zinc*, and Stainless Steel*
*Non-warranted
Accessories
- Corners (inside, outside, and special)
- End Cap (left and right)
- End Term (left and right)
- Other Custom Items
AIA Continuing Education
DMI is committed to providing you with high-quality expert-level education in accordance with the AIA/CES standards. The courses we offer are designed to meet the needs of architects and typically run one hour in length. All Attendees will earn 1 Learning Unit. Some of the courses offered will meet the Health, Safety, and Welfare (HSW) requirements as well as the Green Building Certification Institute (GBCI) credits.
Our Warranties are Second to None
DMI total system warranties protect all aspects of your metal envelope system, whether that be the watertightness of the roof or siding, the Galvalume ® steel, or the durable PVDF KYNAR® finish. When looking at warranties for your system, it is important to note that not all warranties are created equal. DMI warranties ensure the watertightness of all flashing conditions, trims, curbs, valleys, and penetrations. Building owners are protected with a total system warranty - “from the deck up” when using DMI insulation, fasteners, and underlayment. Our warranties are backed-up by a full-service Engineering Department, generating project specific shop drawings. Quality control is monitored by a minimum of two on-site inspections by our Field Technical Inspectors. DMI Total System Warranties give building owners and design professionals confidence that they are receiving the highest quality and most complete warranty available in the industry.
