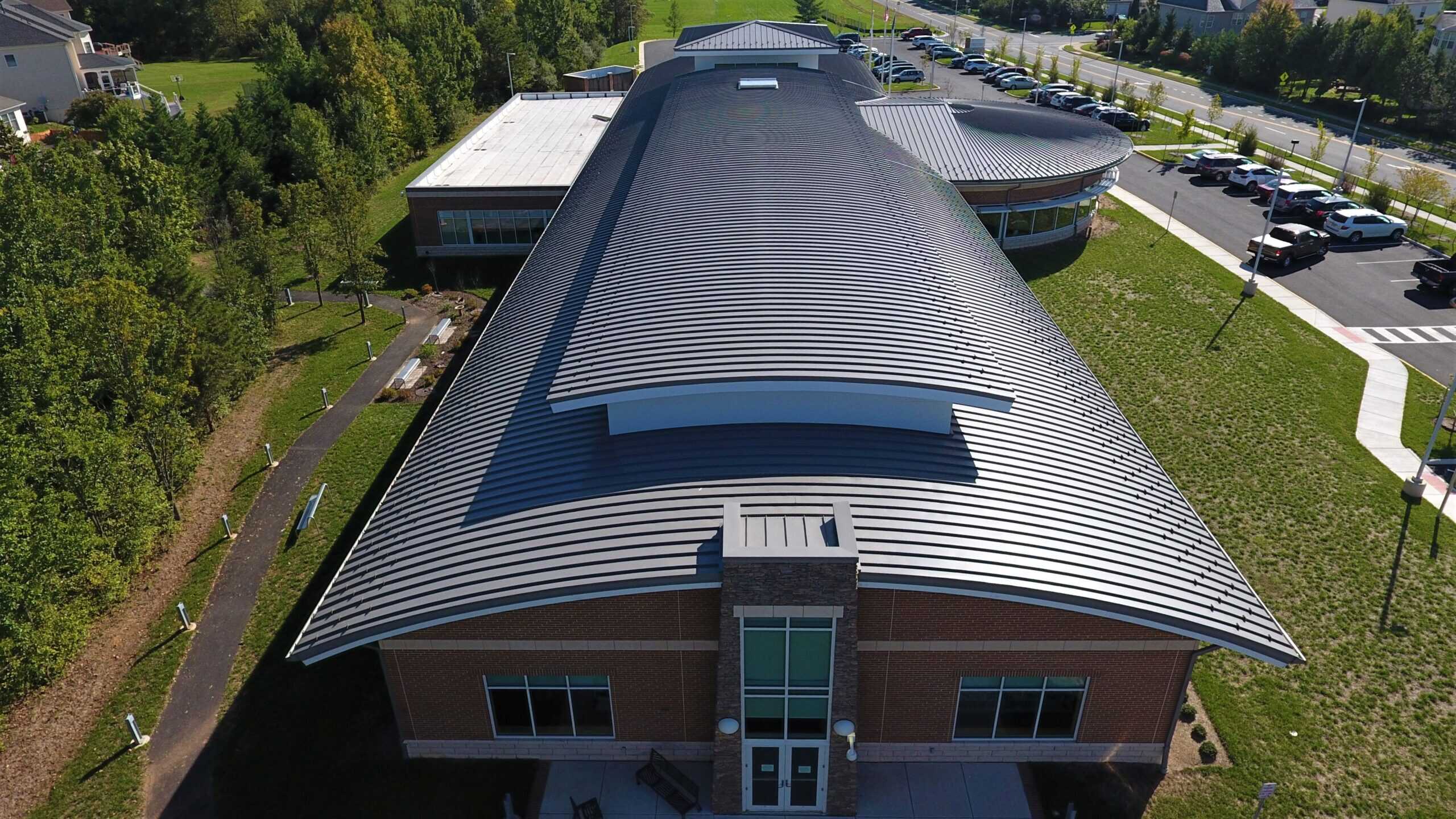

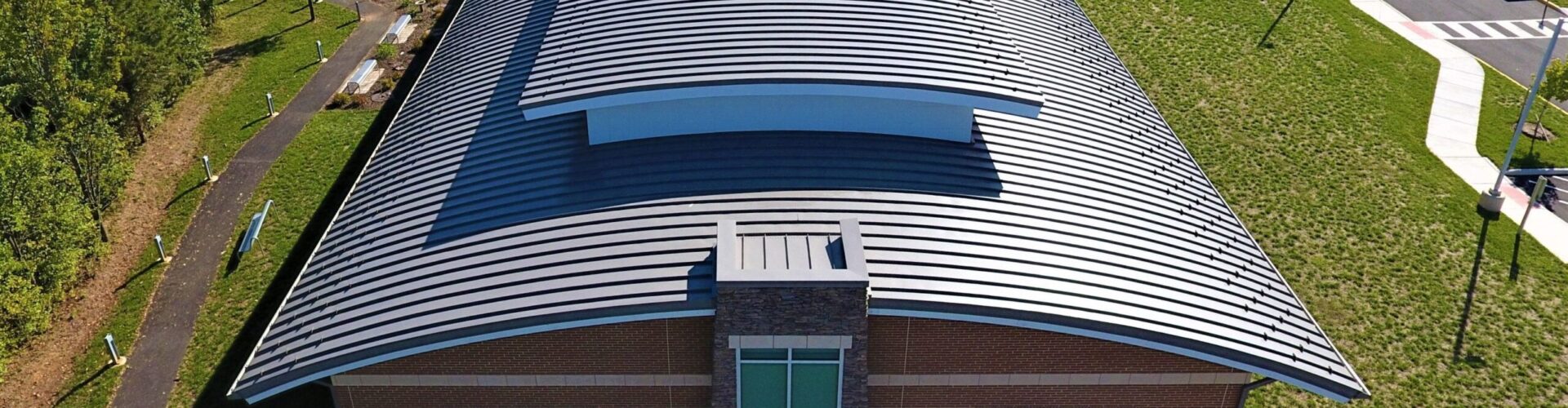

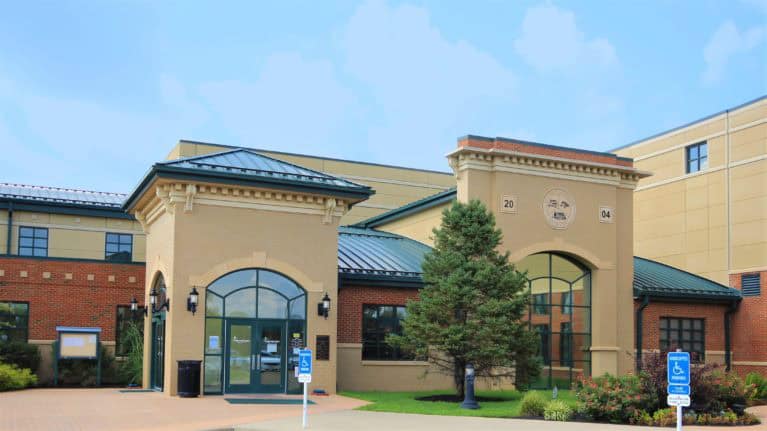

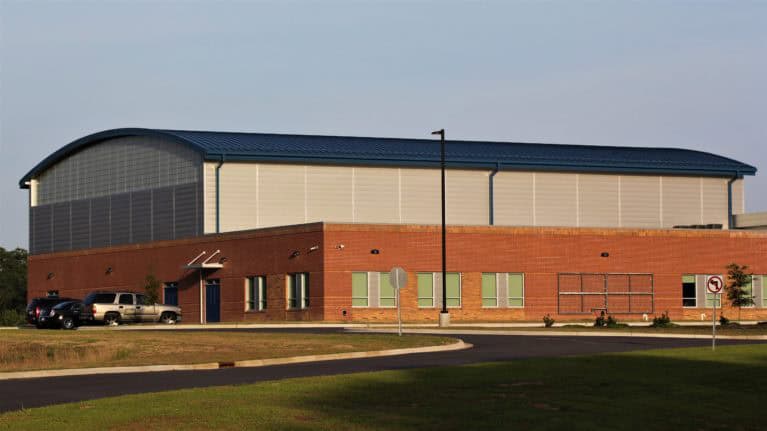

Gainesville Library  |  Haymarket, VA  |  The Lukemire Partnership  |  Orndorff & Spaid, Inc.

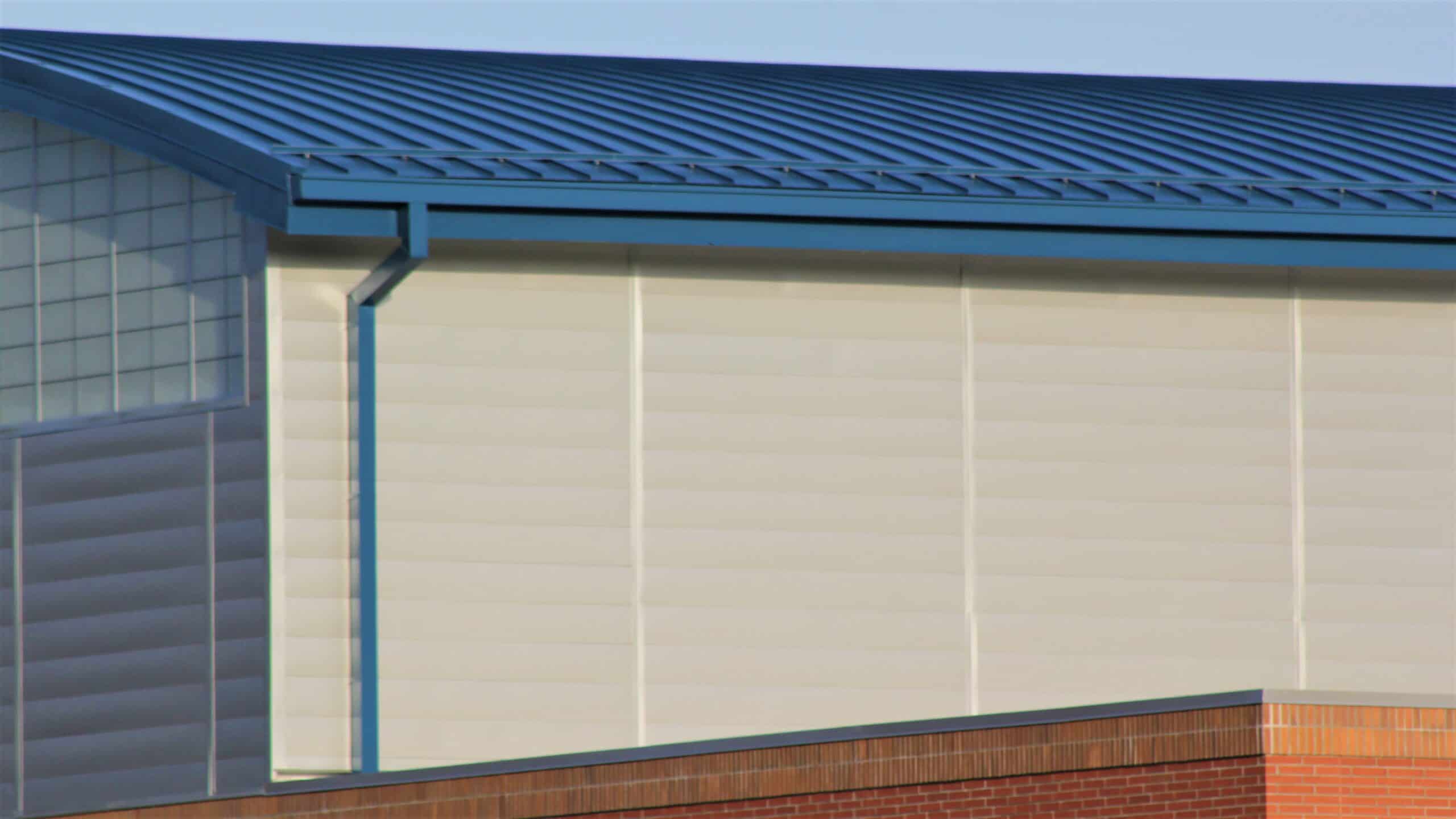

Curved Double-Lock
CR-DL15


Curved Double-Lock CR-DL15 is a structural panel that is mechanically seamed during installation. The panel is an integral interlocking system by design that installs in one direction from a given starting point. DOUBLE-LOCK utilizes the traditional SMACNA standing seam “double-lock” plate.

Two different clips are available

Low Floating and Fixed.


DL15 Profile



CR-DL15 RADIUS GUIDELINES
Material Minimum
Convex Radius
Minimum
Layover Radius
24 Ga. Steel 12′ 120′
.032 Aluminum 12′ 100′
Copper 12′ 100′

Panels with a radius of < 30’ are to be single-locked.
Watertight Warranty is not available on single-locked applications.
Stiffeners only on panels with a radius greater than 27’.


Two different clips are available
Low Floating and Fixed.

Finish
DynaClad® 70% Full Strength PVDF Paint Finish

Colors
Choice of over 32 Colors


 single-locked-dl15


DOWNLOAD CR-DL15 CUT SHEET
CR-DL15 Cut Sheet



















DOWNLOAD PDF DETAILS


Manage and download this product's documents with Submittal Builder
Free to registered users.

Login/Register

Roof Assemblies

DOUBLE-LOCK can be applied over various roof substrates including: open framing, rigid insulation (utilizing a bearing plate under each panel clip 30” o.c., max.) over 22 ga. steel deck, and various solid substrates including plywood sheathing and nail base insulation.

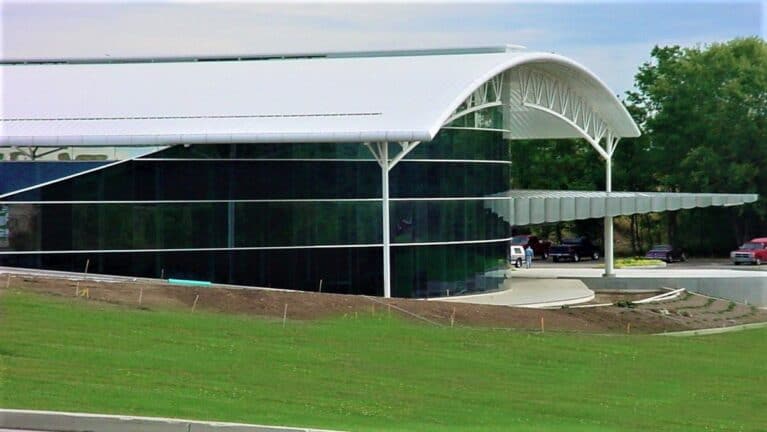

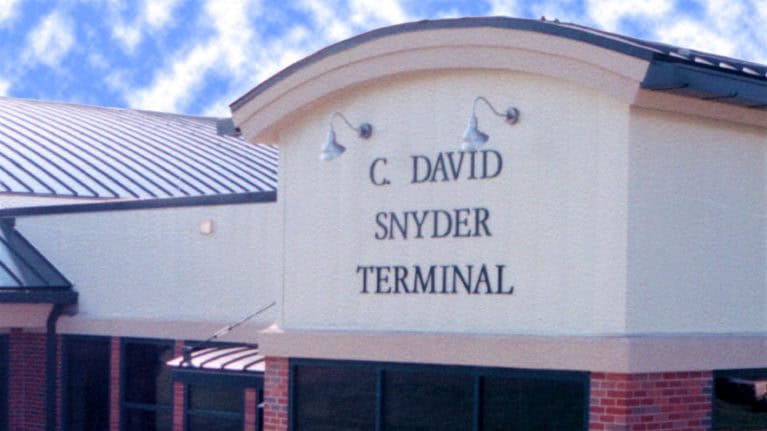

Uses & Applications

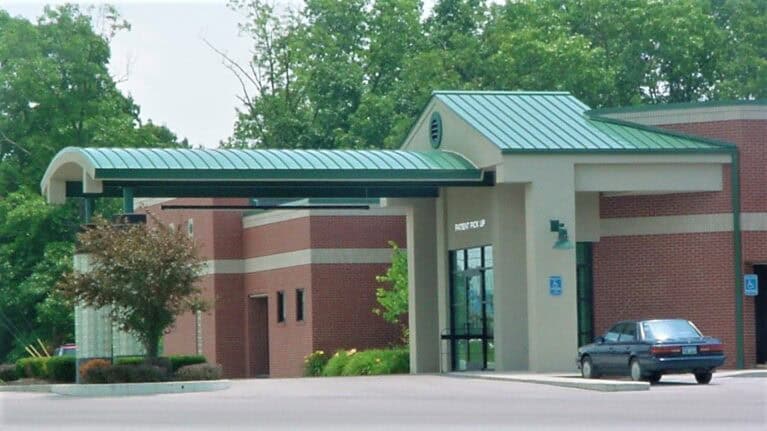

Product uses include curved roofs, canopies, low to high slope roofing, vertical fascia, equipment screens, mansards, and wall panels.


*Note: Metallic paint finishes are “directional” and are not recommended for “double male” panels.

Product Offerings

24 ga. Steel, and .032 Aluminum
Embossing and various stiffener configurations available

  • DL1512 with 12.5″ o.c. seams
  • DL1517 with 17″ o.c. seams
  • DL1520 with 20″ o.c. seams

16, 20 oz. Copper
Various stiffener configurations available

  • DL1514 with 14″ o.c. seams
  • DL1520 with 20″ o.c. seams

Performance Tested

  • UL-580 Wind Uplift
  • ASTM E1592 Uniform Static Air Pressure
  • ASTM E1646 Water Penetration
  • ASTM E1680 Air Leakage

Advantages

  • Factory Applied Non-Curing Sealant: For superior watertightness
  • SMACNA Seam Design: A traditional and historical aesthetic appearance
  • Expansion Clips: Allows for thermal expansion and contraction
  • Continuous Rollformed Lengths: Eliminates need for panel lap joints
  • Total System Warranties Available: For total confidence
