Board and Batten Panel BB75

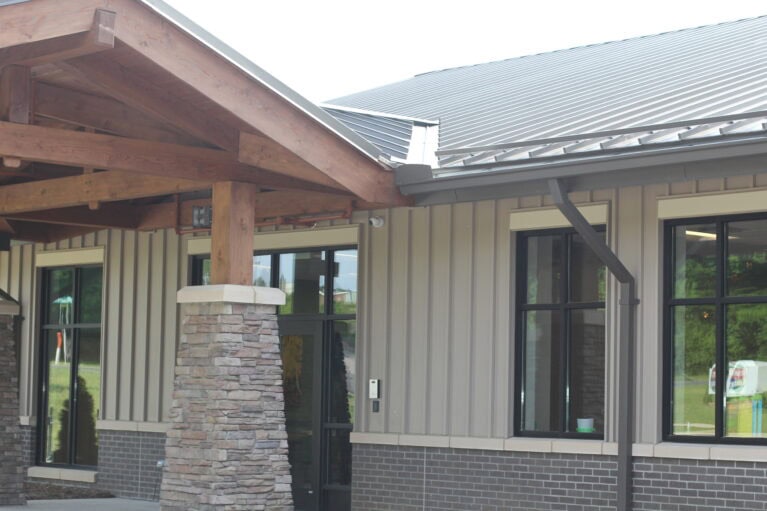

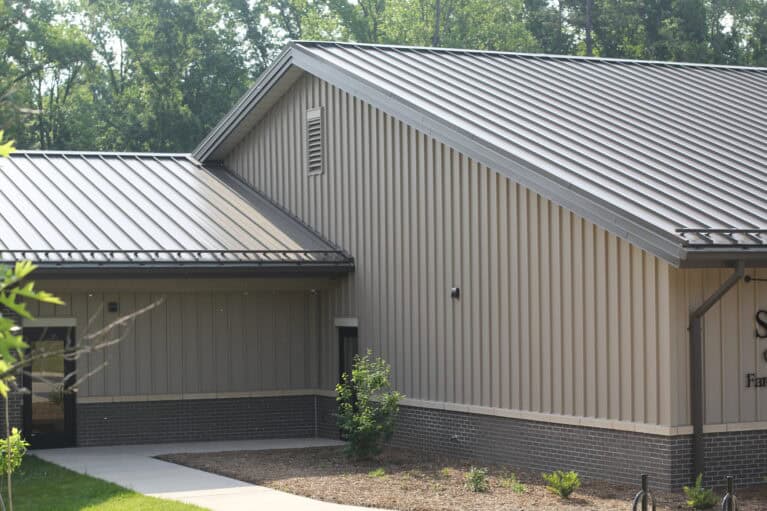

Board and Batten BB75 metal wall panel is a concealed fastener vertical panel featuring a 2” wide batten. The BB75 panel resembles a wood or fiber cement batten panel, minus the high maintenance upkeep. If you prefer the aesthetics of wood, we offer wood grain finishes as an attractive and durable alternative to real wood. Contact DMI for further information.
Finish
DynaClad® 70% Full Strength PVDF Paint Finish
Colors
Choice of over 32 Colors
DOWNLOAD BOARD & BATTEN CUT SHEET
DOWNLOAD PDF DETAILS
Assemblies
BB75 Board and Batten Panels can be applied over solid substrates like plywood sheathing.
Uses & Applications
Product uses include walls and vertical fascia. The Board and Batten panel can only be installed vertically.
Product Offerings
24 ga. Steel & .032 Aluminum
Embossing available
- BB7512 with 12” o.c. seams
- BB7516 with 16″ o.c. seams
Wood Grain finish available contact DMI for more information
Advantages
- Contributes to enhanced visual impact
- The built in fastening strip eliminates the need for clips
- It gives your existing building a clean, contemporary look
- The classic look of board & batten with the added durability of metal
Performance Tests
- ASTM E330 Uniform Static Air Pressure
