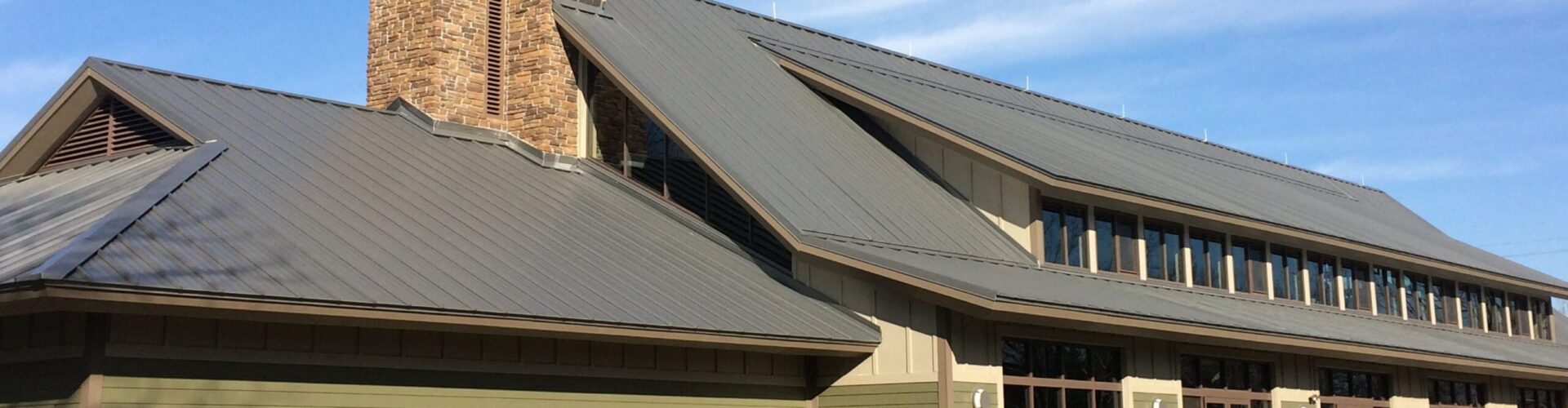

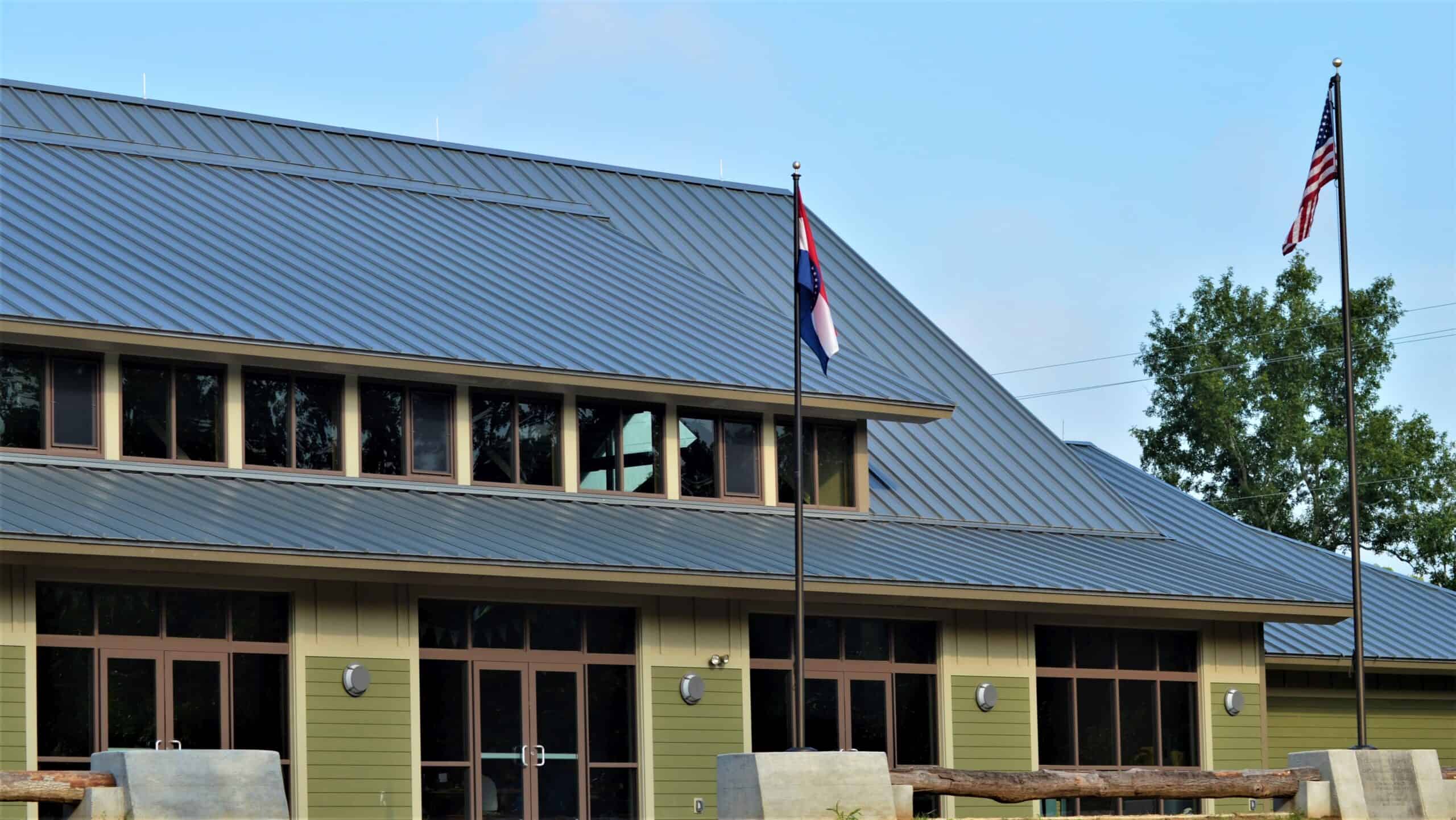

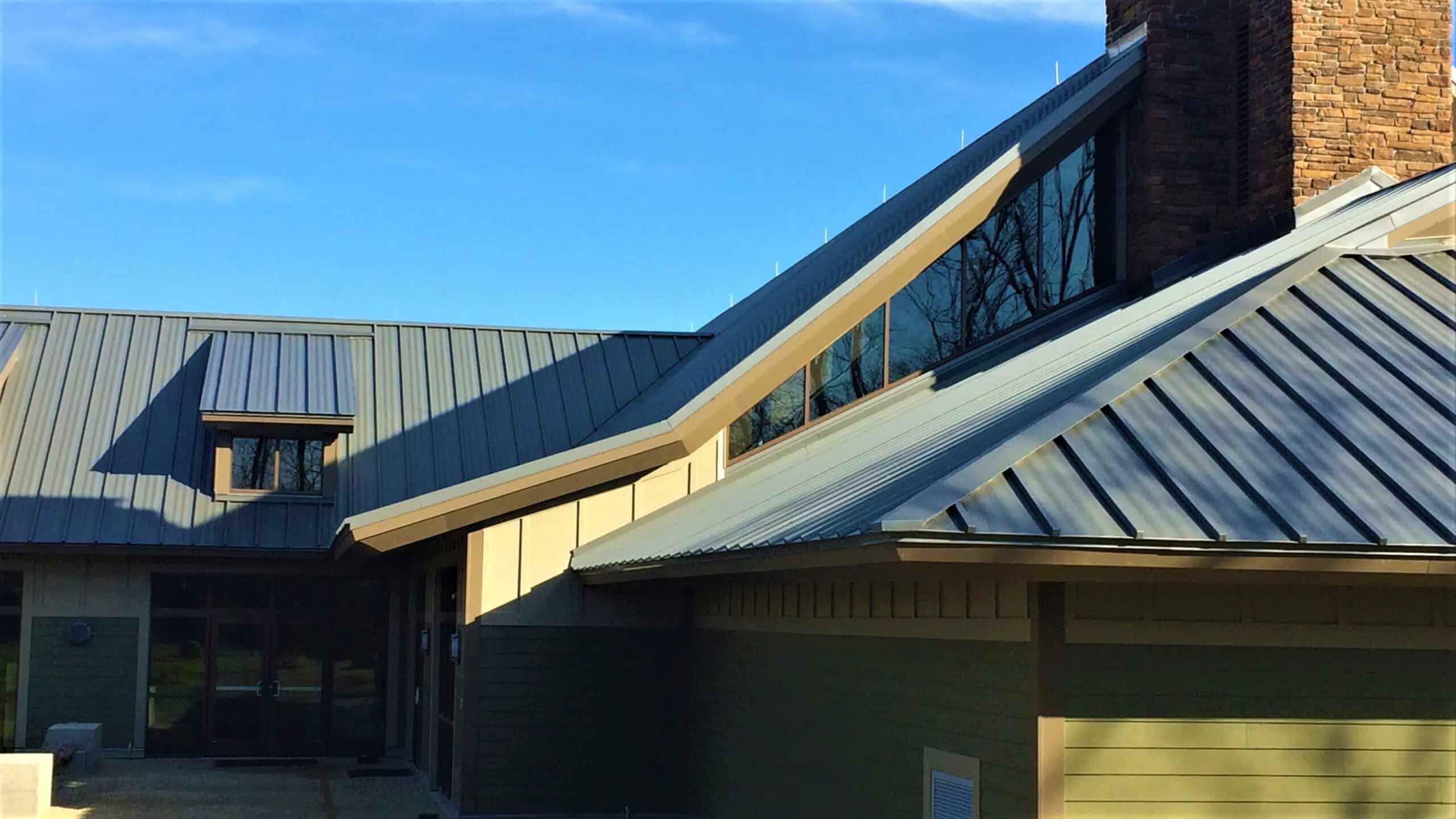

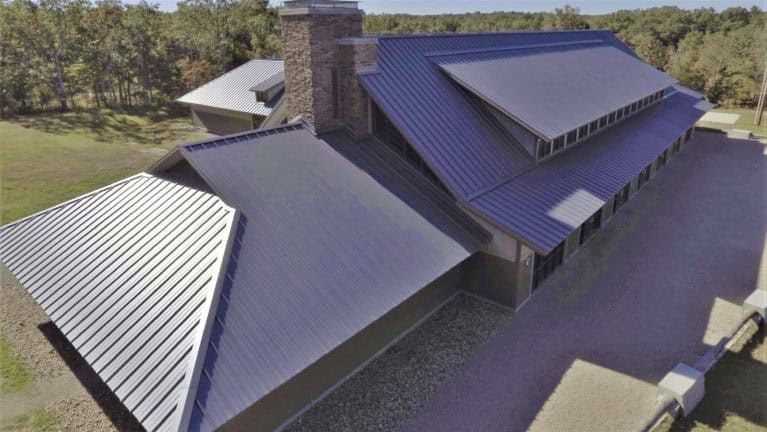

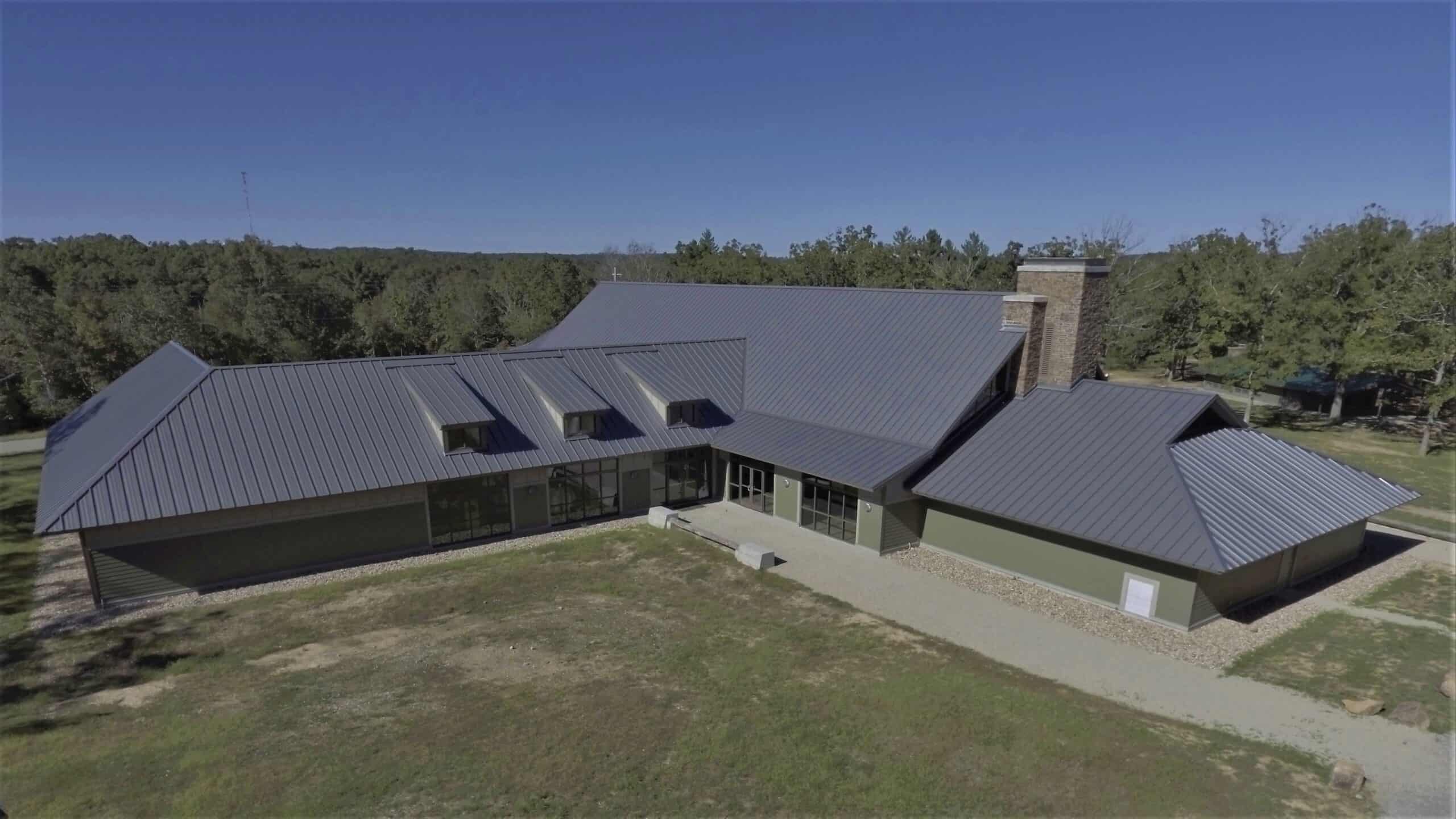

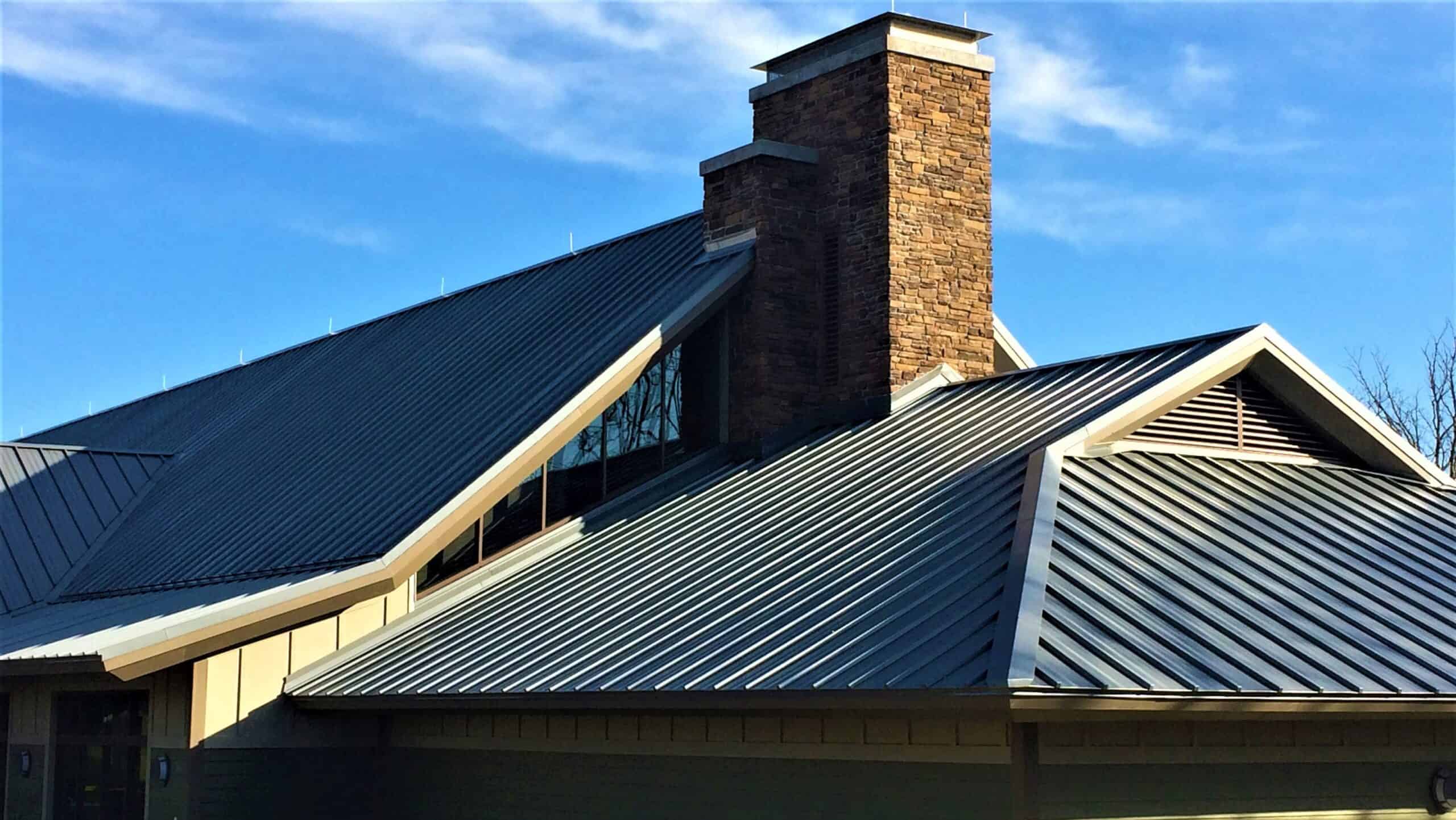

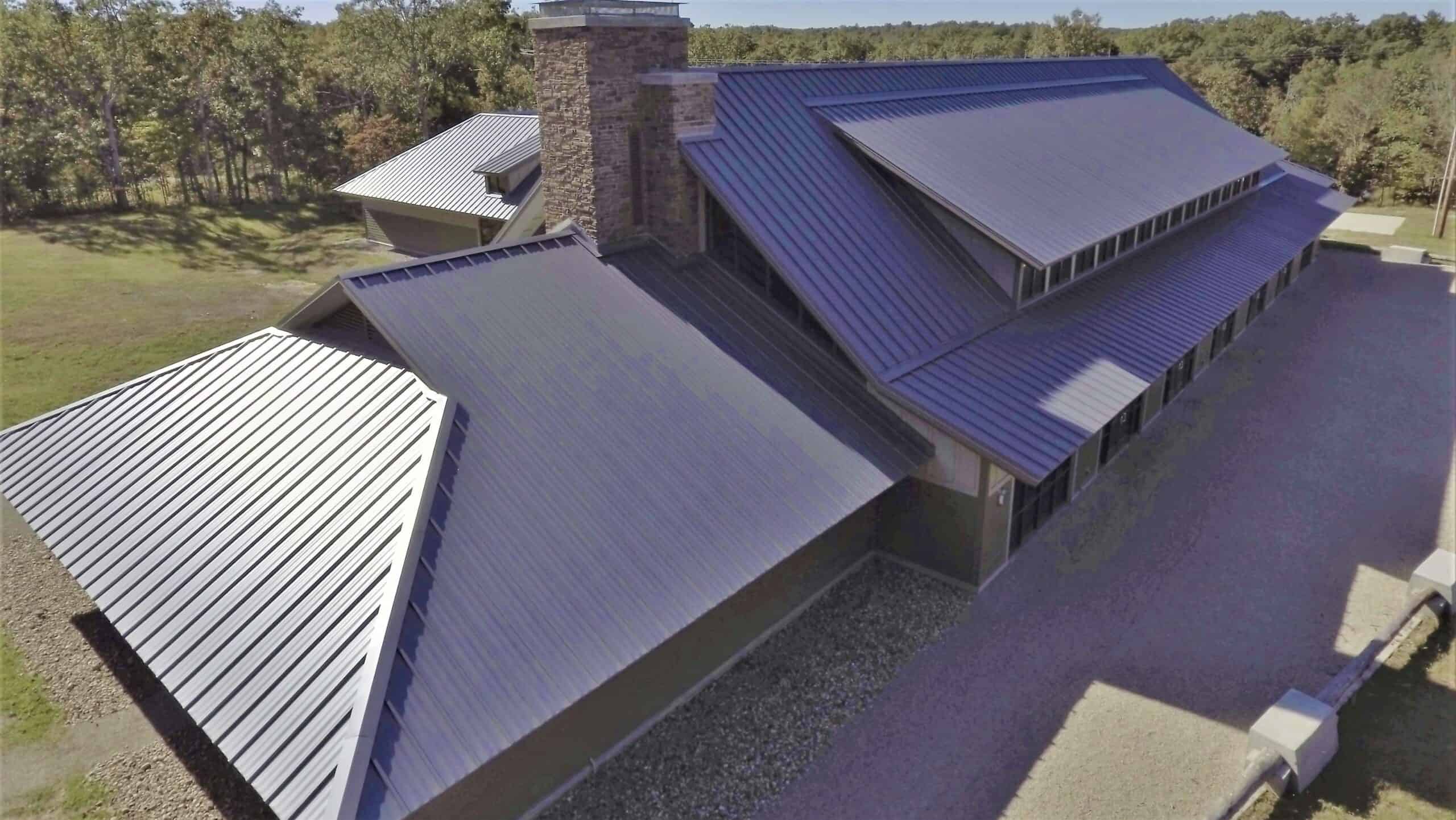

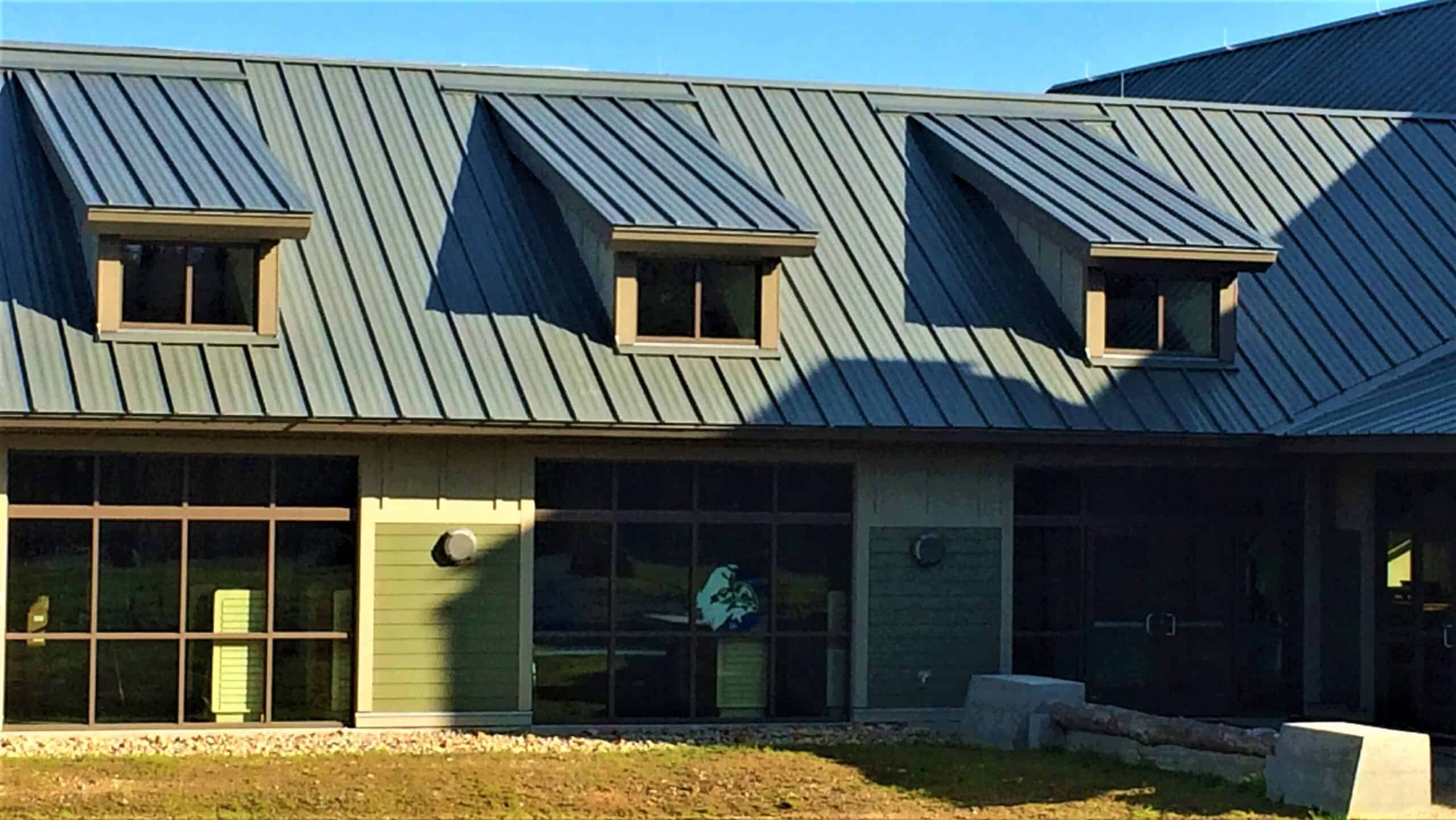

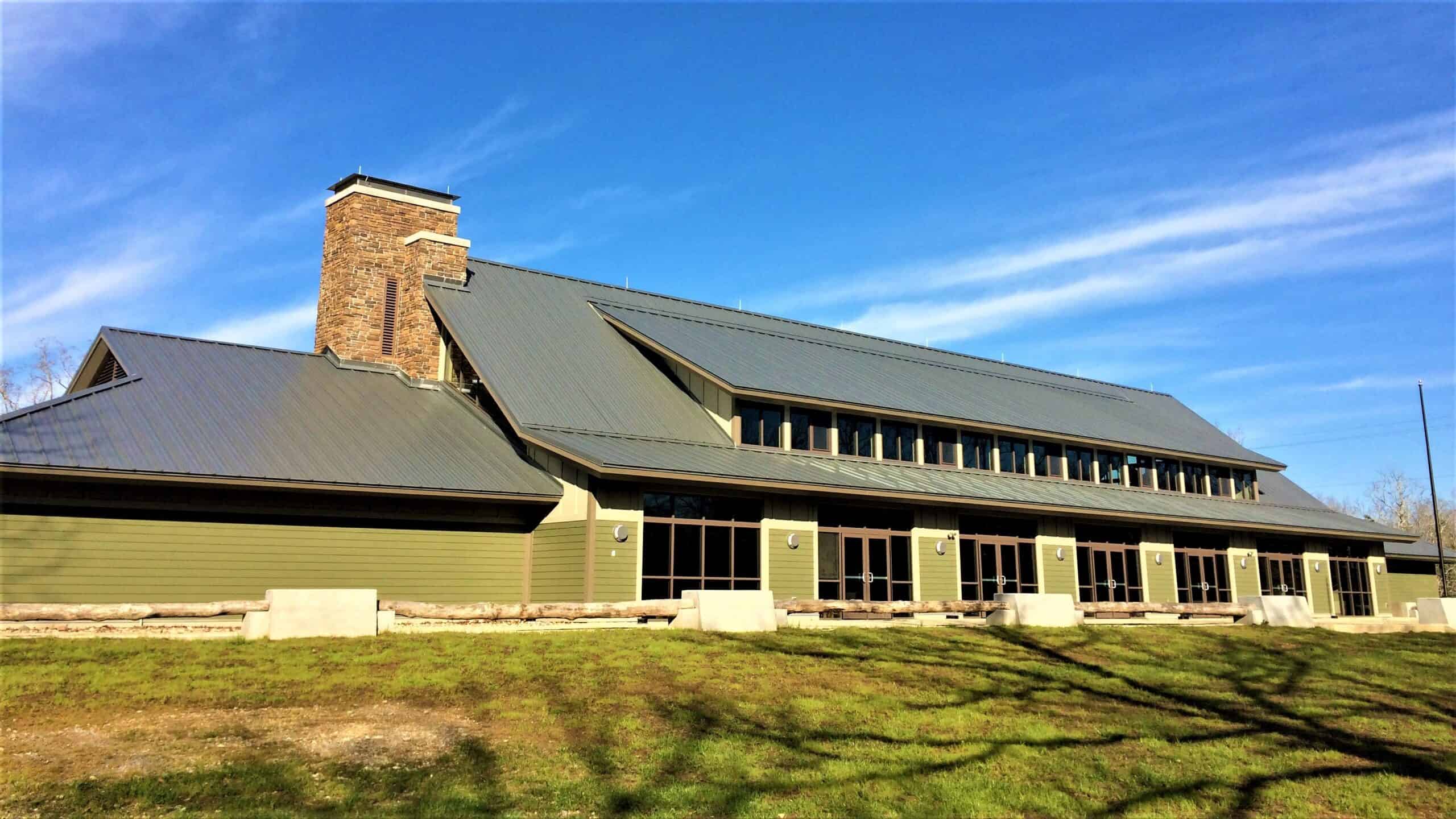

S Bar F Boy Scout Ranch | Fredericktown, MO

Batten-Seam BS15






Batten-Seam BS15 is an advanced design non-structural snap-on-batten system. The system is designed with two components: the panel and the batten cap. BATTEN-SEAM BS15 is a non-directional panel system allowing installers more control during installation over batten layout and symmetry of the panel area.




Finish
DynaClad® 70% Full Strength PVDF Paint Finish

Colors
Choice of over 32 Colors


DOWNLOAD BS15 CUT SHEET

BS15 Cut Sheet

Manage and download this product's documents with Submittal Builder
Free to registered users.

Login/Register

Roof Assemblies

BATTEN-SEAM requires a solid substrate since it is a non-structural panel system. This system may be installed over plywood sheathing, nail base insulation, or corrugated metal deck.

Uses & Applications

Product uses include roofing with slopes as low as 3:12, vertical fascia, mansards and equipment screens. This system may be installed on tapered roof areas.


Note: Watertightness Warranty is not available for this profile.

Product Offerings

24 ga., 22 ga. Steel, .032, .040 Aluminum, 16 oz. and 20 oz. Copper
Embossing and various stiffener configurations available

  • BS1512 with 12″ o.c. seams
  • BS1516 with 16” o.c. seams
  • BS1518 with 18” o.c. seams

Seam caps available in 24 Ga. Steel, .032 Aluminum and Copper only

Advantages

  • Continuous Interlocking Batten: High batten hold-down strength
  • Expansion Clips: Allows for unlimited thermal expansion and contraction
  • Square Batten Design: An aesthetic design alternate to the SNAP-ON-SEAM
  • Continuous Interlocking Seam Cap: No seam disengagement
  • Continuous Rollformed Lengths: Eliminates need for panel lap joints
