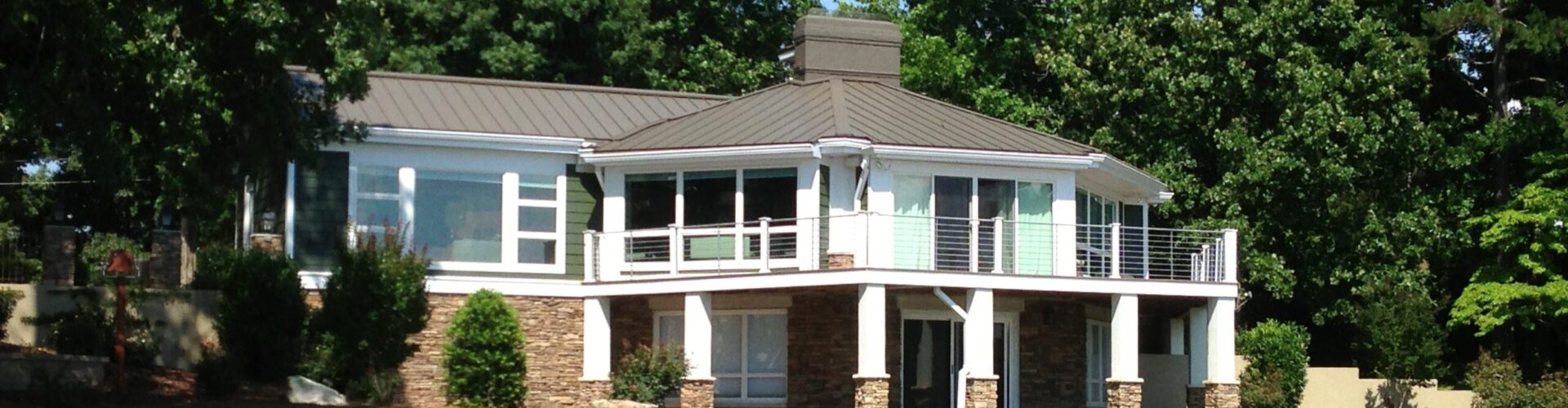

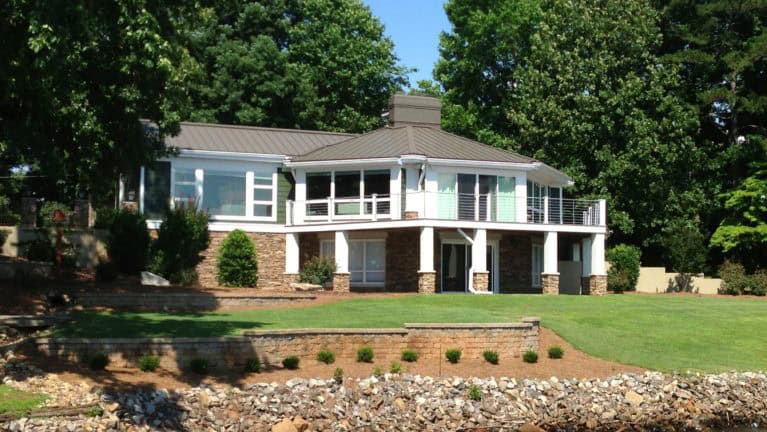

Mooresville Residence |  Mooresville, NC

Snap-On-Seam SS10


Snap-On-Seam SS10 is a non-structural engineered snap-together panel system. The system is designed with two components: the panel and the seam cover. SNAP-ON-SEAM is a non-directional panel system allowing installers more control during installation over seam layout and symmetry of the panel area. SNAP-ON-SEAM is the easiest panel system for complex roof designs.


ss10profile



Finish
DynaClad® 70% Full Strength PVDF Paint Finish

Colors
Choice of over 32 Colors


DOWNLOAD SS10 CUT SHEET

SS10 Cut Sheet




Manage and download this product's documents with Submittal Builder
Free to registered users.

Login/Register

Roof Assemblies

SNAP-ON-SEAM requires a solid substrate since it is a non-structural panel system. This system may be installed over plywood sheathing, nail base insulation, or corrugated metal deck. Plywood Sheathing 5/8 in. thick min. utilizing a clip 20” o.c. max. is required for use in UL90 constructions.

Uses & Applications

Product uses include roofing with roof slopes as low as 3:12, vertical fascia, mansards and equipment screens. This system may be installed
on curved or tapered roof areas.

Product Offerings

24 ga., 22 ga. Steel, .032, .040 Aluminum, 16 oz. and 20 oz. Copper

Embossing and various stiffener configurations available

  • SS1012 with 11.625″ o.c. seams
  • SS1016 with 16” o.c. seams
  • SS1018 with 18” o.c. seams

Seam caps available in 24 Ga. Steel, .032 Aluminum and Copper only

Performance Tested

  • UL-580 Wind Uplift
  • ASTM E1646 Water Penetration
  • ASTM E1680 Air Leakage

Advantages

  • Optional Factory Applied Non-Curing Sealant: For superior watertightness
  • Engineered Snap-Together Design: Easy installation
  • Expansion Clips: Allows for unlimited thermal expansion and contraction Continuous Interlocking
  • Seam Cap: No seam disengagement Continuous Rollformed Lengths: eliminates need for panel lap joints
  • Total System Warranties Available: For total confidence
