Snap-On Fascia


ansi-spri-es-1

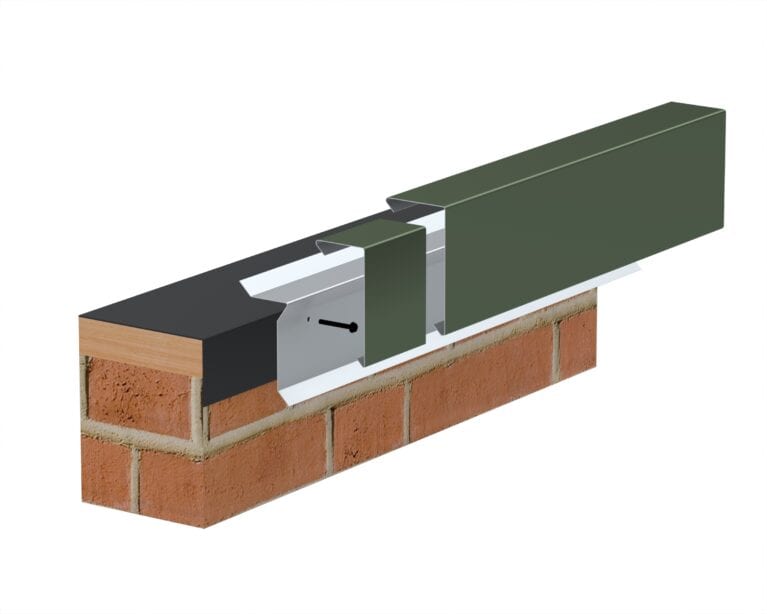

Exacting engineering and rigorous testing delivers superior performance and an attractive appearance in the DynaClad® Snap-on Fascia. Our most popular system, it is designed to simplify installation with efficient and fast application, maximizing profits and reducing costly labor, all while providing exceptional aesthetics. The Edge Fascia protects single ply roofs against high wind events and driving rains, saving your building owner costly damage. Without penetrating the top surface of the membrane; the design of this system terminates the membrane against building perimeter.



Finish
DynaClad® 70% Full Strength PVDF Paint Finish

Colors
Choice of over 32 Colors

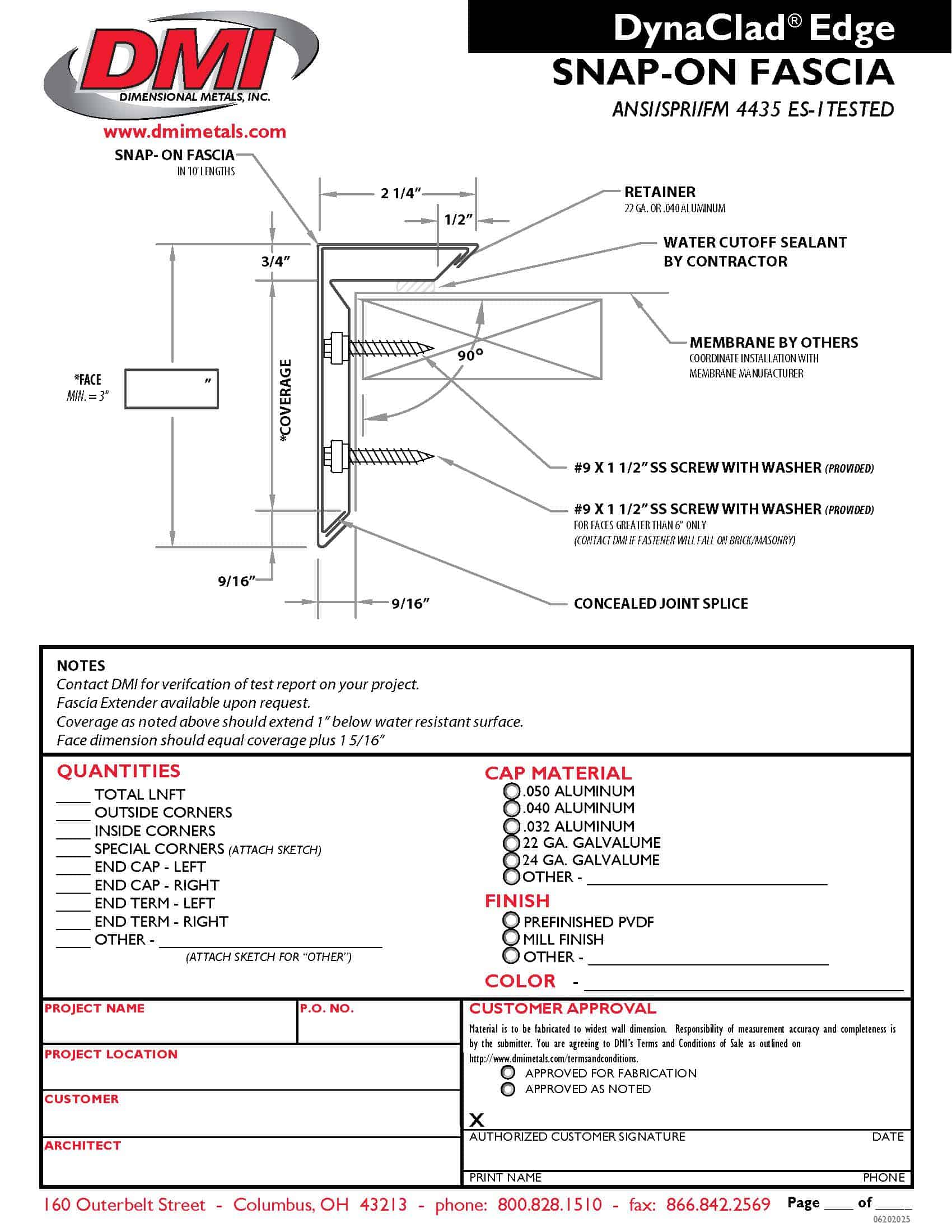

DOWNLOAD SNAP-ON FASCIA ORDER FORM OR CUT SHEET

 DynaClad Edge Cut Sheet Snap-On Fascia Installation Guide

Manage and download this product's documents with Submittal Builder
Free to registered users.

Login/Register

Product Offerings

  • .050 Aluminum
  • .040 Aluminum
  • .032 Aluminum
  • 22 GA. Galvalume
  • 24 GA. Galvalume
  • Other Materials Available

Contact DMI for verification of test report on your project.

Advantages

  • Improve productivity with fast delivery times and lower labor costs with ease of installation
  • Correct positioning and fit are ensured through the use of pre-punched fastener holes
  • No crimping necessary with simple snap-on covers
  • Fully engineered systems with shop-fabricated Corners, End Caps, End Terms, and Fascia Extenders
  • Complete systems include Continuous Cleat, Internal Splice Plates and all needed high-torque screws and ring shank nails
  • Available in PVDF coated Galvalume & Aluminum, Copper, Zinc and Stainless Steel

Accessories

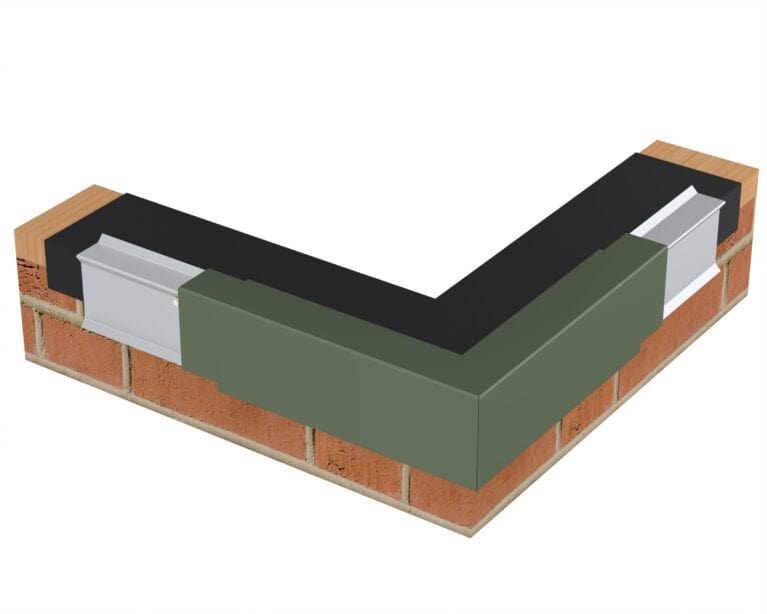

  • Corners (inside, outside, and special)
  • End Cap (left and right)
  • End Term (left and right)
  • Other Custom Items

AIA Continuing Education

DMI is committed to providing you with high-quality expert-level education in accordance with the AIA/CES standards. The courses we offer are designed to meet the needs of architects and typically run one hour in length. All Attendees will earn 1 Learning Unit. Some of the courses offered will meet the Health, Safety, and Welfare (HSW) requirements as well as the Green Building Certification Institute (GBCI) credits.

information on available courses

Our Warranties are Second to None

DMI total system warranties protect all aspects of your metal envelope system, whether that be the watertightness of the roof or siding, the Galvalume ® steel, or the durable PVDF KYNAR® finish. When looking at warranties for your system, it is important to note that not all warranties are created equal. DMI warranties ensure the watertightness of all flashing conditions, trims, curbs, valleys, and penetrations. Building owners are protected with a total system warranty - “from the deck up” when using DMI insulation, fasteners, and underlayment. Our warranties are backed-up by a full-service Engineering Department, generating project specific shop drawings. Quality control is monitored by a minimum of two on-site inspections by our Field Technical Inspectors. DMI Total System Warranties give building owners and design professionals confidence that they are receiving the highest quality and most complete warranty available in the industry.

Browse Our Warranties
