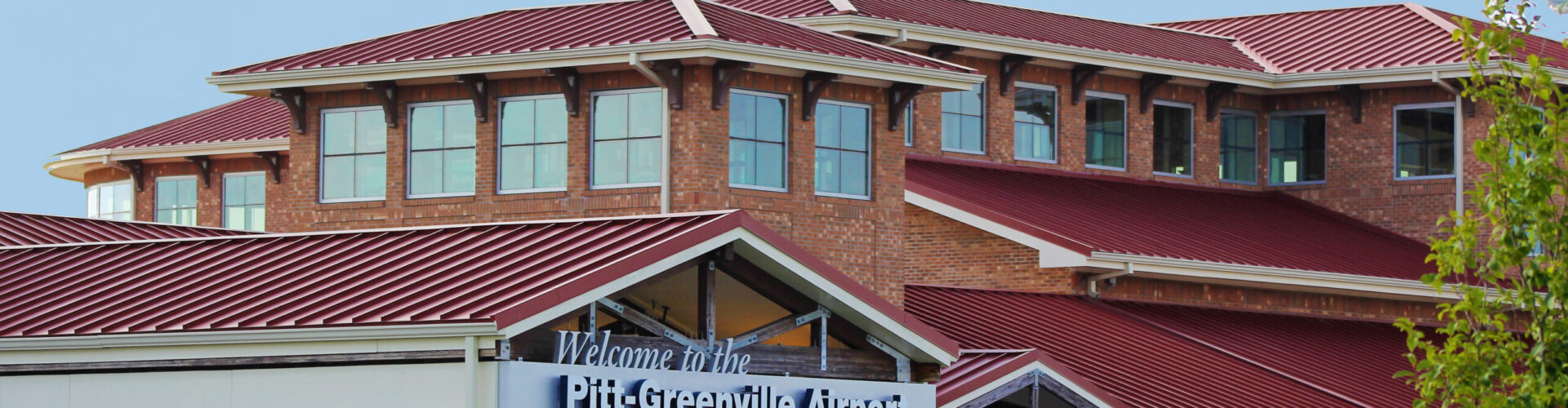

Pitt Greenville Airport | Greenville, North Carolina  |  The Wilson Group Architect  |  Creasy & Whiteed Roofing

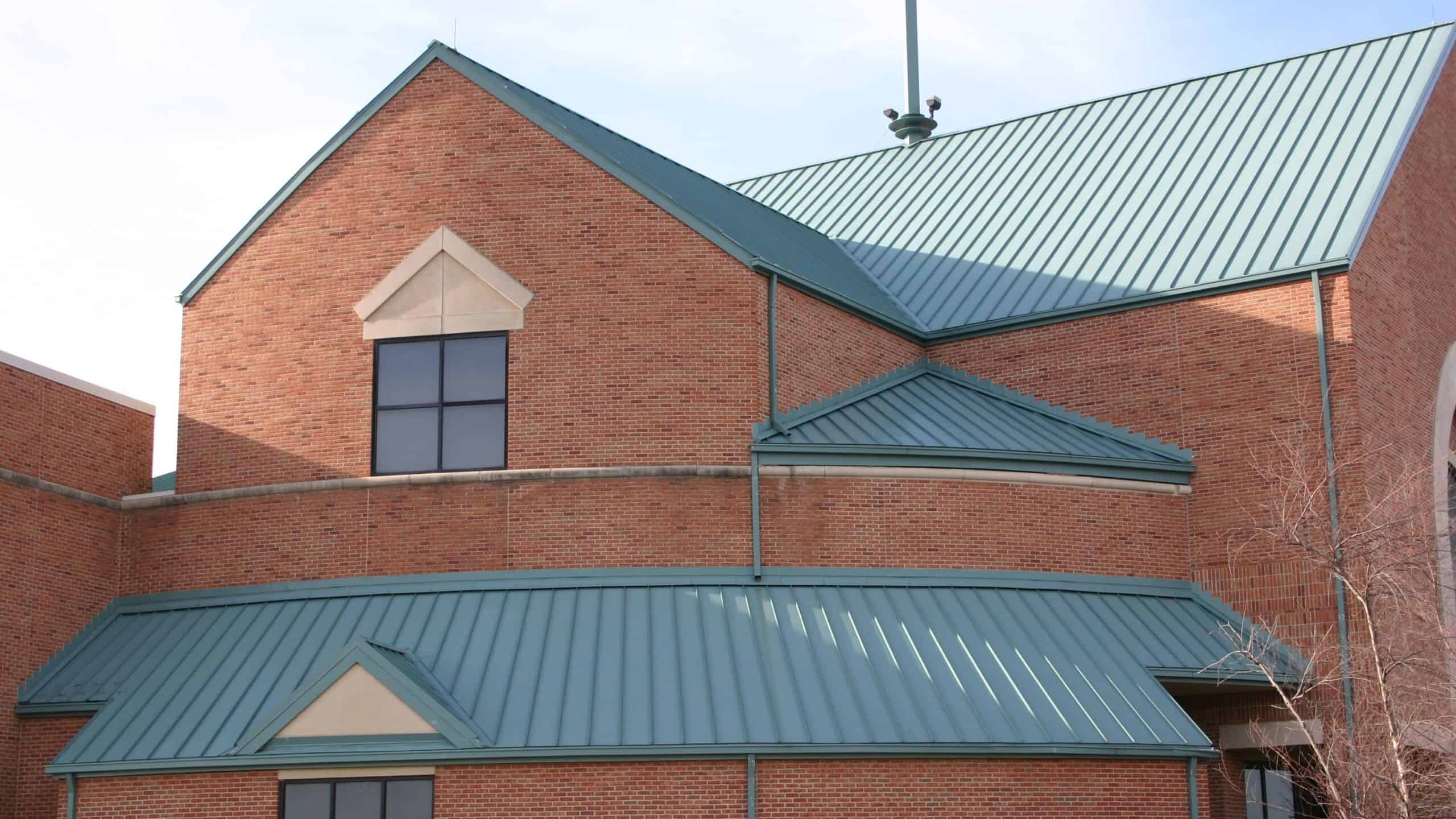

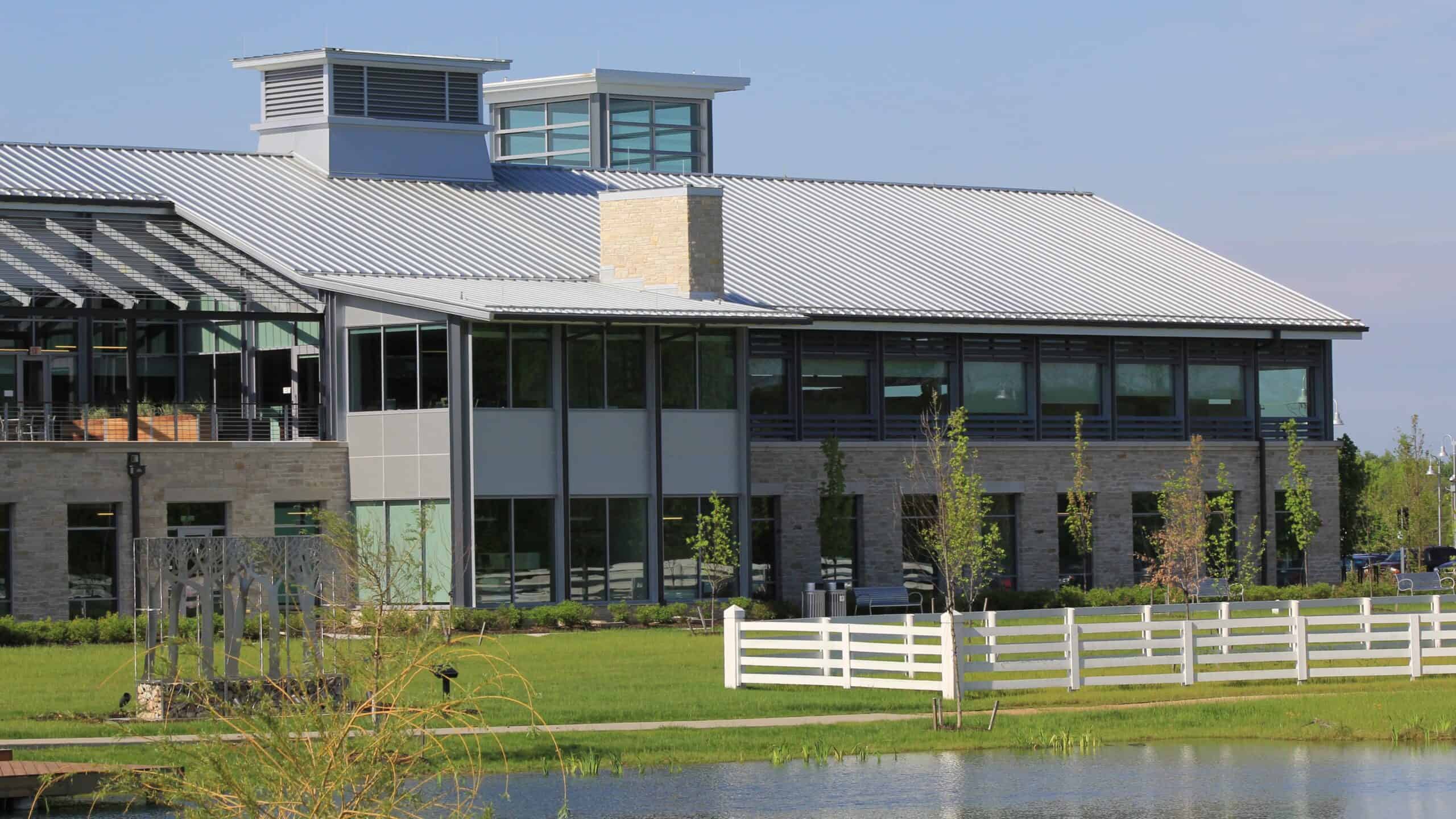

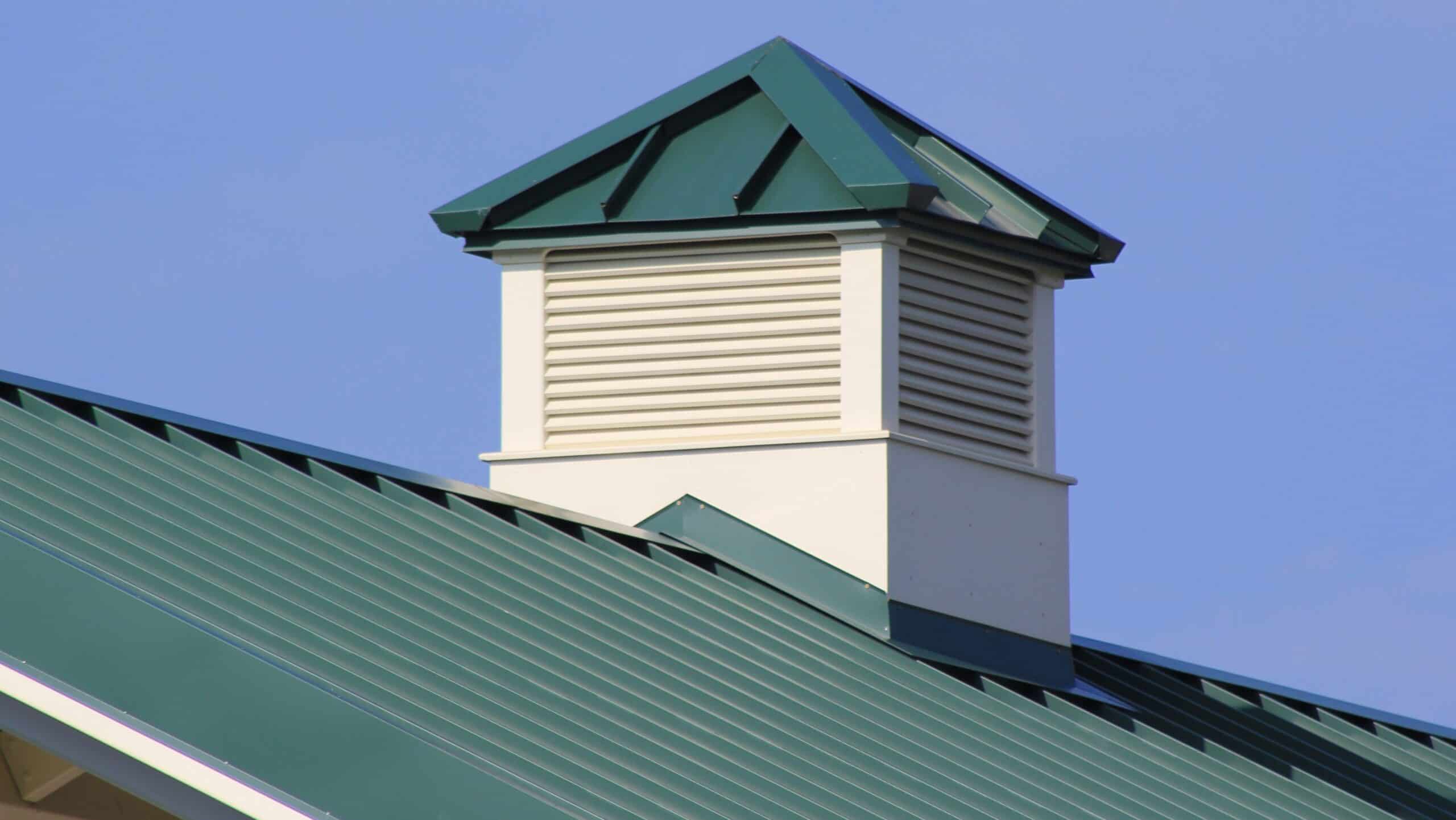

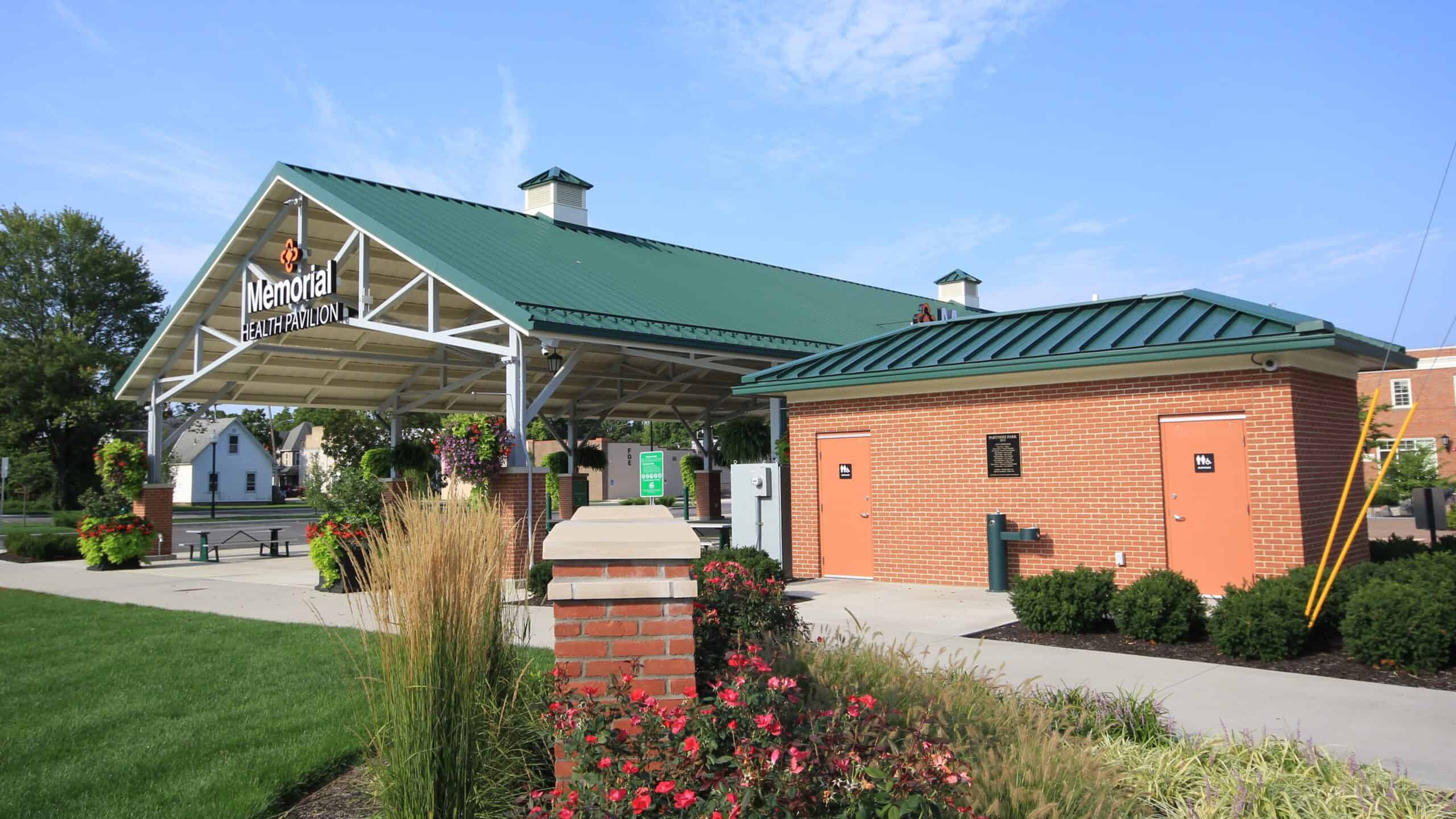

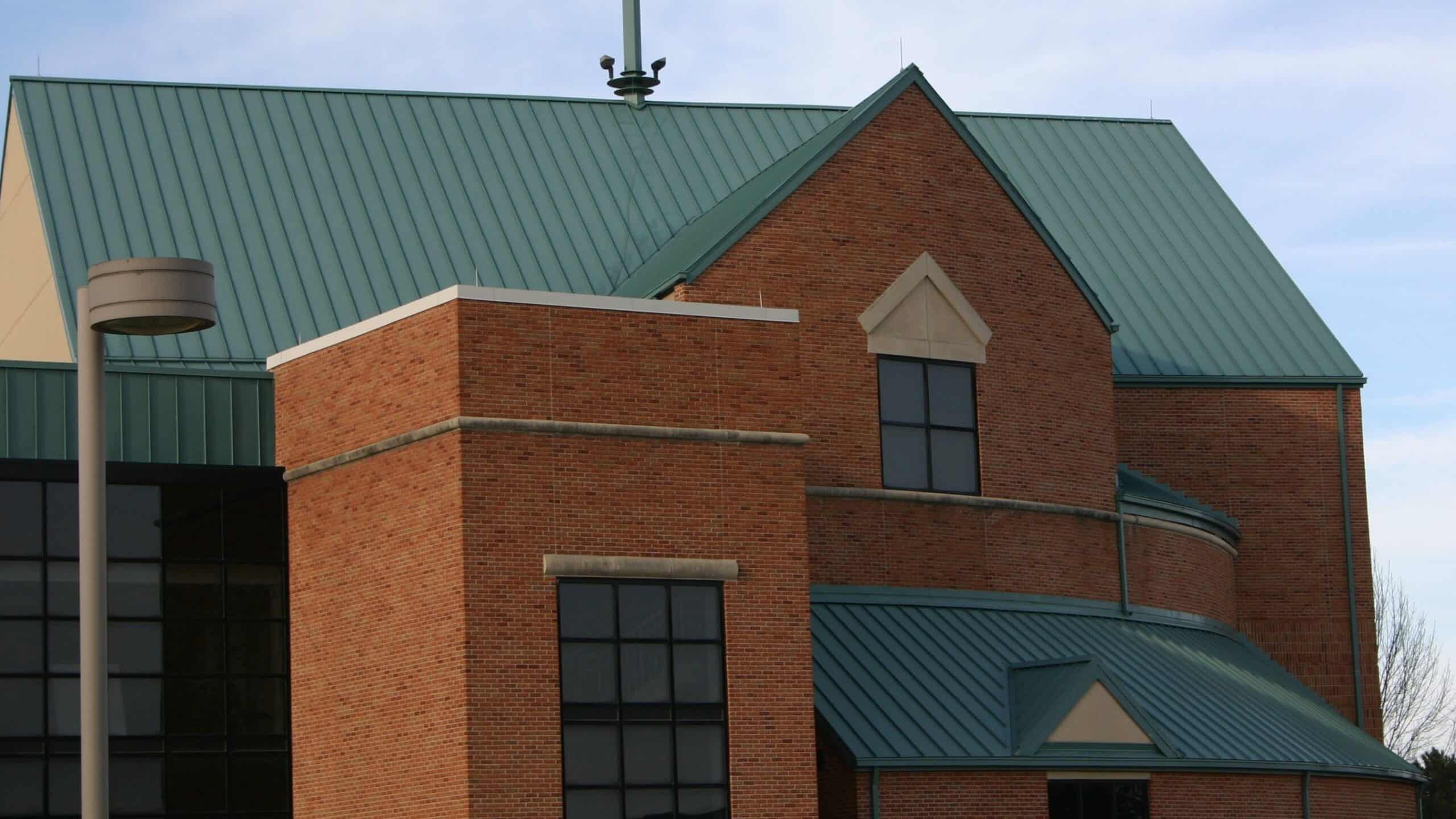

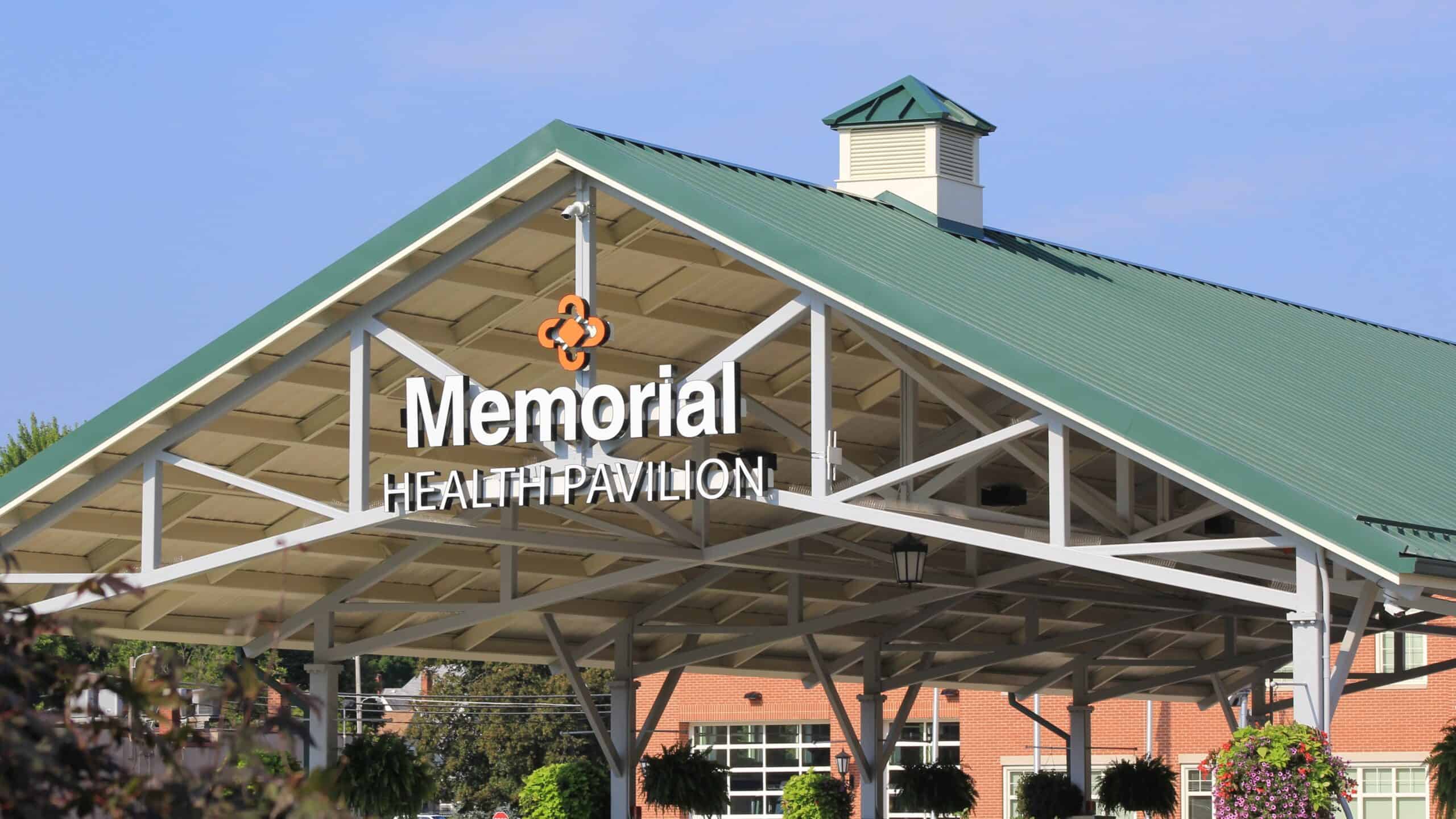

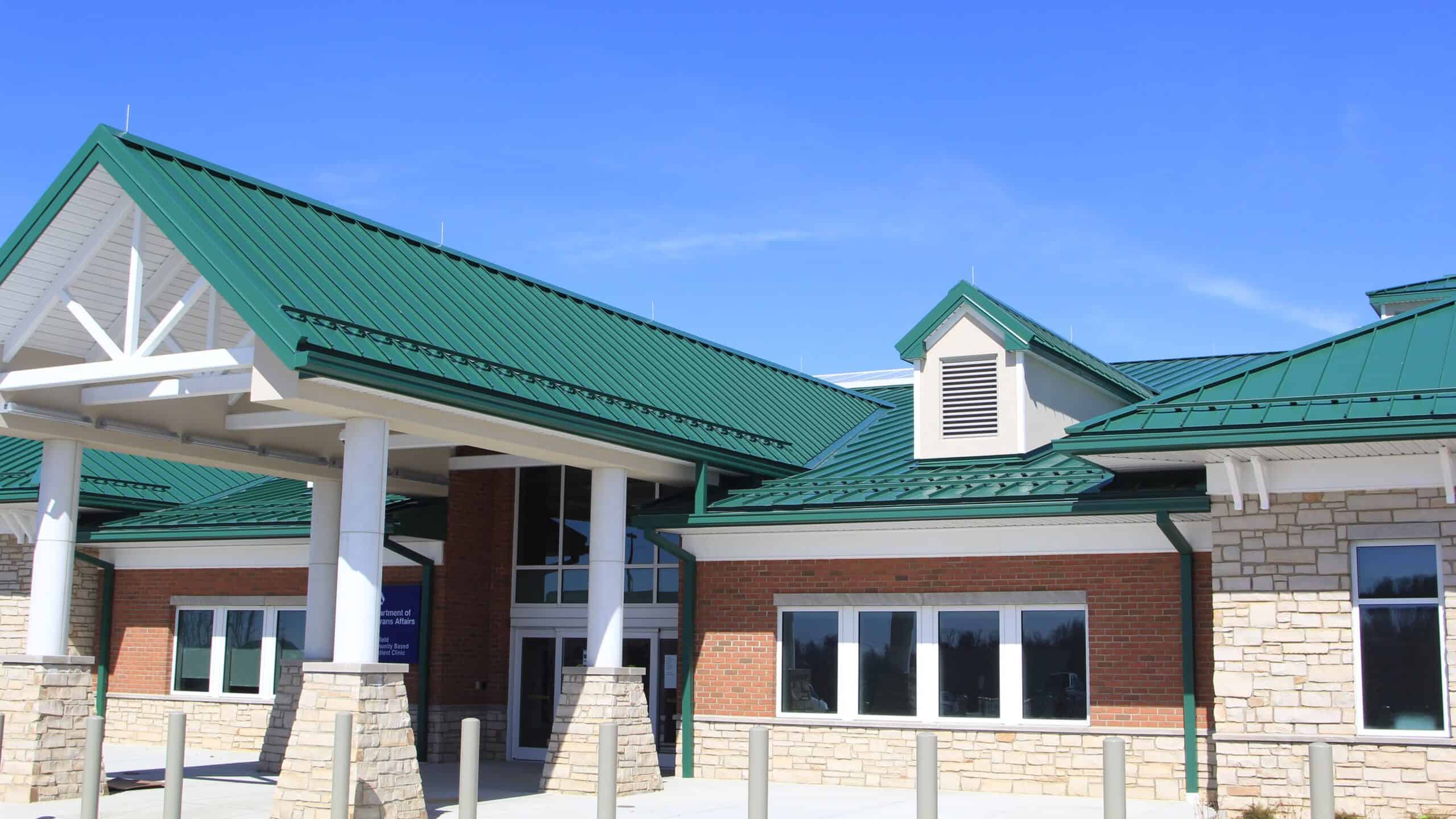

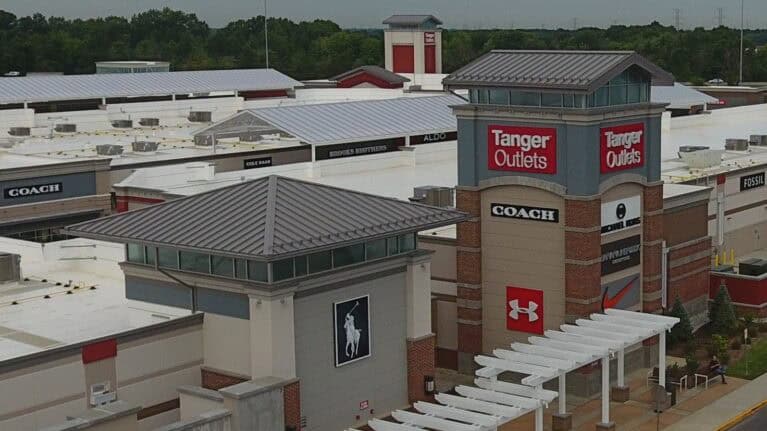

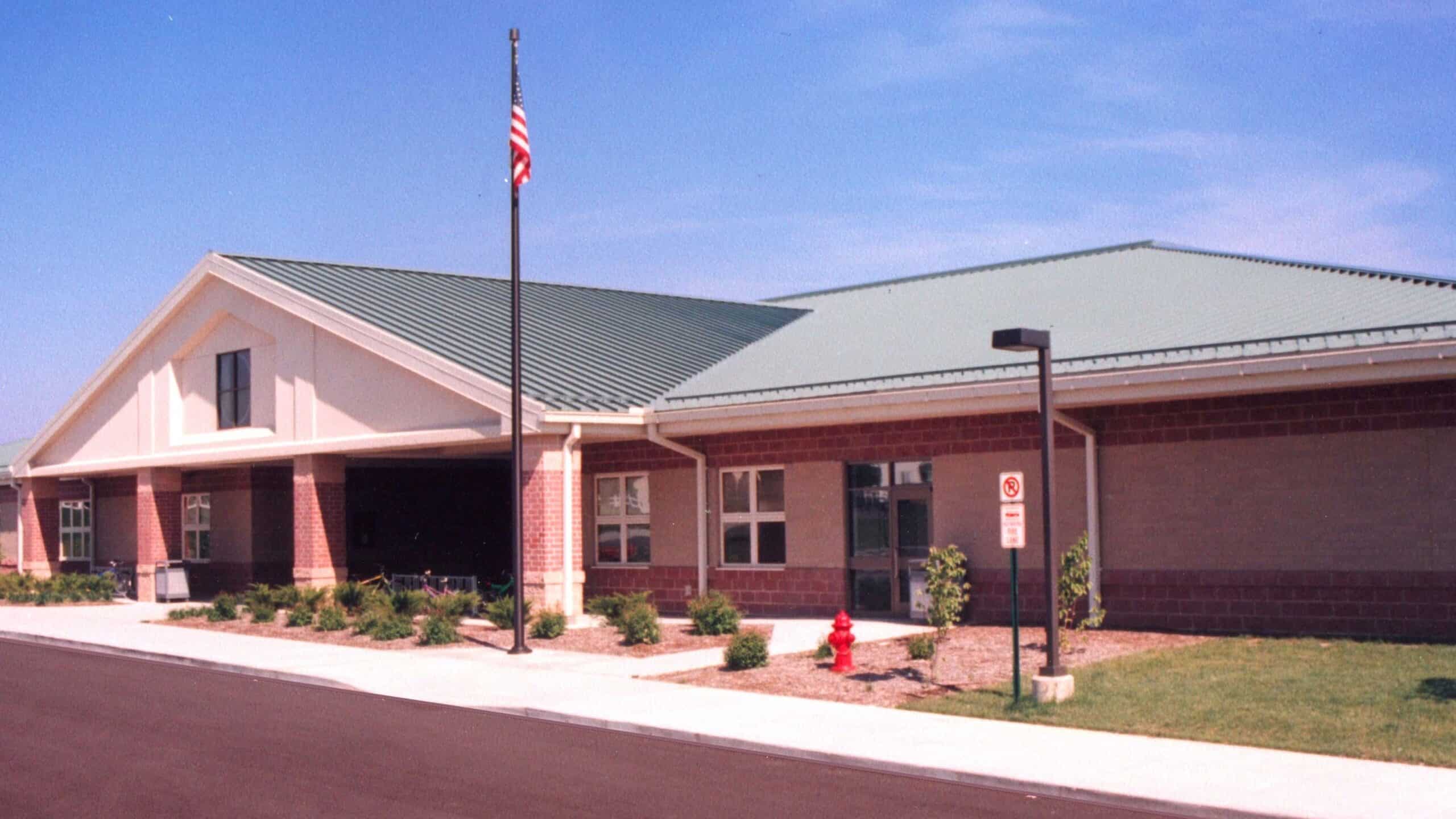

Span-Lock SL25


SPAN-LOCK SL25 is a structural panel which is mechanically seamed during installation. The panel is an integral interlocking system by design that installs in one direction from a given starting point. SPAN-LOCK is a very flexible panel that works well with a wide range of building designs.




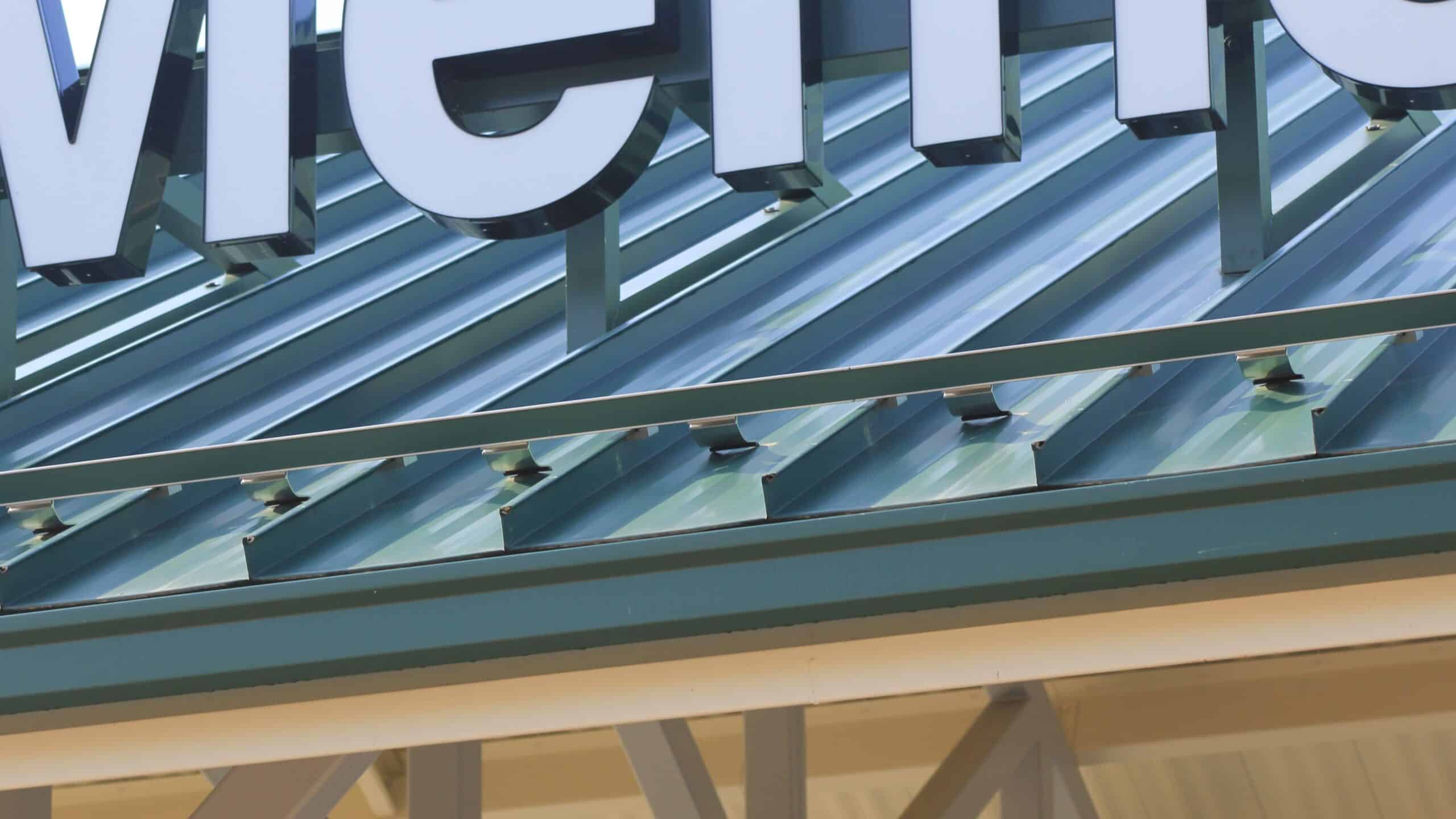

Three different clips are available
Low Floating, High Floating, and Fixed

Finish
DynaClad® 70% Full Strength PVDF Paint Finish

Colors
Choice of over 32 Colors


DOWNLOAD SL25 CUT SHEET
SL25 Cut Sheet

















DOWNLOAD PDF DETAILS


Manage and download this product's documents with Submittal Builder
Free to registered users.

Login/Register

Roof Assemblies

SPAN-LOCK SL25 can be applied over various roof substrates including: open framing, rigid insulation (utilizing a bearing plate under each panel clip spaced 60″ o.c., max.) over 22 ga. corrugated steel deck, and various solid substrates including plywood sheathing or nail base insulation.

Uses & Applications

Product uses include low to high slope roofing, vertical fascia, equipment screens, mansards, and wall panels. This system may also be installed on tapered roof areas.

*Note: Metallic paint finishes are “directional” and are not recommended for “double male” panels.

Product Offerings

24 ga., 22 ga. Steel, and .032, .040 Aluminum
Embossing and various stiffener configurations available

  • SL2512 with 12″ o.c. seams
  • SL2516 with 16″ o.c. seams

Performance Tests

  • UL-580 Wind Uplift
  • ASTM E1592 Uniform Static Air Pressure
  • ASTM E1646 Water Penetration
  • ASTM E1680 Air Leakage

Load Tables:

Advantages

  • Factory Applied Non-Curing Sealant: For superior watertightness
  • Mechanically seamed: May be installed on low slope applications down to 1/2:12 slope
  • No Hand Seaming Required: Built-in locking leg keeps the roof panel in place until ready to mechanical seam
  • Multi-directional Mechanical Seaming: Panel seaming is simplified
  • Expansion Clips: Allows for thermal expansion and contraction
  • Lengths up to 92’-0”
  • Total System Warranties Available: For total confidence
