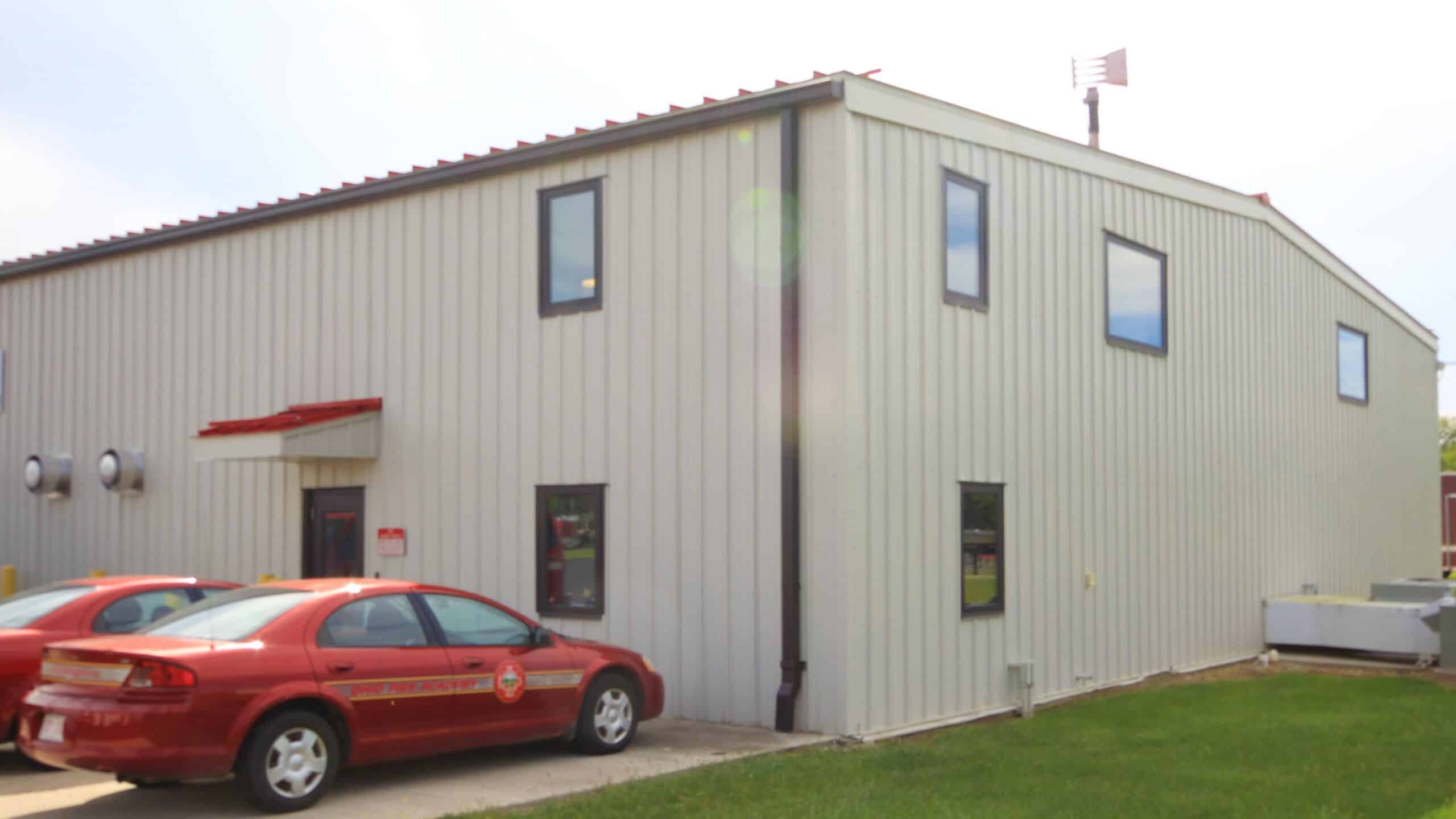

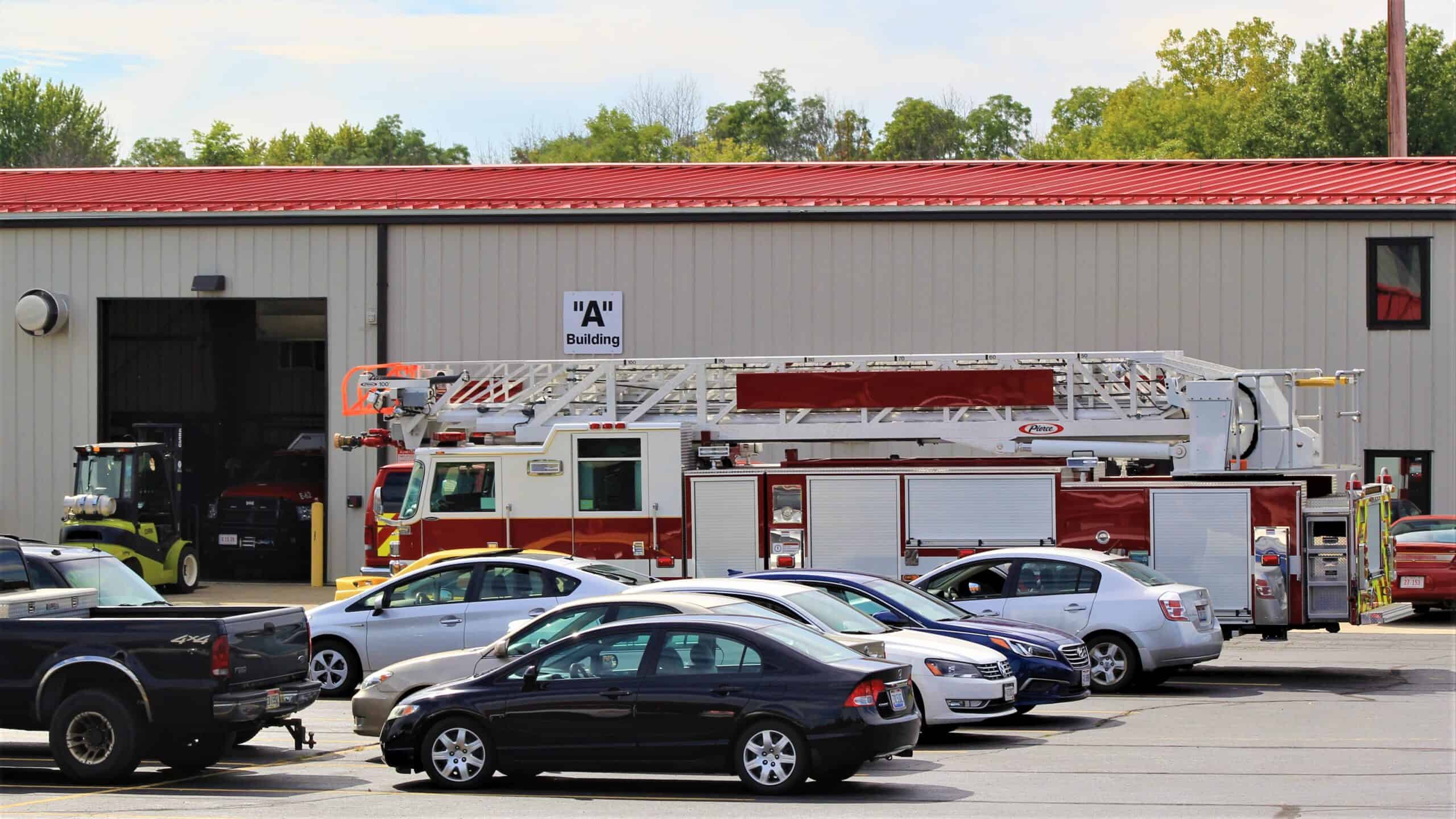

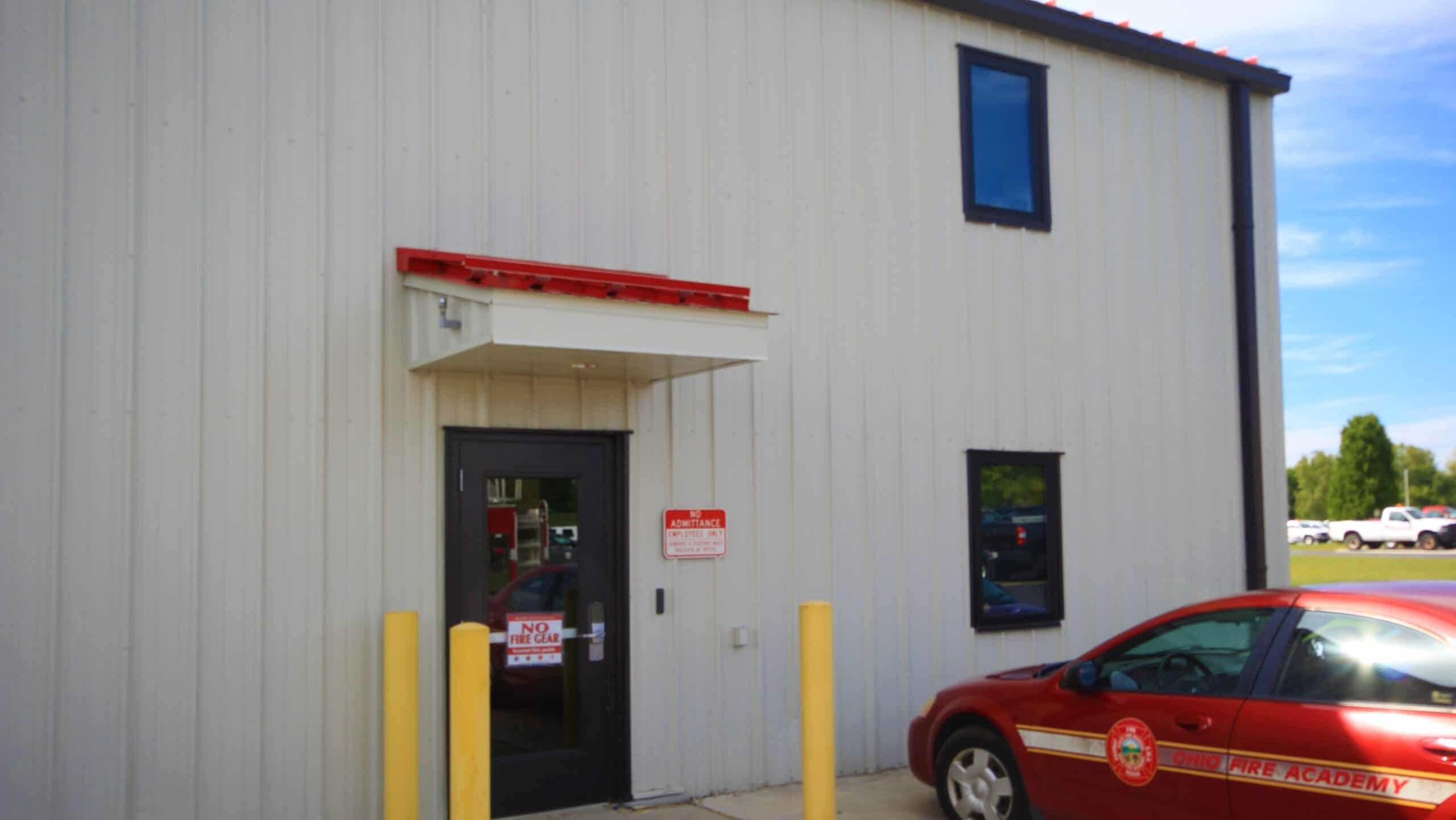

Ohio Fire Training Academy |  Reynoldsburg, OH

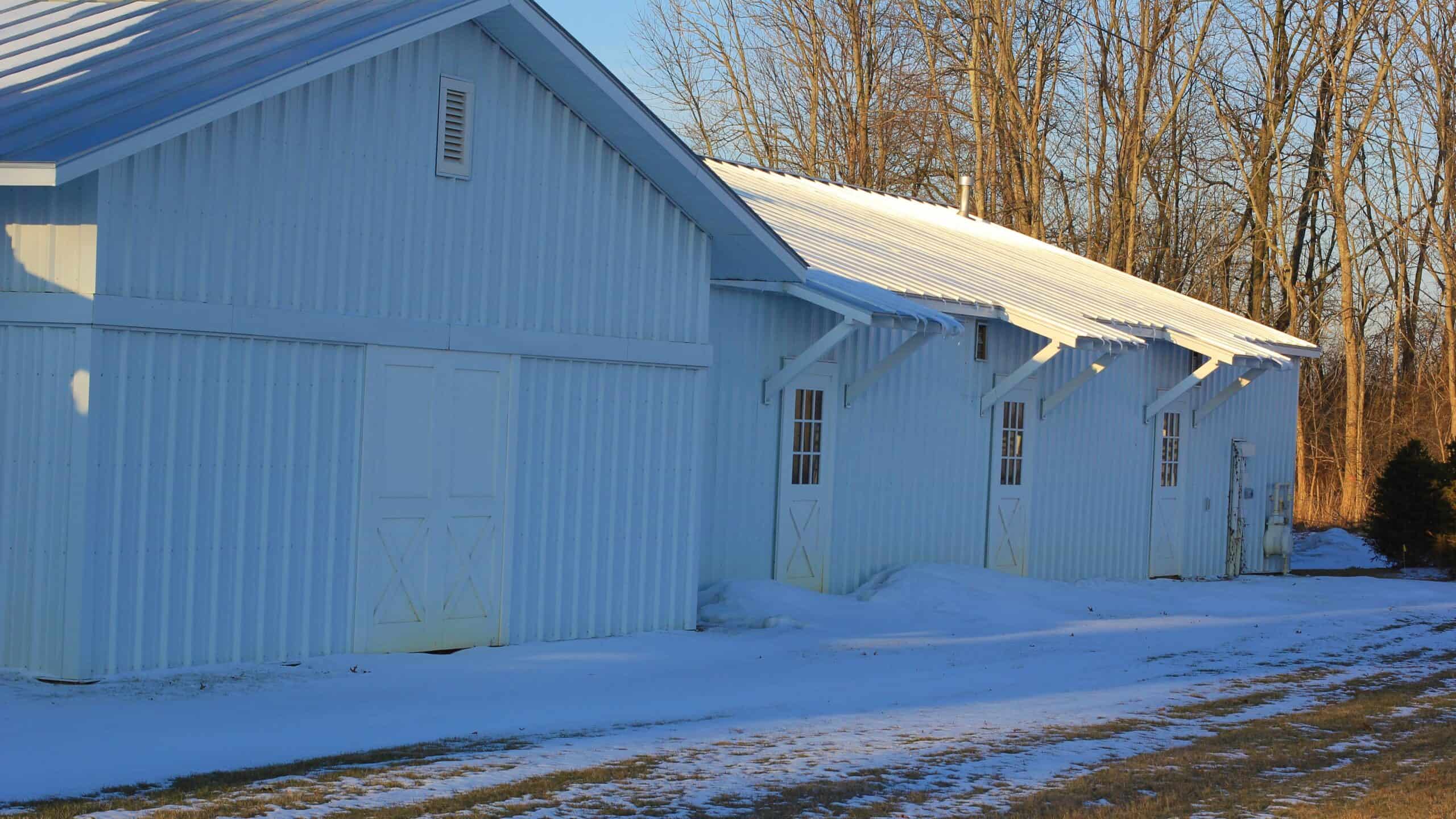

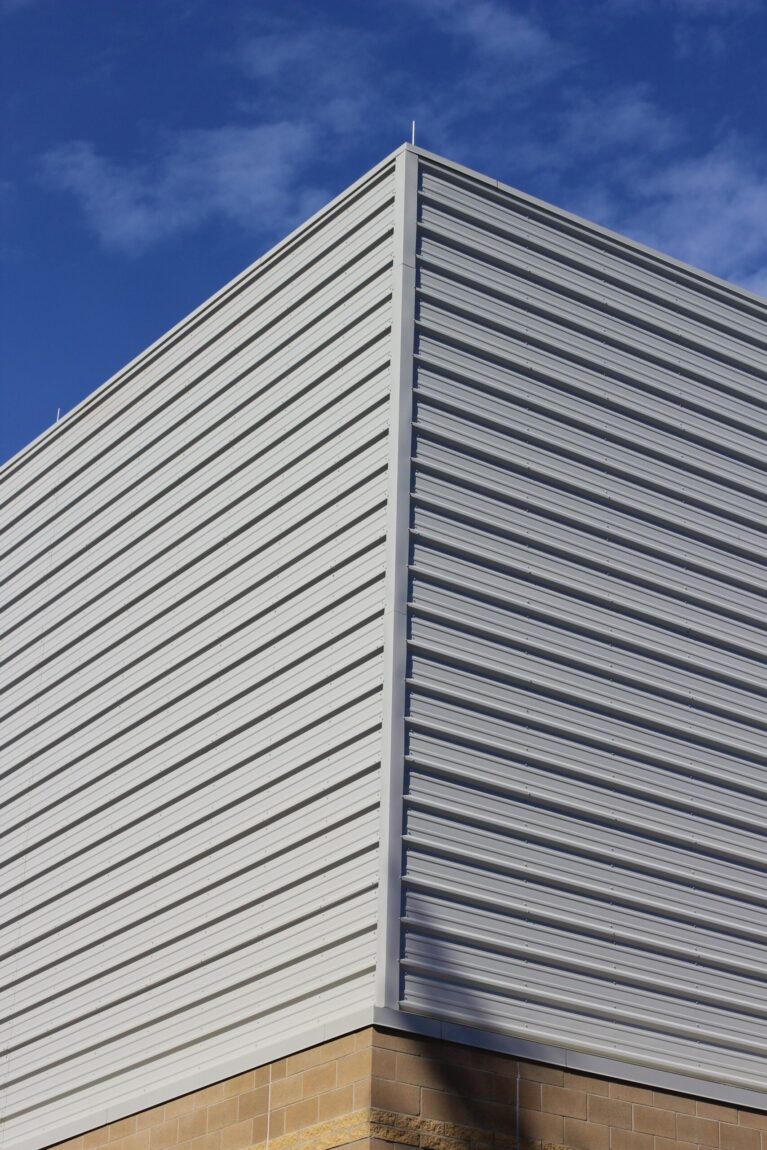

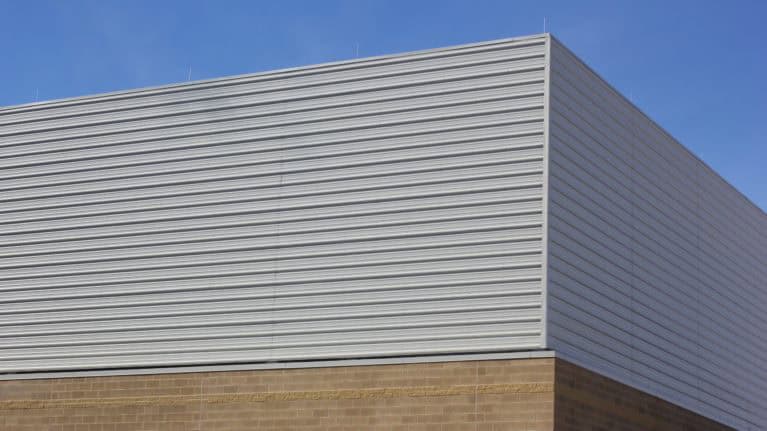

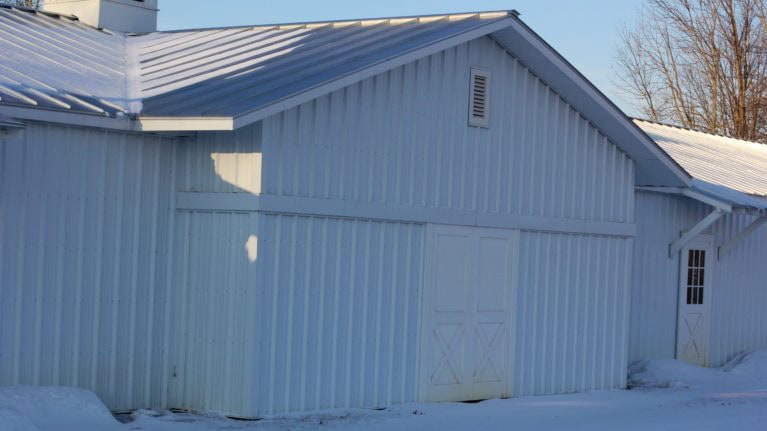

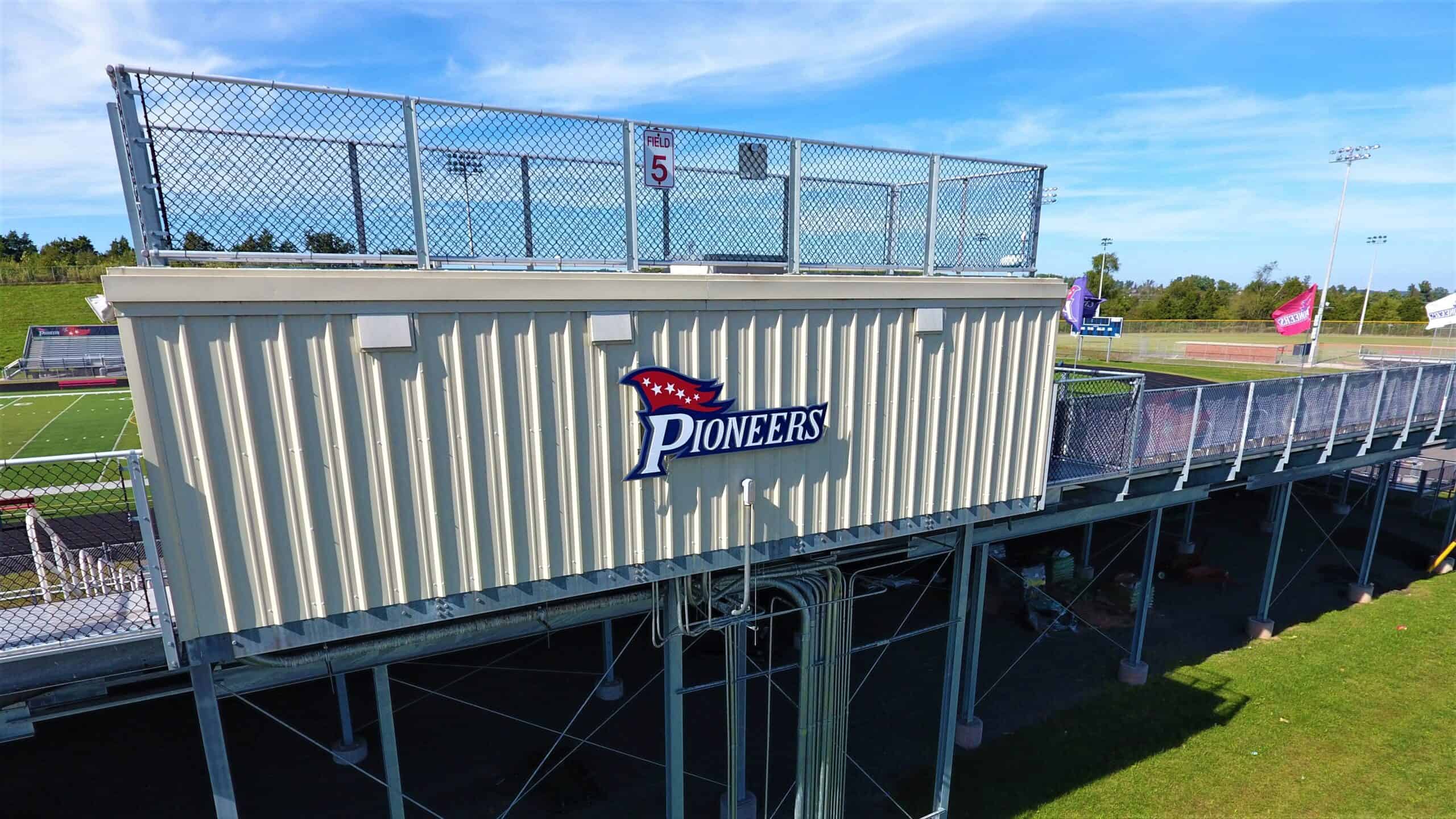

R Panel WPRP

dynaclad-logosmall


R Panel WPRP is an exposed fastener panel utilized for wall and roof applications. It has an 1-1/4″ rib height at 12″ o.c. and 36″ of panel coverage with a purlin bearing leg.


LOAD TABLE – UNIFORM SPANS (PSF)
Panel Gage Span Span (Feet)
3 4 5 6 7
24 (50 ksi) 3 150 85 55 35 20
24 (50 ksi) 2 120 70 40 30 20
Table for live load, no wind increase included. Deflection limit = L/240.. Analysis per AISI 2001 manual. Load values do not address web cribbling requirements. Additional spans available – Contact DMI

Closures
Foam closures available

Finish
DynaClad® 70% Full Strength PVDF Paint Finish

Colors
Choice of over 32 Colors


DOWNLOAD R PANEL CUT SHEET

R Panel Cut Sheet


DOWNLOAD PDF DETAILS


Manage and download this product's documents with Submittal Builder
Free to registered users.

Login/Register

Assemblies

R PANEL WPRP can be applied over various wall and roof assemblies including: open framing and solid substrates.

Uses & Applications

Product uses include vertical and horizontal wall panels, equipment screens, mansards and roofing with roof slopes as low as 2:12. Excellent for wall retro-fit applications.

Product Offerings

  • 24 ga., 22ga. Steel, and .032 Aluminum
  • Embossing available
  • Mitered Corners are available

Performance Tested

  • ASTM E331 Water Penetration
  • ASTM E283 Air Leakage
