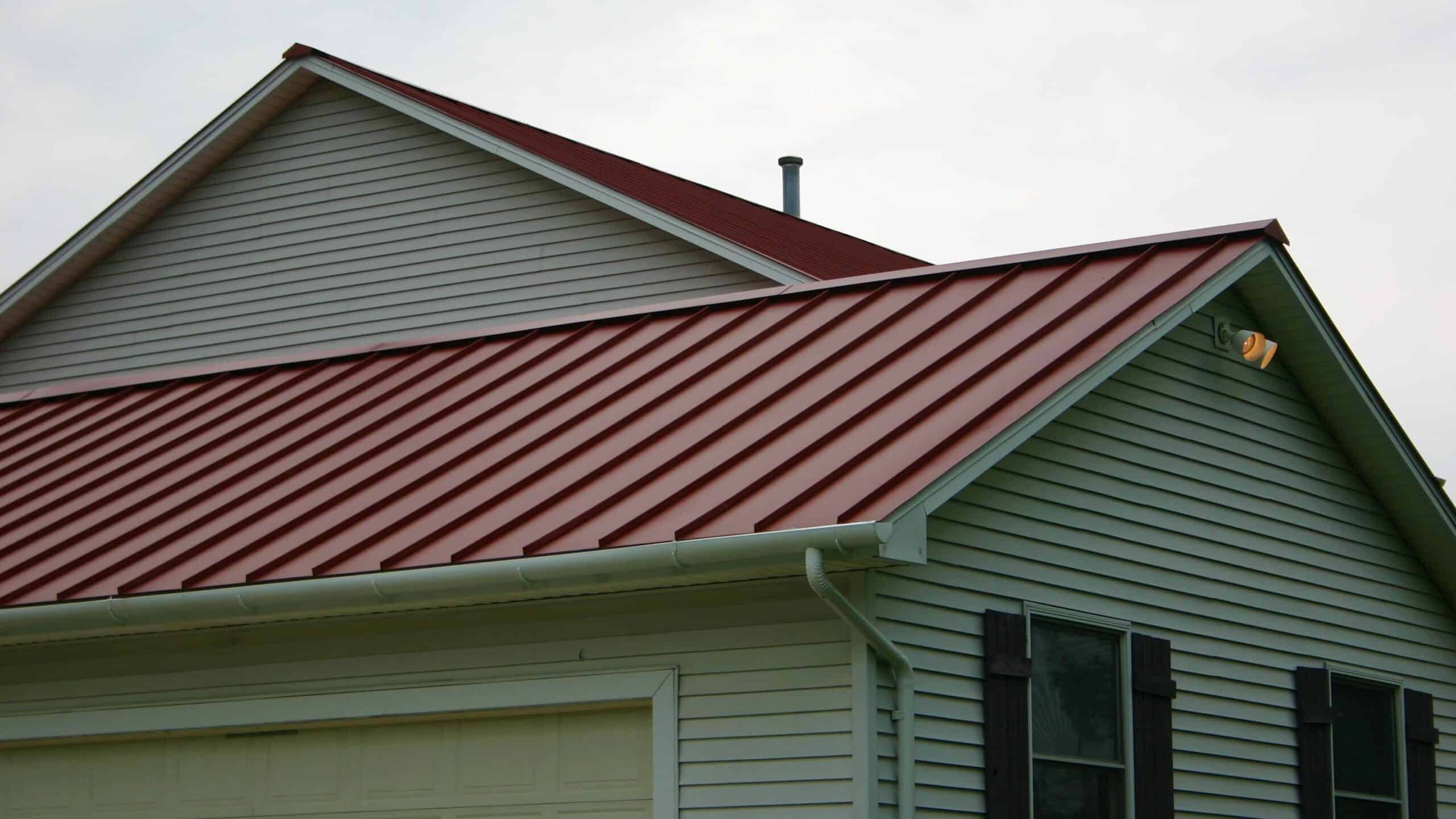

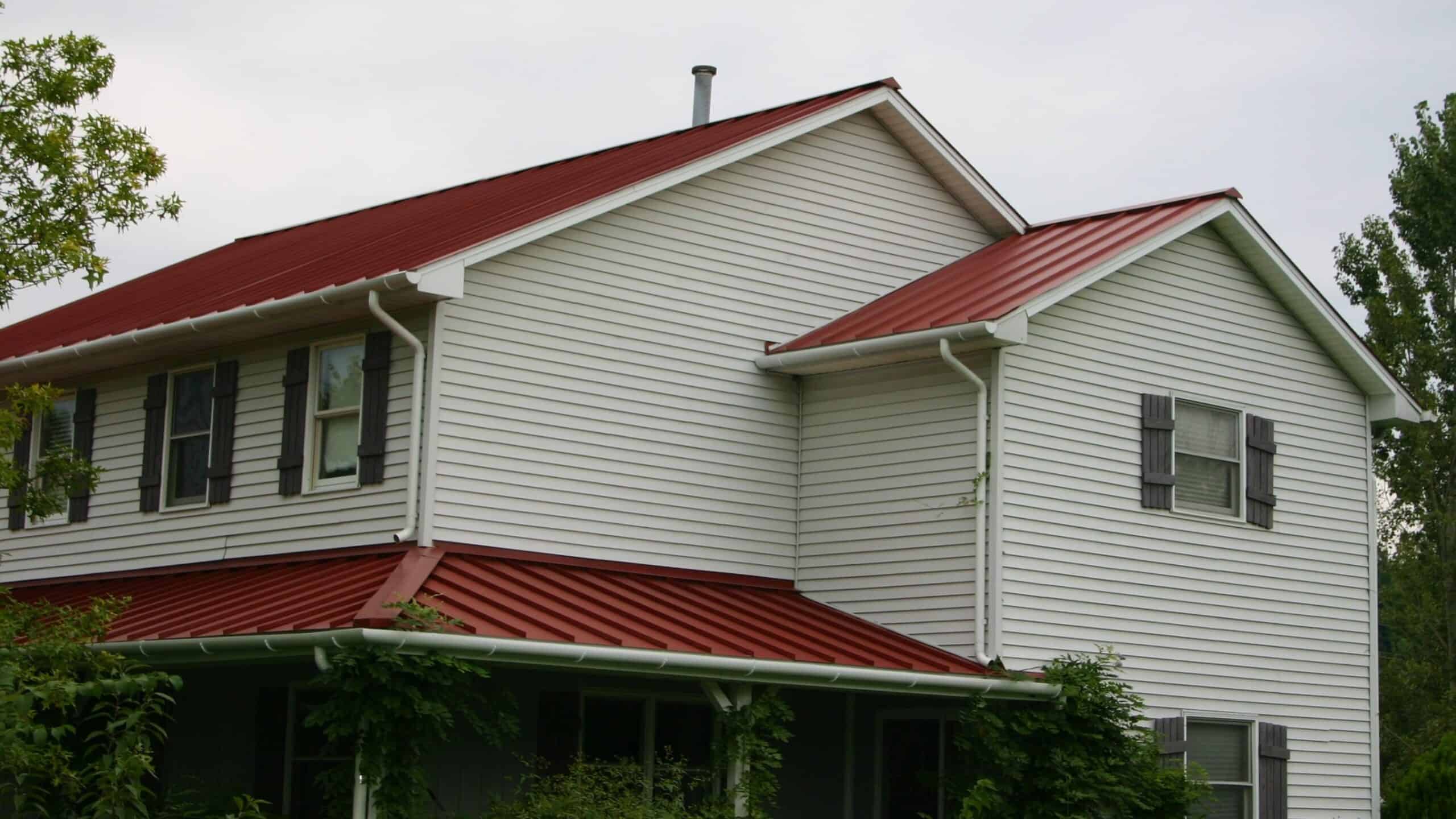

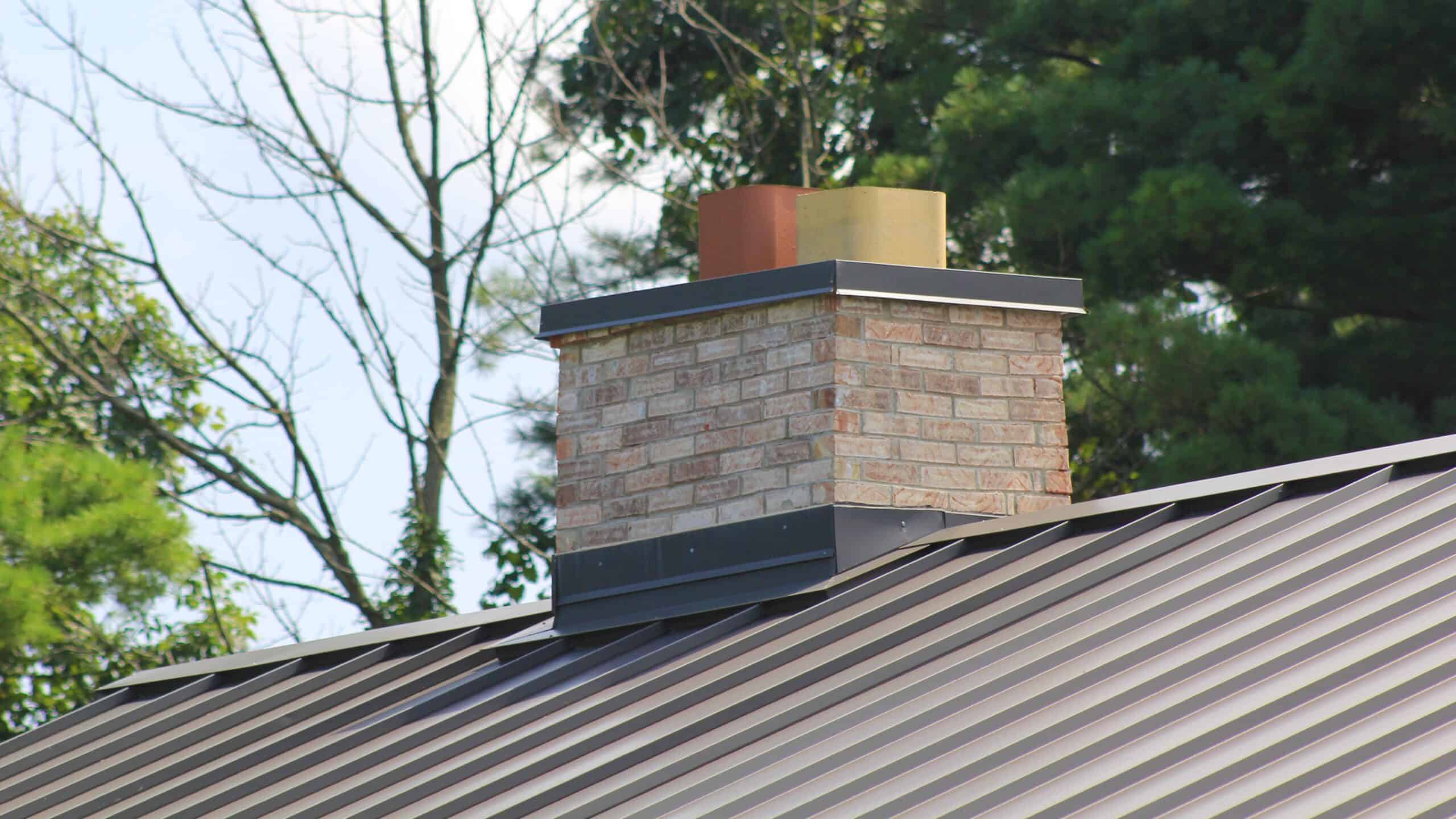

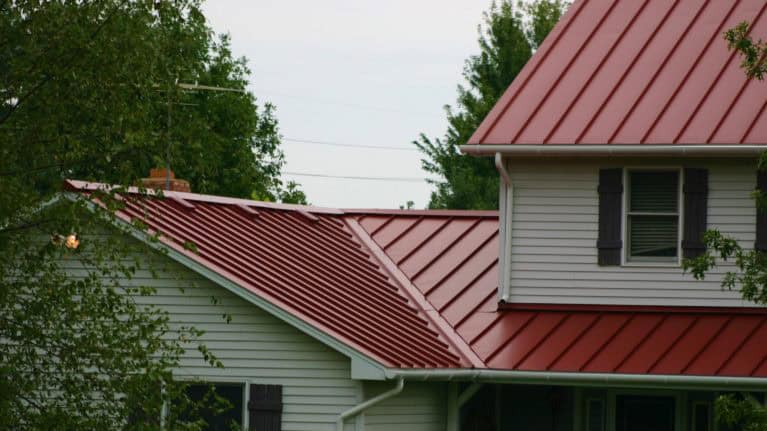

Canal Winchester Residence | Canal Winchester, OH

Nail-Strip NS10

NAIL-STRIP NS10 is a non-structural panel which is snapped together during installation. The product is an integral interlocking system by design which installs in one direction from a given starting point. Nail-Strip works extremely well with basic residential applications.


DynaClad® 70% Full Strength PVDF Paint Finish

Choice of over 32 Colors


NS10 Cut Sheet

Manage and download this product's documents with Submittal Builder
Free to registered users.


Roof Assemblies

NAIL-STRIP is designed for application over solid substrates, plywood or metal decking roof assemblies utilizing a fastener every 20″ o.c. max.

Uses & Applications

Product uses include min 4:12 sloped roofing, vertical fascia, equipment screens, mansards, and wall panels.

Note: Watertightness Warranty is not available for this profile.

Product Offerings

24 ga. Steel and .032 Aluminum
Embossing and various stiffener configurations available

  • NS1012 with 11.625″ o.c. seams
  • NS1018 with 18” o.c. seams


  • Engineered Snap-Together Design: For easy installation
  • Symmetrical Visual Aesthetics: providing a non-directional appearance
  • Continuous Interlocking Seam: No seam disengagement
  • Anti-Siphoning Seam Design: Prevents water infiltration
  • Continuous Rollformed Lengths: Eliminates need for panel lap joints
  • The built in fastening strip elminates the need for clips
