Gravel Stop


ansi-spri-es-1

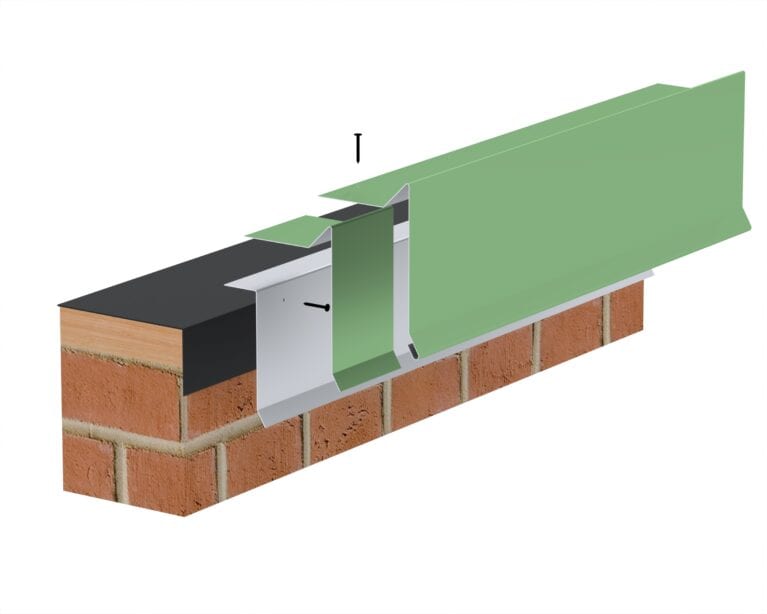

DynaClad® Edge Gravel Stop System incorporates the same continuous 22 ga Steel or .040 Aluminum cleat for ease of installation and proper positioning and is pre-punched with fastener holes 12” o.c. on the face and 6” o.c. on the roof. The Gravel Stop System incorporates a standard 3” deep, 90° roof flange that easily accepts stripped-in membrane roofing products. This system easily incorporates Sump and Spill-outs, as required.


gravel-stop-profile


Finish
DynaClad® 70% Full Strength PVDF Paint Finish

Colors
Choice of over 32 Colors

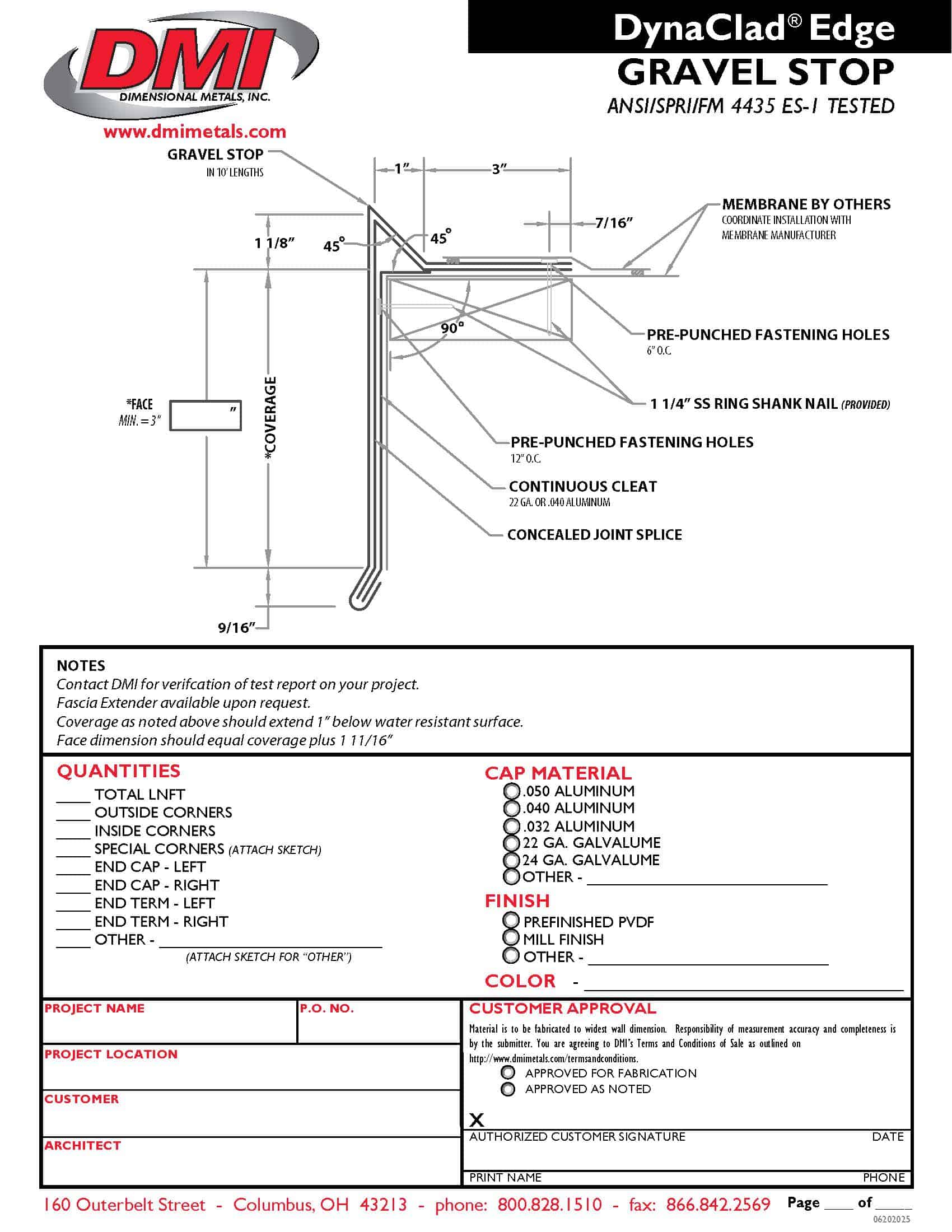

DOWNLOAD GRAVEL STOP ORDER FORM OR CUT SHEET

 DynaClad Edge Cut Sheet

Manage and download this product's documents with Submittal Builder
Free to registered users.

Login/Register

Advantages

  • Improve productivity with fast delivery times and reduced labor costs with ease of installation
  • Lowers installation time – saving labor cost
  • Correct positioning and fit are ensured through the use of pre-punched fastener holes
  • No crimping necessary with simple snap-on covers

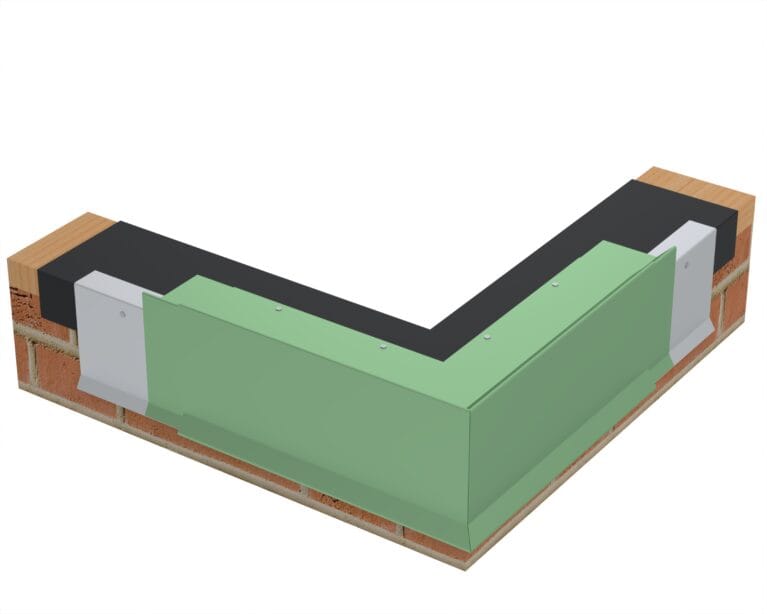

  • Fully engineered systems with shop-fabricated Corners, End Caps, End Terms, Fascia Extenders
  • Complete systems include Internal Splice Plates and all needed high-torque screws and ring shank nails
  • Available in PVDF coated Galvalume & Aluminum, Copper, Zinc and Stainless Steel
