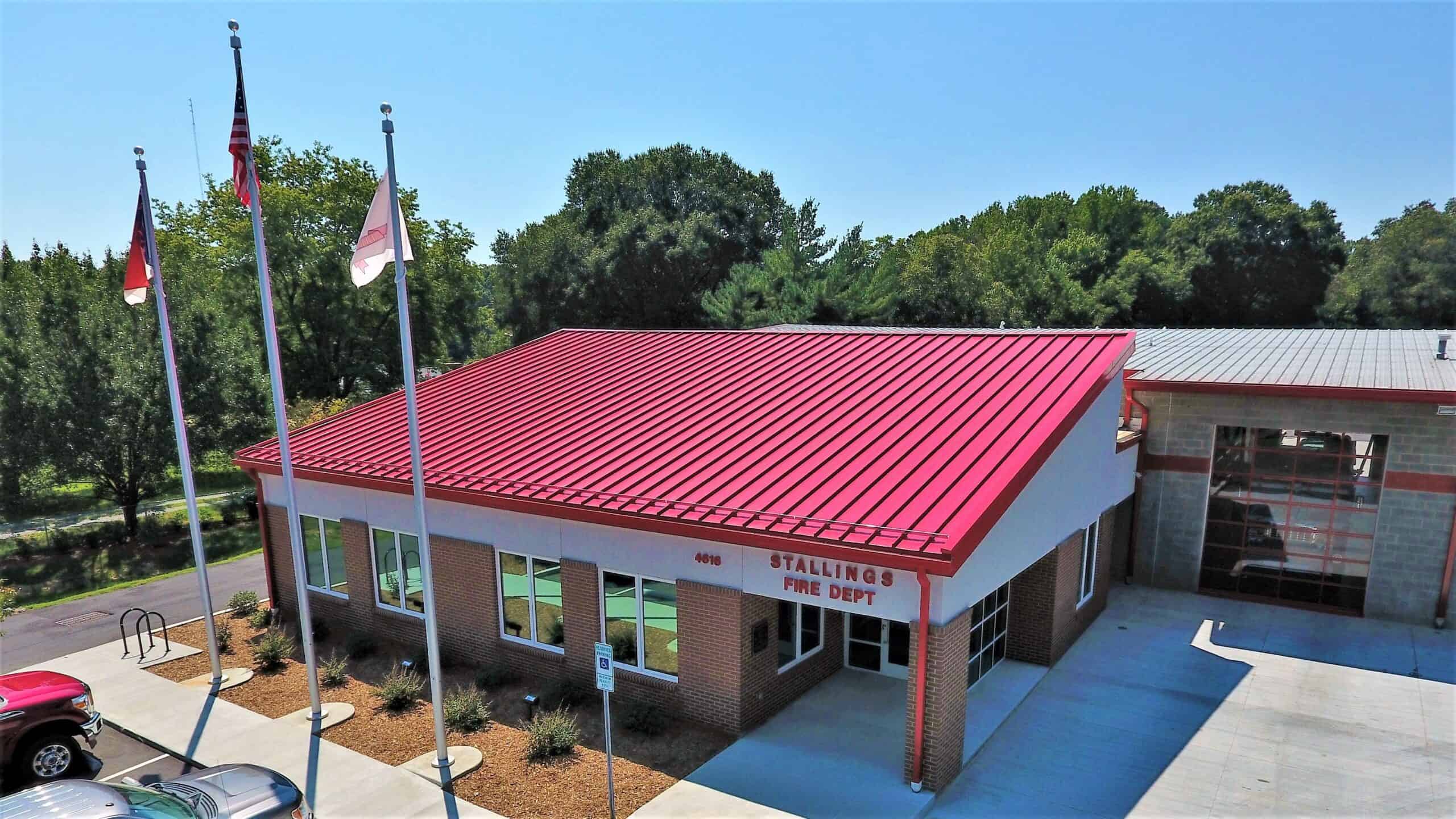

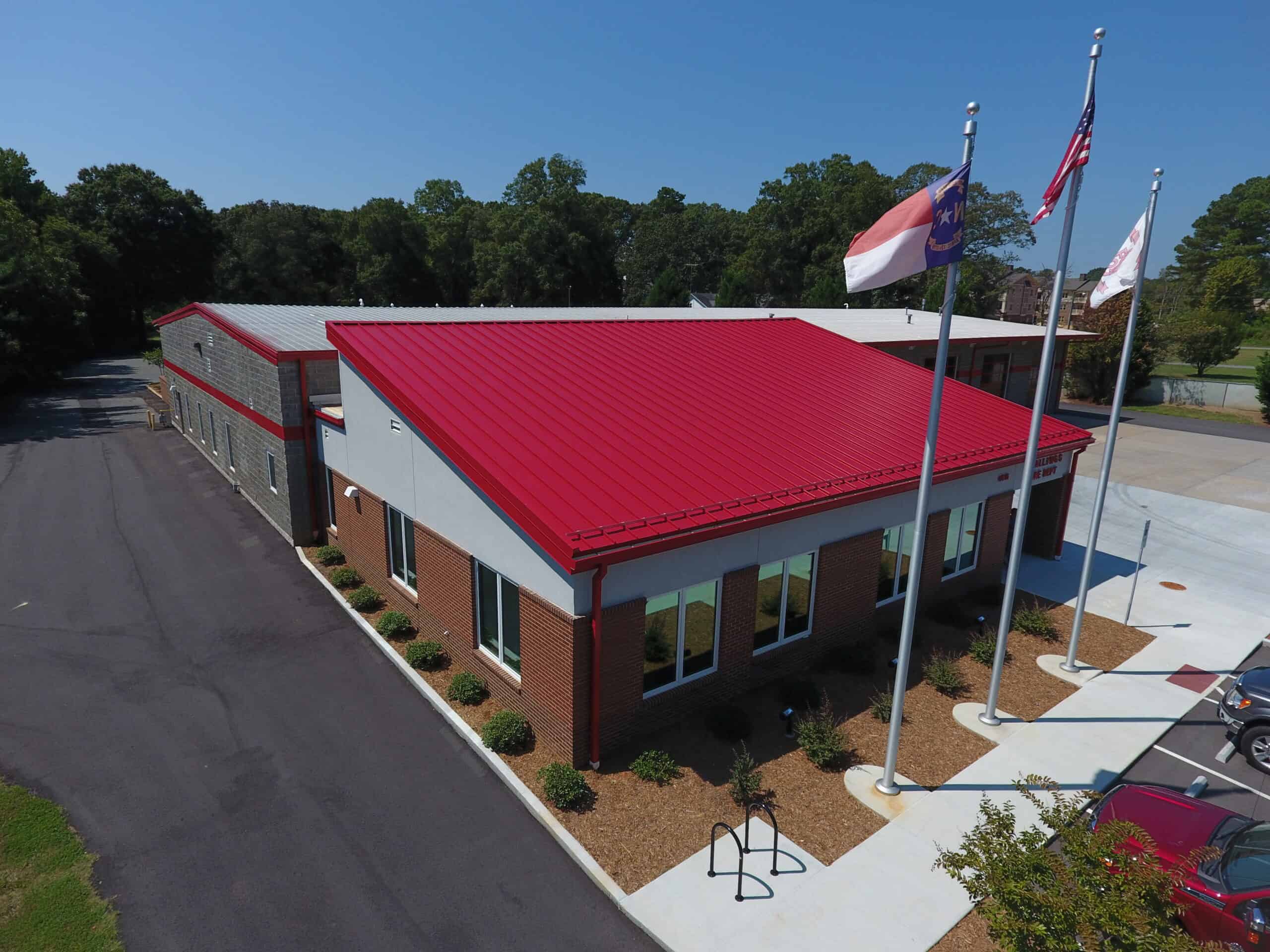

Stallings Fire Department  |  Stallings, NC  |  Garner & Brown Architects PA  |  Able Exterior Remodeling & Roofing

Double-Lock DL15


Double-Lock DL15 is a structural panel that is mechanically seamed during installation. The panel is an integral interlocking system by design that installs in one direction from a given starting point. A double male starter panel is available (for a minimal set-up fee) and may be installed in the middle of a roof area to achieve a symmetrical layout. DOUBLE-LOCK utilizes the traditional SMACNA standing seam “double-lock” plate.




Two different clips are available
Low Floating and Fixed

Finish
DynaClad® 70% Full Strength PVDF Paint Finish

Colors
Choice of over 32 Colors


 double-lock-battensingle-locked-dl15


DOWNLOAD DL15 CUT SHEET

DL15 Cut Sheet



















DOWNLOAD PDF DETAILS


Manage and download this product's documents with Submittal Builder
Free to registered users.

Login/Register

Roof Assemblies

DOUBLE-LOCK can be applied over various roof substrates including: open framing, rigid insulation (utilizing a bearing plate under each panel clip 30” o.c., max.) over 22 ga. steel deck, and various solid substrates including plywood sheathing and nail base insulation.

Uses & Applications

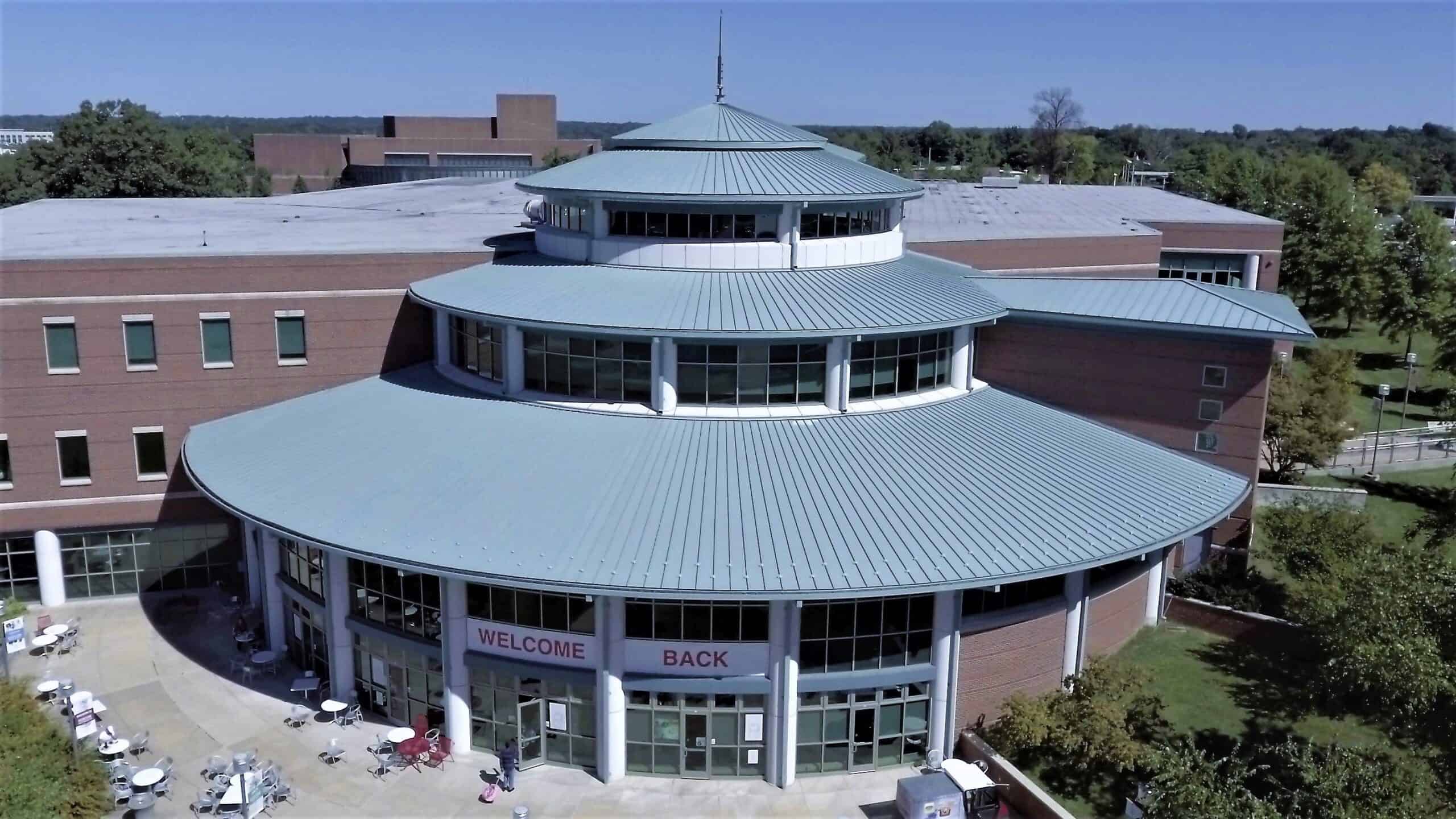

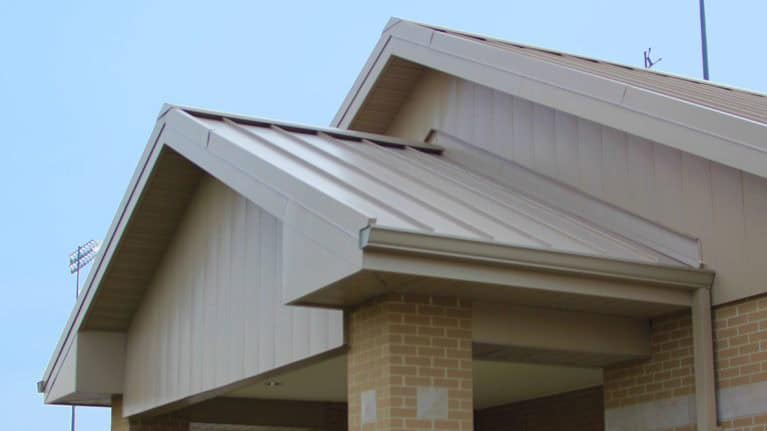

Product uses include low to high slope roofing, vertical fascia, equipment screens, mansards, and wall panels. This system may also be installed on tapered and curved roof areas.


*Note: Metallic paint finishes are “directional” and are not recommended for “double male” panels.

Product Offerings

24 ga. Steel, and .032 Aluminum
Embossing and various stiffener configurations available

  • DL1512 with 12″ o.c. seams
  • DL1517 with 17″ o.c. seams
  • DL1520 with 20″ o.c. seams

16, 20 oz. Copper
Various stiffener configurations available

  • DL1514 with 14″ o.c. seams
  • DL1516 with 16″ o.c. seams
  • DL1520 with 20″ o.c. seams

Performance Tested

  • UL-580 Wind Uplift
  • ASTM E1592 Uniform Static Air Pressure
  • ASTM E1646 Water Penetration
  • ASTM E1680 Air Leakage

Advantages

  • Factory Applied Non-Curing Sealant: For superior watertightness
  • SMACNA Seam Design: A traditional and historical aesthetic appearance
  • Mechanically Seamed: May be installed on low slope applications down to 1/2:12 slope
  • Expansion Clips: Allows for thermal expansion and contraction
  • Continuous Rollformed Lengths : Eliminates need for panel lap joints
  • Total System Warranties Available: For total confidence

*Note: Metallic paint finishes are “directional” and are not recommended for “double male” panels.
