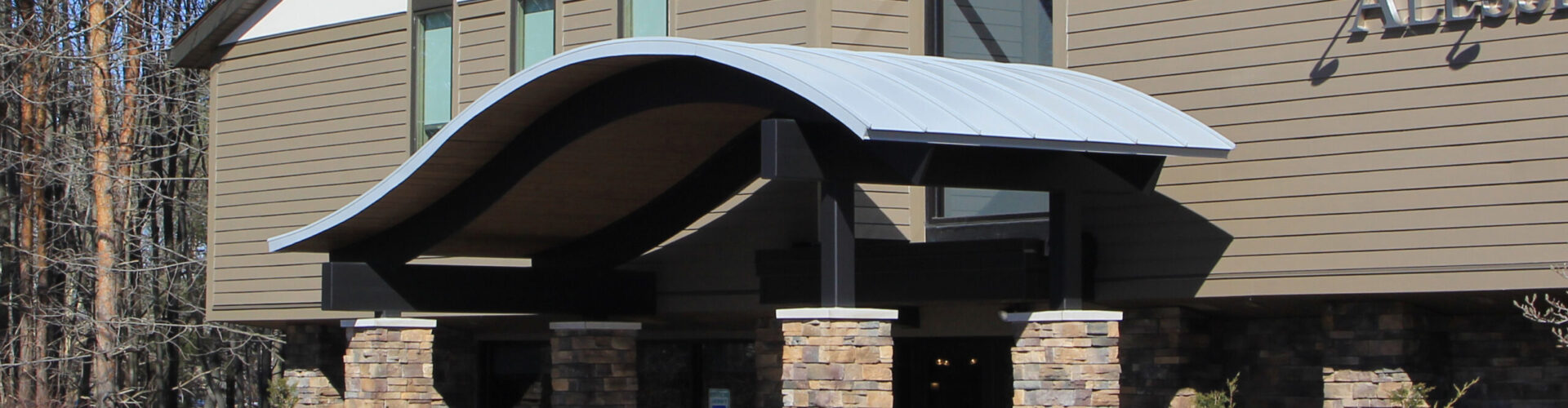

Alessio Eye MD |  Strongsville, OH

Curved Snap-On-Seam
CR-SS10


Curved Snap-On-Seam CR-SS10 is a non-structural curved snap-on-seam system. The system is designed with two components: the panel and the seam cover. CURVED SNAP-ON-SEAM is a non-directional panel system allowing installers more control during installation over seam layout and symmetry of the panel area. CURVED-RADIUS panels utilize a 5/8”-7/8″ high panel leg with a continuous interlocking groove for radii greater than 35′-0″. For radii less than 35′-0″, a lower leg height is used in order for the panel to achieve the desired radius. For radii less than 45’-0” and greater than 35’-0” panel leg is button punched en lieu of a continuous bead.


ss10profile


CR-SS10 RADIUS GUIDELINES
Material Minimum
Convex Radius
Minimum
Layover Radius
24 Ga. Steel 3′ 25′
22 Ga. Steel 8′ 35′
.032 Aluminum 2′-6″ 20′
Copper 2′ 20′

7/8” leg and segmented bead panels 25’ long have to be curved.
Radius tighter than 25’ requires 5/8” leg.
Seam caps for layover radius panels need to be curved.
Stiffeners can only be done on layover radius panels.


Finish
DynaClad® 70% Full Strength PVDF Paint Finish

Colors
Choice of over 32 Colors


DOWNLOAD CR-SS10 CUT SHEET

CR-SS10 Cut Sheet





DOWNLOAD PDF DETAILS

Manage and download this product's documents with Submittal Builder
Free to registered users.

Login/Register

Roof Assemblies

SNAP-ON-SEAM requires a solid substrate since it is a non-structural panel system. This system may be installed over plywood sheathing, nail base insulation, or corrugated metal deck. Plywood Sheathing 5/8” min. utilizing a clip 20” o.c. max. is required for use in UL90 constructions.

Uses & Applications

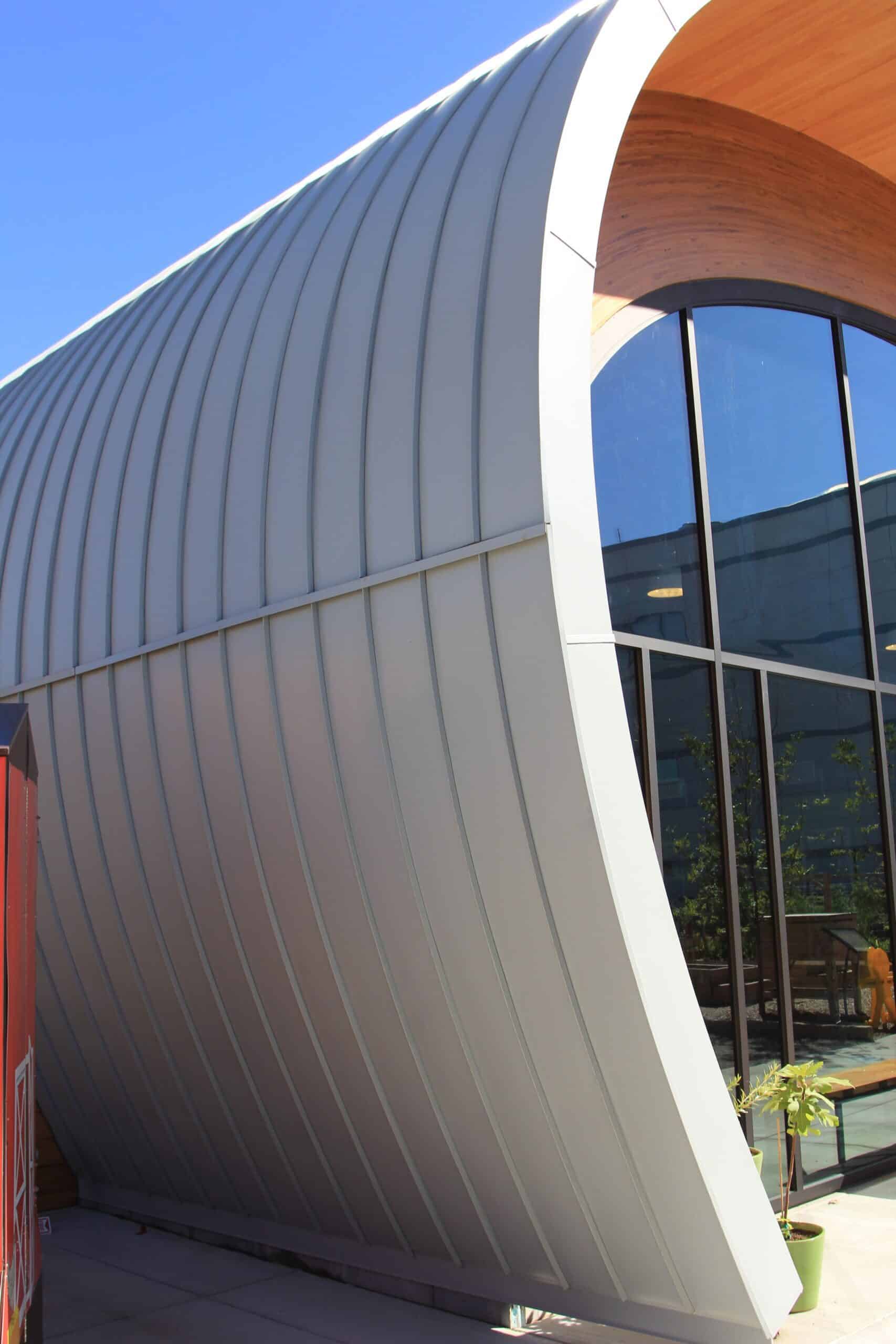

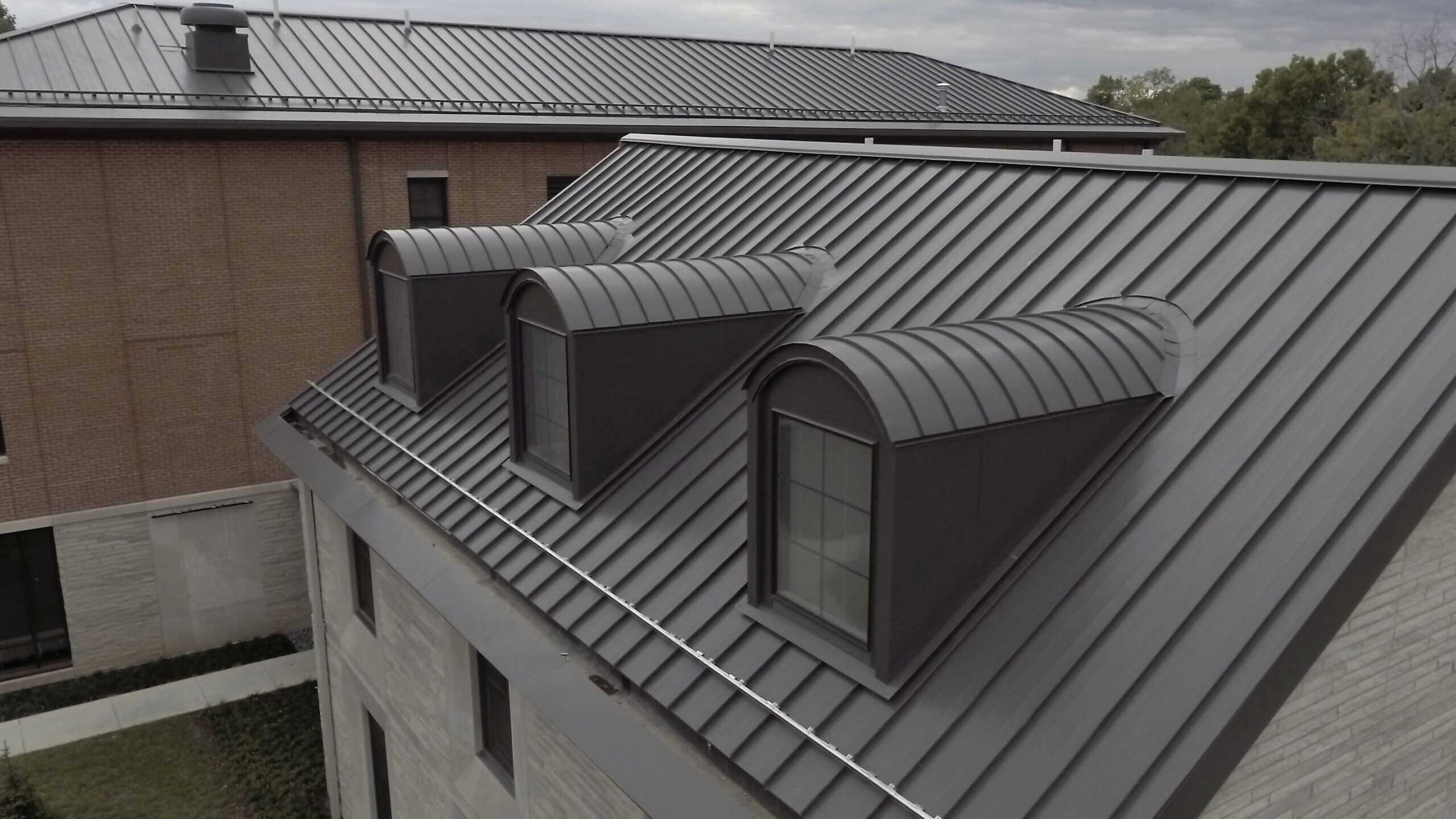

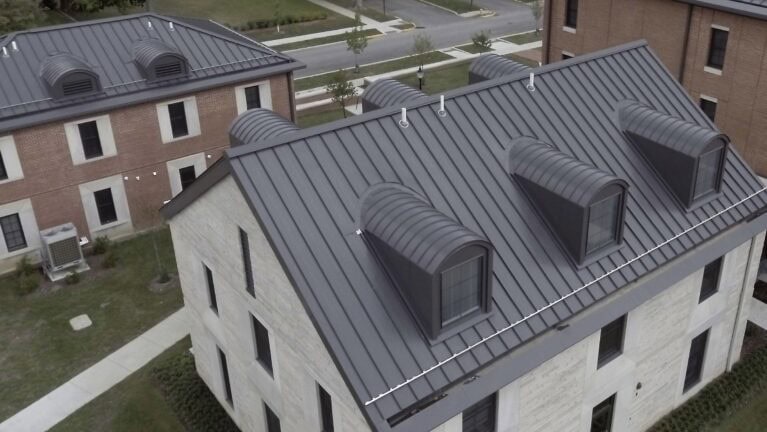

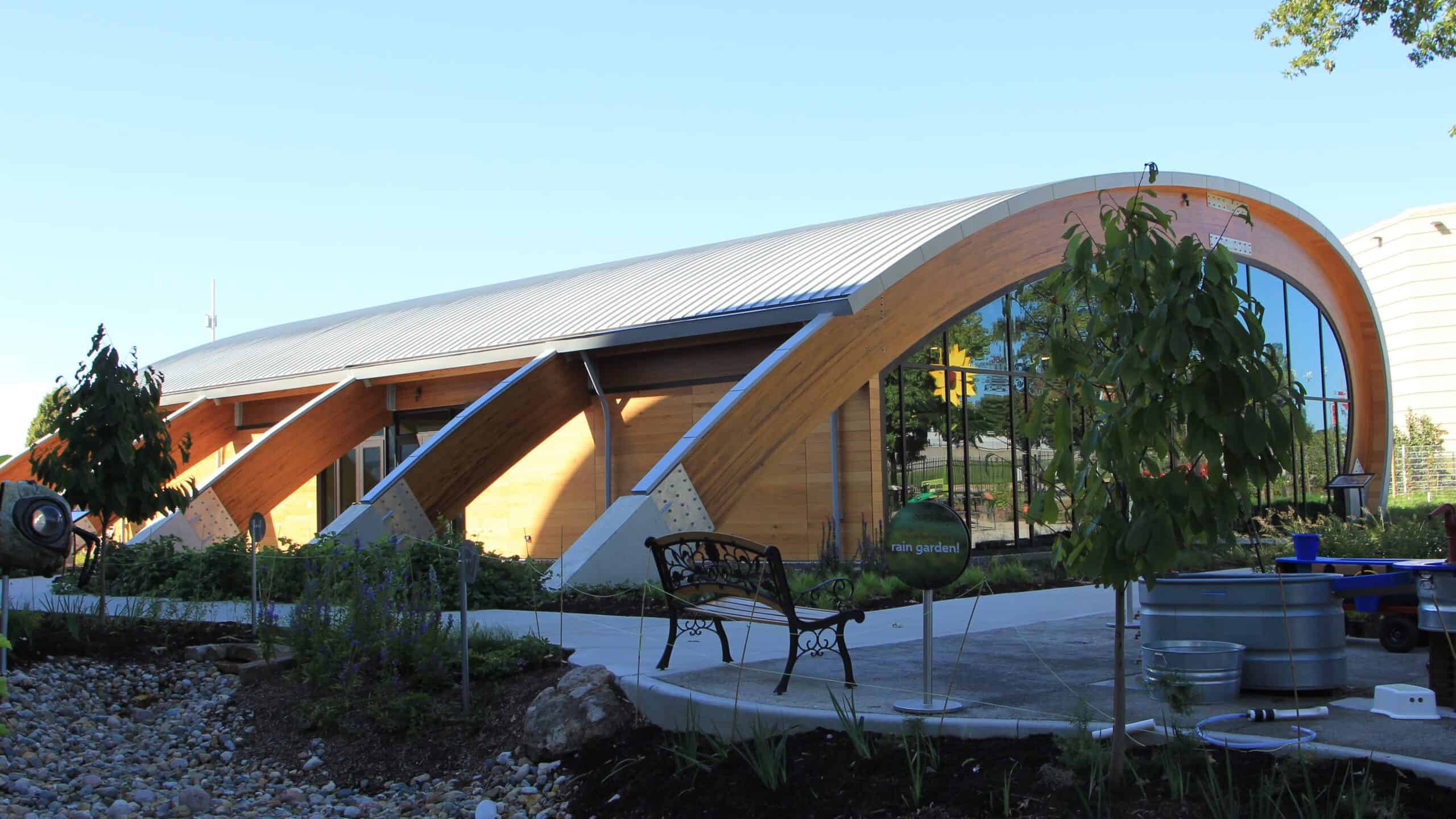

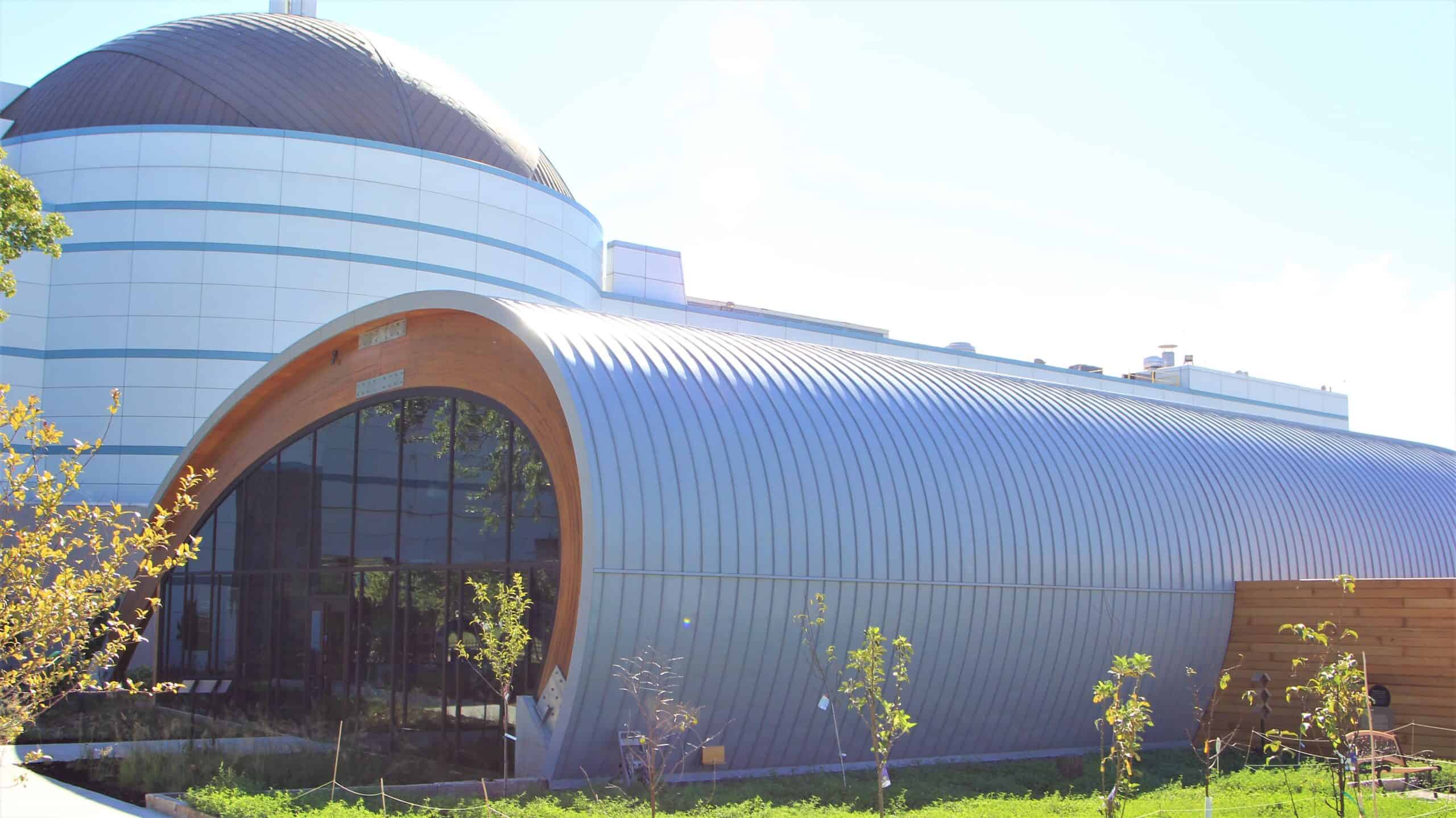

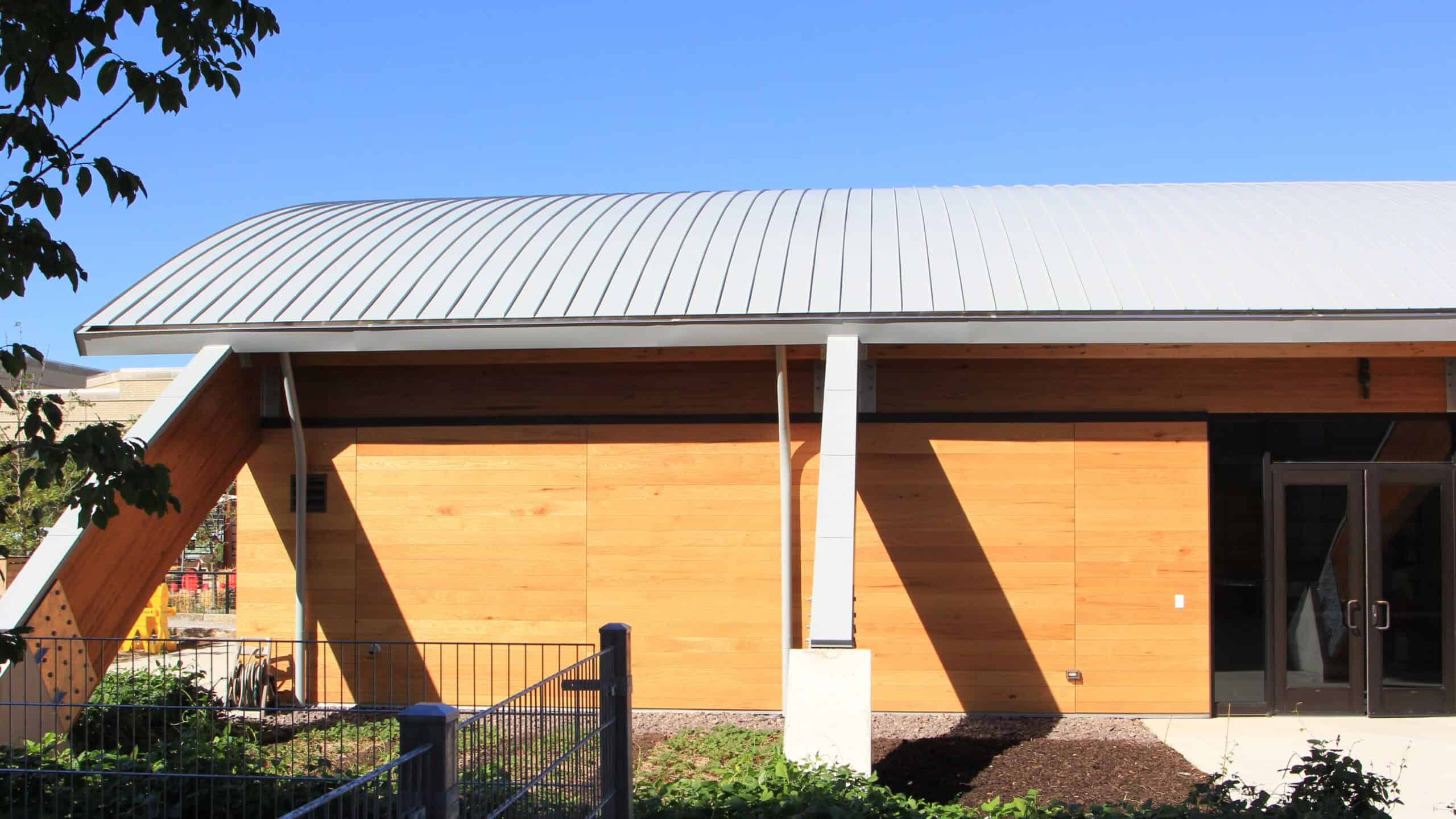

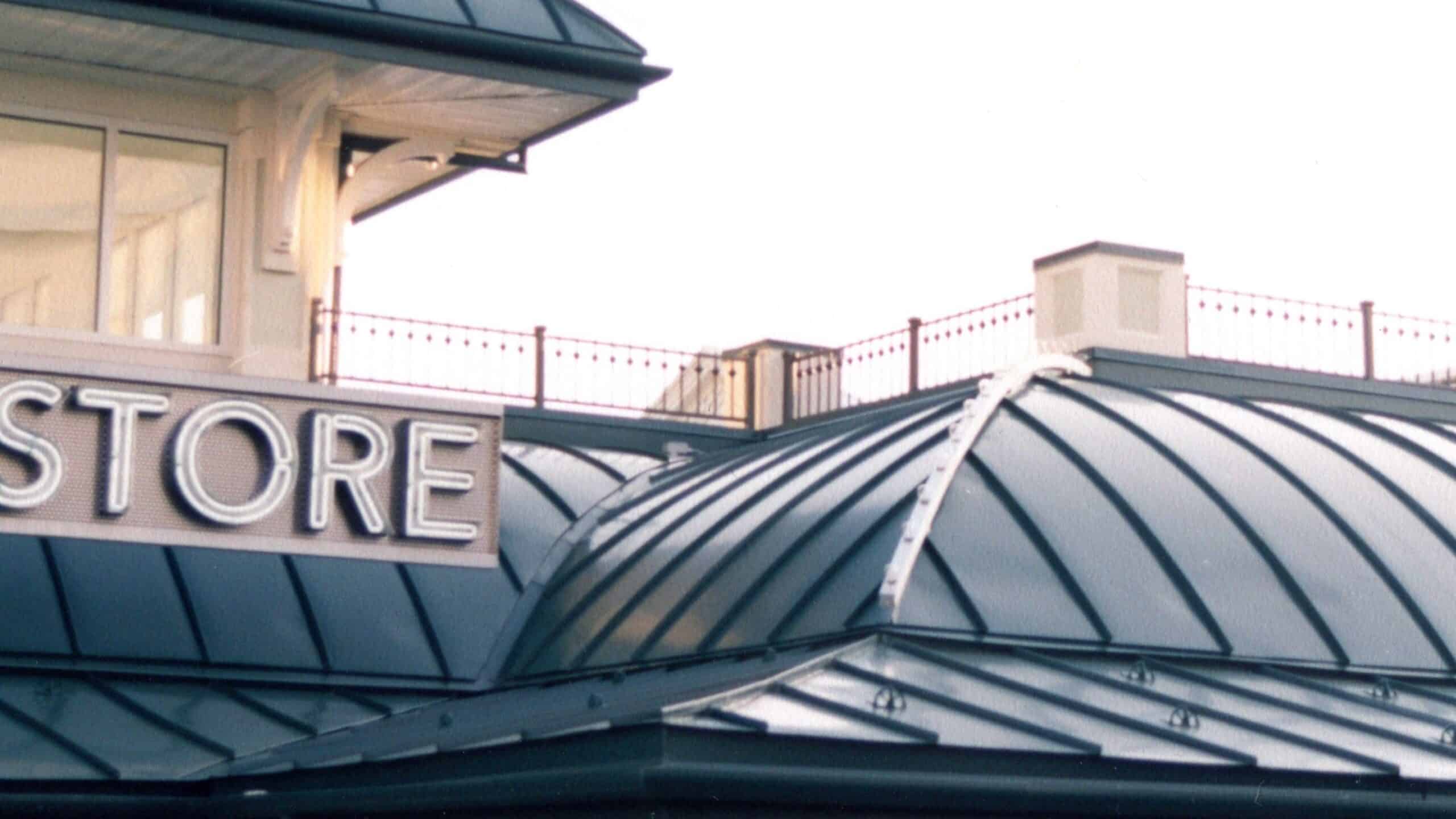

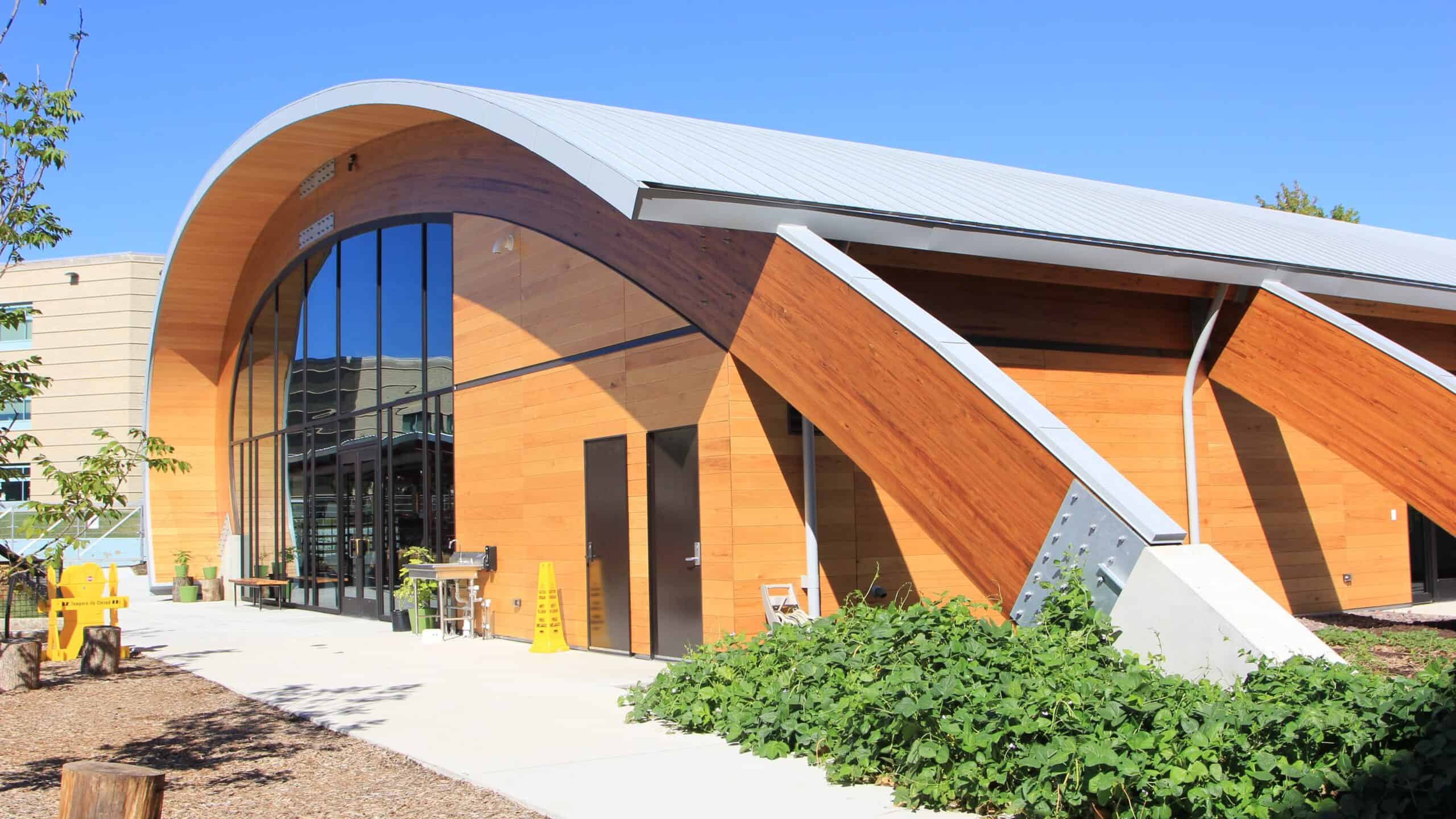

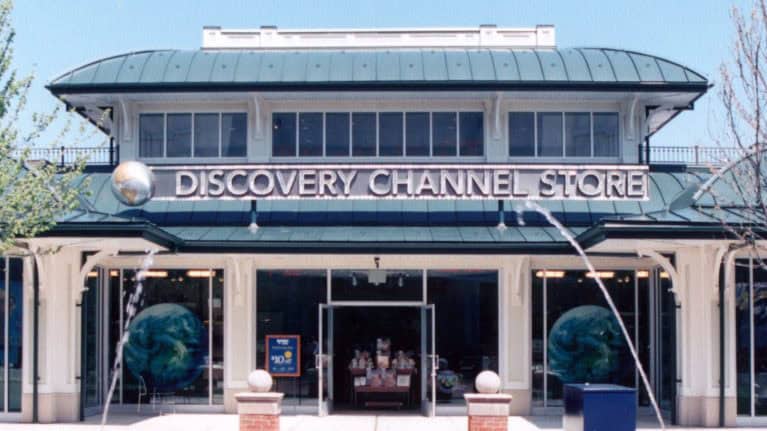

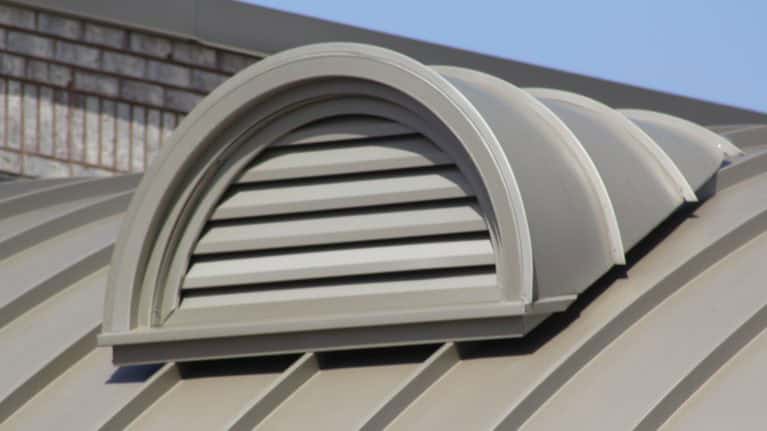

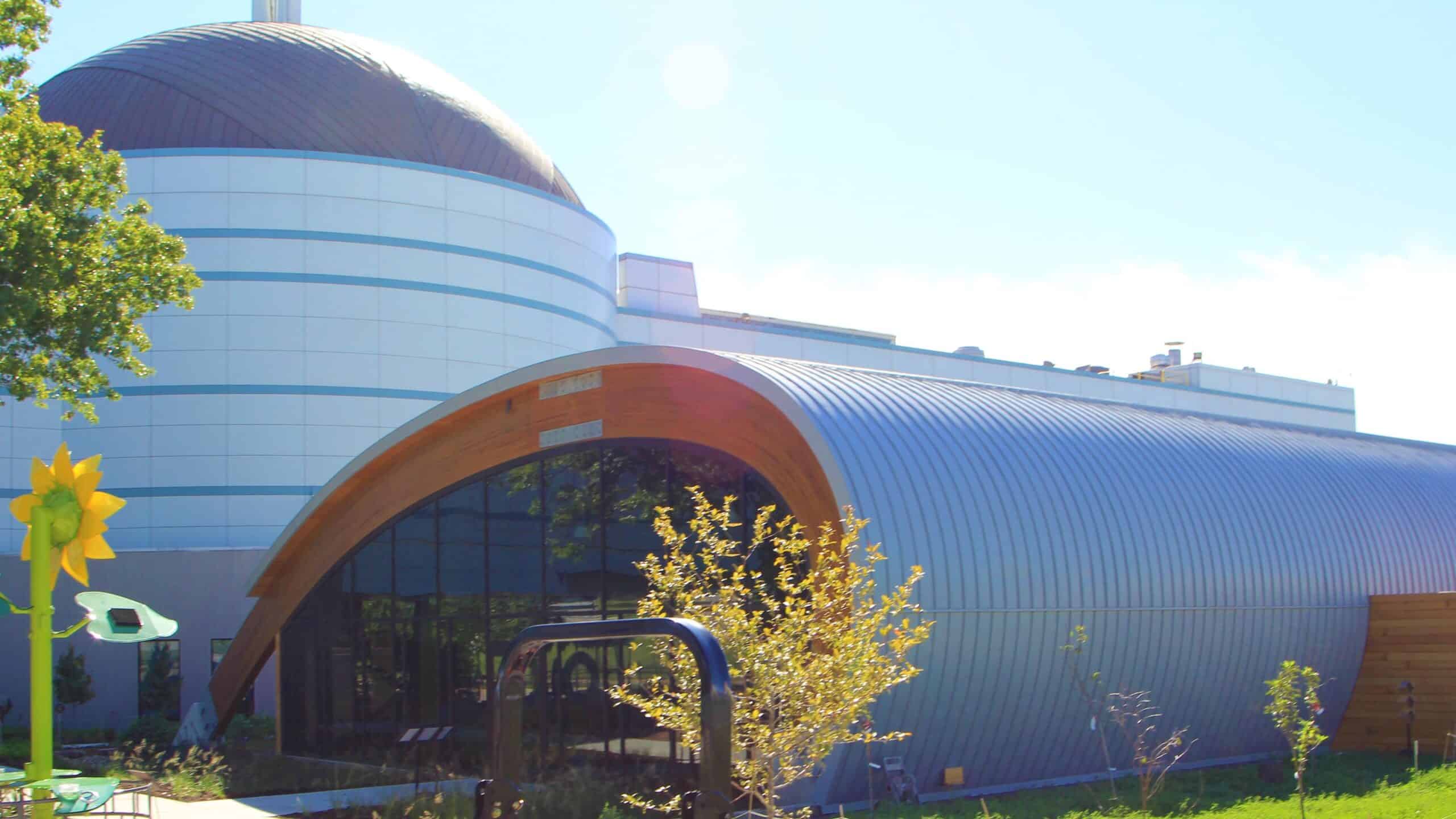

Product uses include curved roofing, barrel vaults, curved canopies, and curved soffit. This system may be curved with a concave or convex radius.

Product Offerings

24 ga., 22 ga. Steel, .032, .040 Aluminum, 16 oz. and 20 oz. Copper
Embossing and various stiffener configurations available

  • SS1012 with 11.625″ o.c. seams
  • SS1016 with 16” o.c. seams
  • SS1018 with 18” o.c. seams

Seam caps available in 24 Ga. Steel, .032 Aluminum and Copper only

Performance Tested

  • UL-580 Wind Uplift
  • ASTM E1646 Water Penetration
  • ASTM E1680 Air Leakage

Advantages

  • Optional Factory Applied Non-Curing Sealant: For superior watertightness
  • Engineered Snap-Together Design: Easy installation
  • Expansion Clips: Allows for unlimited thermal expansion and contraction Continuous Interlocking
  • Seam Cap: No seam disengagement Continuous Rollformed Lengths: eliminates need for panel lap joints
  • Total System Warranties Available: For total confidence
